Kooks 750201 Spark Plug Wire Sleeve Kit 8 Pack for LS LT Engines 7.5 in. Glass Fiber

Glass Fiber Spark Plug Wire Sleeves That Shield LS and LT Engine Wires from Header Heat

The 750201 is an 8 pack of 7.5 inch glass fiber spark plug wire sleeves engineered specifically for GM LS and LT engine applications where long tube headers bring the exhaust tubes into close proximity with the ignition wires. When headers are installed on an LS or LT powered vehicle, the exhaust primaries route through areas that the OEM wire harness was never exposed to, creating a heat damage risk for the plug wire insulation. These sleeves slip over existing spark plug wires at the critical zone nearest the header tubes, providing a glass fiber thermal barrier that protects the wire insulation and maintains consistent ignition performance.

Each sleeve in the 750201 kit is 7.5 inches long, sized to cover the section of the wire that passes closest to the header primary tubes on LS and LT engines. Glass fiber is the material of choice for this application because it is non conductive, highly heat resistant, and flexible enough to accommodate the curve of the wire routing without cracking or splitting. Installing these sleeves at the same time as your Kooks headers is the straightforward way to protect your ignition wires and avoid heat related misfires down the road. The kit contains 8 sleeves for a complete V8 installation.

Key Features

• 8 pack covers all 8 cylinders of a GM LS or LT V8 engine in one kit
• 7.5 inch length protects the critical section of the wire nearest to header primaries
• Glass fiber construction provides excellent thermal resistance and flexibility
• Non conductive material will not interfere with ignition performance
• Designed for use with Kooks long tube headers on LS and LT applications
• Slip on design for straightforward installation over existing spark plug wires
• Prevents heat related ignition misfires and premature wire degradation

What's Included

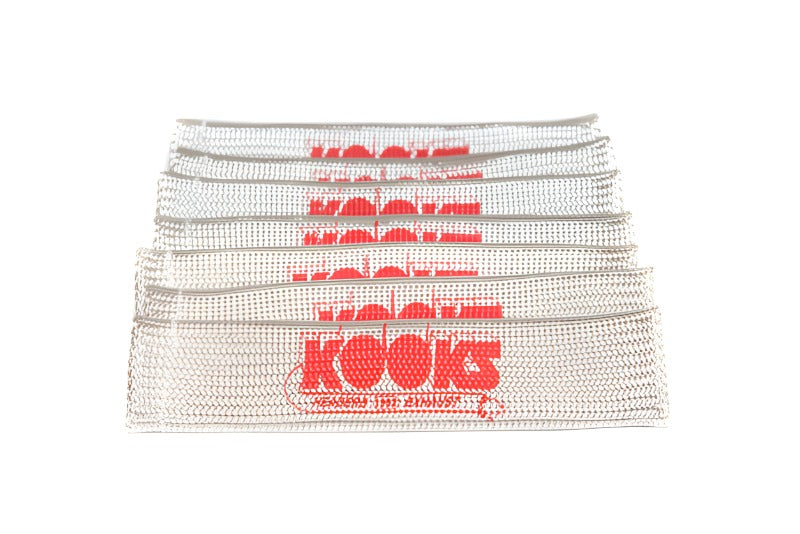

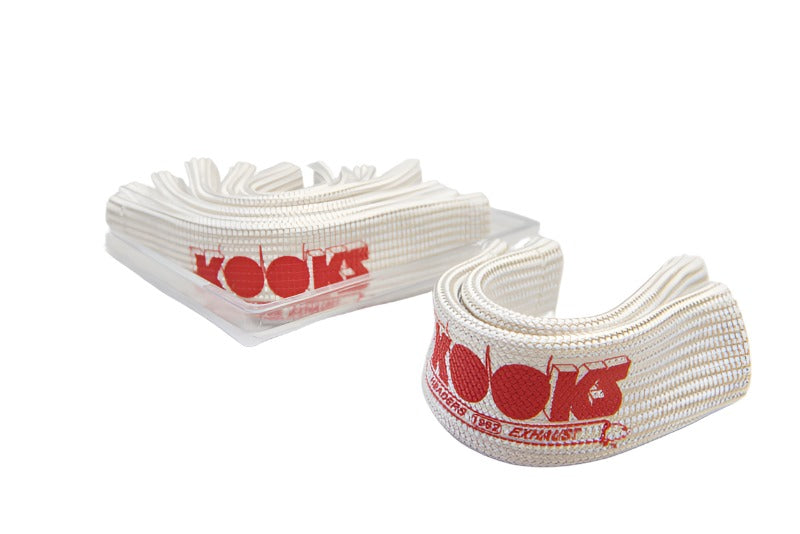

• 8 x 7.5 inch glass fiber spark plug wire sleeves

Specifications

Frequently Asked Questions

What are these sleeves for?
These sleeves are thermal protection covers that slip over existing spark plug wires to shield them from the heat radiated by long tube headers. They are specifically designed for GM LS and LT engine applications where header installation brings exhaust tubes close to the ignition wires.

Do I need to replace my spark plug wires if I install these sleeves?
No. These sleeves protect your existing OEM or aftermarket spark plug wires. They slip over the outside of the wire without replacing it, adding a heat resistant barrier at the critical routing zone.

How long is each sleeve?
Each sleeve is 7.5 inches long, sized to cover the section of the spark plug wire most exposed to header heat on GM LS and LT engine installations.

Will the sleeves fit over my existing plug wires?
These sleeves are sized to accommodate standard spark plug wire diameters typical of LS and LT applications. If you are running unusually thick aftermarket wires, verify the sleeve inside diameter against your wire diameter before ordering.

Do the sleeves affect ignition performance?
No. Glass fiber is non conductive, so the sleeves do not interfere with the electrical signal passing through the spark plug wire. Ignition performance is unchanged.

Can I use these sleeves on non Kooks headers?
Yes. The sleeves provide heat protection regardless of header brand. Any LS or LT application where headers bring exhaust tubes close to ignition wires can benefit from these sleeves.

Do the sleeves require any adhesive or clamps to stay in place?
The sleeves are designed to stay in position through the routing constraints of the wire path. In some applications, a small wrap of heat resistant tape at each end can provide extra security.

What happens if I do not protect the wires from header heat?
Prolonged heat exposure can degrade the insulation on spark plug wires, leading to cracks, shorts, and ignition misfires. In severe cases, damaged wire insulation can cause electrical faults in nearby harnesses.

Is this kit suitable for LT1, LT4, and LT5 engines?
Yes. This kit is designed for GM LS and LT engines broadly, covering LS1 through LS9 variants and modern LT series engines including LT1, LT4, and LT5.

Installation Instructions

1. With the vehicle cool and ignition off, locate the spark plug wires nearest the header primary tubes.
2. Carefully slide each sleeve over the plug wire, positioning it to cover the section running closest to the exhaust tube.
3. Ensure the sleeve covers the full heat exposure zone. Overlap with any existing wire sleeving is acceptable.
4. If desired, secure the ends of each sleeve with a small wrap of high temperature tape to prevent slipping during engine operation.
5. Verify all plug wire connections are still firmly seated at both the coil and spark plug ends after sleeve installation.
6. Start the engine and monitor for any ignition issues during the first heat cycle.
