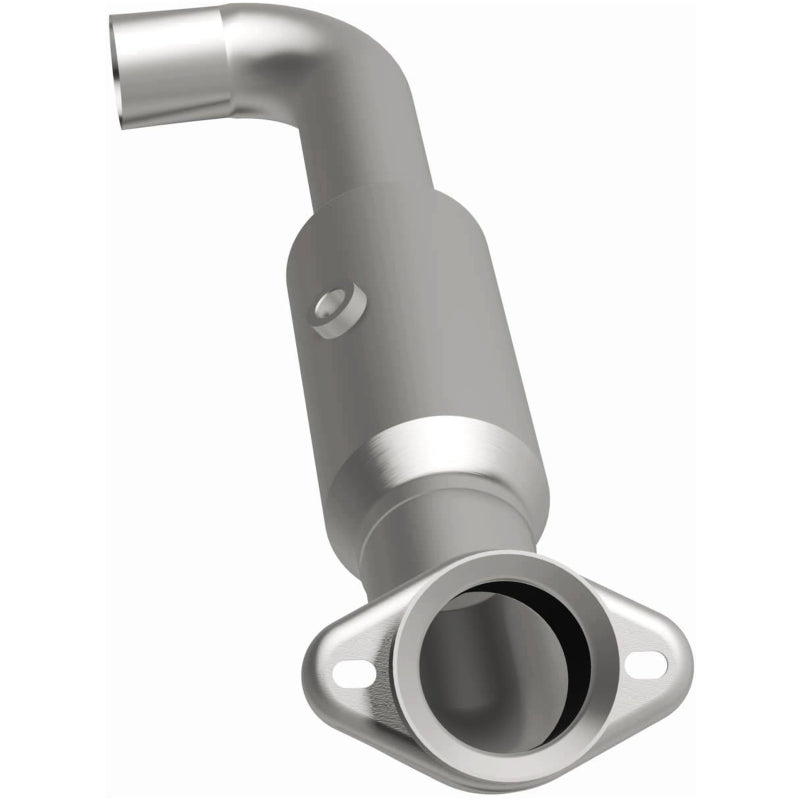

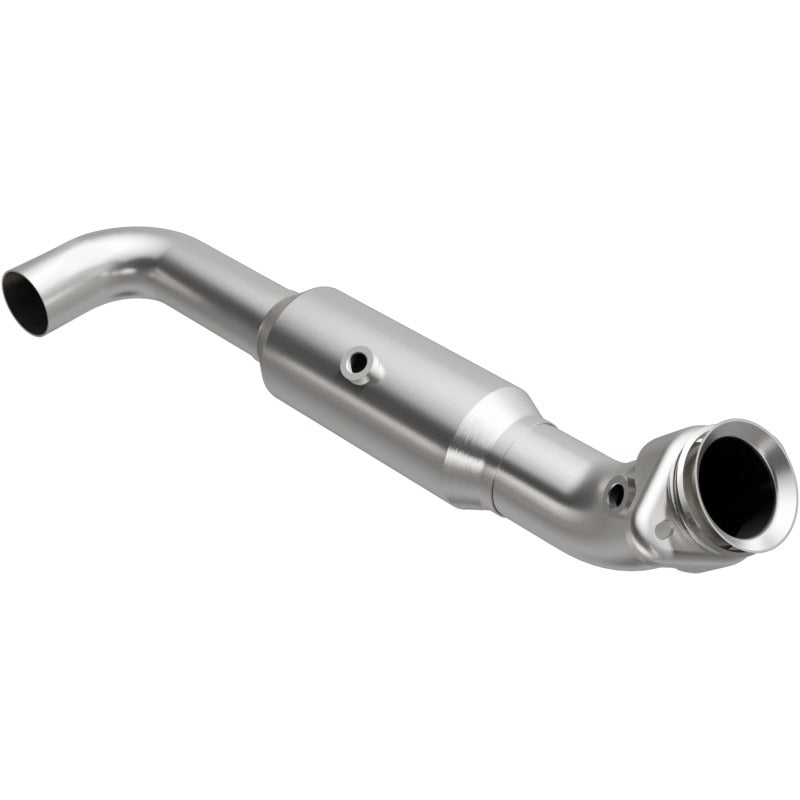

OEM-Grade Direct-Fit Catalytic Converter for the 2010-2014 Ford F-150 6.2L V8
The MagnaFlow MAG21-520 drops into your 2010 to 2014 Ford F-150 6.2L V8 exactly where the factory converter came out, no cutting, no welding, and no check engine light. Built to Federal EPA emissions standards for OBDII federally registered vehicles, the MAG21-520 replicates the OE spun body design down to the mounting flanges, so fitment is precise and the seal is tight. MagnaFlow engineers used 3D scanning during development to match the OE geometry of part AL3Z-5E212-D, meaning the MAG21-520 arrives ready to bolt in and run. The mandrel-bent stainless steel construction handles long-term heat cycles without the cracking and rust that take out factory units, and the ceramic substrate meets or exceeds original equipment emissions performance from day one. If your 6.2L F-150 is throwing a P0420 or P0430 and the factory cat is done, this direct-fit converter is the answer.
Key Features
- Direct-fit design for 2010 to 2014 Ford F-150 6.2L V8, driver side (left) position, OE part AL3Z-5E212-D interchange
- Federal EPA compliant, meets OBDII emissions requirements for federally registered vehicles
- OEM Grade spun body construction with single laser fusion weld for leak resistance
- Free-flowing mandrel-bent stainless steel tubing for improved exhaust flow
- Highly corrosion resistant stainless steel body and pipe construction
- Ceramic substrate engineered to meet or exceed OE catalytic performance
- Compact, low-mass design for greater thermal efficiency and faster light-off
- Bolt-on installation using proper hand tools, no cutting or welding required
- 28.25 inch overall length matches OE dimensions for precise drop-in replacement
- 5-year limited warranty (construction), 25,000-mile limited warranty (emissions)
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2010-2014 | Ford | F-150 | FX2, FX4, Harley-Davidson, King Ranch, Lariat, Platinum, Raptor, SVT Raptor, XL, XLT |
Specifications
| Detail | Value |
|---|---|
| Part Number | MAG21-520 |
| Brand | MagnaFlow |
| Position | Driver Side (Left) |
| Overall Length | 28.25 in |
| Body Material | Stainless Steel |
| Pipe Material | Stainless Steel (Mandrel-Bent) |
| Substrate Type | Ceramic |
| Construction | OEM Spun Body, Single Laser Fusion Weld |
| Emissions Compliance | Federal EPA (Non-CARB) |
| OE Interchange | AL3Z-5E212-D |
| Installation | Bolt-On, No Cutting or Welding |
| Warranty (Construction) | 5-Year Limited |
| Warranty (Emissions) | 25,000-Mile Limited |
| UPC | 841380155666 |
What's Included
- MagnaFlow MAG21-520 direct-fit catalytic converter (driver side)
- Hardware and gaskets as required for bolt-on installation
Frequently Asked Questions
Will this converter fit my 2011 Ford F-150 with the 6.2L V8?Yes. This converter is designed for all 2010 to 2014 Ford F-150 trucks equipped with the 6.2L V8 engine in the driver side (left) catalytic converter position. It interchanges directly with OE part number AL3Z-5E212-D. If your truck is 2010 to 2014 with a 6.2L and you are replacing the driver side unit, this is the correct part.
Is this converter legal in California, Colorado, or New York?No. This is a Federal EPA compliant converter and is not CARB certified. It is not legal for sale or use in California, Colorado, or New York on vehicles registered in those states. If your vehicle is registered in one of those states, you will need a CARB-compliant replacement unit. Check your state's emissions regulations before purchasing.
Will this converter clear my check engine light?Yes, when installed on a 2010 to 2014 Ford F-150 6.2L in the correct driver side position. It meets or exceeds Federal EPA catalytic efficiency thresholds required by OBDII monitors, so a P0420 or P0430 triggered by a failing OE converter should not return after installation, assuming no other exhaust or oxygen sensor issues are present on the vehicle.
Does this converter require cutting or welding?No. This is a direct-fit bolt-on converter. It replicates the OE spun body geometry and mounting flange dimensions, so it removes and reinstalls using the same hardware positions as the factory unit. Standard hand tools are sufficient for the job, and no exhaust pipe cutting or welding is required.
What does the warranty cover?MagnaFlow backs this converter with a 5-year limited warranty covering construction defects in materials and workmanship, and a separate 25,000-mile limited warranty covering emissions performance. Warranty coverage applies to the original purchaser and requires proof of purchase. It does not cover damage from improper installation, engine problems, or use outside the specified application.
How long does installation typically take on the 2010-2014 F-150 6.2L?Most experienced DIY mechanics and shops complete the driver side catalytic converter swap on a 2010 to 2014 F-150 6.2L in one to two hours. The truck should be fully cooled before starting work. Penetrating oil applied to the mounting hardware a day in advance is strongly recommended on high-mileage trucks where the factory hardware may be seized.
What OE part number does the MAG21-520 replace?The MAG21-520 is a direct replacement for Ford OE part number AL3Z-5E212-D. MagnaFlow engineers used 3D scanning during development to match the original equipment geometry precisely, so the bolt pattern, inlet and outlet diameters, and overall length are engineered to match the factory converter on the 2010 to 2014 F-150 6.2L driver side position.
What is the difference between the driver side and passenger side catalytic converters on the 6.2L F-150?The 6.2L V8 in the 2010 to 2014 F-150 uses dual exhaust banks, each requiring its own catalytic converter. This converter covers the driver side (left) position. If you are also replacing the passenger side converter, you will need the corresponding MagnaFlow part for that position. Replacing both at the same time is recommended if both are showing efficiency failures, as the passenger side unit experiences similar heat cycles and age.
Can I use this converter on a 6.2L F-150 with aftermarket intake or a tune?Yes. This is a factory-spec replacement converter and is compatible with bolt-on performance modifications such as cold air intakes and handheld tunes that do not alter the catalytic bypass or run open-loop emissions programs. It is not designed for use with exhaust systems that have removed or bypassed catalytic converters, and it is not appropriate for dedicated race or off-road use.
Installation Overview
- Allow the exhaust system to cool completely before beginning any work. Never work on a hot exhaust system.
- Raise the vehicle safely using jack stands at the manufacturer-specified lift points and ensure it is stable before working underneath.
- Apply penetrating oil to all exhaust flange hardware the night before installation, especially on high-mileage trucks.
- Disconnect the upstream and downstream oxygen sensors on the driver side using an O2 sensor socket to avoid damaging the sensor wiring harness.
- Remove the exhaust flange bolts connecting the front pipe to the catalytic converter inlet, and the bolts at the mid-pipe outlet flange.
- Slide out the factory catalytic converter and compare it to the replacement to confirm correct fitment before installation.
- Install new gaskets at both inlet and outlet flanges, then position the new converter and start all hardware by hand before torquing.
- Torque all exhaust flange hardware to factory specification to prevent exhaust leaks.
- Reinstall the upstream and downstream oxygen sensors and reconnect their harnesses.
- Lower the vehicle, start the engine, and inspect all joints for exhaust leaks with the engine at operating temperature.
- Clear any stored DTCs with a scan tool and perform a drive cycle to confirm the OBDII catalyst monitor runs clean.
