Manley Performance Manley 02+ Honda CRV 2.4L V-Tech DOHC K24 H-Beam Connecting Rod - SINGLE ROD
Click to zoom in

Manley 02+ Honda CRV 2.4L V-Tech DOHC K24 H-Beam Connecting Rod - SINGLE ROD

MAN14015-1
807298078441
Connecting Rods - Single
8 Units In Stock - Ships Next Business Day
$ 153.96 $ 138.56
$ 138.56

SKU: 14015-1 | UPC: 807298078441

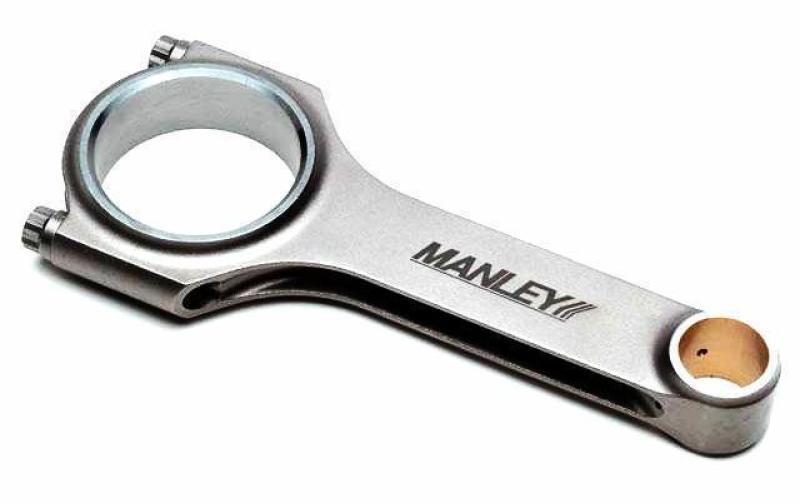

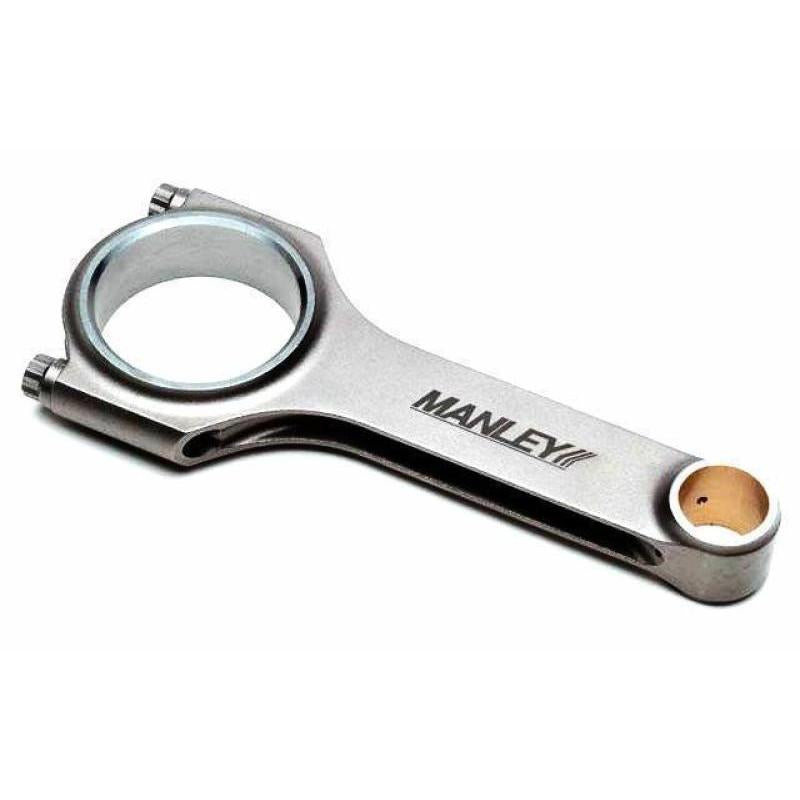

Manley 02+ Honda CRV 2.4L V-Tech DOHC K24 H-Beam Connecting Rod - SINGLE ROD

Manley H-Beam connecting rods deliver strength for Honda K24 engine builds in 2002+ CR-V models and compatible vehicles. Forged from 4340 steel with ARP2000 bolts, this single rod supports high-rpm performance and reliability. Ideal for enthusiasts rebuilding or upgrading 2.4L DOHC VTEC engines.

Key Features

  • Forged 4340 Steel: Heat-treated alloy withstands extreme stresses in performance applications
  • H-Beam Design: Provides high strength-to-weight ratio for smoother engine operation
  • ARP2000 Bolts: 220,000 psi tensile strength cap screws ensure secure assembly
  • Lightweight Build: 582 grams per rod reduces rotating mass for quicker revs
  • Precise Dimensions: 149.1mm center-to-center length, 55mm big-end bore, 22mm wrist pin

Product Notes

  • Sold as single rod - purchase four for inline-four or six for V6 conversions
  • Pre-assembled and resized for immediate use with compatible bearings
  • Ships in protective sleeve and box, handling weight 1.3 lbs

Installation Notes

  • Professional installation recommended.
  • Torque ARP bolts to 60 ft-lbs with ARP moly lube
  • Compatible with Honda OEM bearings and performance pistons

This Part Fits

Year Make Model Submodel
2002-2006 Honda CR-V 2.4L K24A1
2003-2007 Honda Element 2.4L K24A4
2003-2007 Honda Accord 2.4L K24A4
2004-2008 Acura TSX 2.4L K24A2
2006-2011 Honda Civic Si 2.4L K24Z3
2007-2009 Honda CR-V 2.4L K24Z1

Why Choose Manley?

  • Decades of experience in performance engine components
  • Every rod inspected for balance and straightness
  • Built to handle 800+ horsepower in K24 applications

Frequently Asked Questions

  • Q: Will this rod fit a 2004 Honda CR-V K24A1?
    A: Yes, direct fit for 2002-2006 CR-V 2.4L engines with matching rod journal specs
  • Q: What material and finish does it have?
    A: Forged 4340 steel with crack-tested H-beam shape and bronze top wrist-pin bushing
  • Q: What warranty applies and install tips?
    A: Limited lifetime warranty on defects. Use plastigage for bearing clearance, aim for 0.002-0.003 inch

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective box 12 x 4 x 2 inches
  • Weight: 1.3 lbs shipping / 582 grams rod
