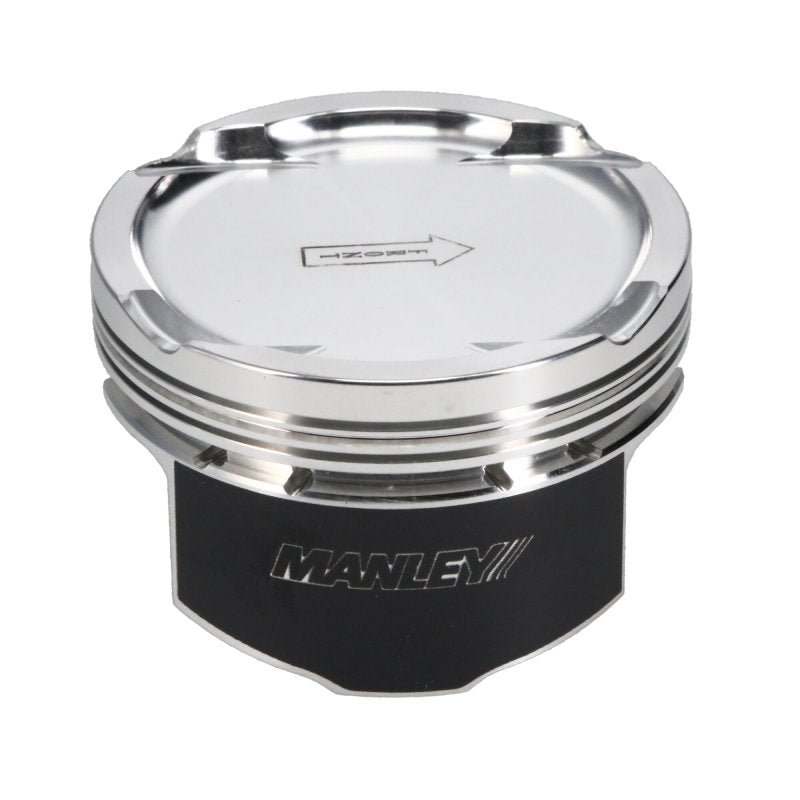

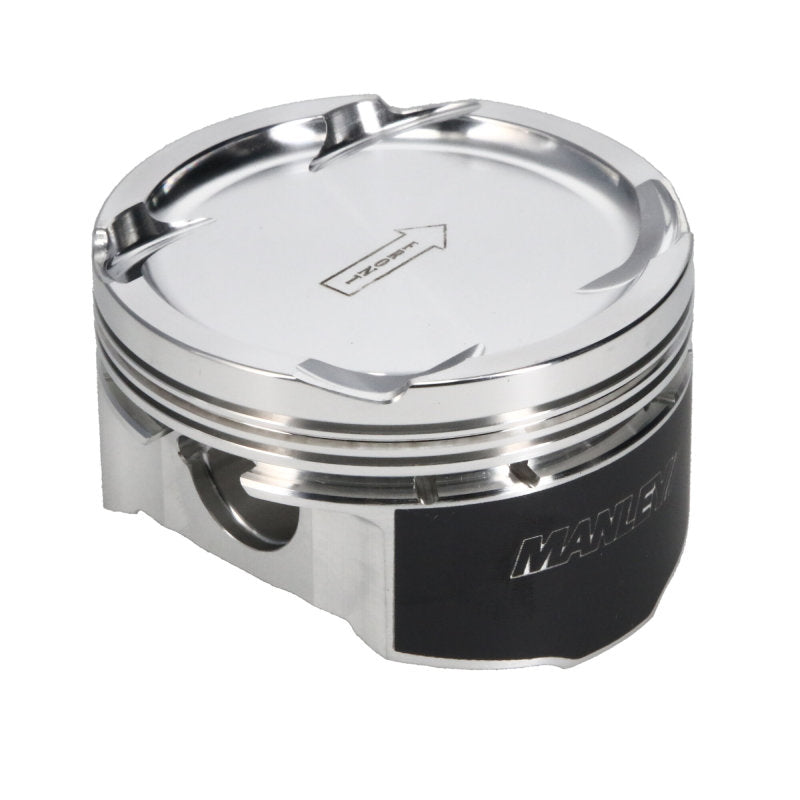

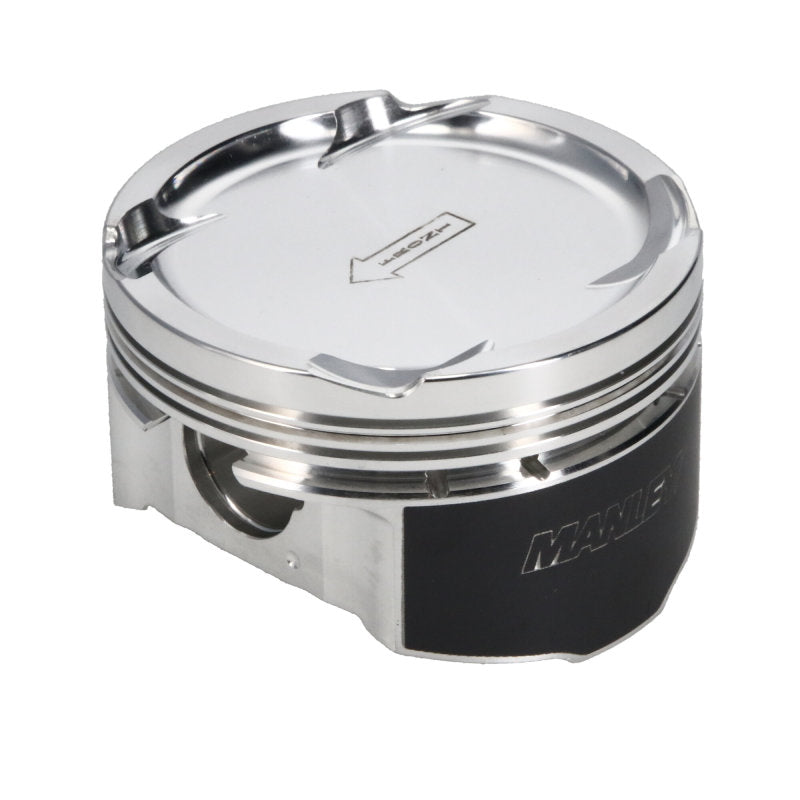

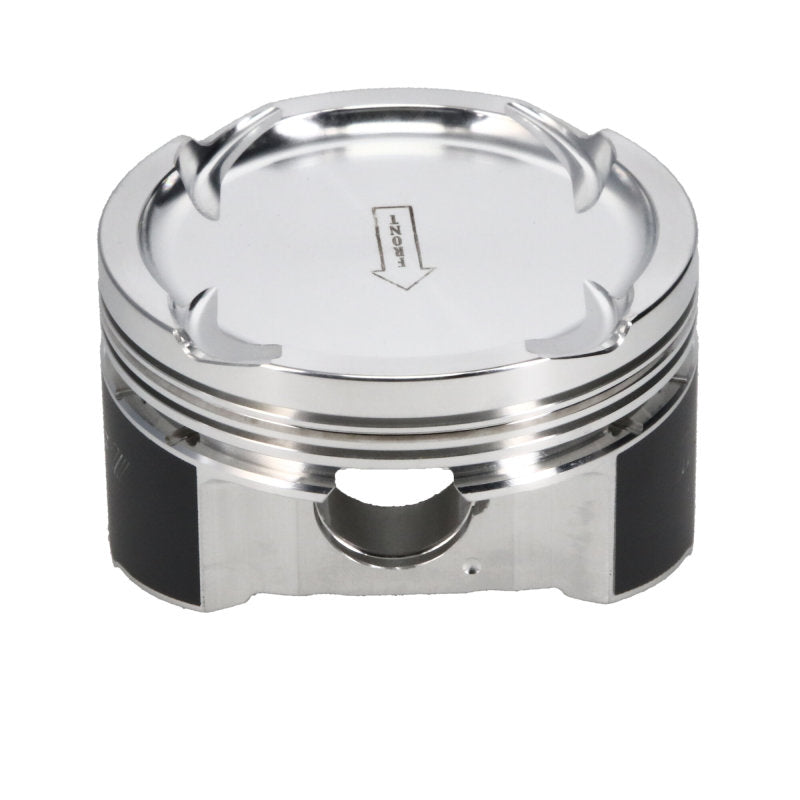

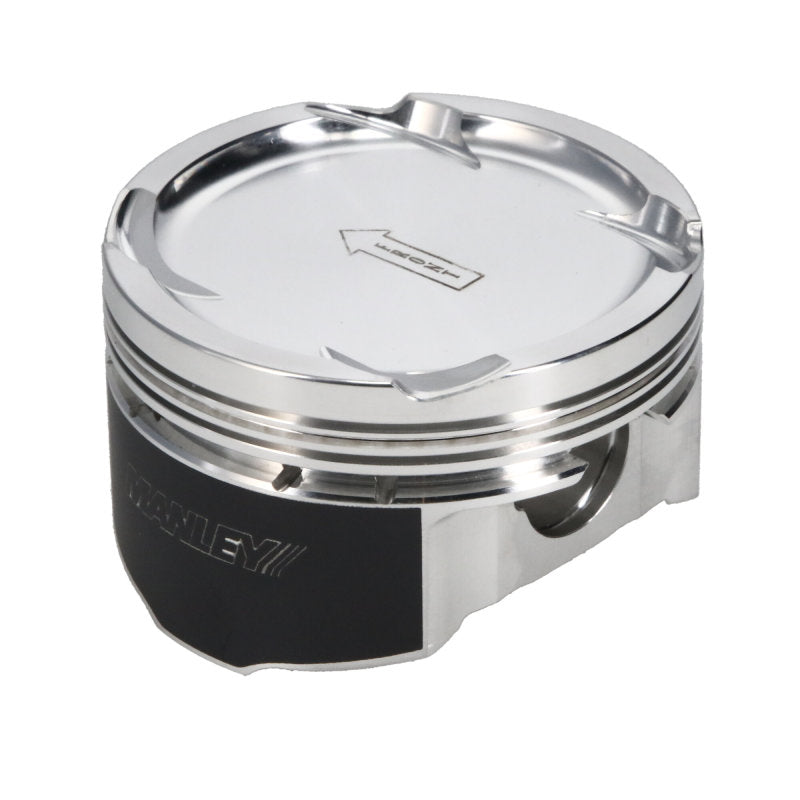

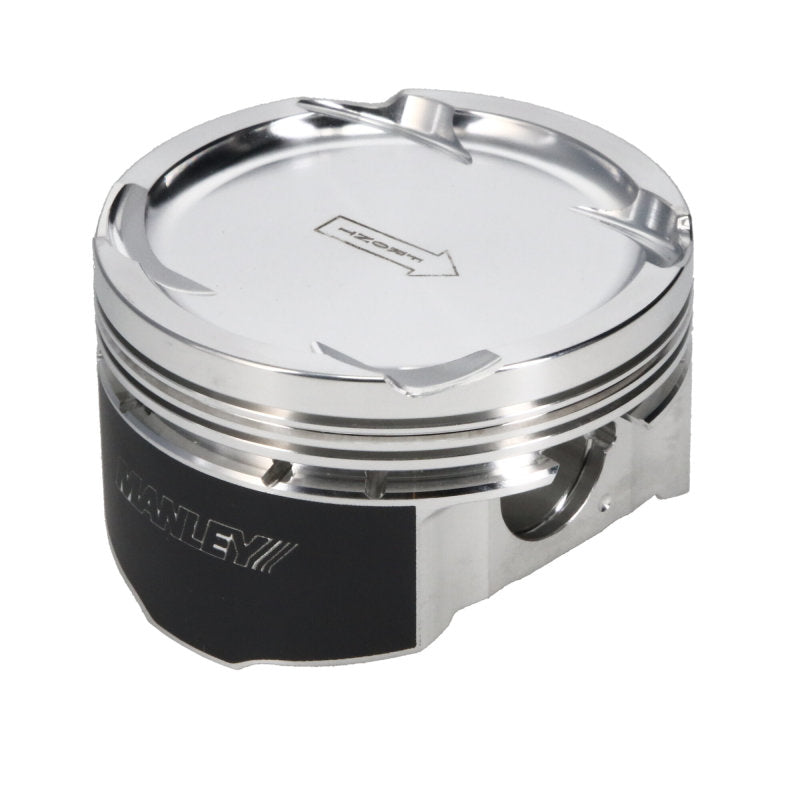

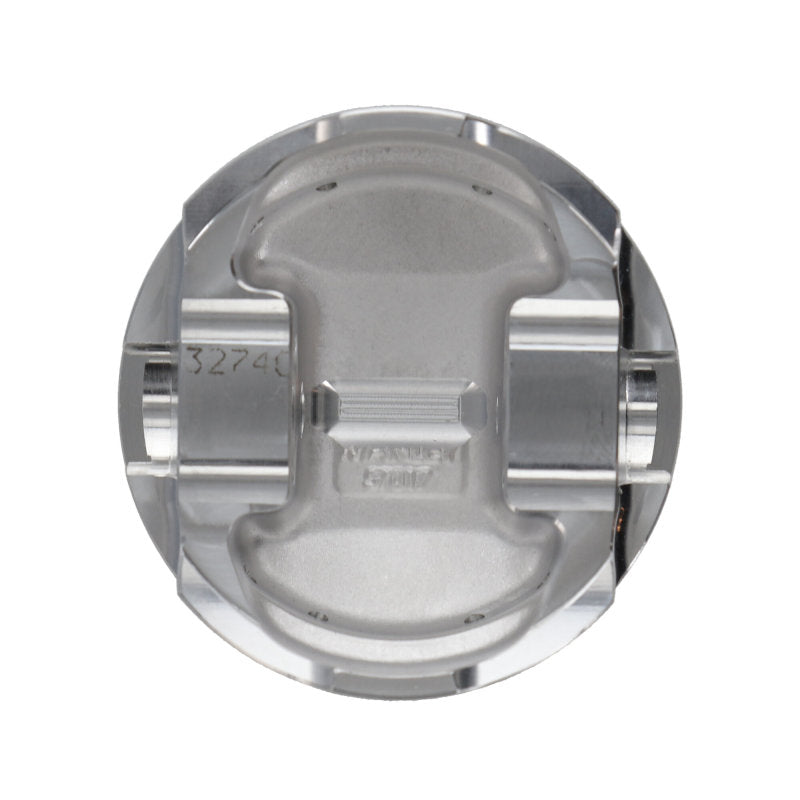

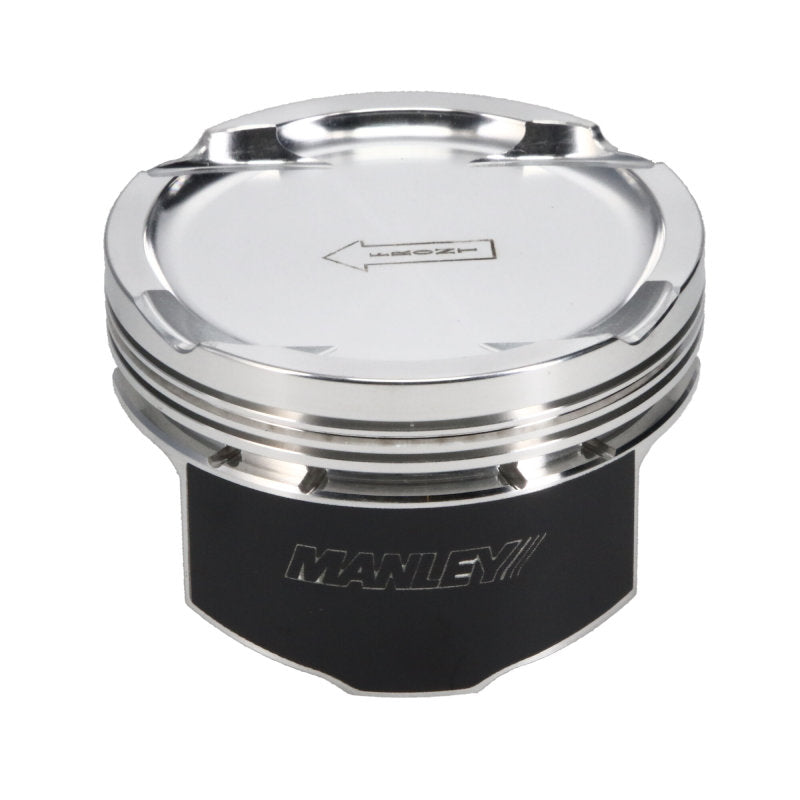

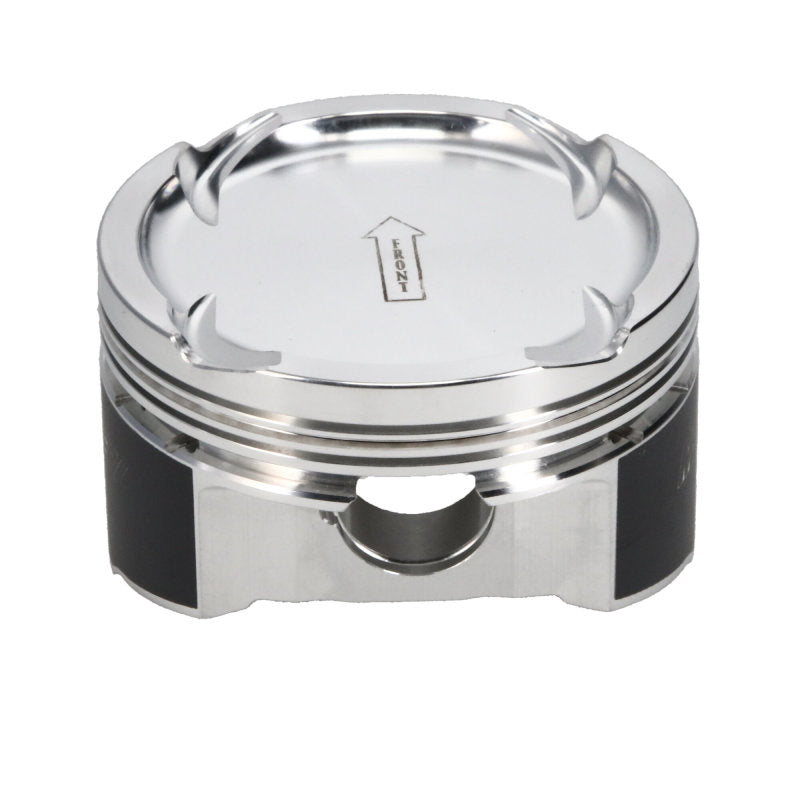

Manley 08+ Mitsubhi Evo X (4B11T) 94mm Stroker 86.5mm +0.5mm Bore 9.0:1 Dish Piston Set with Rings

MAN624005C-4
807298073613
Piston Sets - Forged - 4cyl
1 Units In Stock - Ships Next Business Day
$ 805.63 $ 741.18
$ 741.18

SKU: 624005C-4 | UPC: 807298073613

Manley 08+ Mitsubishi Evo X (4B11T) 94mm Stroker 86.5mm +0.5mm Bore 9.0:1 Dish Piston Set with Rings

Manley Platinum Series pistons transform your Mitsubishi Lancer Evolution X 4B11T engine with a 94mm stroker setup and 86.5mm +0.5mm bore for increased displacement and power. These forged pistons fit 2008-2015 Evo X models including MR GSR and MR Touring submodels. Engine builders choose them for strength in high-boost turbo applications with 9.0:1 compression ratio.

Key Features

  • 2618-T61 Forged Alloy: High-silicon aluminum withstands extreme heat and boost pressure in 4B11T engines
  • 94mm Stroker Design: Increases displacement for more torque and horsepower paired with 5.748 inch rod length and 1.181 inch compression height

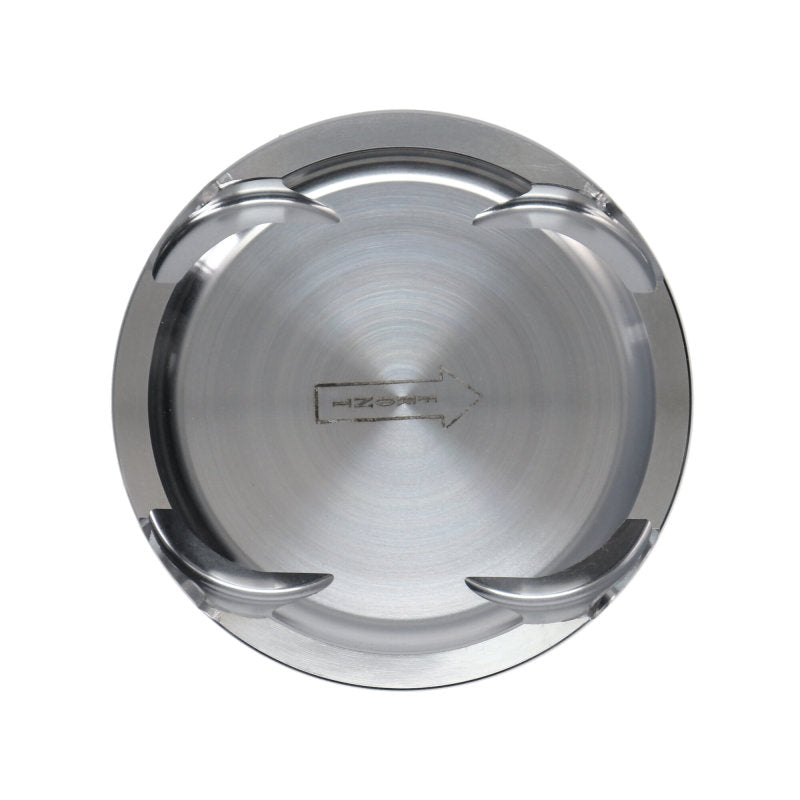

  • Dish Top 9.0:1 CR: 6.1cc volume balances power and turbo safety with accumulator groove for better ring seal
  • Tool Steel Wrist Pins: H13 HRC 38-44 hardness reduces weight to 388 grams pinned per piston for quick revving
  • Moly Skirt Coating and Rings: Low-friction skirts with included 1.0mm nitrided top 1.2mm taper face second and 2.8mm oil rings prevent scuffing

Product Notes

  • Requires 94mm stroke crankshaft and shortened connecting rods for stroker assembly
  • Verify cylinder bore and hone to 86.5mm before installation
  • Boxed set of 4 pistons pins and rings weighs 4 lbs for shipping

Installation Notes

  • Professional installation recommended.
  • Set ring end gaps to Manley specs: top 0.0045 inch second 0.0045 inch oil 0.020 inch per 1000hp
  • Compatible with stock or aftermarket rods with 0.866 inch pin diameter

This Part Fits

Year Make Model Submodel
2008-2015 Mitsubishi Lancer Evolution GSR
2008-2015 Mitsubishi Lancer Evolution MR
2010-2011 Mitsubishi Lancer Evolution MR Touring

Why Choose Manley?

  • Proven in NHRA Pro Stock and import drag racing
  • CNC machined in USA for exact tolerances
  • Backed by decades of engine building expertise

Frequently Asked Questions

  • Q: Will this fit my 2009-2015 Evo X 4B11T engine?
    A: Yes fits all 2008-2015 Lancer Evolution X models with 4B11T regardless of transmission or submodel
  • Q: What alloy and coatings are used?
    A: 2618-T61 forged aluminum with moly phosphate skirt coating and optional ceramic top coating available
  • Q: What is the warranty and ring specs?
    A: Limited manufacturer defect warranty includes premium rings: 1.0mm steel nitrided top 1.2mm cast iron second 2.8mm flex vent oil

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: Special order ships within 3-5 business days
  • Packaging: Protective foam and box 12 x 12 x 6 inches
  • Weight: 4 lbs shipping 388g per piston pinned
