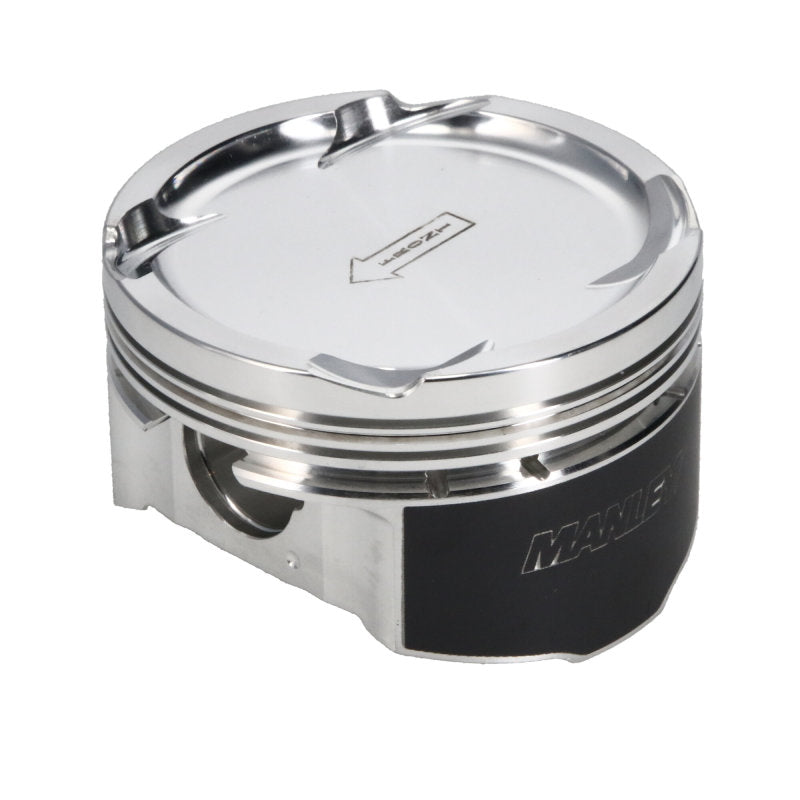

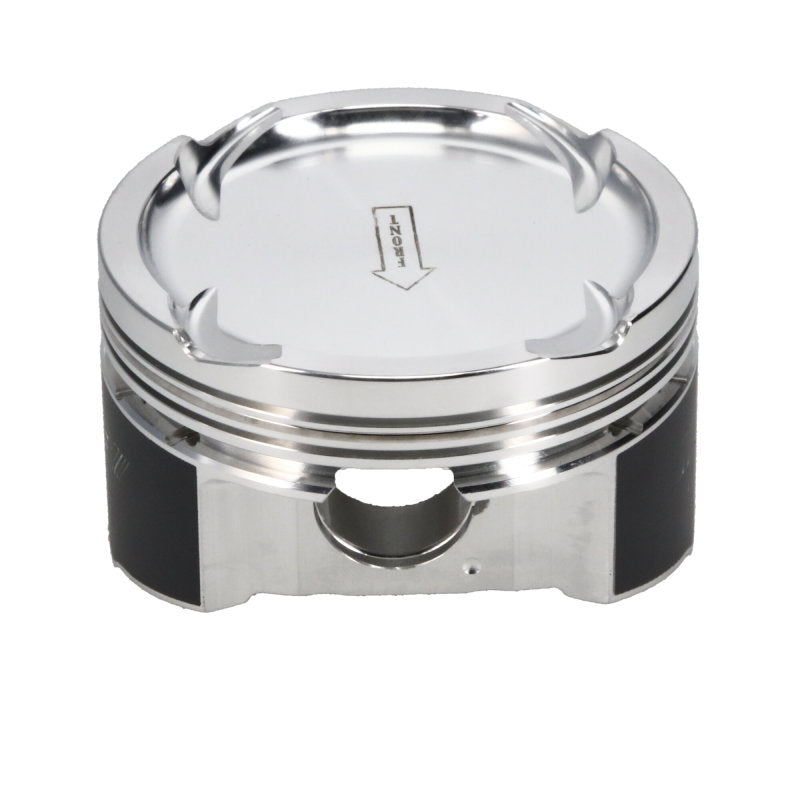

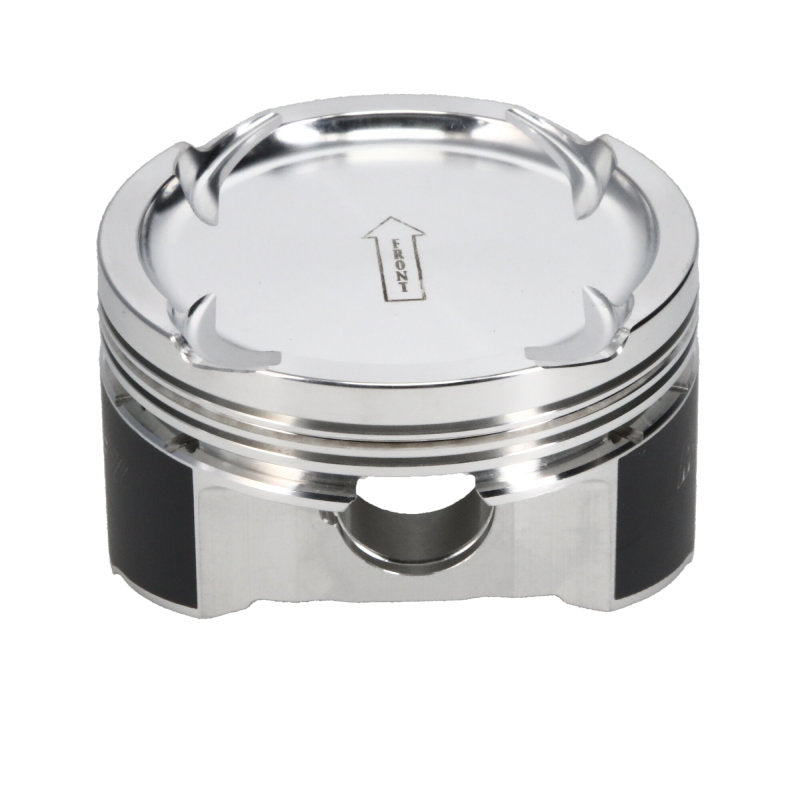

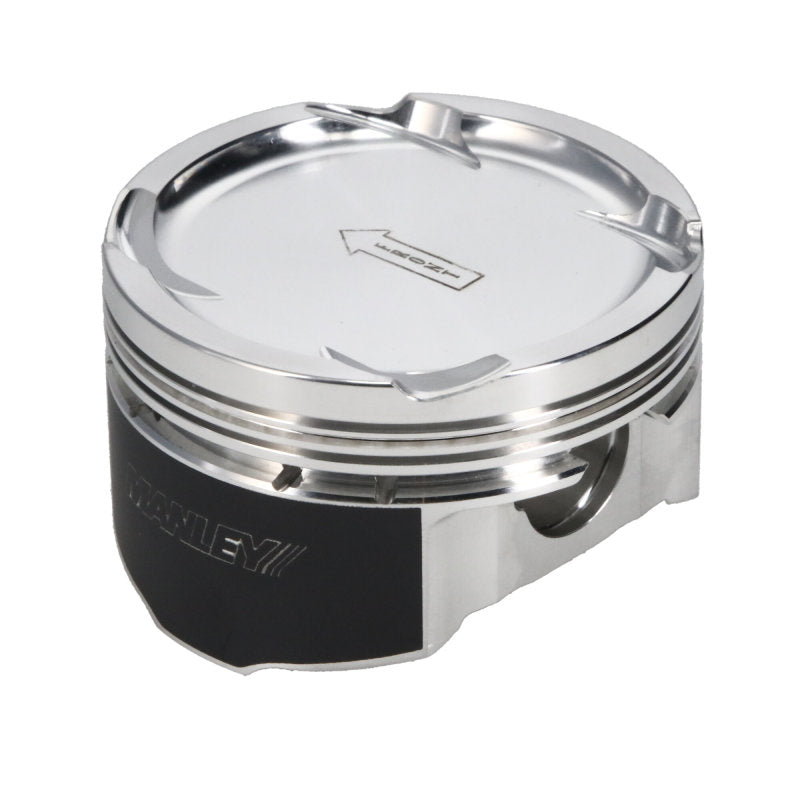

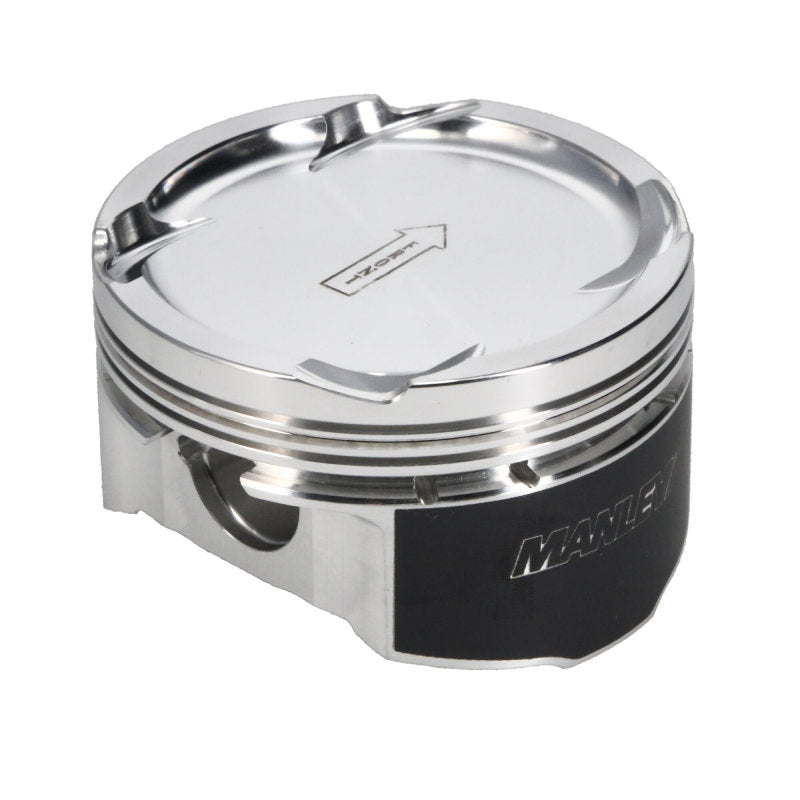

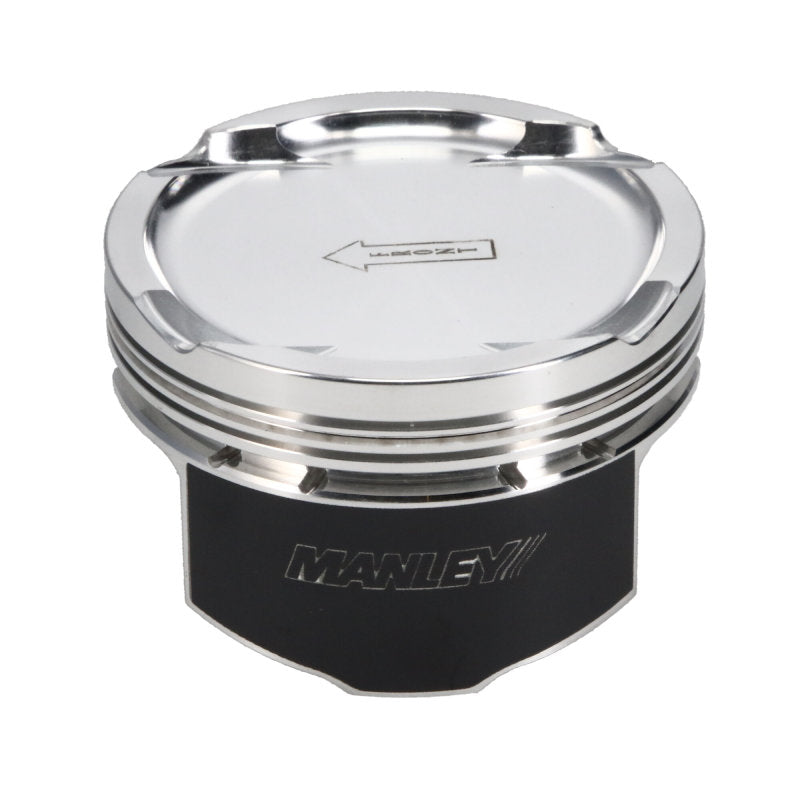

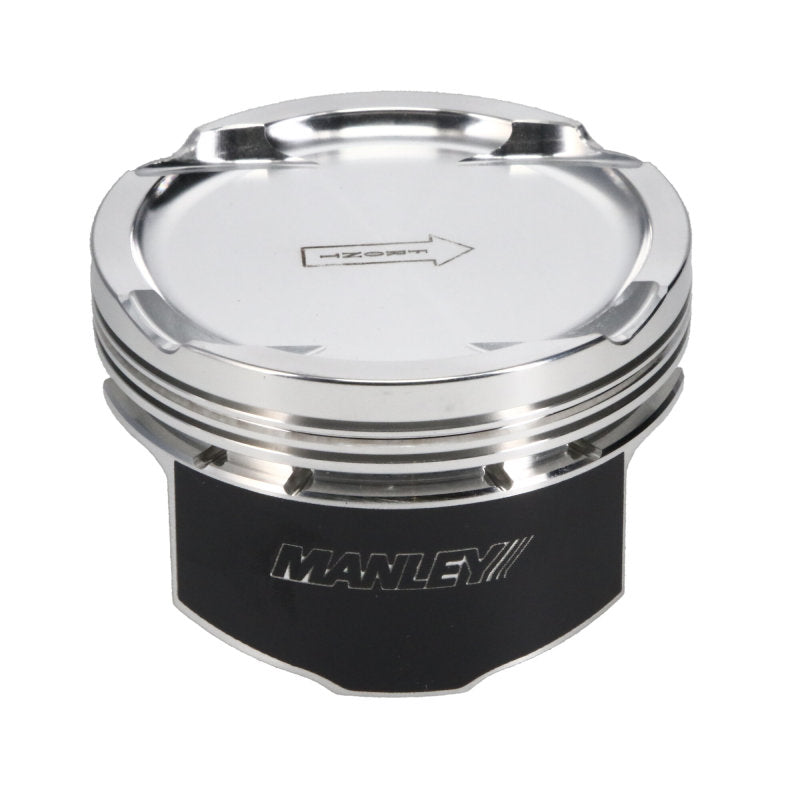

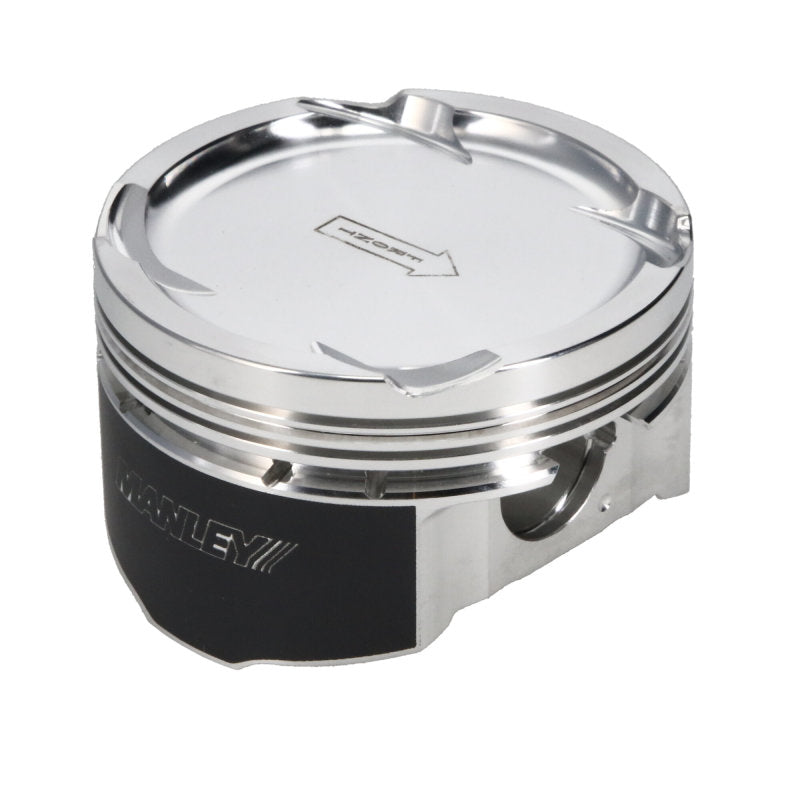

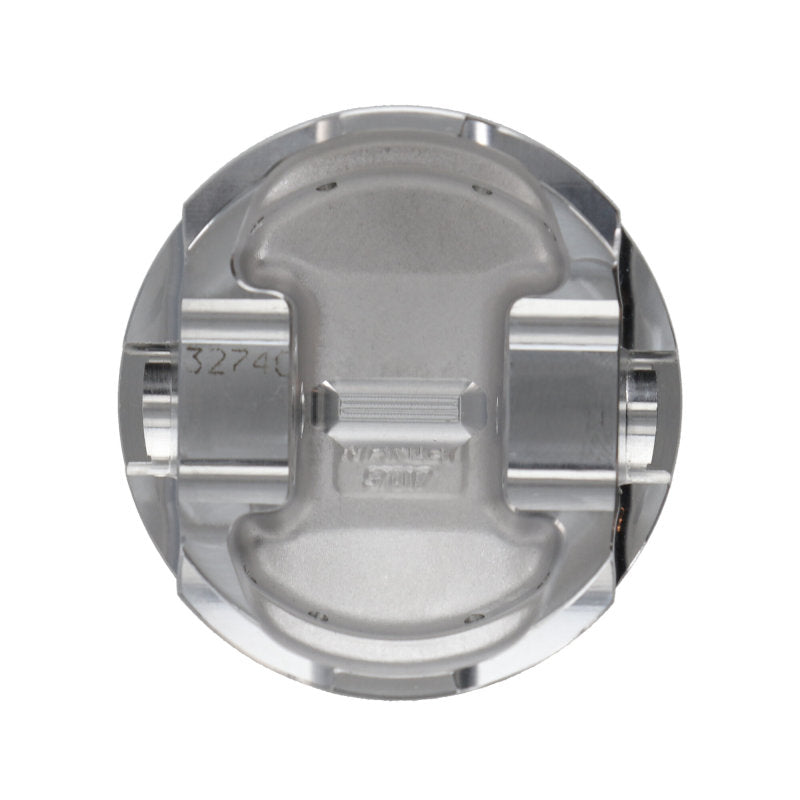

Manley 08+ Mitsubishi Evo X (4B11T) 86.5mm +.5mm Oversize Bore 9.0:1 Dish Piston Set with Rings

MAN614005C-4
807298027043
Piston Sets - Forged - 4cyl
11 Units In Stock - Ships Next Business Day
$ 805.63 $ 741.18
$ 741.18

SKU: 614005C-4 | UPC: 807298027043

Manley 2008+ Mitsubishi Lancer Evolution X (4B11T) 86.5mm +0.5mm Oversize Bore 9.0:1 Dish Piston Set with Rings

Upgrade your Mitsubishi Evo X 4B11T engine with Manley Platinum Series pistons designed for 86.5mm (+.020 inch) oversize bores and 9.0:1 compression ratio. These forged pistons fit 2008-2015 Lancer Evolution X models including GSR, MR and MR Touring, delivering strength for turbocharged builds up to 800+ whp. Each set includes premium rings for immediate assembly after cylinder honing.

Key Features

  • 2618-T61 Forged Alloy: High-silicon aluminum withstands extreme heat and detonation in boosted 4B11T applications

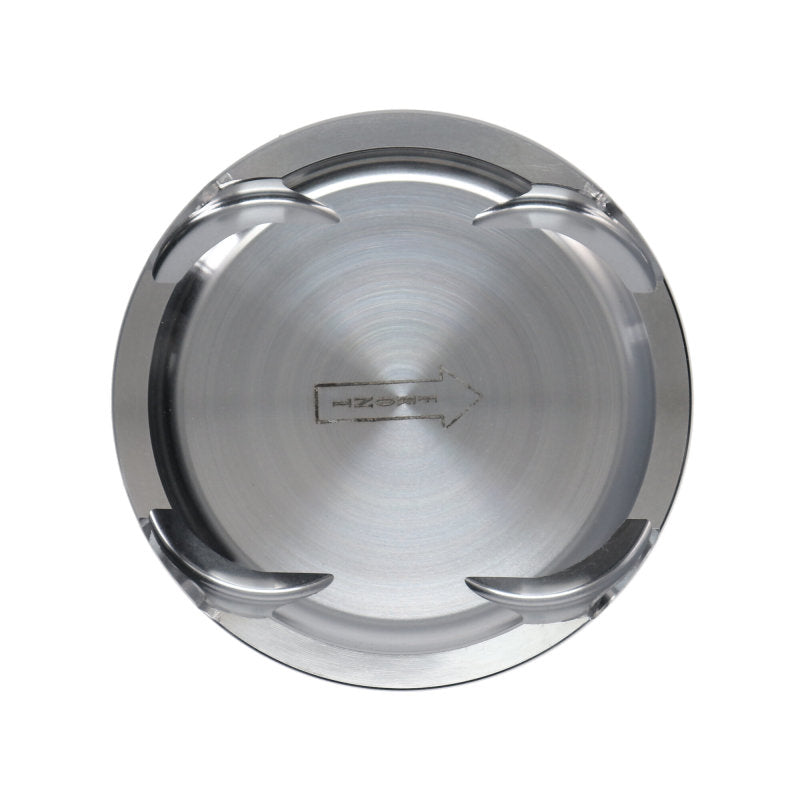

  • Dish Top Design: -8cc volume yields exact 9.0:1 compression with stock head gasket and 88mm stroke
  • Moly Skirt Coating: Reduces friction, galling and wear for quieter operation and longer life
  • Tool Steel Wrist Pins: 21mm x 33.5mm H13 pins with C-clips handle high RPM and side loads
  • Premium Ring Pack: 1.2mm/1.5mm/2.8mm moly top/file-fit set optimizes sealing and oil control

Product Notes

  • Oversize pistons require cylinder boring and honing to 86.50-86.51mm finish bore
  • Compression height 30.25mm matches stock for direct rod compatibility
  • Ships as complete set of 4 pistons, pins and rings. MPN 614005C-4

Installation Notes

  • Professional installation recommended.
  • Hone cylinders with torque plate. check ring end gaps (top 0.004-0.005 inch)
  • Compatible with stock or aftermarket 133mm rods. verify clearances

This Part Fits

Year Make Model Submodel
2008-2015 Mitsubishi Lancer Evolution X GSR
2008-2015 Mitsubishi Lancer Evolution X MR
2010-2011 Mitsubishi Lancer Evolution X MR Touring

Why Choose Manley?

  • Proven in drag racing and time attack Evo X builds worldwide
  • Consistent quality from CNC machining and Accumold process
  • Backed by engine builders for durability under 40+ psi boost

Frequently Asked Questions

  • Q: Does this fit all 2008-2015 Evo X models?
    A: Yes, direct fit for USDM 4B11T engines in Lancer Evolution X GSR, MR and MR Touring after boring to 86.5mm
  • Q: What material are these pistons made from?
    A: 2618-T61 aerospace-grade forged aluminum with FEA-optimized skirt and crown profiles
  • Q: What is the warranty and piston weight?
    A: Limited warranty against manufacturing defects. each piston weighs 308 grams for balanced rotating assembly

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-protected box measuring 12 x 8 x 6 inches
  • Weight: 4 lbs
