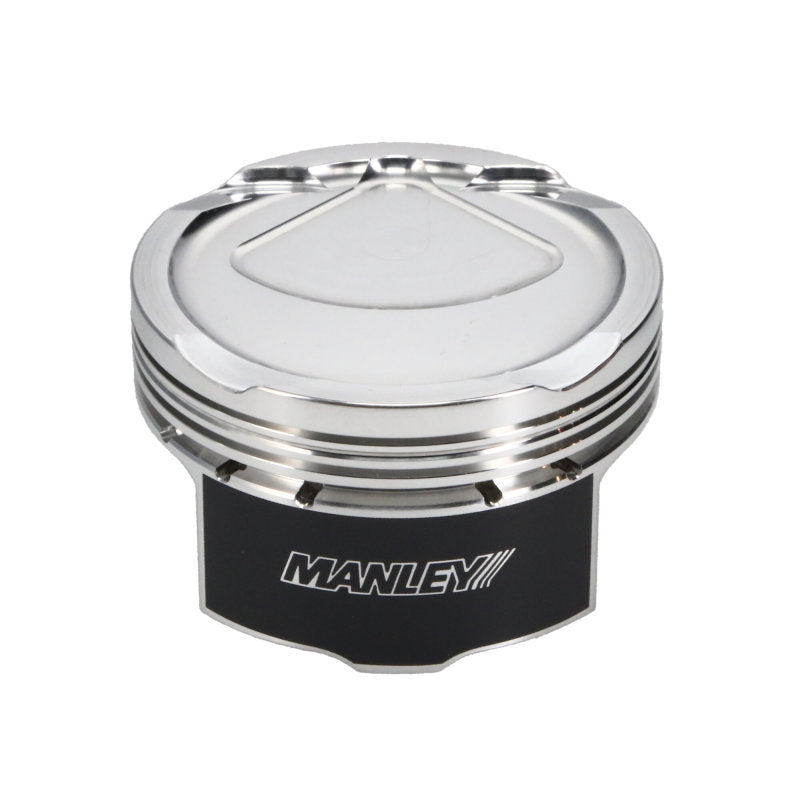

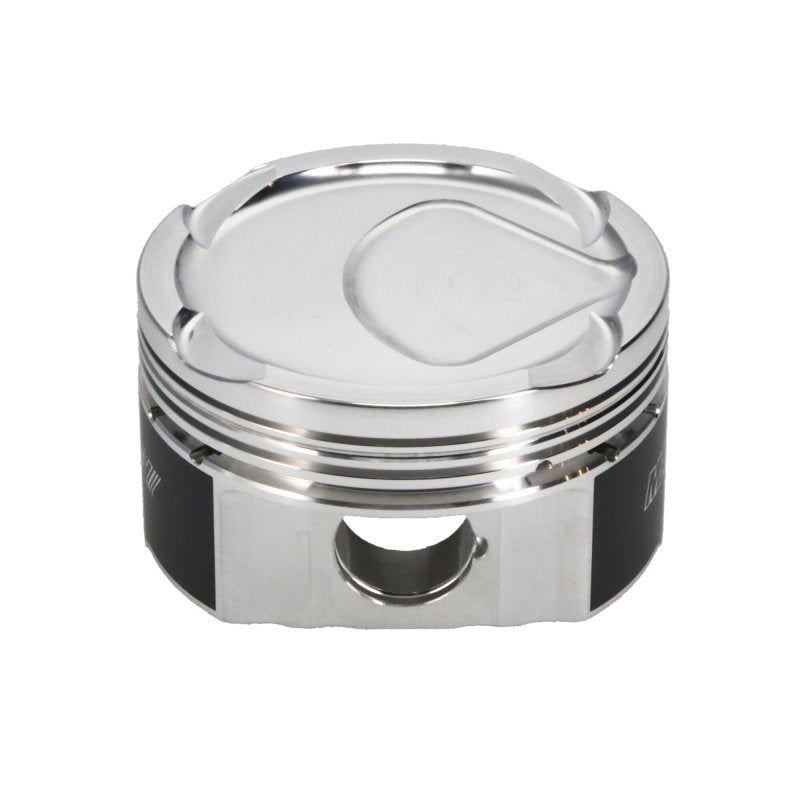

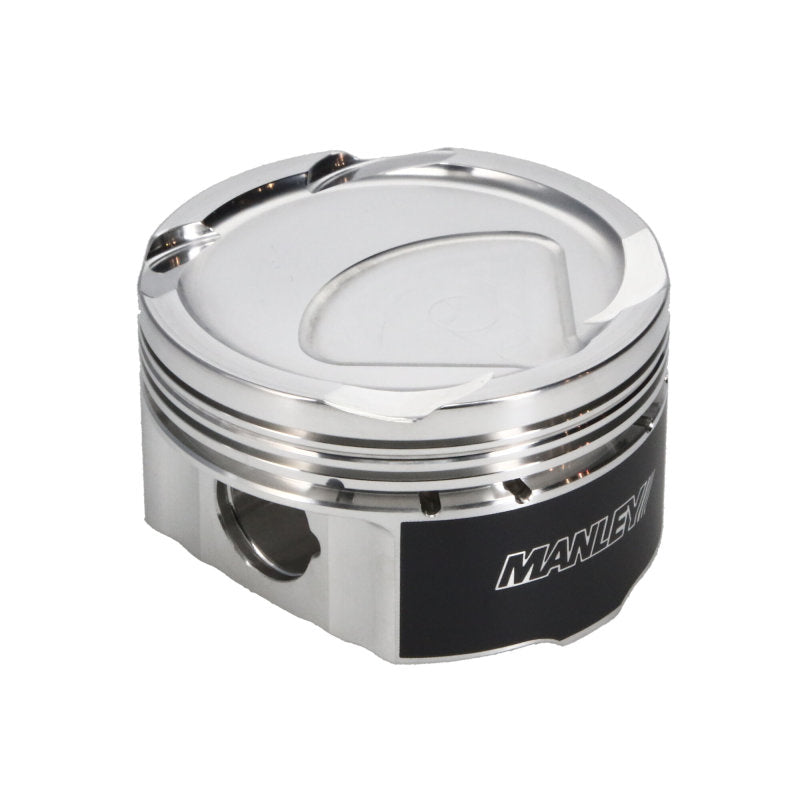

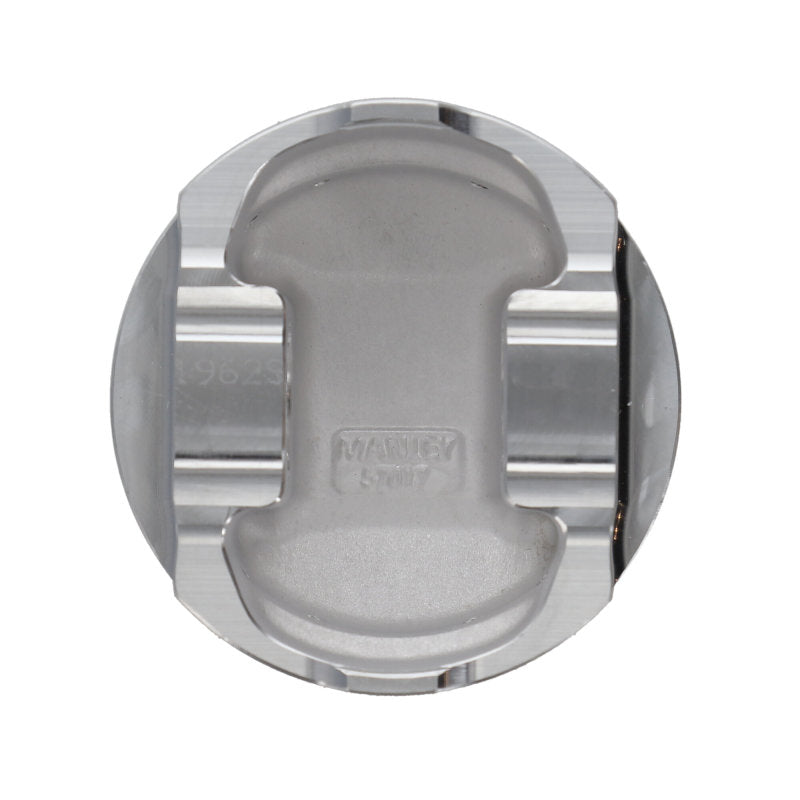

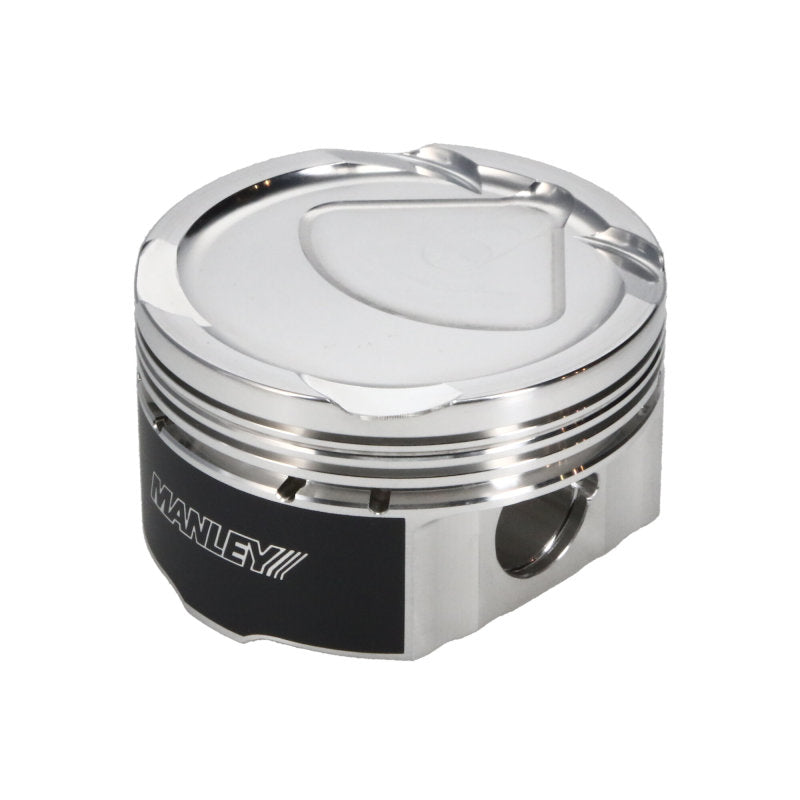

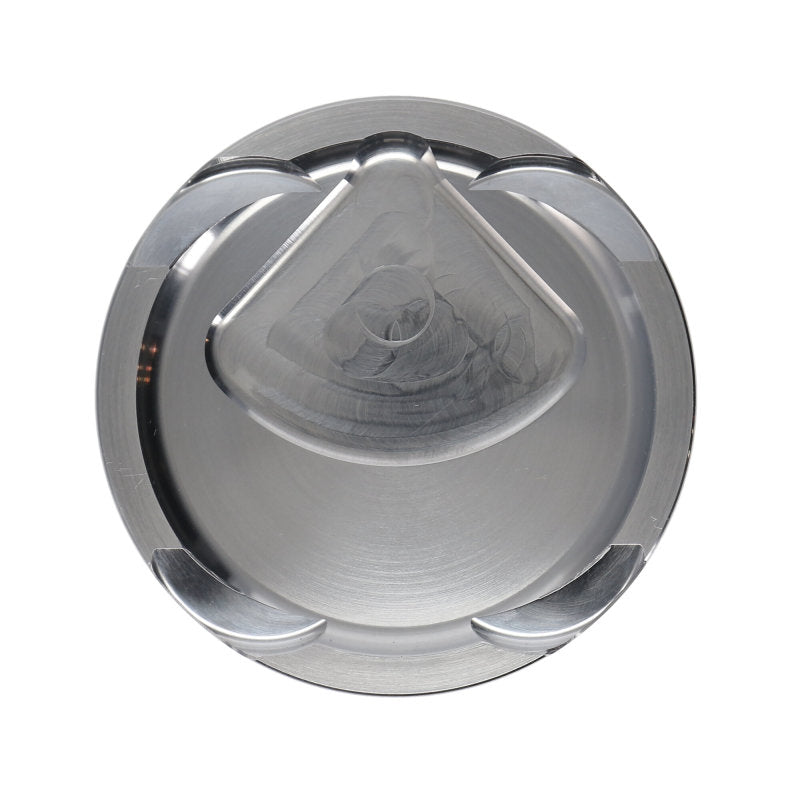

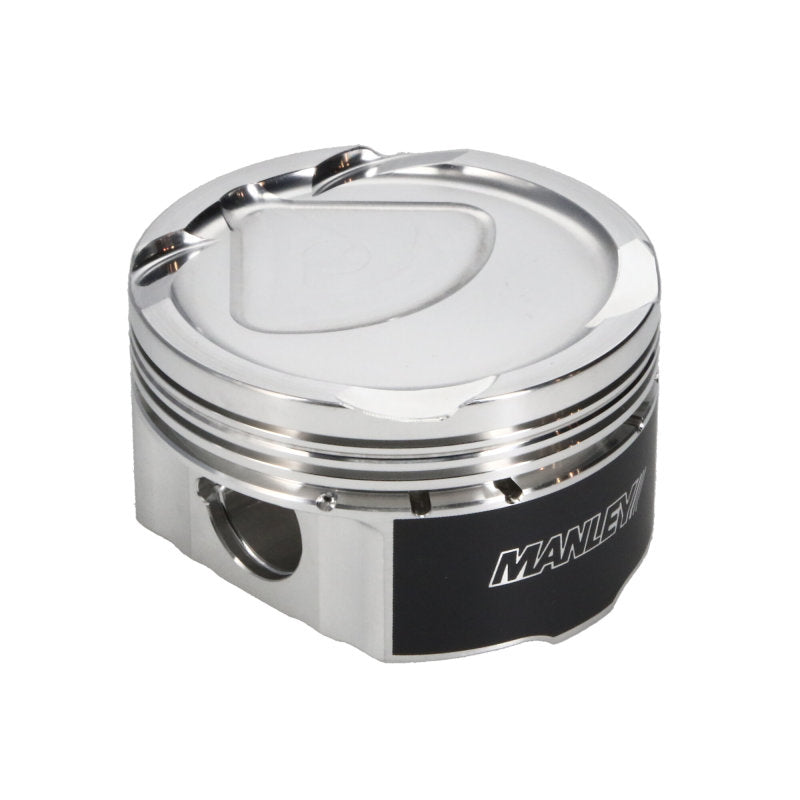

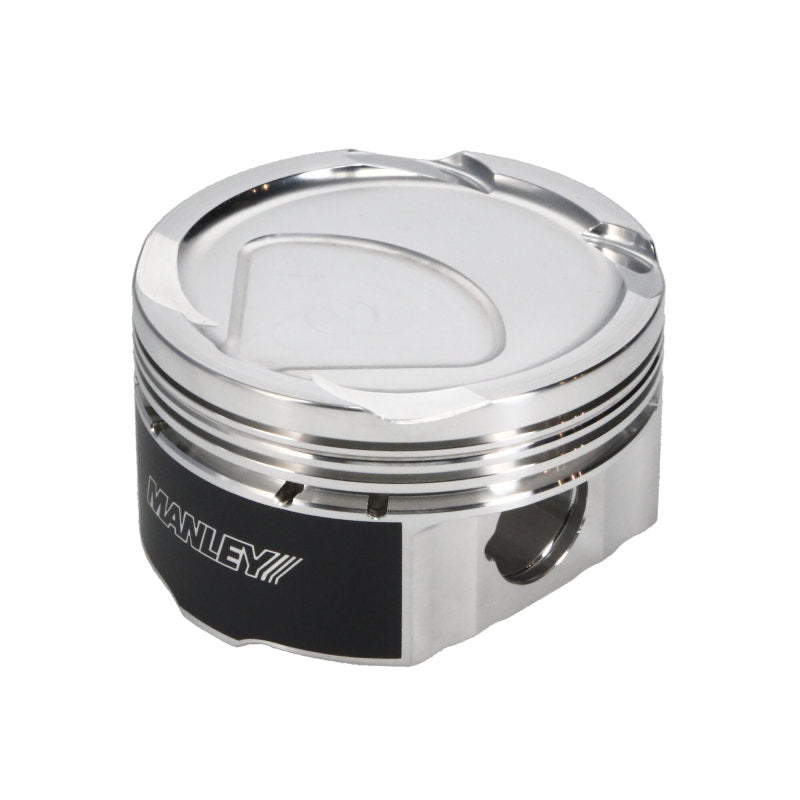

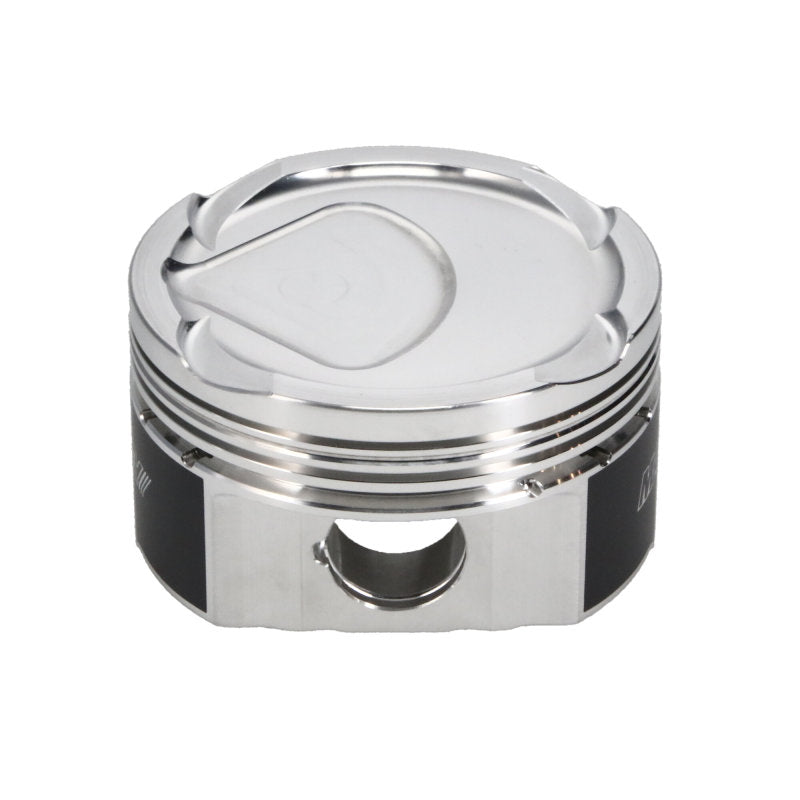

Manley 2013+ Subaru BRZ (FA20) 86.25mm Bore 11.4cc Dish Platinum Series Piston Set w/ Rings

MAN632602C-4
807298101002
Piston Sets - Forged - 4cyl
1 Units In Stock - Ships Next Business Day
$ 813.39 $ 748.32
$ 748.32

SKU: 632602C-4 | UPC: 807298101002

Manley 2013+ Subaru BRZ (FA20) 86.25mm Bore 11.4cc Dish Platinum Series Piston Set w/ Rings

Upgrade your 2013+ Subaru BRZ Scion FR-S Toyota 86 FA20 engine with this Manley Platinum Series piston set featuring 86.25mm bore and 11.4cc dish design. These forged pistons deliver strength for high-performance naturally aspirated or boosted applications while maintaining reliability. Each set includes matched rings for immediate assembly.

Key Features

  • 2618-T61 Alloy Forgings: High-silicon forged aluminum provides strength heat resistance and fatigue life for demanding engine conditions
  • Proven Skirt Profiles: Optimized cam and barrel shapes reduce friction improve ring seal and minimize blow-by in performance builds
  • Moly Skirt Coating: Applied to select surfaces for smoother operation lower wear and consistent power delivery
  • Tool Steel Wrist Pins: 20mm diameter x 927 length H13 pins with C-clip grooves ensure secure retention under high loads
  • Premium Ring Pack: Includes 1.2mm steel top ring 1.5mm napier second ring and 2.8mm oil control ring for precise sealing and oil management

Product Notes

  • Hone cylinders to 86.25-86.27mm bore size for proper clearance
  • Pistons arrive balanced as a set verify final rotating assembly balance
  • Box dimensions 12 x 8 x 6 inches shipping weight 3.5 lbs

Installation Notes

  • Professional installation recommended.
  • Compression height 30mm stroke 86mm rod length 130.5mm use .040in head gasket for target compression ratio around 8.5:1
  • Compatible with stock rods or aftermarket set rings require specific groove widths

This Part Fits

Year Make Model Submodel
2013-2016 Scion FR-S Base
2013-2021 Subaru BRZ Base Limited Premium
2017-2021 Toyota 86 Base GT Hakone Edition

Why Choose Manley?

  • Professional engine builders rely on Manley for race-proven components
  • USA-made with tight tolerances for consistent performance
  • Backed by decades of high-horsepower engine experience

Frequently Asked Questions

  • Q: Will these pistons fit my 2017 Toyota 86 FA20 engine?
    A: Yes direct fit for all 2013-2021 FA20-equipped BRZ FR-S 86 models with 86.25mm bore preparation
  • Q: What material are the pistons made from?
    A: 2618-T61 high-performance forged aluminum alloy ideal for boosted or high-rpm NA applications
  • Q: Does the set include rings and what is the warranty?
    A: Complete with rings tool steel pins Limited warranty against manufacturing defects when installed properly

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective foam-lined box 12 x 8 x 6 inches
  • Weight: 3.5 lbs
