SKU: 14414R6-4 | UPC: 807298070568

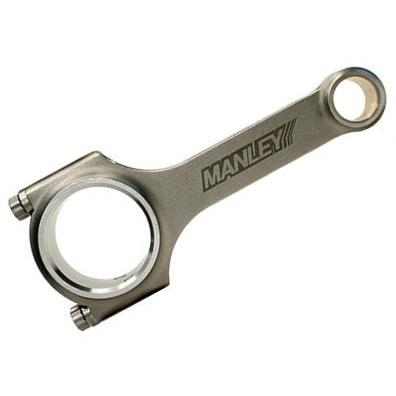

Manley 94+ Integra GSR 1.8 V-Tech DOHC (B18C) Turbo Tuff Pro Series I Beam Connecting Rod Set
Manley Pro Series I-Beam connecting rods deliver strength for turbocharged B18C engines in 1994-2001 Acura Integra GS-R models. Built with forged 4340 steel these rods withstand extreme boost levels and high RPM. They match precisely to maintain balance and reliability in performance builds.
Key Features
- Forged 4340 Steel: High-tensile alloy provides fatigue resistance for turbo applications up to 1000+ HP
- I-Beam Design: Reduces flex under load while keeping weight low at 542-550 grams per rod depending on variant
- ARP 2000 Series Bolts: Rated to 260,000 psi for secure cap retention during aggressive acceleration
- NHRA Legal Certification: Approved for Stock and Super Stock classes on select Pro Series SKUs like 14414R6-4
- Precision Machining: Center-to-center 137mm (5.394in) rod journal 48mm (1.890in) wrist pin 22mm (0.866in) ensures drop-in fit
Product Notes
- Inspect and resize big ends prior to installation for optimal clearance
- Pair with matching Manley pistons for balanced rotating assembly
- Store in dry environment to prevent corrosion on bearing surfaces
Installation Notes
- Professional installation recommended.
- Requires honing of big end bores and checking rod side clearance
- Compatible with OEM or aftermarket bearings ARP rod bolts included
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-2001 | Acura | Integra | GS-R |
| 1996-2000 | Honda | Del Sol | VTEC (B16B JDM fitment) |
| 1999-2000 | Honda | Civic Si | EM1 B16 (with B18C swap) |
Why Choose Manley?
- Proven in NHRA and drag racing for decades
- CAD designed and FEA tested for real-world durability
- Hand-finished and weight-matched sets from USA facility
Frequently Asked Questions
-
Q: Will these rods fit my 1994-2001 Integra GS-R B18C1 engine?
A: Yes direct bolt-on for USDM B18C1 with 137mm length and matching journals no modifications needed -
Q: What material are these rods made from?
A: Forged 4340 EN30B vacuum degassed steel with optional 300M upgrade heat-treated to 280,000 psi tensile strength -
Q: What is the warranty on Manley Pro Series rods?
A: Limited lifetime warranty against manufacturing defects when installed by certified shop
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Foam protected in 12 x 8 x 4 inch box
- Weight: 4.65 lbs
