SKU: 14405-4 | UPC: 807298009360

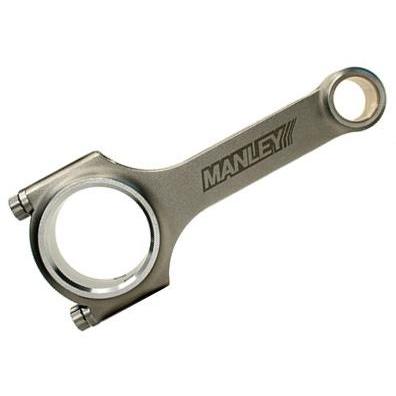

Manley Honda/Acura 2002-2008 K24 Turbo Tuff Pro Series I-Beam Connecting Rod Set
Manley Turbo Tuff Pro Series I-Beam connecting rods deliver strength for high-boost K24 turbo builds in 2002-2008 Honda CR-V Element Accord and Acura TSX models. This set of 4 forged 4340 steel rods measures 5.693-inch length 144.5mm center-to-center 2.000-inch big-end bore 0.866-inch small-end bore at 542 grams each. ARP 2000 3/8-inch bolts support 1200+ HP with CNC machining for precise fit balance and oiling in K24A1 K24A2 K24A4 engines.
Key Features
- Forged 4340 Steel: Vacuum-degassed alloy handles extreme RPM and cylinder pressures in turbocharged K24 engines
- ARP 2000 Rod Bolts: 3/8 x 1.25-inch high-tensile bolts rated to 260000 psi secure fastening under heavy loads
- Turbo Tuff Design: I-Beam profile for boosted K24 engines with lightweight ends at 542 grams per rod rifle-drilled big ends
- NHRA Legal Certification: Approved for Stock and Super Stock classes for race compliance
- Precision Machining: CNC-machined for exact fit balance oiling compatibility with OEM or aftermarket pistons 20mm wrist pins
Product Notes
- Balance rods as a complete set for optimal engine harmony
- Inspect and resize big-end bearings prior to installation
- Carefully packaged to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Torque ARP bolts to Manley specs using ARP moly lube
- Compatible with standard K24 pistons and bearings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2008 | Honda | CR-V | LX |
| 2002-2008 | Honda | CR-V | EX |
| 2003-2004 | Honda | Element | DX |
| 2003-2008 | Honda | Element | EX |
| 2004-2008 | Honda | Element | LX |
| 2007-2008 | Honda | Element | SC |
| 2004-2008 | Acura | TSX | Base |
| 2003-2005 | Honda | Accord | DX |
| 2003-2007 | Honda | Accord | EX |
| 2003-2007 | Honda | Accord | LX |
| 2006 | Honda | Accord | LX Special Edition |
| 2007 | Honda | Accord | Special Edition |
| 2006-2007 | Honda | Accord | Value Package |
Why Choose Manley?
- Decades of racing heritage powering NHRA champions
- USA-made components with rigorous quality testing
- Proven engineering for reliable high-horsepower durability
Frequently Asked Questions
-
Q: Will these rods fit a 2006 Honda Accord LX K24A2 engine?
A: Yes they directly fit 2003-2007 Honda Accord LX EX DX and Value Package models with K24A2 along with other listed K24 variants -
Q: What material and bolt details are used?
A: Forged 4340 steel rods with ARP 2000 3/8-inch bolts 20mm wrist pins and rifle-drilled big ends for oiling -
Q: What is the warranty and install process?
A: Backed by Manley warranty contact support for claims professional install advised with rod sizing and balancing
Shipping &. Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 20.5 x 11 x 3.5 inches
- Weight: 5.48 lbs product 6.5 lbs shipping
