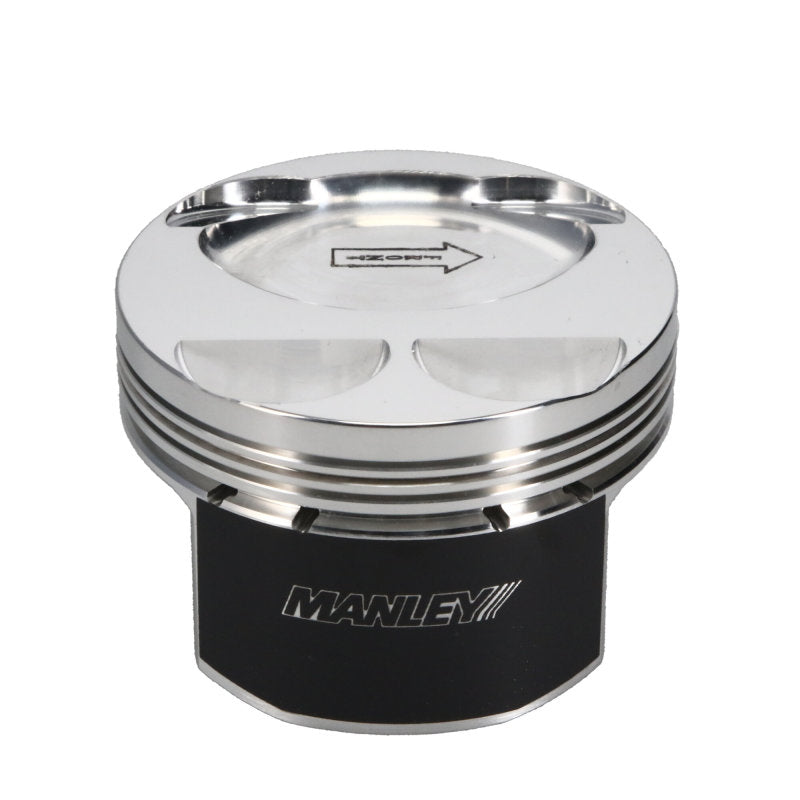

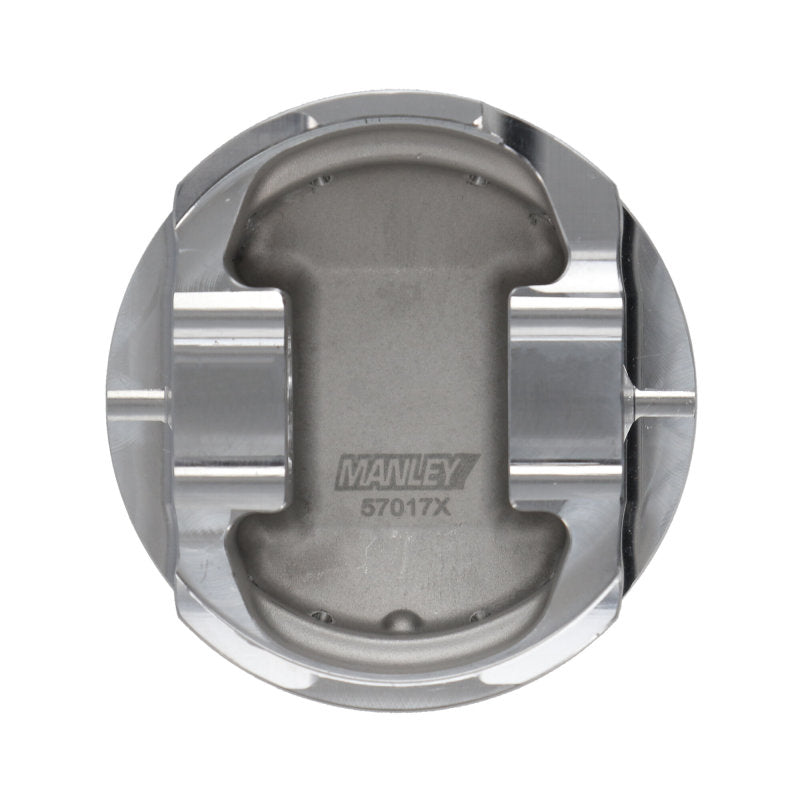

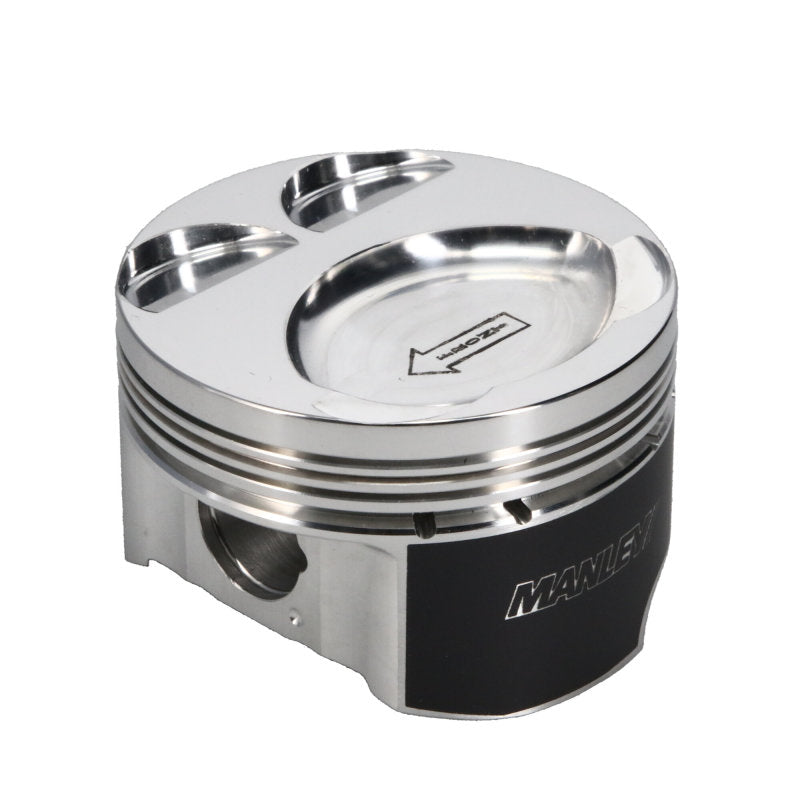

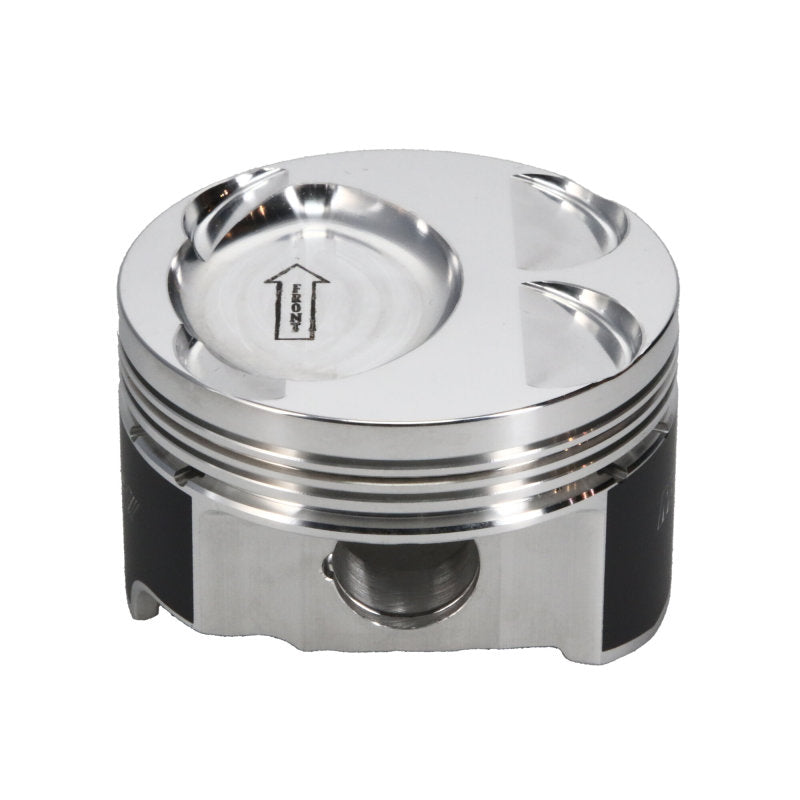

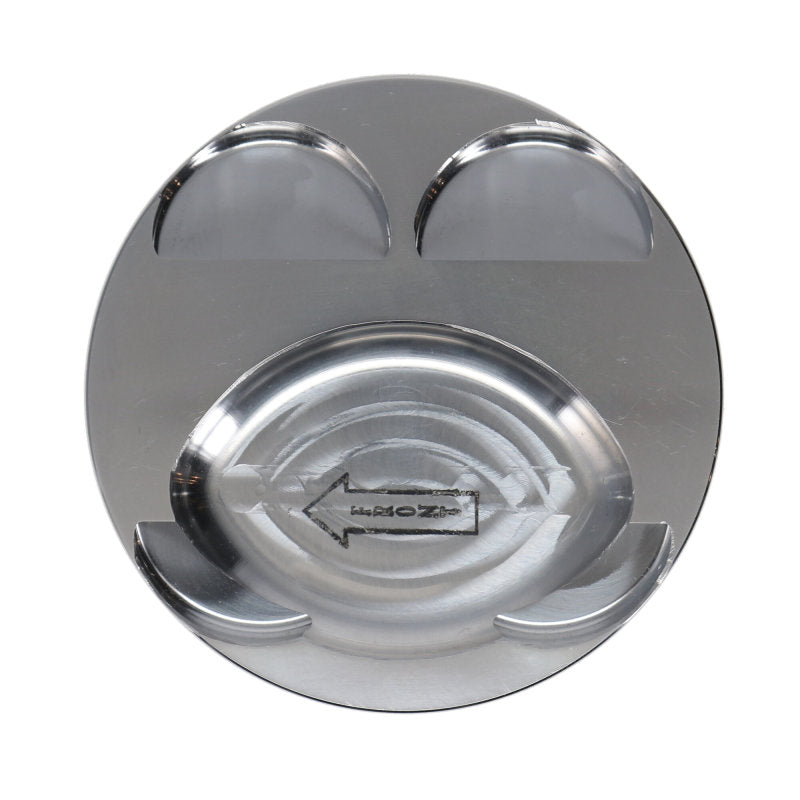

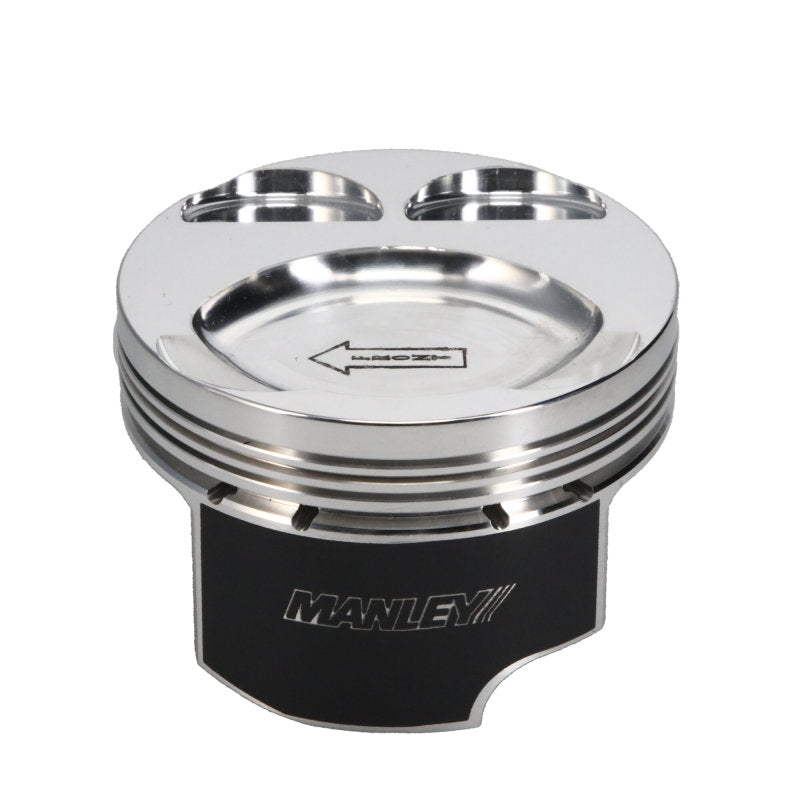

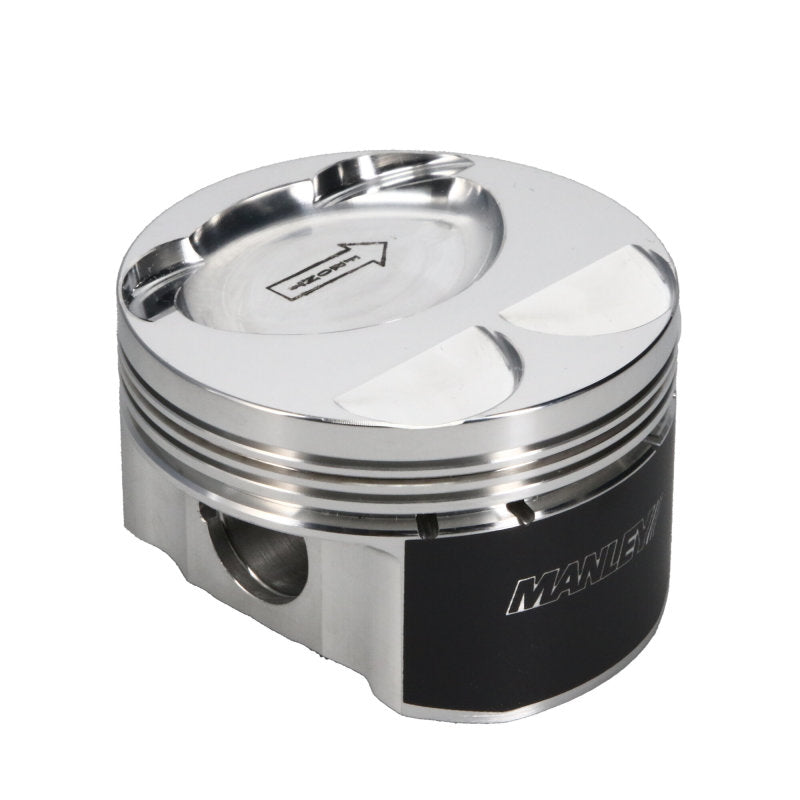

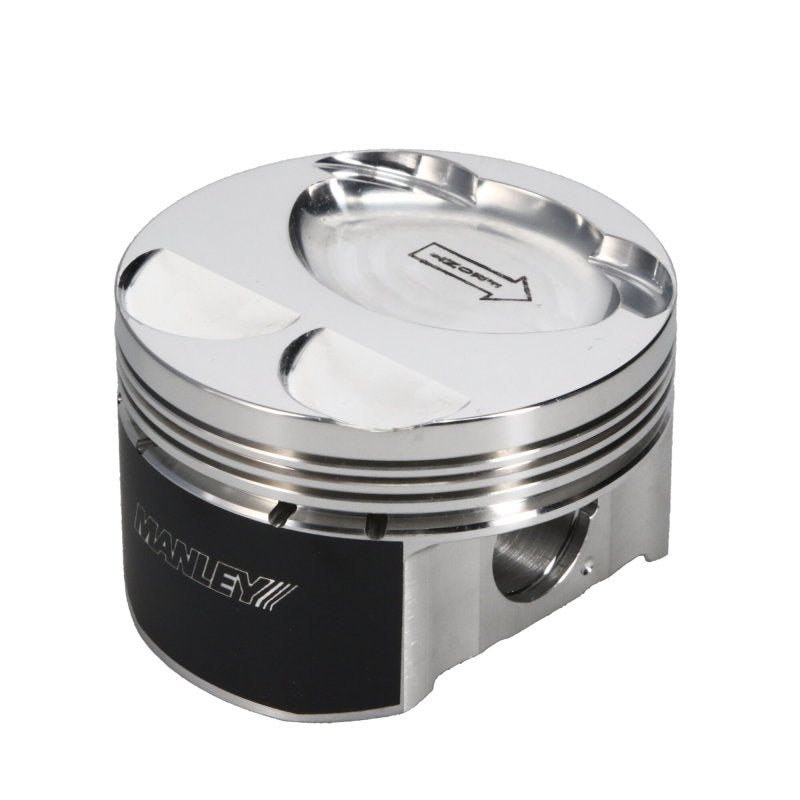

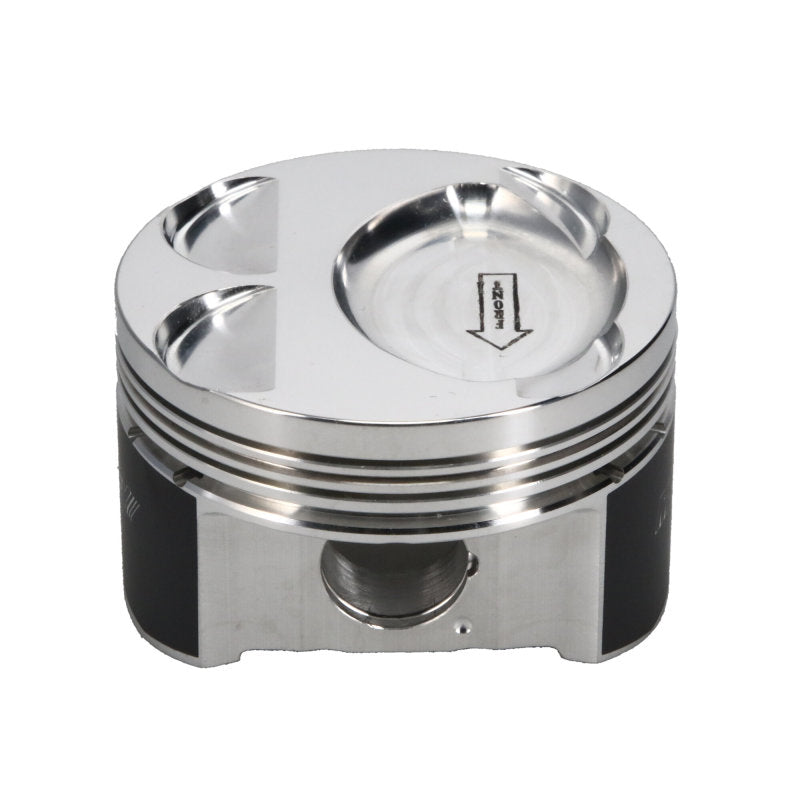

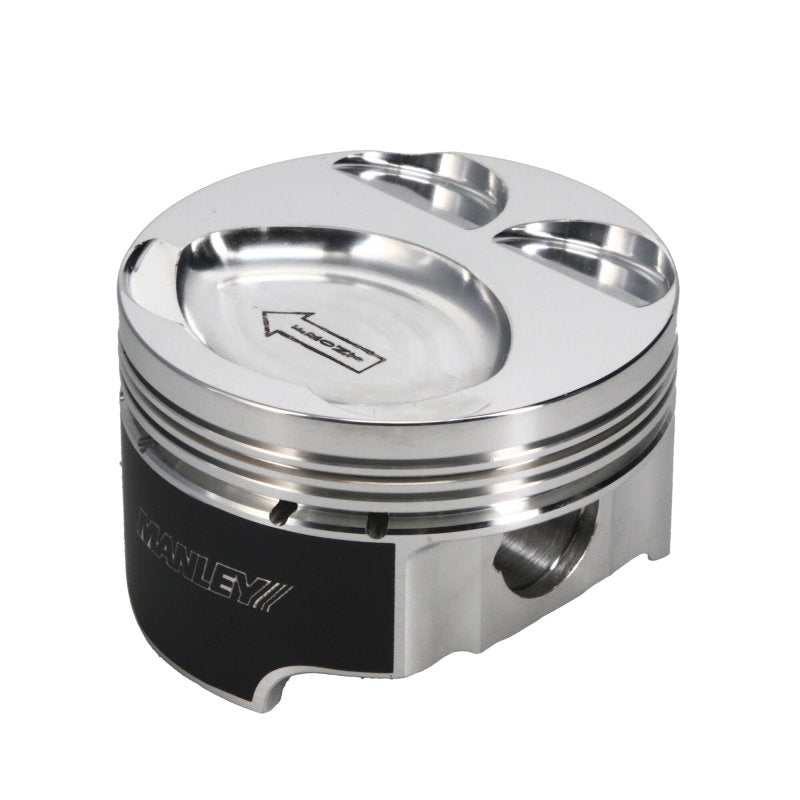

Manley Mazda 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pistons w/Rings

MAN630005CE-4
807298100029
Piston Sets - Forged - 4cyl
1 Units In Stock - Ships Next Business Day
$ 948.92 $ 873.01
$ 873.01

SKU: 630005CE-4 | UPC: 807298100029

Manley Mazda 88mm +0.5mm Bore 9.5 CR Dish Type Platinum Series Extreme Duty Pistons w/Rings 2007-2013 Mazda3 Mazdaspeed3

Manley Platinum Series Extreme Duty pistons deliver reliable strength for the 2.3L DISI turbo engine in 2007-2013 Mazda3 Mazdaspeed3 models. These 88mm bore (+0.5mm oversize) dish-top pistons with 9.5:1 compression ratio support high-boost builds while maintaining stock stroke and rod compatibility. Engine builders choose them for consistent performance in street and track use, complete with rings for immediate installation.

Key Features

  • Forged 2618-T61 Alloy: High-tensile aircraft-grade material handles extreme cylinder pressures and heat cycles without failure
  • Proven Skirt Profiles: Optimized cam and barrel shapes control expansion and reduce scuffing for longer engine life
  • Tool Steel Wrist Pins: H13 material at HRC 38-44 with DLC coating resists wear under heavy loads
  • Moly Skirt Coating: Provides low-friction surface to minimize drag and prevent galling on cylinder walls
  • File-Fit Rings Included: Premium T1-5K ring pack (1.2mm/1.5mm/2.8mm) ensures tight seal after custom gapping

Product Notes

  • Rings must be filed to spec for each cylinder. gap per Manley instructions
  • Compression height 30mm, head volume -2cc for exact 9.5:1 CR with stock head gasket
  • Ships as set of 4 pistons. 388 grams per piston

Installation Notes

  • Professional installation recommended.
  • Bore cylinders to 88.00mm. light hone recommended for moly coating
  • Compatible with stock 151mm rods and 94mm stroke. upgrade rings and pins if reusing

This Part Fits

Year Make Model Submodel
2007-2013 Mazda 3 Mazdaspeed3

Why Choose Manley?

  • Engine builders and tuners rely on Manley for race-proven results
  • Each piston precision-machined and inspected for balance
  • Backed by decades of motorsport engineering experience

Frequently Asked Questions

  • Q: Will these pistons fit my 2007-2013 Mazda3 Mazdaspeed3?
    A: Yes, designed specifically for the 2.3L MZR DISI turbo with 88mm bore, 94mm stroke, and 151mm rods
  • Q: What alloy and coatings are used?
    A: 2618-T61 forgings with moly skirt coating, plus DLC-coated tool steel wrist pins for durability
  • Q: What warranty applies and installation tips?
    A: Limited warranty against manufacturing defects. file ring gaps to .004-.005" top/.005-.006" second/.016-.021" oil, torque per spec

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-packed box, 14.5 x 14.5 x 5.5 inches
  • Weight: 6.35 lbs
