SKU: 15424-6 | UPC: 807298079684

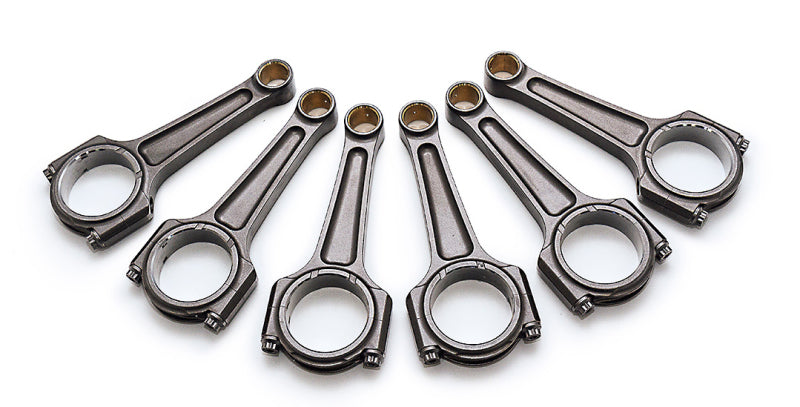

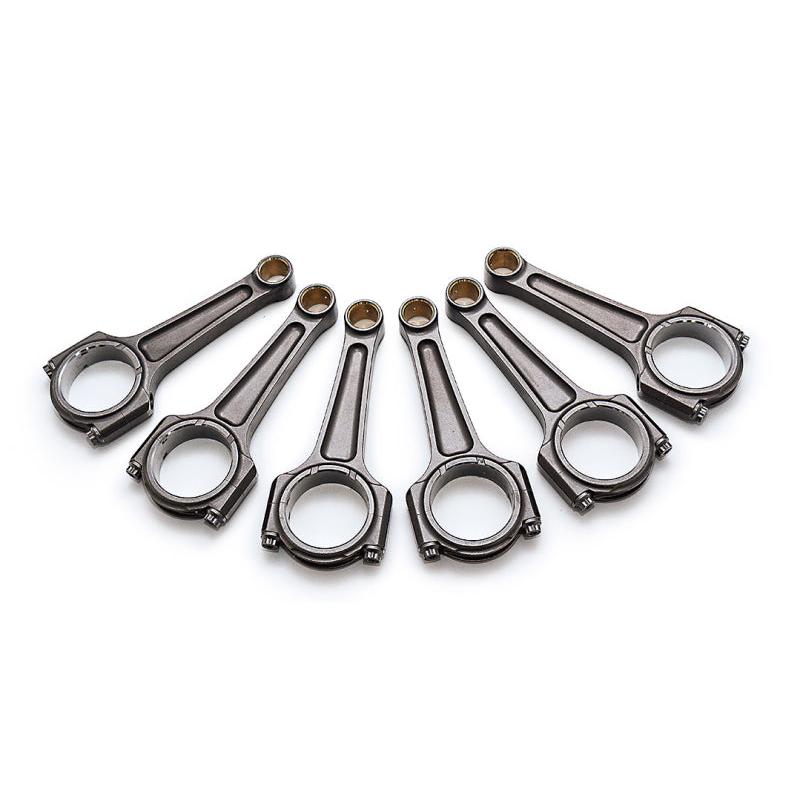

Manley Nissan GT-R 2009-2024 3.8 VR38DETT 300M Alloy L/W Turbo Tuff Pro Series Tri Beam Connecting Rod Set
Manley Pro Series I-Beam connecting rods deliver precision strength for the Nissan GT-R 3.8L VR38DETT engine in 2009-2024 models. Forged from 300M alloy with Turbo Tuff Tri-Beam design, these rods support high-boost turbo setups up to 1200+ HP. Their lightweight construction and ARP bolts ensure durability during aggressive driving and racing.
Key Features
- 300M Forged Alloy Steel: Provides high tensile strength and fatigue resistance for extreme turbo power levels
- Turbo Tuff Tri-Beam Design: Reinforces cap retention with three-beam structure for better rigidity under load
- Precision Machining: Gun-drilled rods with fully honed 55mm big ends and 22mm small ends for exact fitment
- ARP 2000 Rod Bolts: 3/8-inch high-strength bolts rated over 260000 psi with precise stretch fit
- Lightweight 585g per rod: Matched set reduces reciprocating mass for faster engine response and revs
Product Notes
- Balance with pistons crankshaft and bearings before final assembly
- Apply anti-seize to rod bolts during installation to prevent galling
- Packaged in foam-lined box to protect against shipping damage
Installation Notes
- Professional installation recommended.
- Use moly assembly lube on bearings and wrist pins
- Compatible with stock or aftermarket H-beam crankshafts torque to 65 ft-lbs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2024 | Nissan | GT-R | Base |
| 2009-2024 | Nissan | GT-R | Premium |
| 2017-2024 | Nissan | GT-R | Track Edition |
| 2020-2024 | Nissan | GT-R | NISMO |
| 2009-2024 | Nissan | GT-R | T-Spec |
Why Choose Manley?
- Decades of experience building rods for GT-R race teams worldwide
- USA-made with CNC machining and magnetic particle inspection
- Backed by real-world testing in 1000+ HP VR38DETT engines
Frequently Asked Questions
-
Q: Will these rods fit 2009-2024 Nissan GT-R VR38DETT engines?
A: Yes designed specifically for all R35 GT-R models with 3.8L VR38DETT including Base Premium NISMO and Track Edition using stock 152.4mm center-to-center length -
Q: What material and dimensions are used?
A: Forged 300M alloy steel 152.4mm C-C 55mm big end bore 22mm small end bore .866-inch H13 tool steel wrist pins -
Q: What is the warranty and installation requirement?
A: Lifetime warranty against manufacturing defects professional installation advised with rod bolt torque to ARP specs
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-protected in 20 x 12 x 4 inch box
- Weight: 9 lbs
