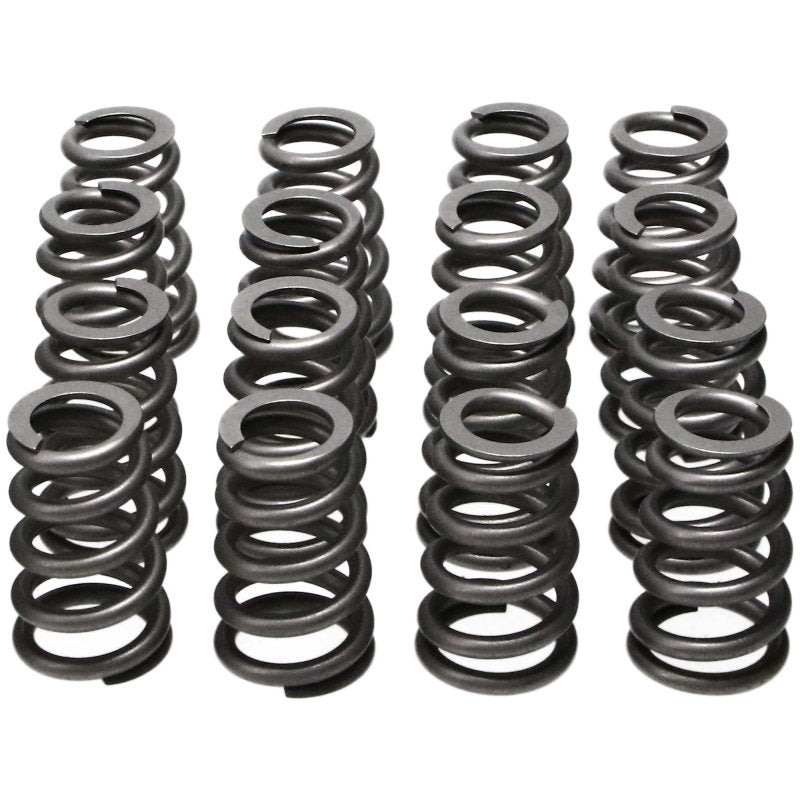

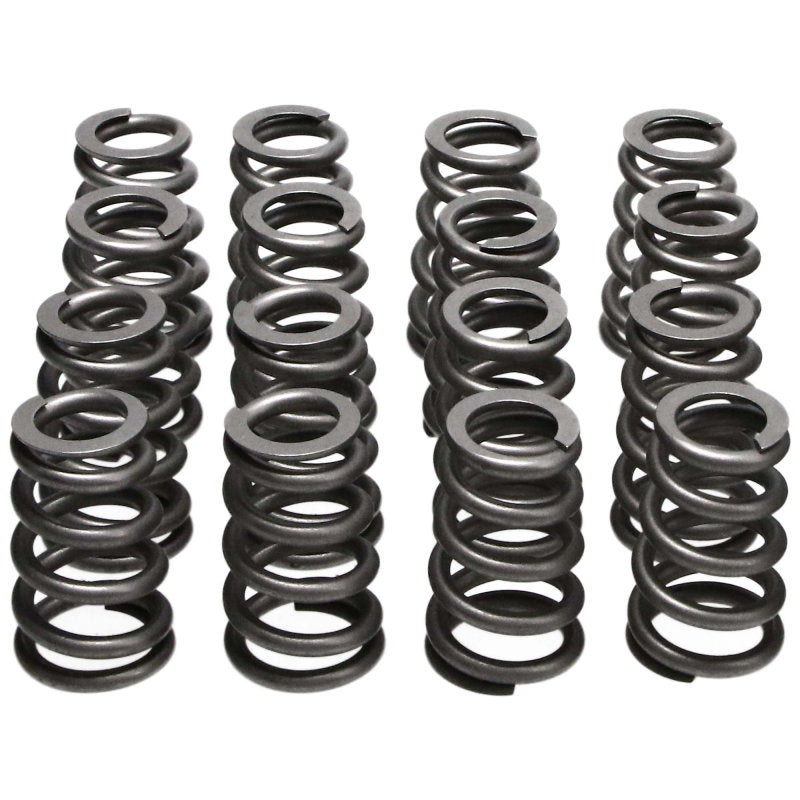

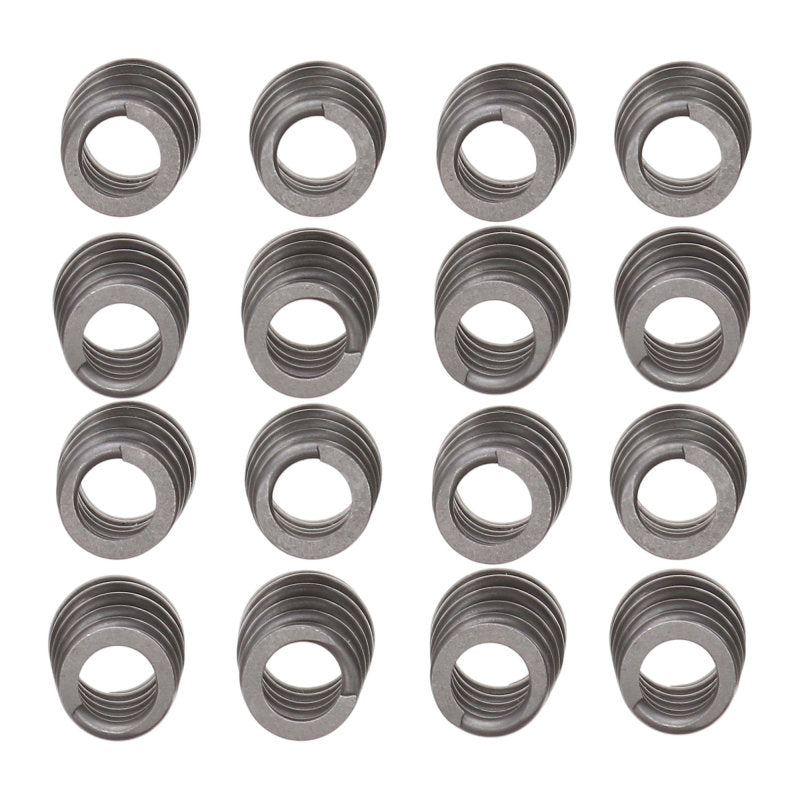

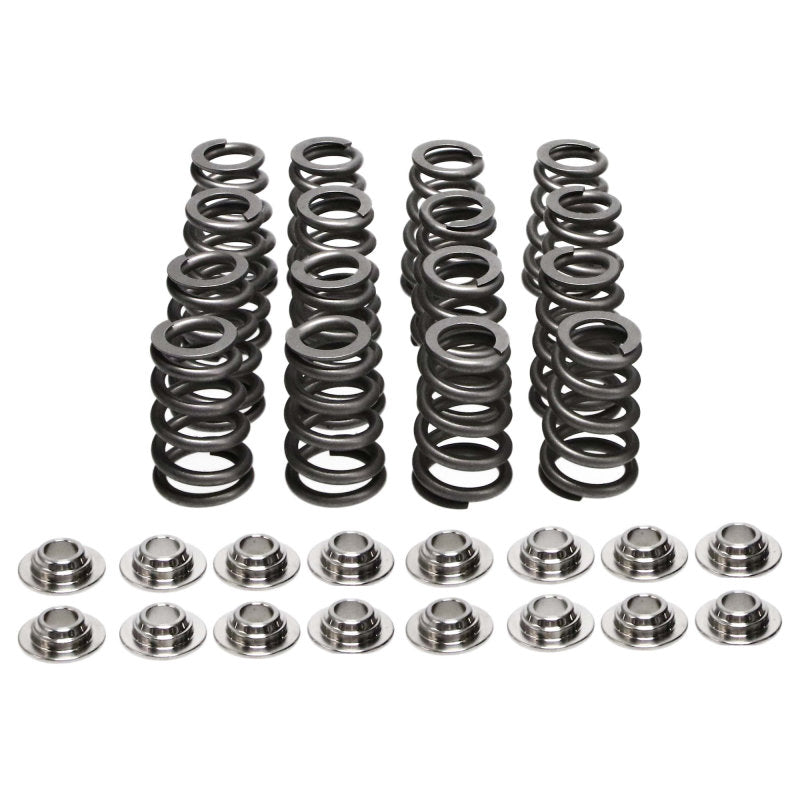

Manley Subaru WRX/STi .490in Valve Spring and Retainer Kit (w/o Valve Locks) (16 each)

MAN26185
807298044774
Valve Springs, Retainers
14 Units In Stock - Ships Next Business Day
$ 561.04 $ 532.99
$ 532.99

SKU: 26185 | UPC: 807298044774

Manley Subaru WRX/STI .490in Valve Spring and Retainer Kit (w/o Valve Locks) (16 each) for 2002-2011 Impreza

Upgrade your Subaru EJ20 or EJ25 engine with the Manley .490in Valve Spring and Titanium Retainer Kit, a complete 16-piece set designed specifically for WRX and STI models. This kit fits 2002-2005 Impreza WRX and 2004-2011 Impreza WRX STI variants, enabling higher cam lift and sustained revs past 8000 RPM by preventing valve float and coil bind. Engineered for turbocharged DOHC applications, it delivers reliable power gains in racing or street use.

Key Features

  • .490in Maximum Lift: Handles aggressive cam profiles up to .490in lift with 1.100in coil bind height for safe high-RPM operation
  • Optimized Spring Rates: Intake seat pressure 100 lbs at 1.670in, open 290 lbs at .490in lift. exhaust matched for balanced valvetrain control
  • Titanium Retainers: Lightweight 10-degree retainers reduce reciprocating mass by 30% over steel, improving throttle response and durability
  • Precision Dimensions: 1.200in OD / .875in ID springs made from high-tensile steel with progressive winding to minimize harmonics
  • Complete 16-Piece Kit: Covers all intake and exhaust valves on DOHC 2.0L/2.5L EJ engines without locks for custom lock selection

Product Notes

  • Kit excludes valve locks. reuse OEM or pair with Manley 59029-16 locks for full assembly
  • Inspect retainers and springs during install for proper seating and shim requirements
  • Packaged in protective sleeves. 4.1 lbs net weight, ships in 12x9x7in box

Installation Notes

  • Professional installation recommended.
  • Requires Subaru-specific valve spring compressor tool for safe removal and install
  • Compatible with OEM keepers and seats. check valve stem clearance before final assembly

This Part Fits

Year Make Model Submodel
2002-2005 Subaru Impreza WRX
2004-2011 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI Limited
2011 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition

Why Choose Manley?

  • Decades of motorsport dominance in valvetrain components for Subaru rally cars
  • USA-manufactured with XHRS or 9260 spring wire for fatigue resistance over 1 million cycles
  • Magnetically particle inspected and load-tested for consistent performance

Frequently Asked Questions

  • Q: Will this kit fit my 2006 WRX STI?
    A: Yes, confirmed fit for all 2004-2011 Impreza WRX STI models with EJ255 engines. verify head casting for EJ25 turbo compatibility
  • Q: What material are the springs and retainers?
    A: Springs use premium chrome-silicon high-tensile steel. retainers are forged 6AL4V titanium for strength-to-weight advantage
  • Q: What is the warranty and install process?
    A: Backed by Manley limited lifetime warranty against spring failure. install on engine stand with compressor tool, torque seals to spec

Shipping & Handling

  • Method: UPS Ground or FedEx - free over $99
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-protected in 12x9x7in corrugated box
  • Weight: 4.1 lbs

Request For Information

Have questions about Manley Subaru WRX/STi .490in Valve Spring and Retainer Kit (w/o Valve Locks) (16 each)? Fill out the form below and we'll get back to you by the next business day.
