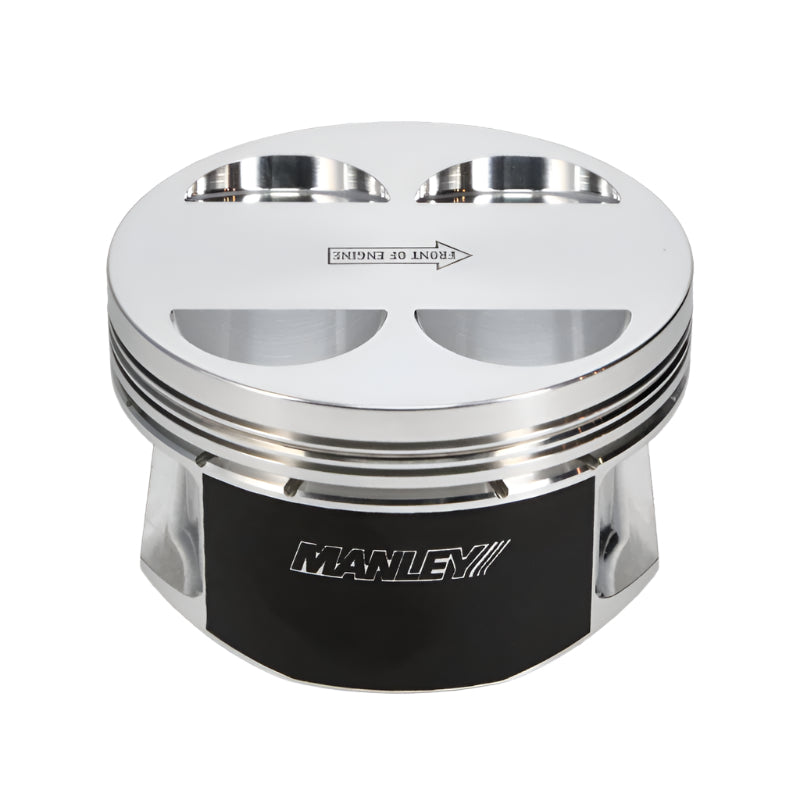

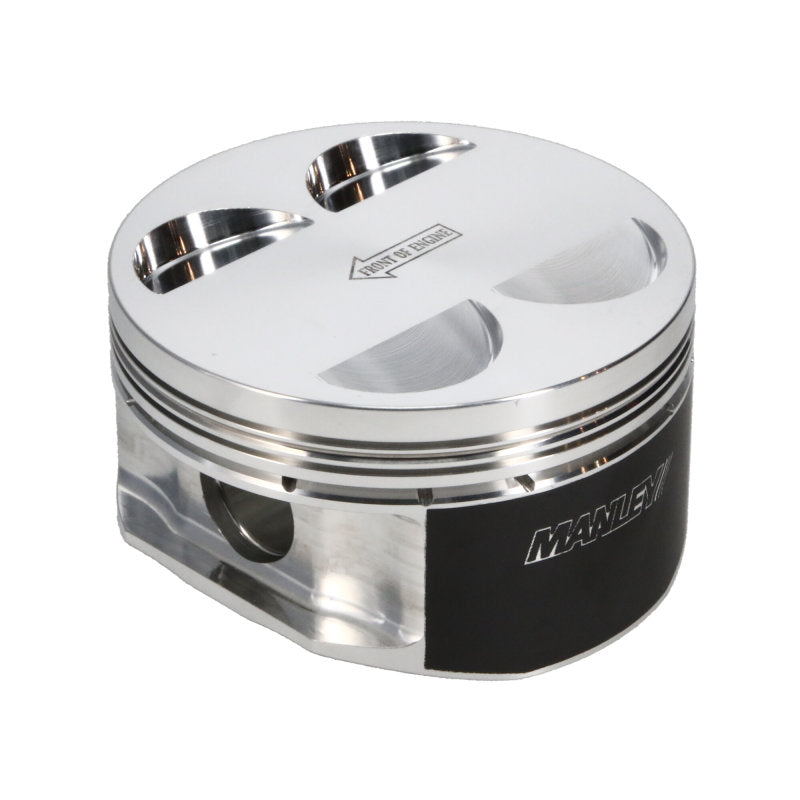

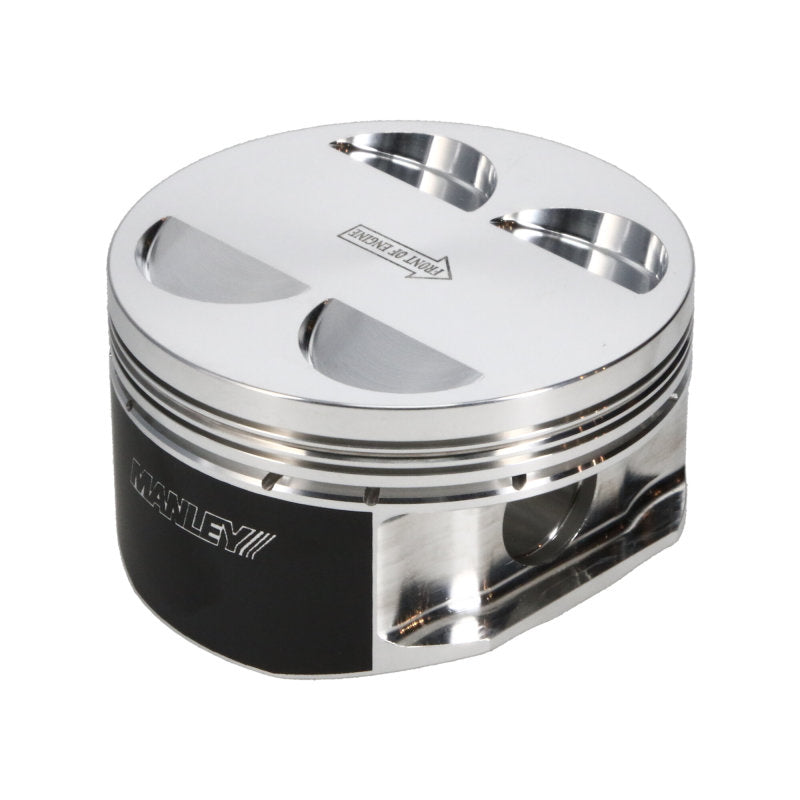

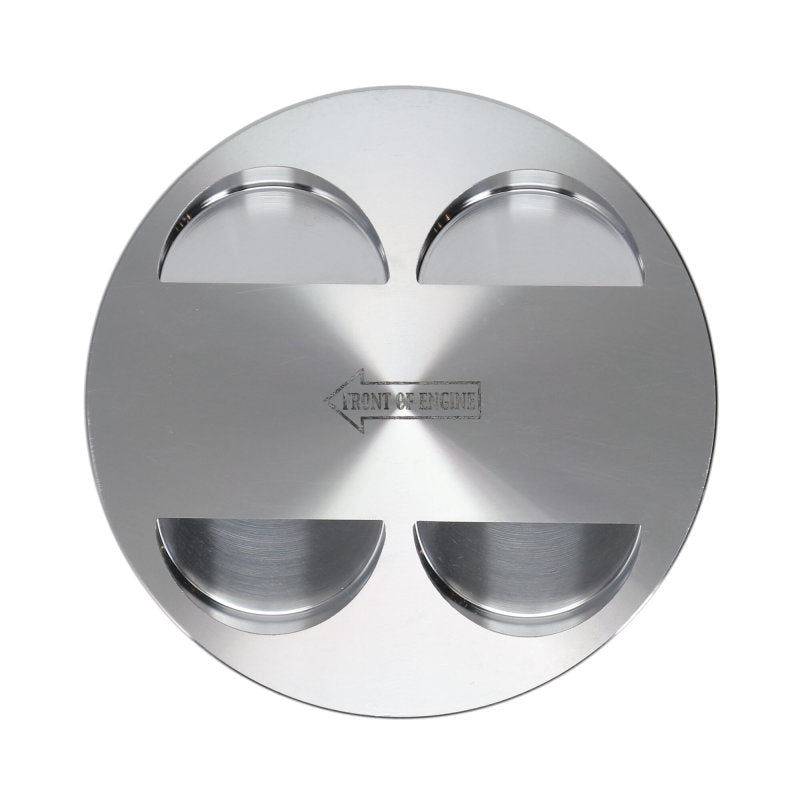

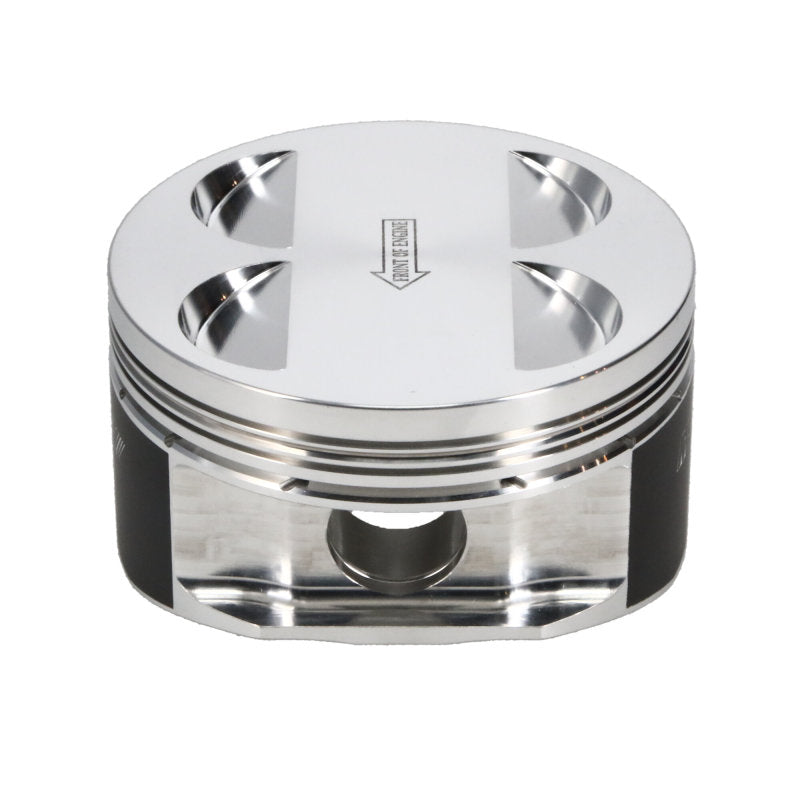

Manley Toyota 2JZGTE 86.5mm Bore +.5mm Oversized 10.0:1 CR Flat Top Piston Set with Rings

MAN609105C-6
807298083872
Piston Sets - Forged - 6cyl
8 Units In Stock - Ships Next Business Day
$ 1,208.45 $ 1,111.78
$ 1,111.78

SKU: 609105C-6 | UPC: 807298083872

Manley Toyota 2JZGTE 86.5mm Bore +.5mm Oversized 10.0:1 CR Flat Top Piston Set with Rings 1993-1998 Supra

Manley 609105C-6 delivers a complete set of six forged flat top pistons with rings for Toyota 2JZ-GTE engines found in 1993-1998 Supra turbo models and compatible JDM vehicles like Aristo and Chaser Tourer V. This +0.5mm oversized 86.5mm bore kit raises compression to 10.0:1 for increased power in high-performance builds while maintaining reliability. Each piston features precise engineering for better ring seal and cylinder wall protection during boosted operation.

Key Features

  • 2618 Alloy Forgings: Domestic 2618 alloy forgings deliver strength and performance for demanding turbocharged applications
  • Chrome Moly Wrist Pins: Chrome Moly wrist pins included standard provide durability in high-heat high-rpm conditions
  • Exacting Ring Lands and Grooves: Strict standards on ring lands and grooves improve ring seal to generate more power
  • Cam and Barrel Profiles: Cam and skirt profiles produce power gains while protecting cylinder walls from wear
  • Unique Fixturing: Single-operation skirt turning and ring groove machining ensures ring groove to skirt squareness for consistent performance

Product Notes

  • Cylinders require boring and honing to 86.5mm before installation
  • Kit includes full ring set and wrist pins for each piston
  • Store in dry environment to prevent corrosion on unpainted surfaces

Installation Notes

  • Professional installation recommended.
  • Bore engine block to 86.5mm and check clearances with plastigage
  • Compatible with stock 2JZ-GTE connecting rods and bearings

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Turbo
1991-1995 Toyota Aristo Twin Turbo
1996-2000 Toyota Aristo VVT-i Twin Turbo
1998-2001 Toyota Chaser Tourer V 2JZ-GTE
1998-2001 Toyota Mark II Tourer V 2JZ-GTE

Why Choose Manley?

  • Decades of experience building pistons for 2JZ race engines
  • USA-made with CNC machining for exact tolerances
  • Engineered for 1000+ hp turbo setups with proven durability

Frequently Asked Questions

  • Q: Will this piston set fit my 1993-1998 Toyota Supra 2JZ-GTE?
    A: Yes it directly fits 1993-1998 Supra turbo 2JZ-GTE after boring to 86.5mm also compatible with JDM Aristo Chaser and Mark II 2JZ-GTE engines
  • Q: What alloy are these pistons constructed from?
    A: Forged from domestic 2618 alloy designed for high strength in boosted applications with Chrome Moly pins included
  • Q: What warranty coverage applies?
    A: Manley provides limited warranty against manufacturing defects when installed by certified engine builder

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-lined box 12 x 10 x 6 inches
  • Weight: 6.35 lbs
