A Clean, Lightweight Wheel for Compact-Car Fitments

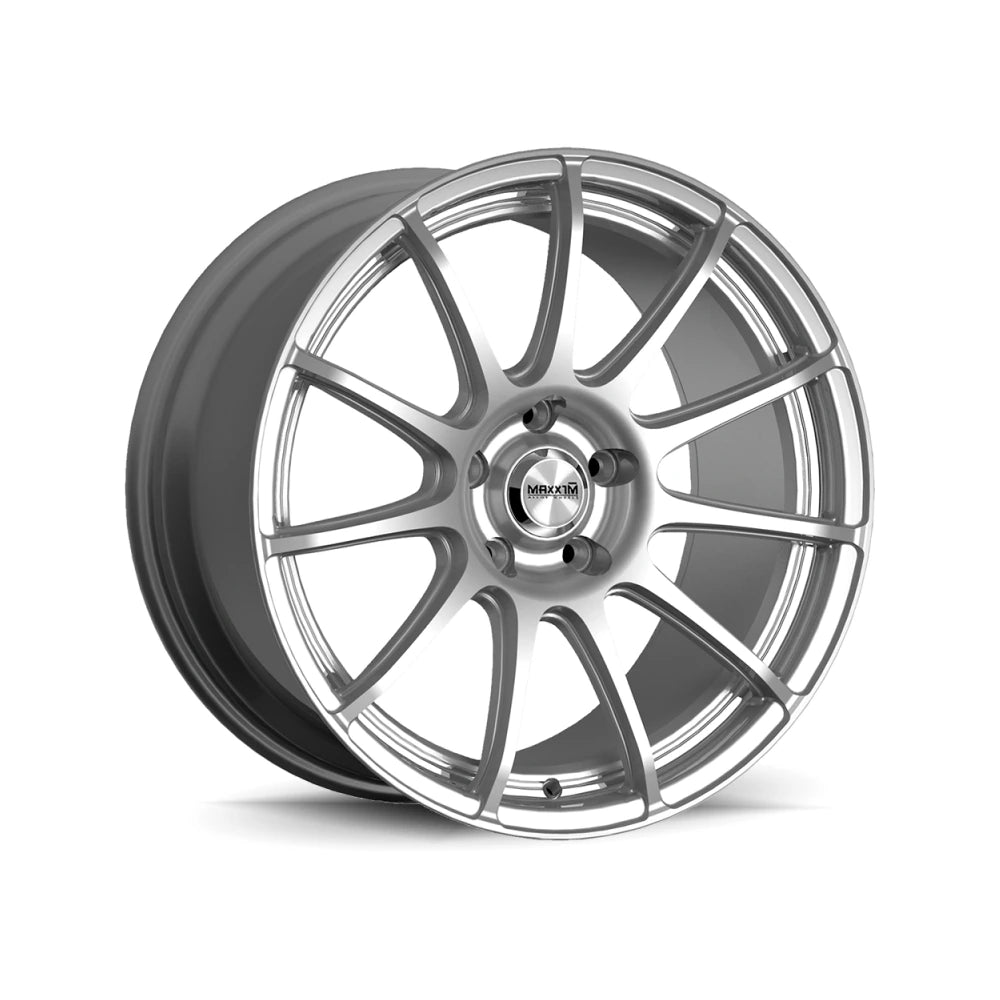

The Maxxim Winner WN46D0438S is a 14x6 cast-aluminum wheel with a full silver finish, a +38 mm offset, and dual 4x100 and 4x114.3 bolt patterns. Its 10-spoke design and 11.2-pound published weight suit compact and tuner applications where verified hub, brake, tire, and load compatibility are confirmed before installation.
Key Features
- 14-inch diameter and 6-inch width
- Dual-drilled 4x100 and 4x114.3 bolt patterns
- Positive 38 mm offset and 73.1 mm center bore
- Cast-aluminum, one-piece construction
- Full silver painted finish with a 10-spoke design
- Published wheel weight of 11.2 pounds
- Published load rating of 1,518 pounds
Fitment
| Check | Requirement |
|---|---|
| Bolt pattern | Vehicle must use 4x100 or 4x114.3 |
| Center bore | Vehicle hub must be compatible with a 73.1 mm bore; hub-centric rings may be required |
| Offset | Vehicle must accept a +38 mm wheel offset |
| Brake clearance | Caliper and suspension clearance must be confirmed for the exact vehicle and brake package |
| Tire sizing | Select a 14-inch tire with the correct load rating, width, and overall diameter for the vehicle |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | WN46D0438S |
| Brand | Maxxim by Konig |
| Model | Winner |
| Wheel size | 14x6 inches |
| Bolt patterns | 4x100 and 4x114.3 |
| Offset | +38 mm |
| Center bore | 73.1 mm |
| Construction | One-piece cast aluminum |
| Finish | Full silver paint |
| Design | 10-spoke |
| UPC | 043482205082 |
What's Included
- One Maxxim Winner 14x6 wheel
- Tire, lug hardware, valve stem, TPMS sensor, and hub-centric rings are not included unless separately stated
About Maxxim
Maxxim is a Konig wheel line focused on accessible styling and dependable construction. The Winner uses a tuning-inspired 10-spoke design and is produced in multiple compact-car sizes and bolt-pattern configurations.
Related Parts
- Choose vehicle-specific conical-seat lug hardware only after confirming thread size and seat type
- Use hub-centric rings only when the vehicle hub diameter requires them
- Select TPMS hardware and 14-inch tires that match the exact vehicle and intended load
FAQ
What is the WN46D0438S?It is a Maxxim Winner 14x6 full-silver cast wheel with dual 4x100 and 4x114.3 bolt patterns, a +38 mm offset, and a 73.1 mm center bore.
Is this wheel sold individually?Yes. The package quantity is one wheel, so order four when replacing a complete four-wheel set.
Will this wheel fit every vehicle with a 4x100 bolt pattern?No. Bolt pattern alone does not establish fitment. Offset, center bore, brake clearance, wheel load rating, tire size, and lug-seat compatibility must also match the vehicle.
Does this also fit 4x114.3 vehicles?The wheel is dual drilled for both listed patterns, but all other dimensions and clearance requirements still need to be verified.
Are hub-centric rings required?They may be required when the vehicle hub is smaller than the wheel's 73.1 mm center bore. Use the correct ring dimensions for the specific hub.
Are lug nuts included?No lug hardware is included unless separately stated. Use vehicle-specific hardware with the correct thread size, conical seat, shank length, and torque specification.
Is this wheel TPMS compatible?Published retailer data identifies it as TPMS compatible. Confirm the sensor and valve-stem style required by the vehicle before mounting the tire.
What warranty applies?Konig's published warranty covers qualifying defects for the original owner when the wheel is properly installed and normally used. Warranty eligibility and exclusions should be reviewed before installation.
Installation Instructions
- Confirm bolt pattern, offset, center bore, brake clearance, tire size, and load compatibility before mounting a tire.
- Inspect the wheel and test-fit it on the correct hub without a tire when clearance is uncertain.
- Install any required hub-centric ring, compatible valve stem or TPMS sensor, and properly sized tire.
- Mount the wheel with the correct conical-seat lug hardware and tighten in a star pattern to the vehicle manufacturer's torque specification.
- Recheck lug torque after the initial driving interval recommended by the wheel or vehicle manufacturer.
