SKU: MR10179080312B | UPC: 191682011368

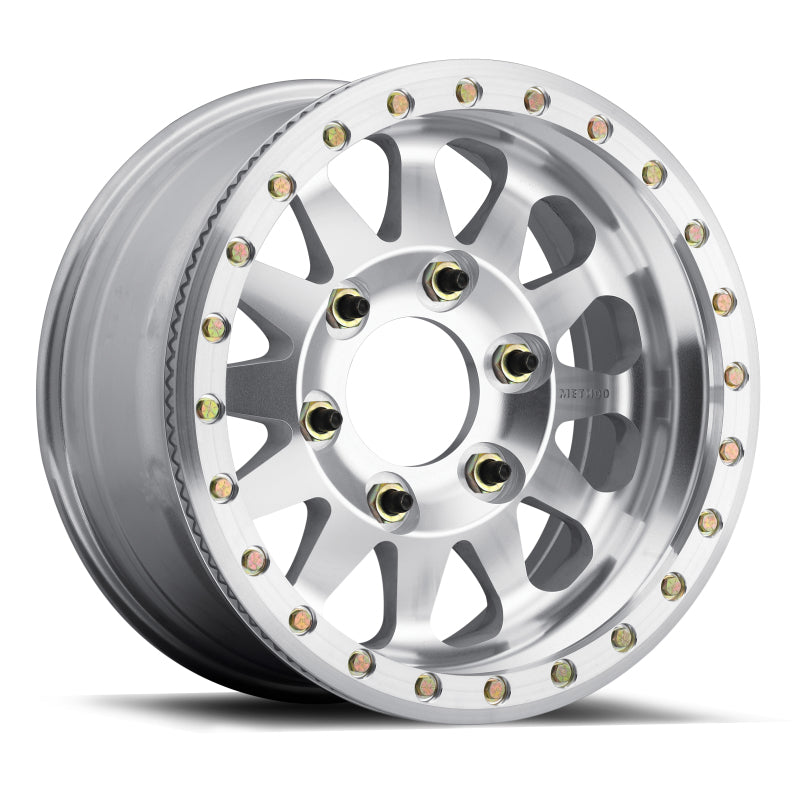

Method MR101 Beadlock 17x9 -12mm Offset 8x6.5 130.81mm CB Raw Machined w/BH-H24125 Wheel for 1967-1991 Chevy GMC Trucks SUVs
The Method MR101 Beadlock wheel delivers hardcore off-road capability in a 17x9 size with -12mm offset for wide stance stability. It bolts directly to 1967-1991 Chevrolet C/K pickups Suburbans Blazers and GMC equivalents using 8x6.5 pattern and 130.81mm center bore. Beadlock design locks tires at low pressures for unbeatable traction on rocks mud and sand.
Key Features
- Beadlock Ring w/BH-H24125 Hardware: Bolts tire bead securely allowing 10-15 PSI runs without debeading for confident control in technical terrain
- -12mm Offset: Positions wheel outward for increased track width enhanced cornering grip and fender clearance on lifted trucks
- 8x6.5 Bolt Pattern 130.81mm CB: Hub-centric fit eliminates vibrations matches factory hubs on classic Chevy GMC Jeep applications
- 17x9 Size: Accepts 33-35 inch tires balances load capacity with agility for daily driving and hardcore wheeling
- Raw Machined Finish: CNC machined aluminum spokes with clear coat resist corrosion highlight structural ribs for heat dissipation and strength
Product Notes
- Cast A356 T6 aluminum construction weighs 42 lbs resists impacts common in rock crawling
- Inspect beadlock bolts regularly and re-torque after first 50 miles and every 3 months
- Oversized parcel ships via ground carrier expect 3-7 business days transit
Installation Notes
- Professional installation recommended.
- Torque beadlock hardware to 12-15 ft-lbs dry and lug nuts to vehicle specs 140-150 ft-lbs
- Requires standard lug nuts compatible with conical seat includes all necessary beadlock bolts
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967-1991 | Chevrolet | C/K Pickup | |
| 1969-1991 | Chevrolet | Blazer | |
| 1967-1991 | Chevrolet | Suburban | |
| 1967-1991 | GMC | C/K Pickup | |
| 1970-1991 | GMC | Jimmy | |
| 1967-1991 | GMC | Suburban | |
| 1984-1991 | Jeep | Grand Wagoneer | |
| 1971-1980 | International | Scout II |
Why Choose Method?
- Method Race Wheels dominates Ultra4 and desert racing with battle-tested designs
- Every wheel undergoes rigorous finite element analysis for impact resistance
- American engineering ensures precision tolerances and consistent quality
Frequently Asked Questions
-
Q: Will this fit my 1980 Chevy K10 4x4 with 8x6.5 hubs
A: Yes hub-centric 130.81mm CB and 8x6.5 pattern provide direct bolt-on fit no spacers needed -
Q: What material and finish details
A: High-strength A356 aluminum alloy T6 heat-treated raw machined spokes clear coated black beadlock ring hardware resists chips scratches and UV damage -
Q: What warranty coverage
A: Limited lifetime warranty against structural defects when installed and maintained per guidelines excludes cosmetic damage from normal off-road use
Shipping & Handling
- Method: UPS Ground or FedEx Home Delivery
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 19x19x11 inches
- Weight: 42 lbs
