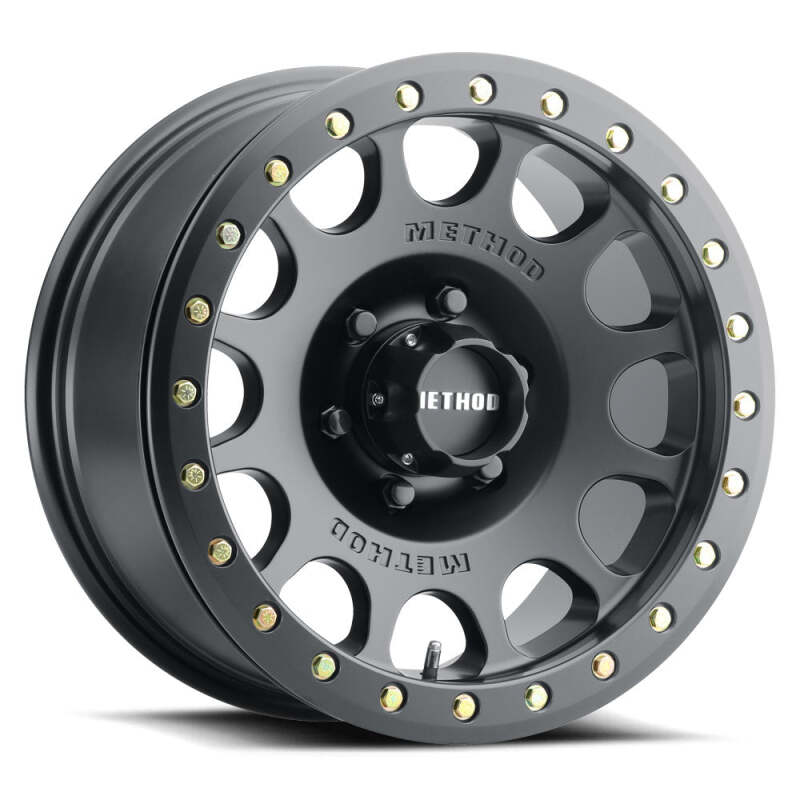

Method MR105 V3 Beadlock 17x9 -38mm Offset 8x6.5 130.81mm CB Matte Black Wheel w/ BH-H24125

SKU: MR10579080538B | UPC: 191682019944

Method MR105 V3 Beadlock 17x9 -38mm Offset 8x6.5 130.81mm CB Matte Black Wheel w/ BH-H24125 for Jeep Wrangler TJ YJ Cherokee XJ Chevy K20

The Method MR105 V3 Beadlock wheel delivers rugged off-road performance with its true beadlock design that clamps tires securely at low pressures for maximum traction on rocks and trails. Sized 17x9 inches with -38mm offset and 8x6.5 bolt pattern plus 130.81mm center bore, it fits Jeep Wrangler TJ YJ, Cherokee XJ, and Chevy K20 trucks for an aggressive wide stance. Includes BH-H24125 black hardware kit for reliable bead retention in demanding conditions.

Key Features

• True Beadlock Design: Forged 6061-T6 aluminum ring and Grade 8 hardware clamp tire bead preventing debeading even at 5 psi for confident low-pressure off-roading.
• 17x9 Size -38mm Offset: Provides 4.72 inches of backspace for tucked fenders or flush fit pushing wheels outward for stability on uneven terrain.
• 8x6.5 Bolt Pattern 130.81mm CB: Hub-centric fit for classic Jeeps and trucks eliminating vibrations and ensuring precise centering on hubs up to 130.81mm diameter.
• Matte Black Finish: Durable powder coat resists chips corrosion and fading from mud rocks and UV exposure while giving a stealth aggressive look.
• Gravity Cast A356 T6 Aluminum: Heat-treated construction weighs 39.9 lbs balancing strength lightness and impact resistance for long-term trail abuse.

Product Notes

• Beadlock hardware BH-H24125 included torque to 13 ft-lbs during install and re-torque after 50 miles and every 3 months.
• Clean ring bolts with brake cleaner after rides to prevent corrosion and maintain bead grip.
• Oversize item ships freight or ground with protective packaging expect 3-7 business days delivery.

Installation Notes

• Professional installation recommended.
• Apply blue Loctite or anti-seize to beadlock ring bolts for corrosion resistance.
• Uses 9/16 x 1.5 inch or conical lug nuts compatible with 8x6.5 pattern vehicles.

This Part Fits

Why Choose Method?

• Race wheels trusted by Ultra4 King of the Hammers competitors for proven durability in extreme desert and rock events.
• USA-made with rigorous testing exceeding SAE J2530 standards for radial fatigue and impact resistance.
• Engineered beadlock system developed from championship-winning designs for real-world off-road reliability.

Frequently Asked Questions

• Q: Does this wheel fit Jeep Wrangler TJ with 33 inch tires?
  A: Yes fits 1997-2006 TJ YJ and LJ models with 8x6.5 hubs using hubcentric rings if needed provides clearance for 33-35 inch tires with -38 offset.
• Q: What material and finish is used?
  A: Gravity cast A356 aluminum T6 heat treated with forged beadlock ring and matte black powder coat finish for corrosion resistance and easy cleaning.
• Q: What is the warranty and maintenance?
  A: Lifetime structural warranty against defects re-torque beadlock bolts after first 50 miles then every 3 months or 3000 miles for safety.

Shipping & Handling

• Method: Ground shipping via UPS or FedEx
• Availability: In stock - ships same or next business day
• Packaging: Secure individual cardboard box 19x19x12 inches
• Weight: 39.9 lbs net 45 lbs shipping
