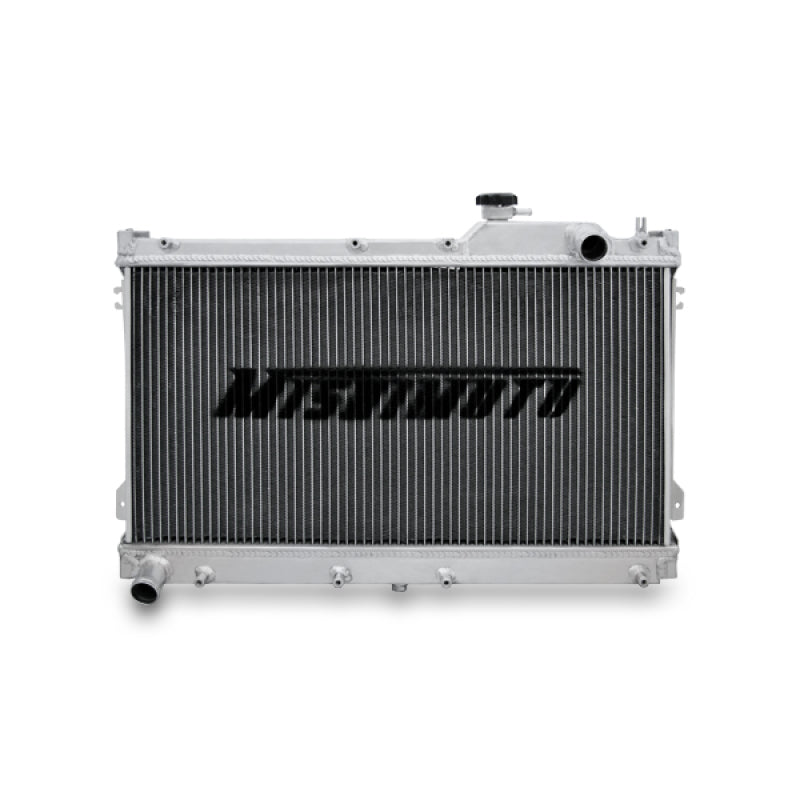

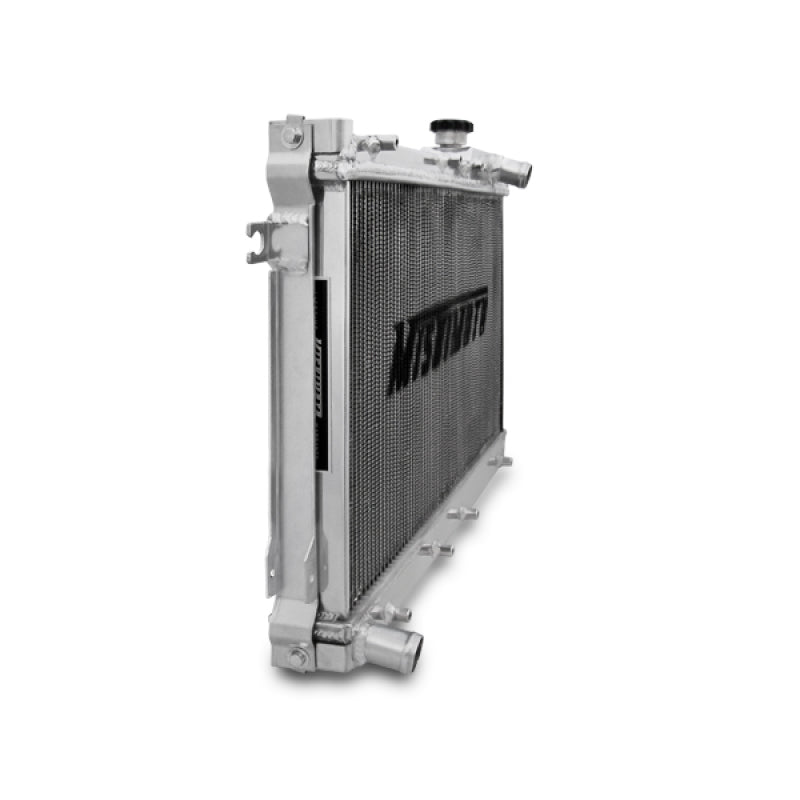

Mishimoto Mishimoto 90-97 Mazda Miata 3 Row Manual X-LINE (Thicker Core) Aluminum Radiator
Mishimoto Mishimoto 90-97 Mazda Miata 3 Row Manual X-LINE (Thicker Core) Aluminum Radiator
Mishimoto Mishimoto 90-97 Mazda Miata 3 Row Manual X-LINE (Thicker Core) Aluminum Radiator
Click to zoom in

Mishimoto 90-97 Mazda Miata 3 Row Manual X-LINE (Thicker Core) Aluminum Radiator

Mishimoto
MISMMRAD-MIA-90X
748354804997
Radiators
8 Units In Stock - Ships Next Business Day
$ 440.00 $ 399.95
$ 399.95

SKU: MMRAD-MIA-90X | UPC: 748354804997

Mishimoto 90-97 Mazda Miata 3 Row Manual X-LINE (Thicker Core) Aluminum Radiator

This Mishimoto aluminum radiator upgrades 1990-1997 Mazda Miata manual transmission models with a 3-row X-LINE design featuring a thicker 60mm core for enhanced heat dissipation. It replaces the factory radiator to lower engine temperatures during track days or spirited drives while maintaining direct OEM fitment. Engineered with 100% brazed aluminum construction, it delivers reliable cooling without modifications.

Key Features

  • 3-Row X-LINE Thicker Core: 60mm thick core (19.69" x 12.60" x 2.36") with 1.25" tubes provides greater cooling capacity than stock 2-row units.
  • 100% Brazed Aluminum Construction: TIG-welded end tanks resist corrosion and cracking common in OEM plastic tanks for long-term durability.
  • Direct OEM Fitment: Bolts directly into 90-97 Miata engine bay with 1-1/4" inlet and outlet fittings, no cutting or adapters needed.

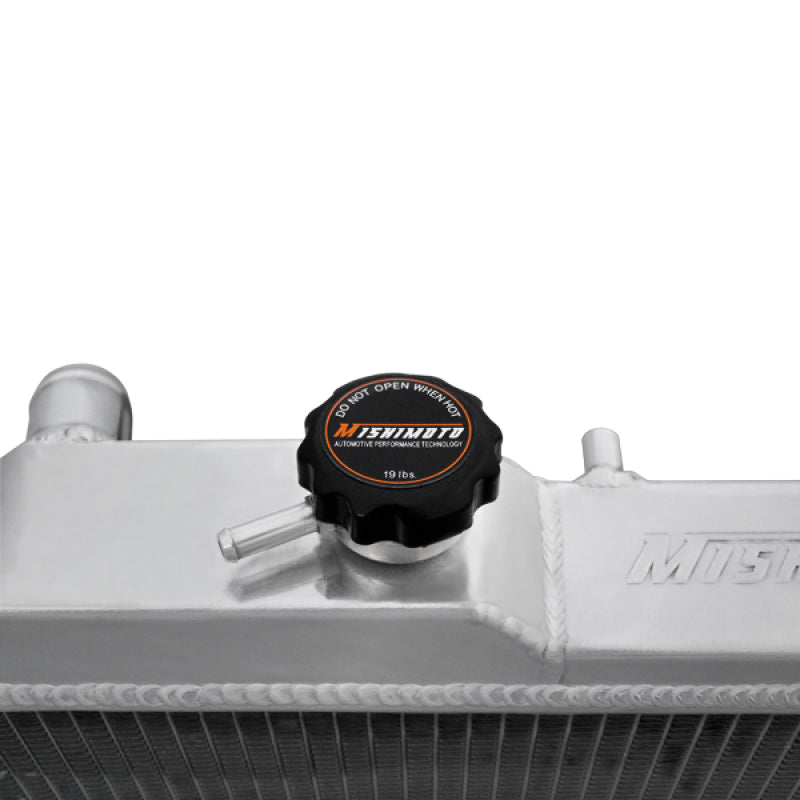

  • Included 1.3 Bar Cap: High-pressure cap maintains optimal system pressure to prevent boil-over and improve coolant flow efficiency.
  • Polished Aluminum Finish: Clean, durable surface enhances underhood appearance while protecting against road debris.

Product Notes

  • Designed exclusively for manual transmission Miatas. automatic models require MMRAD-MIA-90A.
  • Pair with Mishimoto silicone hose kit for complete cooling system upgrade.
  • Ships in protective foam-lined box to prevent fin damage.

Installation Notes

  • Professional installation recommended.
  • Drain coolant, remove OEM radiator, and bolt in new unit using factory mounts in under 1 hour.
  • Compatible with stock fans, shrouds, and brackets. cap included replaces OEM.

This Part Fits

Year Make Model Submodel
1990-1997 Mazda Miata Base
1993 Mazda Miata LE
1994-1997 Mazda Miata M Edition
1991 Mazda Miata SE
1997 Mazda Miata STO

Why Choose Mishimoto?

  • Proven track record in motorsports cooling for Mazda enthusiasts worldwide.
  • Full aluminum design outlasts factory units in high-heat conditions.
  • Engineered and tested in the USA for precise fit and performance gains.

Frequently Asked Questions

  • Q: Does this fit automatic transmission Miatas?
    A: No, this MMRAD-MIA-90X is for manual transmission only. Use MMRAD-MIA-90A for automatics.
  • Q: What material is used in construction?
    A: 100% aerospace-grade aluminum with brazed cores and TIG-welded tanks for maximum strength and heat transfer.
  • Q: What warranty is provided?
    A: Lifetime warranty against manufacturing defects when installed and maintained properly.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam inserts in 25.2 x 17.3 x 4.3 inch box
  • Weight: 12.8 lbs (shipping weight 14.6 lbs)
