Full Front-Mount Intercooler and Charge Pipe Upgrade for the 2024-2026 Toyota Tacoma 2.4L Turbo
The Mishimoto MISMMINT-TAC-24KBKRD is the complete performance intercooler and charge pipe kit for the 2024-2026 Toyota Tacoma equipped with the 2.4L turbocharged four-cylinder engine (T24A-FTS). The MISMMINT-TAC-24KBKRD replaces the factory front-mount intercooler and all charge piping with a 55% larger bar-and-plate core, black powder-coated end tanks, and wrinkle red aluminum hot and cold-side charge pipes. Intake temperatures drop by 36 degrees F during wide-open-throttle pulls, pressure drop across the intercooler is reduced by 30% compared to stock, and the entire system is engineered to preserve the factory adaptive cruise control system without interference. The MISMMINT-TAC-24KBKRD is also compatible with the 2024-2026 Toyota Land Cruiser 250 on the same T24A-FTS platform and is backed by the Mishimoto Lifetime Warranty.
Key Features

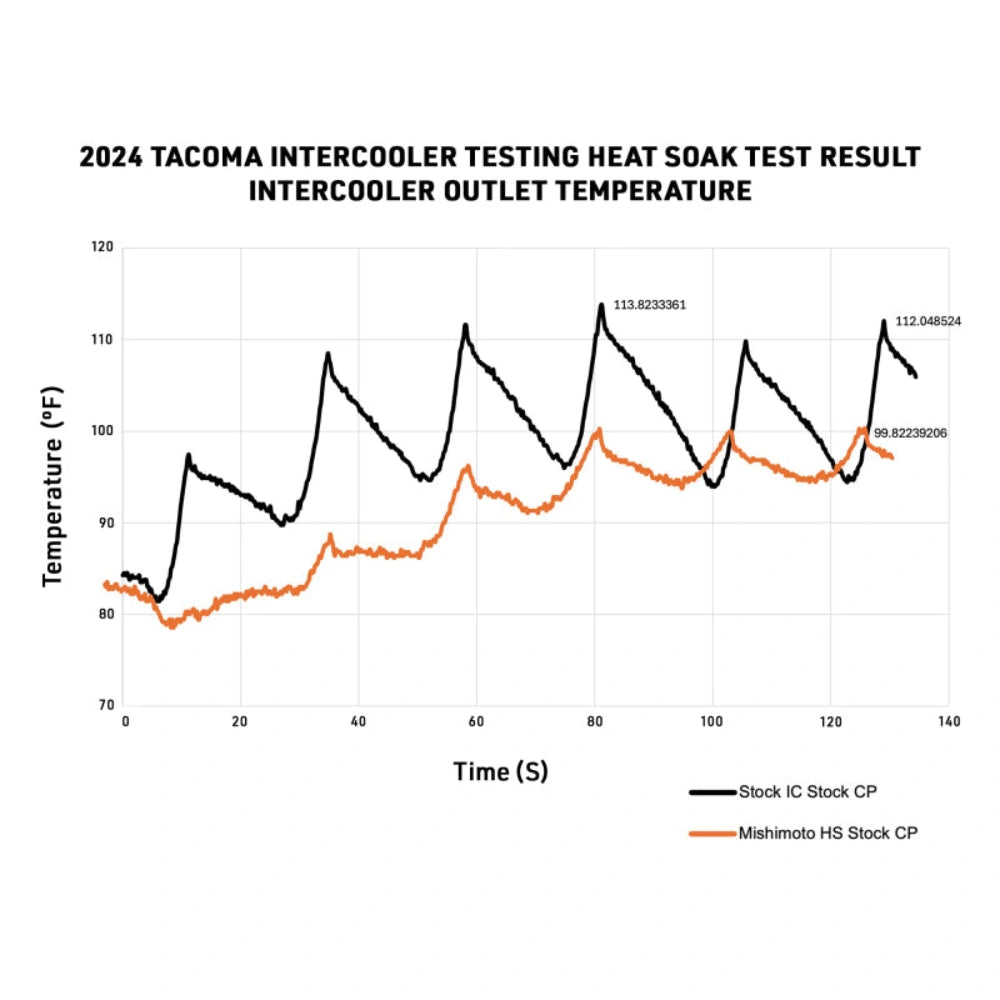

- 55% larger bar-and-plate intercooler core versus the factory unit for reduced heat soak
- 36 degree F reduction in intake air temperatures at wide-open throttle
- 30% reduction in pressure drop across the intercooler versus stock

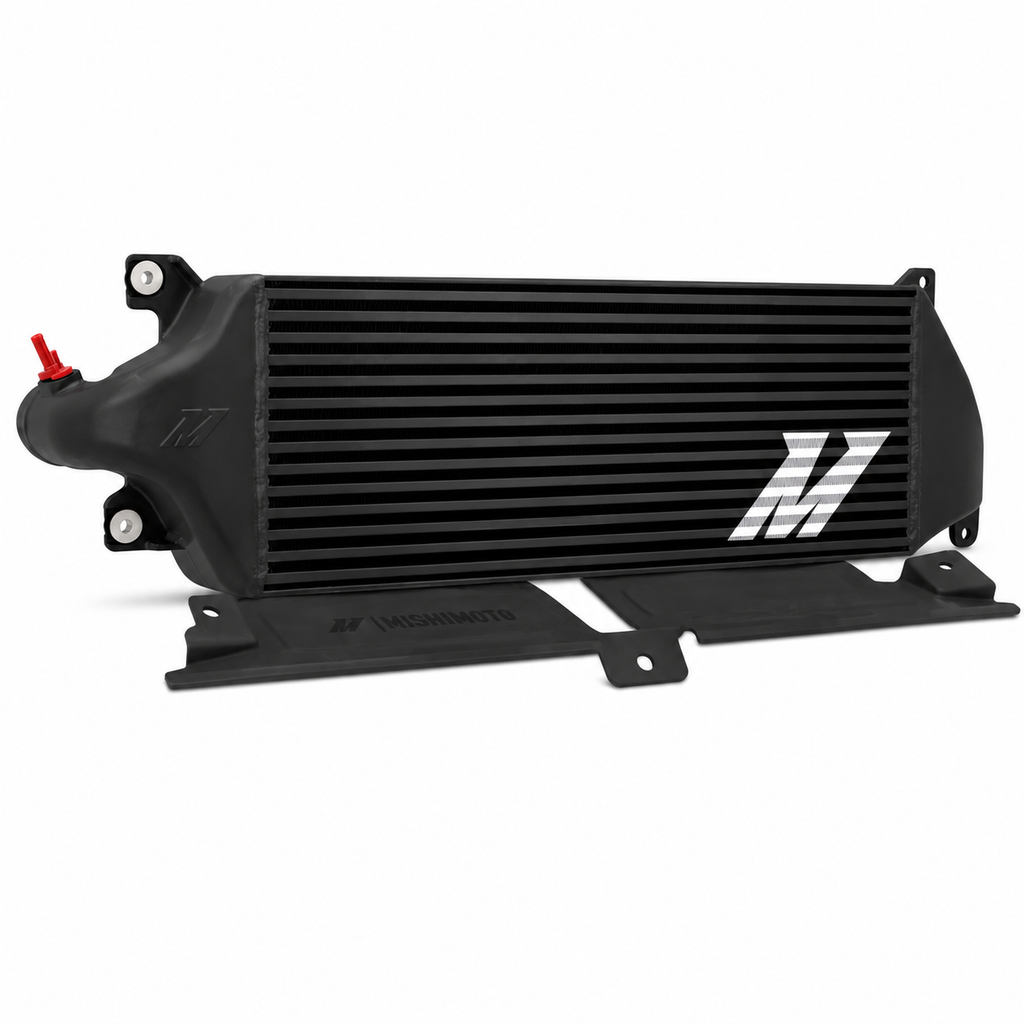

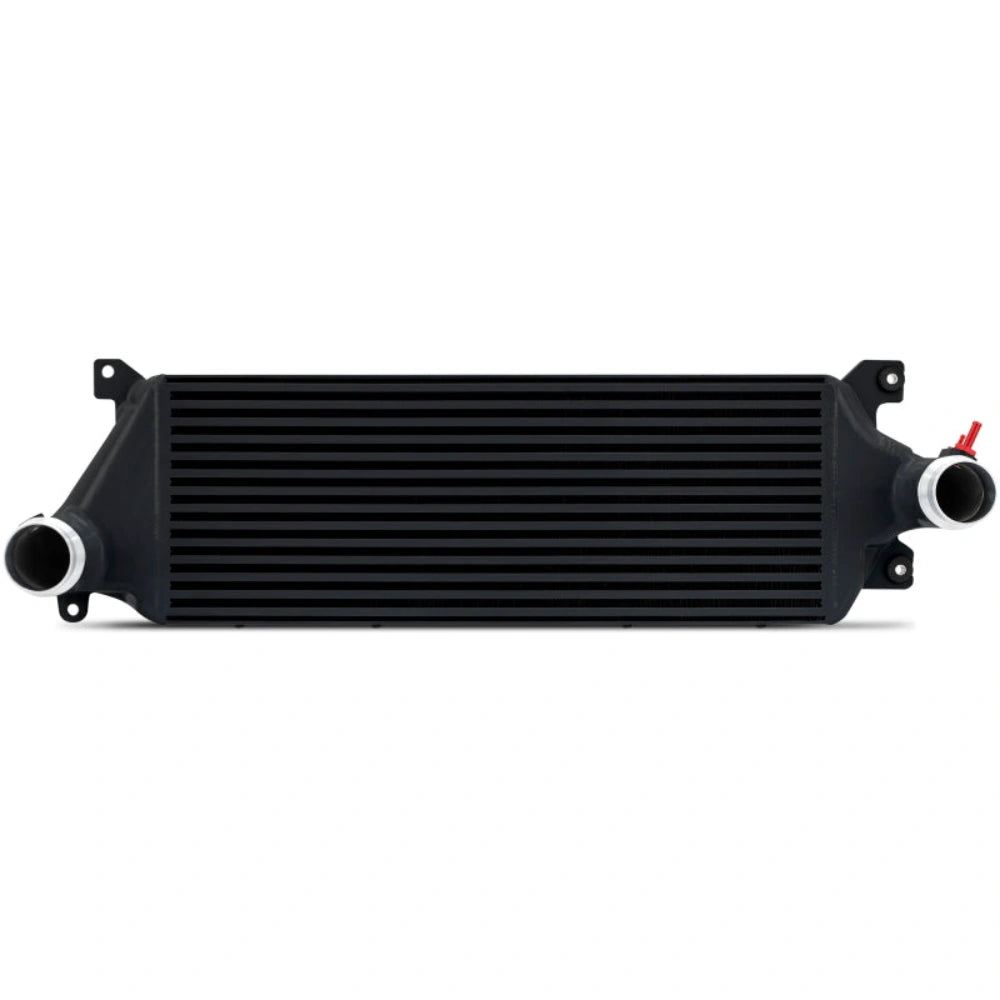

- Stealth Black powder-coated intercooler with wrinkle red aluminum charge pipes
- Billet aluminum temperature sensor ports on the inlet end tank
- Includes new mounting bushings and crush washer for the factory temperature sensor
- Engineered to preserve factory adaptive cruise control system function
- Compatible with 2024-2026 Toyota Land Cruiser 250 on the same T24A-FTS platform
- Mishimoto Lifetime Warranty
This Part Fits
| Year Range |
Make |
Model |
| 2024-2026 |
Toyota |
Tacoma |
| 2024-2026 |
Toyota |
Land Cruiser 250 |
Specifications
| Detail |
Value |
| Part Number |
MISMMINT-TAC-24KBKRD |
| Type |
Front-Mount Intercooler and Charge Pipe Kit |
| Engine Fitment |
2.4L Turbo 4-Cylinder (T24A-FTS) |
| Core Type |
Bar-and-Plate |
| Core Thickness |
3.50 in. |
| Core Length |
24.13 in. |
| Core Height |
8.87 in. |
| Intercooler Inlet |
2.03 in. |
| Intercooler Outlet |
2.22 in. |
| Hot-Side Pipe Diameter |
2.5 in. |
| Cold-Side Pipe Diameter |
3.0 in. |
| Intercooler Finish |
Stealth Black powder coat |
| Pipe Finish |
Wrinkle Red aluminum |
| Package Weight |
38-40 lbs. |
| Warranty |
Mishimoto Lifetime Warranty |
| CARB Status |
Not CARB legal, not for sale in California |

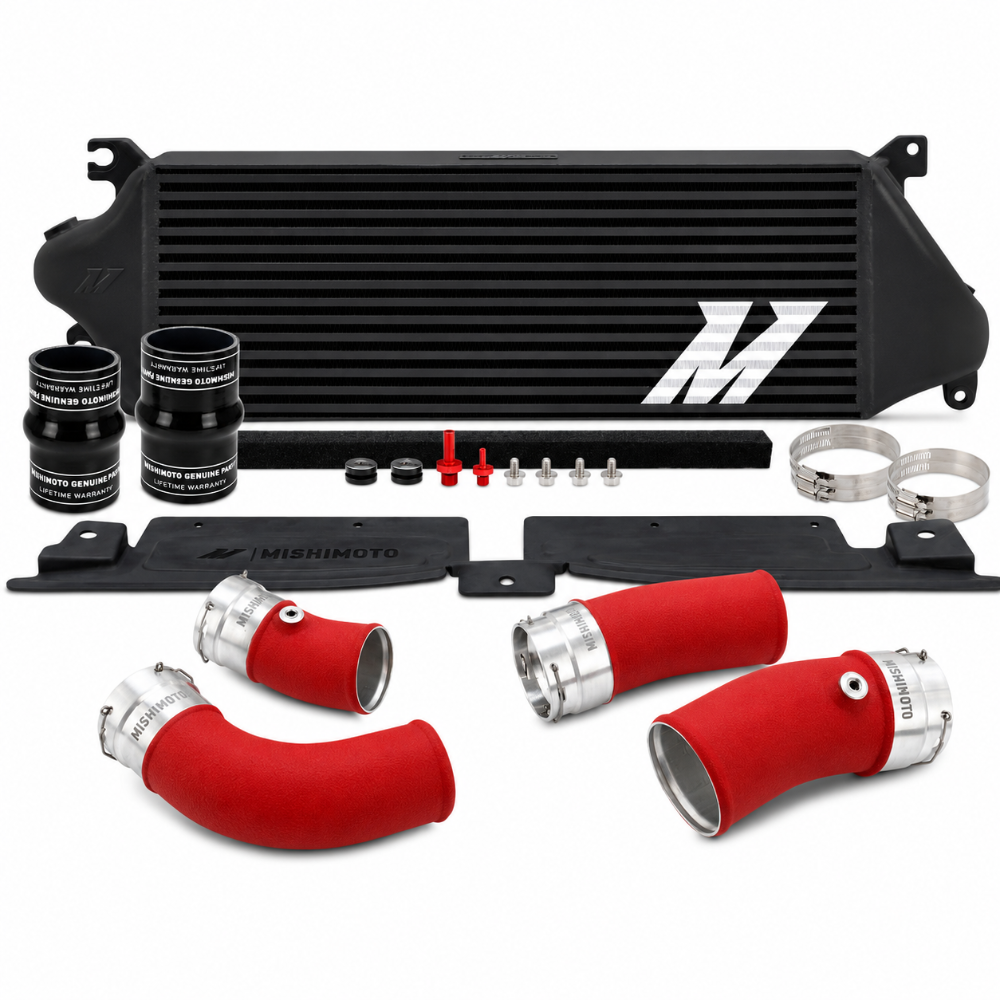

What's Included
- 1x MISMMINT-TAC-24KBKRD performance intercooler, Stealth Black

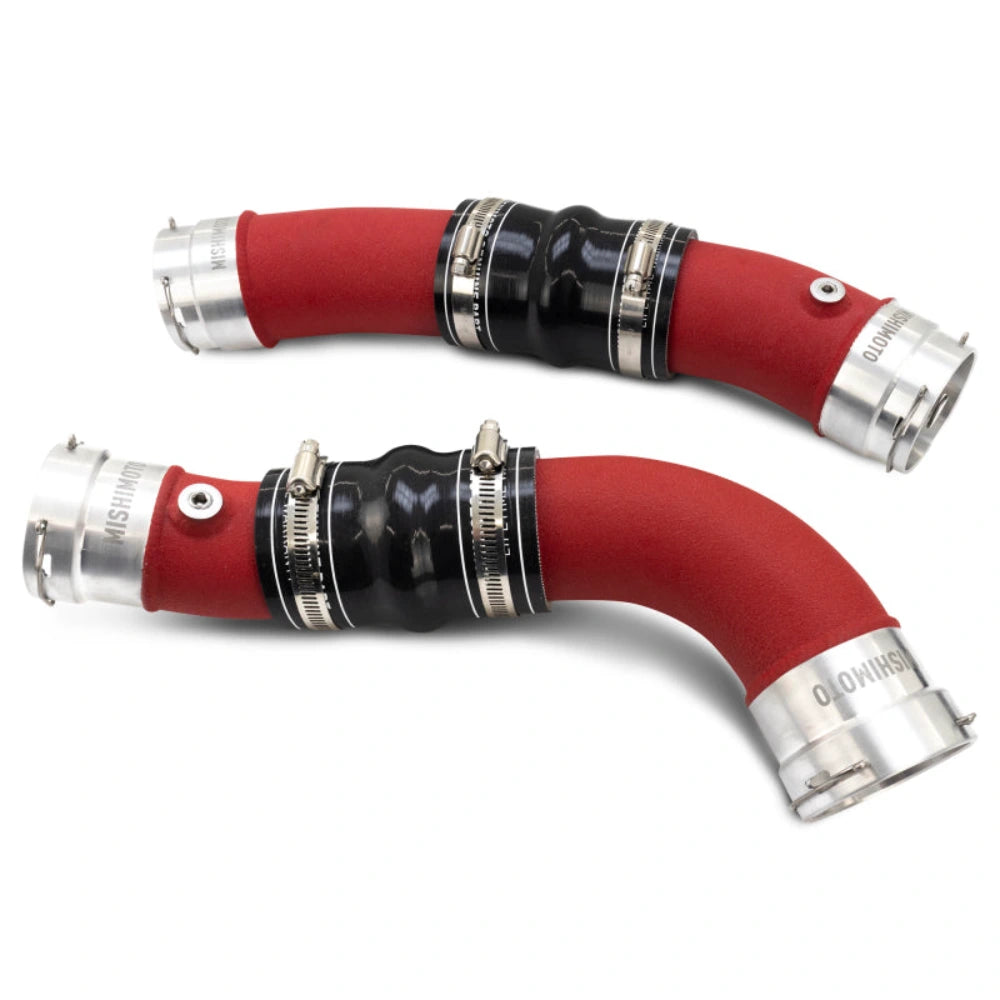

- 2x Hot-side intercooler pipes, wrinkle red aluminum
- 2x Cold-side intercooler pipes, wrinkle red aluminum
- 2x Silicone couplers

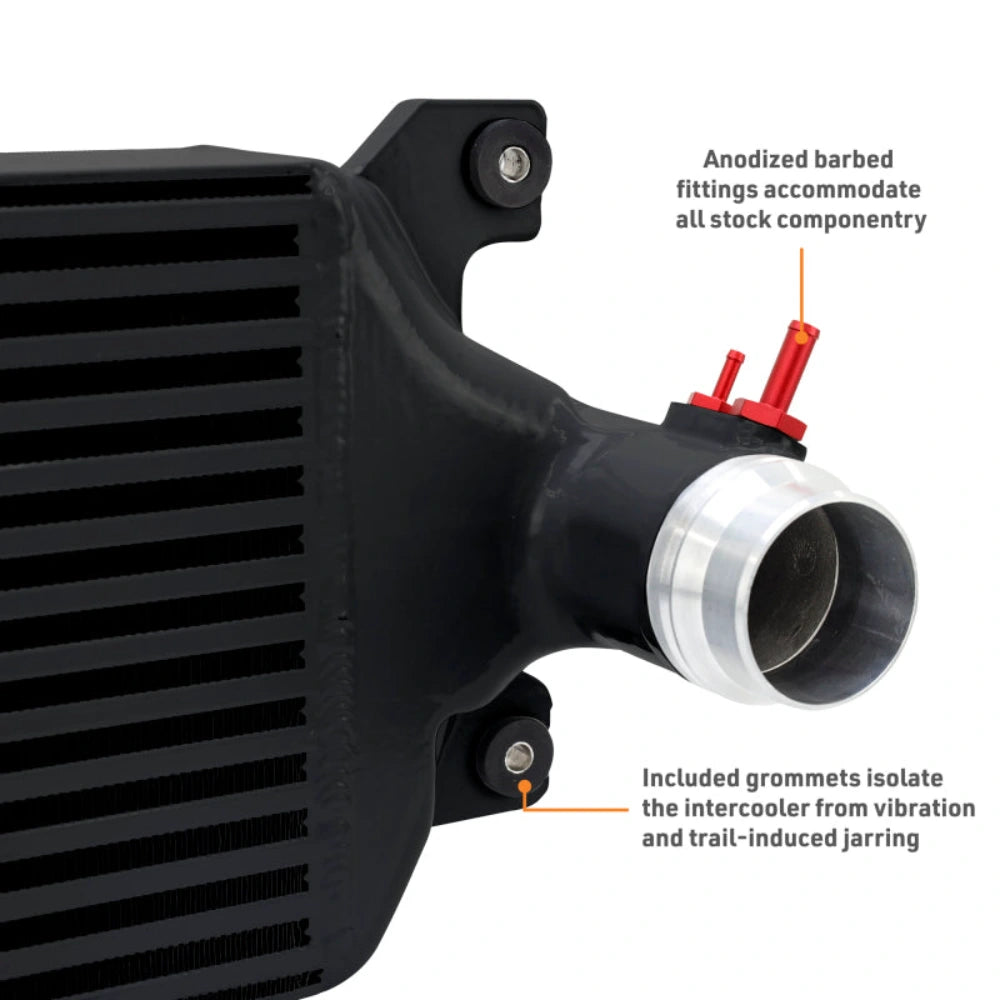

- 2x Vacuum fittings
- 1x Intercooler duct
- 1x Intercooler duct bracket
- Mounting bushings and crush washer for factory temperature sensor
- Bill of materials notecard
About Mishimoto
Mishimoto is a leading manufacturer of performance cooling components, charge pipes, and thermal management products for the automotive enthusiast market. Founded in 2003, Mishimoto designs all products in-house with application-specific engineering and backs every part with its Lifetime Warranty. The MISMMINT-TAC-24KBKRD is part of Mishimoto's first-to-market Tacoma performance line built for the fourth-generation T24A-FTS turbo platform.
FAQ
What is the MISMMINT-TAC-24KBKRD?
The MISMMINT-TAC-24KBKRD is the Mishimoto performance front-mount intercooler and charge pipe kit for the 2024-2026 Toyota Tacoma 2.4L Turbo, featuring a 55% larger bar-and-plate core, black powder-coated intercooler, and wrinkle red aluminum charge pipes, with a Mishimoto Lifetime Warranty.
What is the difference between MISMMINT-TAC-24KBKRD and MISMMINT-TAC-24KBKBK?
The MISMMINT-TAC-24KBKRD has wrinkle red charge pipes paired with a Stealth Black intercooler. The MISMMINT-TAC-24KBKBK is the all-black version with wrinkle black charge pipes and the same Stealth Black intercooler. Intercooler core performance is identical between variants.
Does MISMMINT-TAC-24KBKRD fit the 2024 Toyota Land Cruiser 250?
Yes. The MISMMINT-TAC-24KBKRD is compatible with the 2024-2026 Toyota Land Cruiser 250, which shares the T24A-FTS 2.4L turbo platform with the Tacoma. Note that installation on the Land Cruiser 250 may require removal of a bracket on the top of the AC condenser.
Will MISMMINT-TAC-24KBKRD affect the Tacoma adaptive cruise control?
No. The MISMMINT-TAC-24KBKRD is specifically engineered to avoid interference with the Tacoma adaptive cruise control system. Factory ACC function is preserved after installation.
Does MISMMINT-TAC-24KBKRD require a tune?
The MISMMINT-TAC-24KBKRD is a direct fit intercooler and pipe kit. While a tune is not required for installation, aftermarket tuning can further optimize the power benefits of improved charge air cooling that this kit provides.
What core size improvement does MISMMINT-TAC-24KBKRD provide over stock?

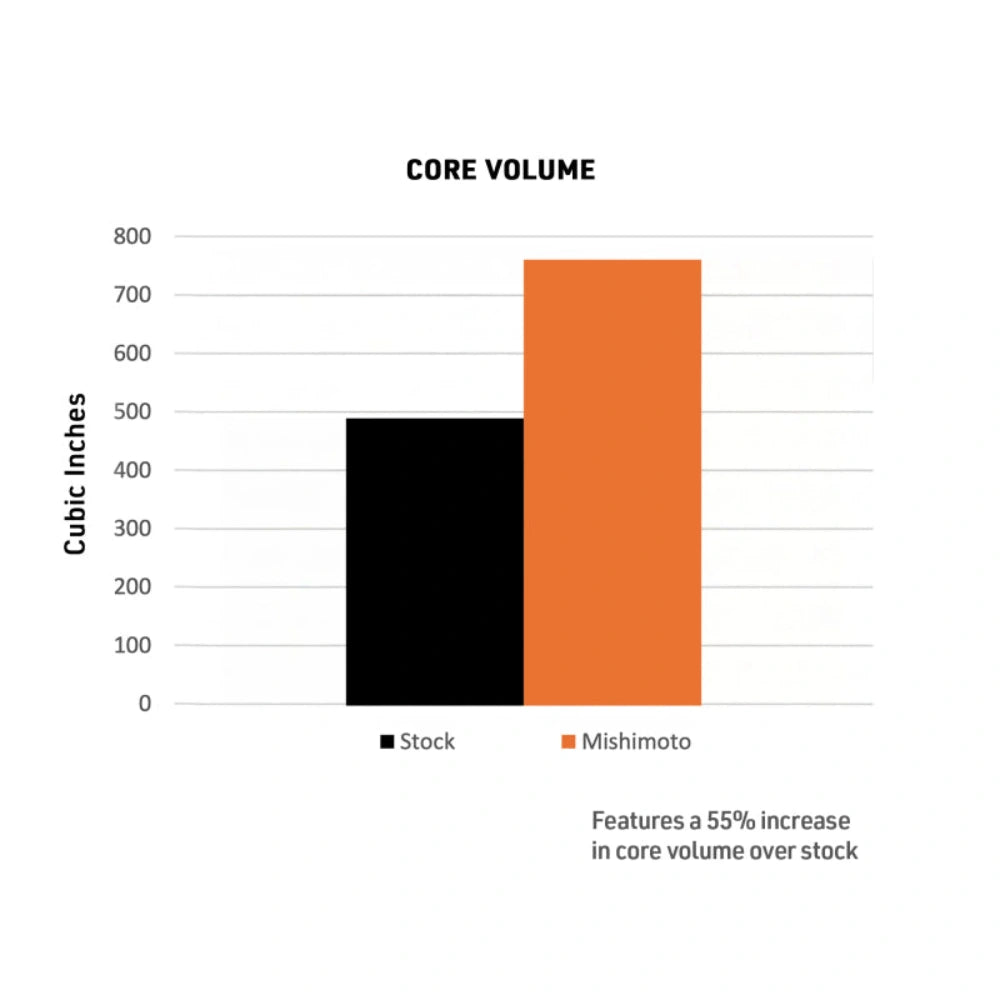

The MISMMINT-TAC-24KBKRD intercooler core is 55% larger in volume than the factory unit, with a core measuring 24.13 in. long, 8.87 in. tall, and 3.50 in. thick.
How much does MISMMINT-TAC-24KBKRD reduce intake temps?

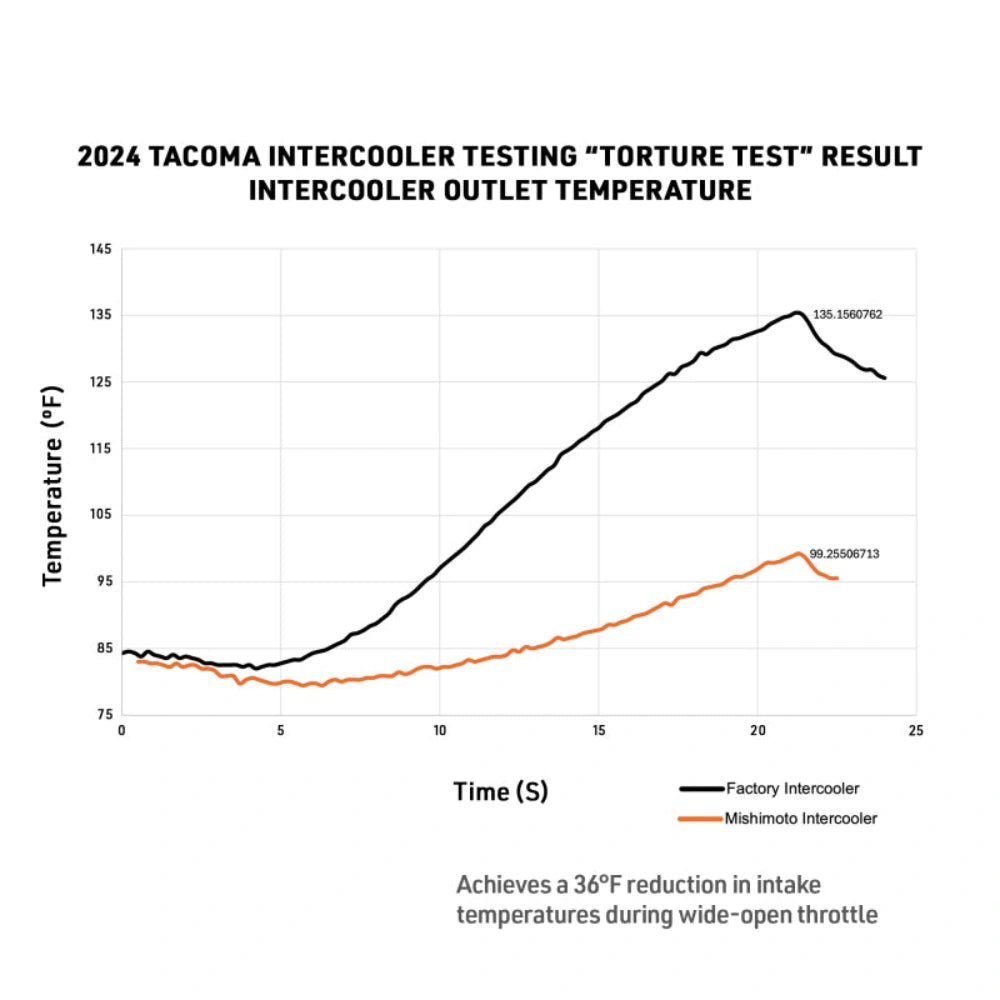

Mishimoto testing shows a 36 degree F reduction in intake air temperatures during wide-open-throttle pulls, and a 30% reduction in pressure drop across the intercooler versus the factory part.
Is MISMMINT-TAC-24KBKRD legal in California?
No. The MISMMINT-TAC-24KBKRD is not CARB certified and cannot be sold in or shipped to California. It is intended for off-road or closed-course competition use in California.
Installation Instructions
- Allow the engine to cool completely before beginning
- Disconnect the negative battery terminal
- Remove the factory front bumper cover or lower grille as required to access the stock intercooler
- Drain and remove the factory intercooler and charge piping, noting all connection points for temperature sensors and vacuum lines
- Install the new mounting bushings and crush washer on the temperature sensor port

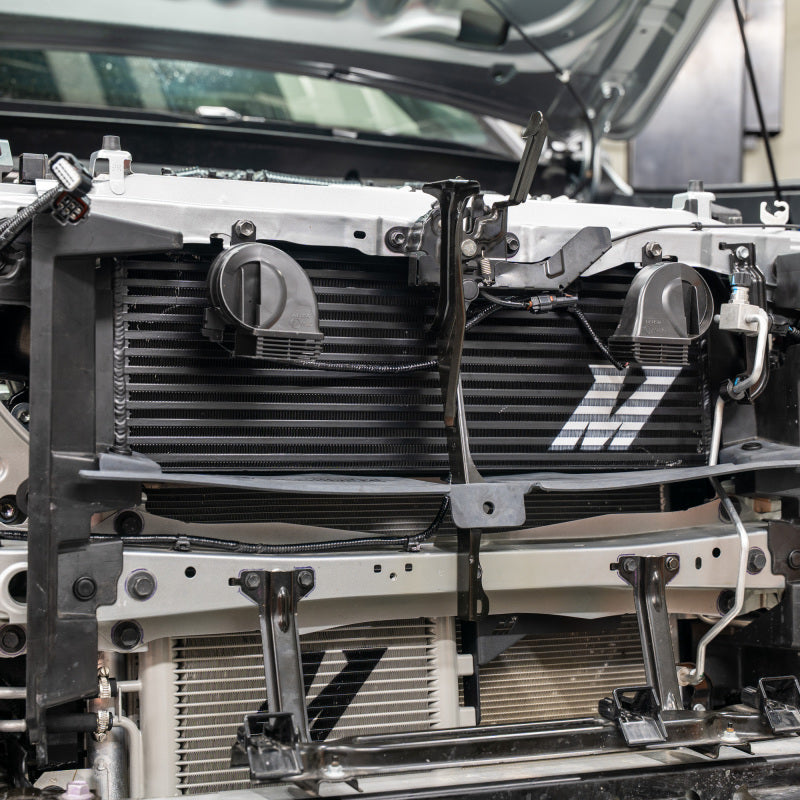

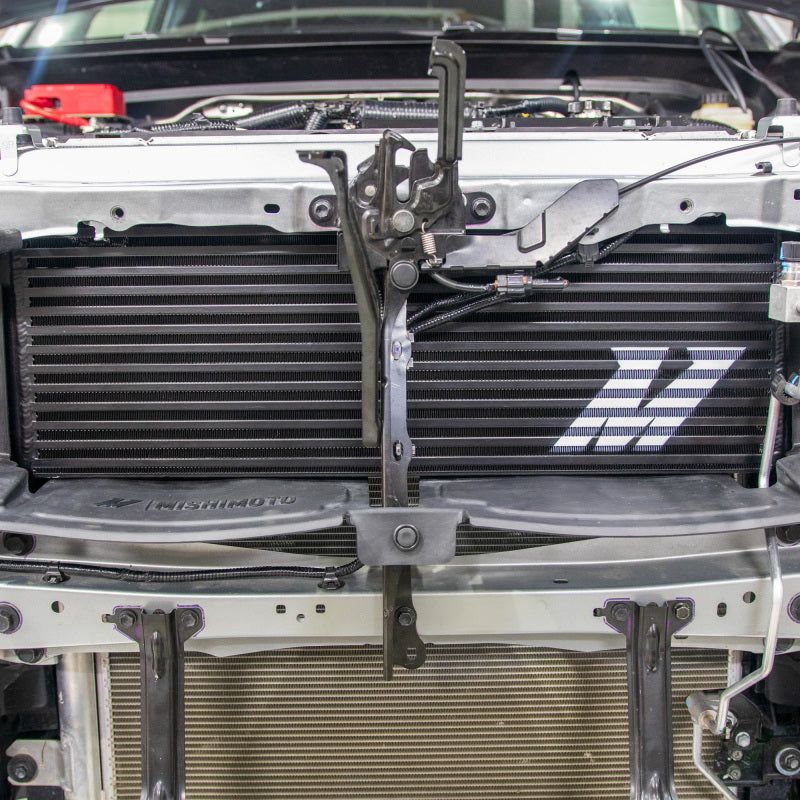

- Position the MISMMINT-TAC-24KBKRD intercooler core and secure using the factory mounting locations
- Route and connect the wrinkle red hot-side and cold-side charge pipes using the included silicone couplers and clamps
- Reconnect the factory temperature sensor and all vacuum fittings
- Reinstall the intercooler duct and bracket
- Reinstall the front bumper cover or grille
- Reconnect the battery, start the engine, and inspect all connections for boost leaks before driving
