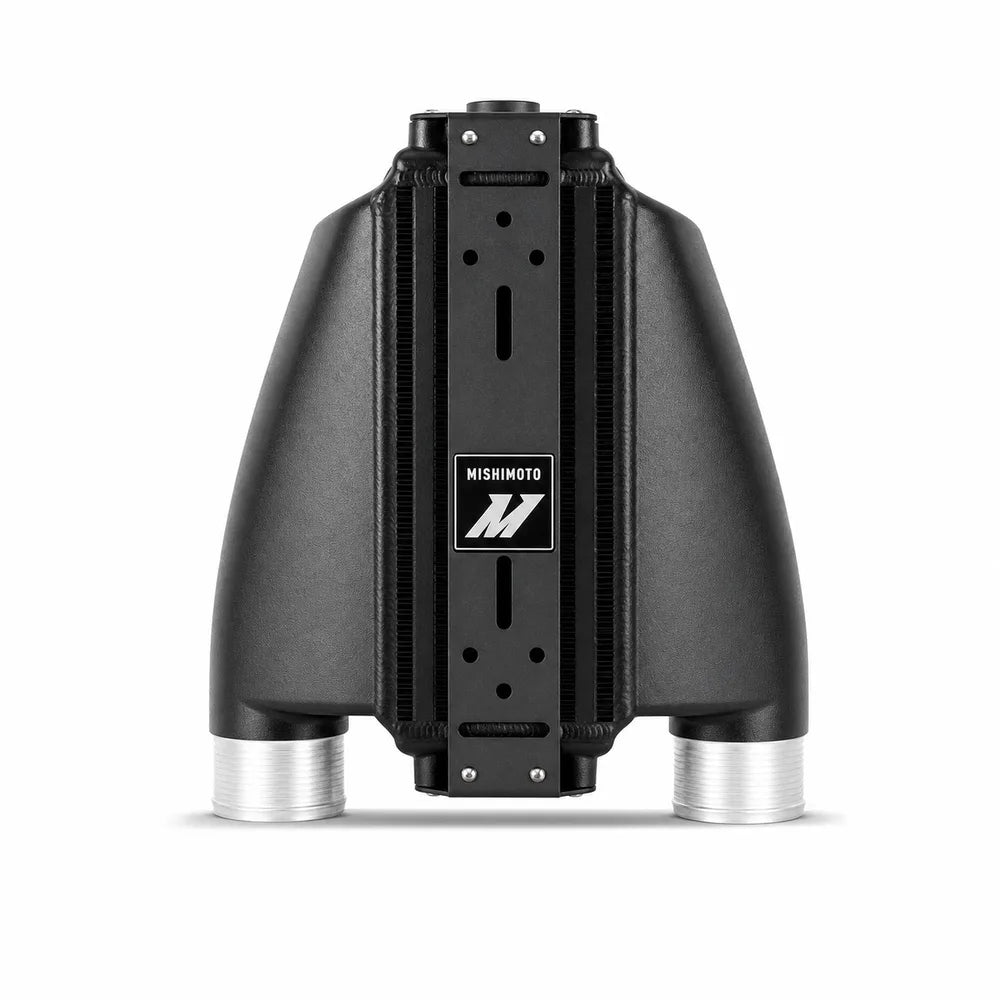

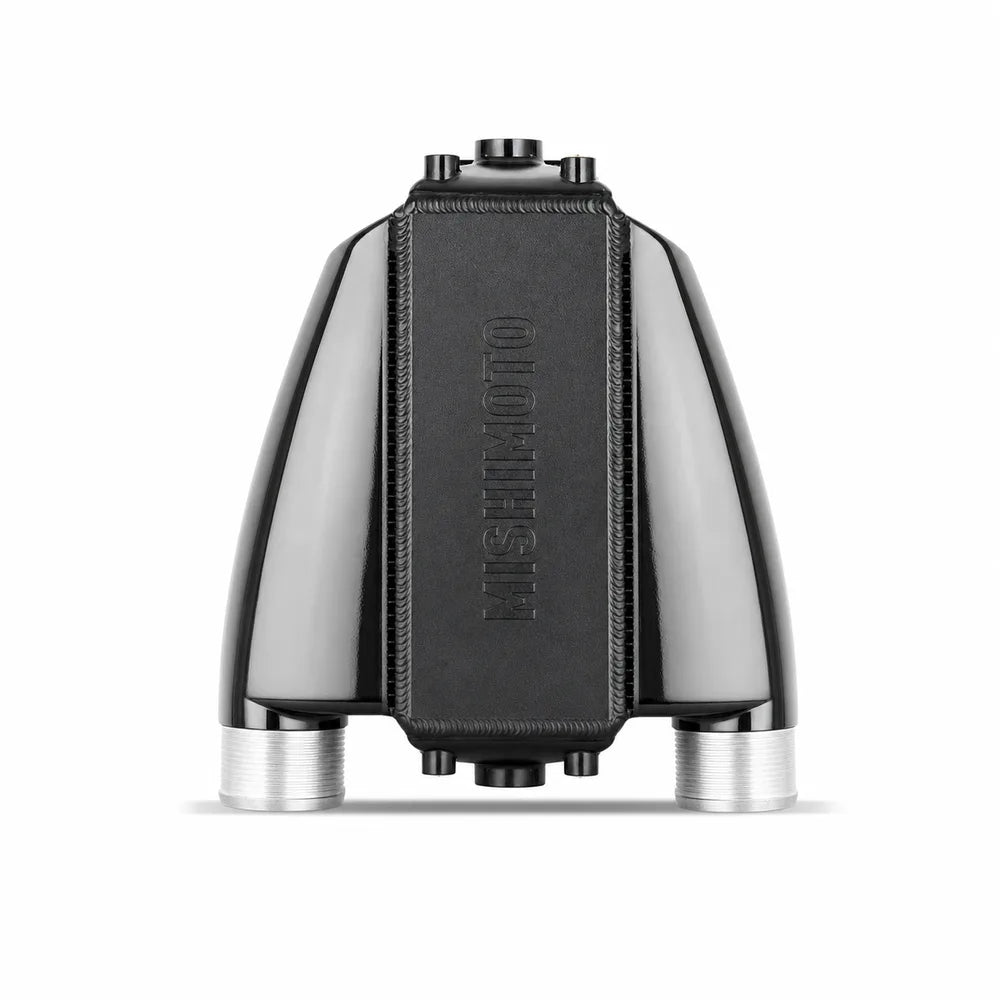

This Mishimoto air-to-water intercooler packs bar-and-plate cooling into a compact single-pass core rated for up to 500 horsepower, making it a strong fit for tight engine bays where a traditional air-to-air intercooler will not clear. Same-side inlet and outlet plumbing simplifies routing on turbocharged builds that need serious heat rejection without a bulky front-mount setup.
| Detail | Value |
|---|---|
| MPN | MMINT-A2W-SP-1 |
| UPC | 840197701539 |
| Brand | Mishimoto |
| Core Type | Bar-and-Plate |
| Core Dimensions | 9.79in x 3.93in x 3.93in |
| Inlet/Outlet Size | 2.75 inches |
| Max Rated Horsepower | 500 HP |
| Max Recommended PSI | 100 |
| Tank Wall Thickness | 5mm |
| Coolant Flow | Single-Pass |

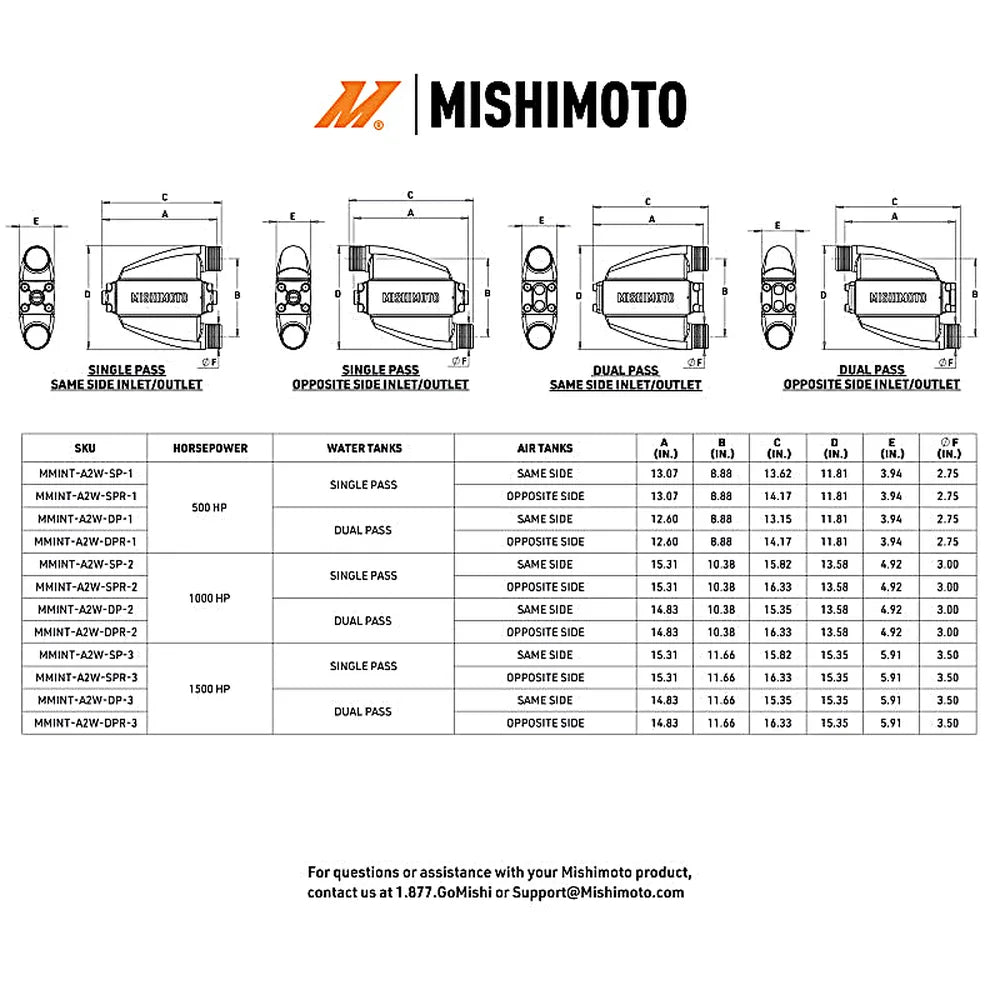

Mishimoto designs and engineers performance cooling components including intercoolers, radiators and oil coolers for street, track and off-road applications. Their air-to-water intercooler line was developed with an in-house engineering team to offer twelve configurations covering horsepower ratings from 500 to 1500 HP.
The MMINT-A2W-SP-1 is a Mishimoto universal air-to-water intercooler with a single-pass bar-and-plate core rated for up to 500 horsepower, designed with same-side inlet and outlet tanks for compact routing.
What is the maximum horsepower rating for this intercooler?This core is rated for up to 500 horsepower, and Mishimoto offers larger 1000 and 1500 horsepower cores in the same product line.
What size are the inlet and outlet fittings?The inlet and outlet are 2.75 inches, sized to maintain consistent airflow through the 500 horsepower core.
Does this intercooler include mounting brackets?Mounting brackets are application specific and are not included since this is a universal core intended for custom installations.
What is the maximum boost pressure this core can handle?The core is rated to a maximum recommended boost pressure of 100 PSI.
Is this a single-pass or dual-pass coolant design?This version uses a single-pass coolant flow design through the core.
What material are the end tanks made from?The end tanks are 5mm solid cast aluminum, TIG welded to the core for strength.
Does this intercooler come with a warranty?Yes, Mishimoto backs this intercooler with their standard limited lifetime warranty against manufacturing defects.
