Moroso Acura/Honda 1.6L B16A3 Road Race Baffled Wet Sump 5.5qt 6in Steel Oil Pan - Black Ops Auto Works
Click to zoom in

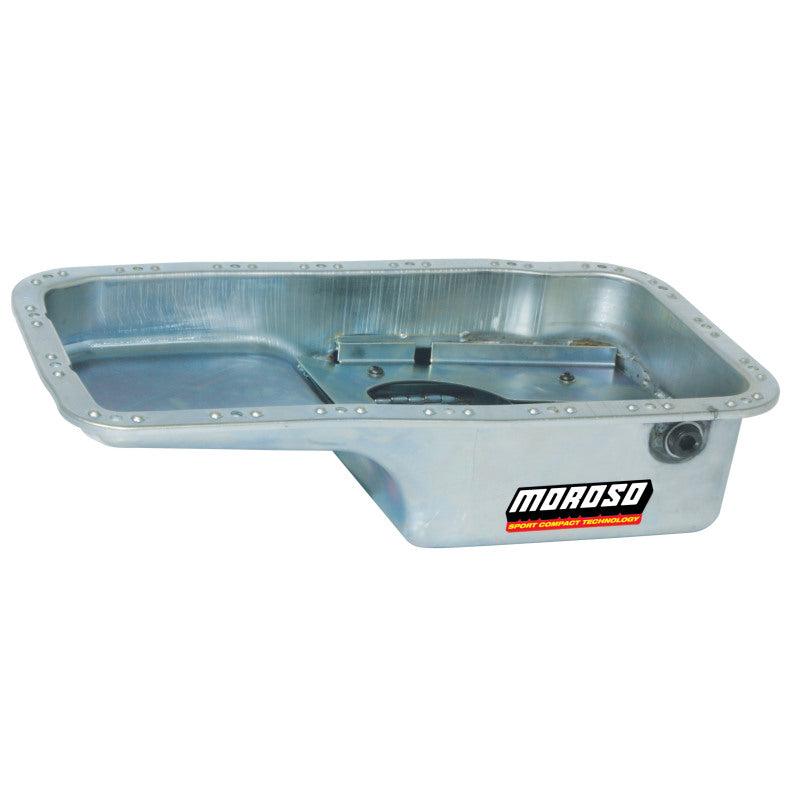

Moroso Acura/Honda 1.6L B16A3 Road Race Baffled Wet Sump 5.5qt 6in Steel Oil Pan

Moroso
MOR20910
84663209109
Oil Pans
20 Units In Stock - Ships Next Business Day
$ 437.99
$ 437.99

SKU: 20910 | UPC: 84663209109

Moroso Acura/Honda 1.6L B16A3 Road Race Baffled Wet Sump 5.5qt 6in Steel Oil Pan 1992-2000 Civic 1994-1997 Del Sol

This Moroso Road Race Oil Pan delivers reliable oil supply for Acura and Honda 1.6L B16A3 engines in high-performance applications. Engineered with a trap door baffle system, it holds 5.5 quarts in a 6-inch deep steel sump to maintain pickup immersion during hard cornering, braking, and acceleration. Direct fit for select 1992-2000 Honda Civic and 1994-1997 Del Sol VTEC models boosts engine longevity in road racing.

Key Features

  • Trap Door Baffle System: Innovative door assembly directs oil to the pickup tube under all track conditions for consistent pressure and no starvation
  • 5.5 Quart Capacity: Extra volume improves oil cooling and lubrication during extended high-RPM sessions
  • 6-Inch Pan Depth: Deeper profile accommodates more oil while fitting stock location and maintaining ground clearance
  • Heavy-Duty Steel Construction: 14-gauge steel with welded brackets withstands racing vibrations and impacts
  • Magnetic Drain Plug and Gasket: Captures ferrous debris and ensures leak-free seal right out of the box

Product Notes

  • Built for competition road racing and off-road use on B16A engines
  • Oil pickup tube may need slight modification for optimal fit in some chassis
  • Securely packaged to prevent shipping damage

Installation Notes

  • Professional installation recommended.
  • Bolts directly to B16A block using stock hardware
  • Compatible with factory oil pump and pickup assembly

This Part Fits

Year Make Model Submodel
1999-2000 Honda Civic Si
1996-2000 Honda Civic EX
1994-1997 Honda Del Sol VTEC
1992-1995 Honda Civic EX
1988-1991 Honda Civic Various B16

Why Choose Moroso?

  • Over 60 years developing oil control solutions for drag and road racing
  • Products used by NHRA and SCCA champions
  • Precision welded design for exact fit and maximum durability

Frequently Asked Questions

  • Q: Does this oil pan fit a 1999-2000 Honda Civic Si with B16A3?
    A: Yes, it is a direct bolt-on replacement for all B16A engines including the B16A3 in 1999-2000 Civic Si models
  • Q: What material and finish does the pan have?
    A: Constructed from durable 14-gauge steel with a black finish for corrosion resistance and heat dissipation
  • Q: What warranty coverage is provided?
    A: Backed by Moroso limited warranty against manufacturing defects when installed and used properly

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective box 20in L x 11in W x 8.25in H
  • Weight: Shipping weight 15.25 lbs
