SKU: 62191 | UPC: 84663621918

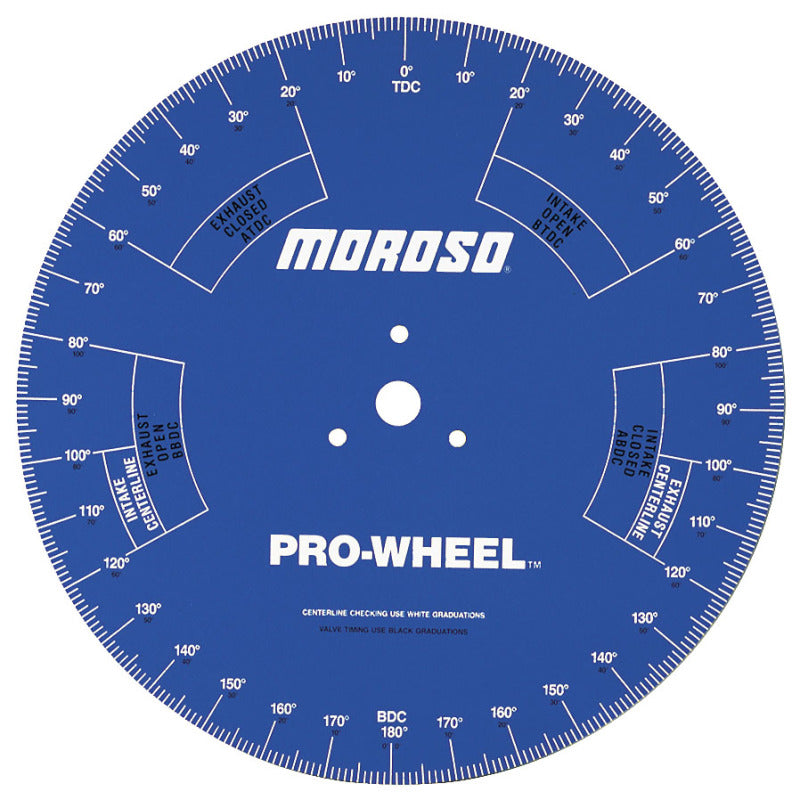

Moroso Degree Wheel - 18in Universal Engine Timing Tool
The Moroso 18-inch degree wheel delivers exact measurements for camshaft and ignition timing during engine assembly. This professional tool works on any V8 small block big block or inline engine setup. Its large size and clear markings ensure accuracy for builders seeking reliable performance results.
Key Features
- 18-Inch Diameter: Allows readings from multiple angles without eye strain during engine work
- 1/8-Inch Thick Aluminum: Resists bending or warping for repeated professional use
- Double-Sided Markings: Advance degrees on one side retard on the other for versatile timing setups
- Precise Graduations: 1 degree main lines with 0.1 degree increments for fine adjustments
- Included Pointer: Adjustable damper spring design locks securely to harmonic balancer
Product Notes
- Best for engine builders setting valve timing lash and ignition advance
- Keep flat when stored to maintain flatness
- Packaged flat in protective box for safe delivery
Installation Notes
- Professional installation recommended.
- Bolt to crankshaft end and align pointer with harmonic balancer
- Compatible with any engine balancer 6 to 8 inches diameter
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Engines | N/A |
Why Choose Moroso?
- Racing heritage since 1968 with tools trusted by NHRA pros
- Built to withstand shop abuse and deliver consistent results
- Engineered for pinpoint accuracy in high-stakes builds
Frequently Asked Questions
-
Q: Will this degree wheel work on my Chevy small block?
A: Yes it fits universal on any crankshaft setup including Chevy Ford or Mopar engines for cam timing. -
Q: What material is the wheel made from?
A: Heavy 1/8-inch thick aluminum for strength and corrosion resistance in garage environments. -
Q: How do I mount the pointer?
A: Slide over damper spring and adjust to zero mark simple setup with no special tools needed.
Shipping & Handling
- Method: Ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Flat box 19 x 19 x 2 inches
- Weight: 2.45 lbs
