Match the LS pump inlet to the dedicated rear-sump wet-sump pan

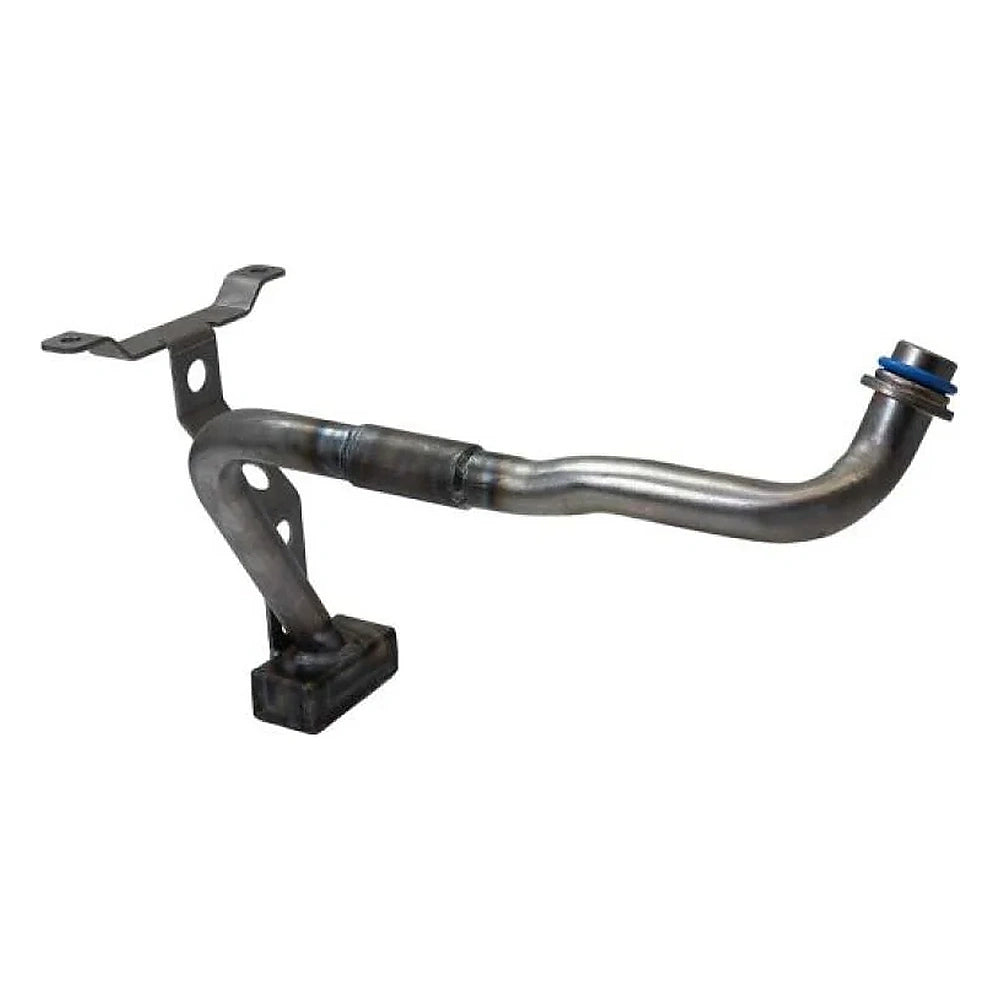

Moroso 24131 is the matching pickup for GM Gen III and IV LS blocks using Moroso oil pan 20131. It works with Moroso or compatible GM LS oil pumps and includes the pump-pickup O-ring needed for assembly.
Key Features
- Matches Moroso oil pan 20131
- Designed for GM Gen III and IV LS blocks
- Compatible with Moroso and other compatible GM LS oil pumps
- Includes the pickup O-ring
- Application-specific pickup geometry
- Supports the dedicated wet-sump oil-pan layout
- Listed by Moroso as the companion pickup for the exact pan
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | Configuration-specific pickup requiring a GM Gen III or IV LS block, Moroso oil pan 20131, and a compatible Moroso or GM LS oil pump. Verify pickup-to-pan clearance before final assembly. |
Specifications
| Detail | Value |
|---|---|
| Brand | Moroso |
| Manufacturer Part Number | 24131 |
| Product Type | Oil Pickups |
| Block Family | GM Gen III and IV LS |
| Required Oil Pan | Moroso 20131 |
| Oil Pump Compatibility | Moroso and compatible GM LS oil pumps |
| Seal | O-ring included |
| System Type | Wet sump |
| Quantity | One pickup |
What's Included
- One oil pump pickup
- One pickup O-ring
- Not included: Oil pan, oil pump, reinforcement flange, pump bolts, gasket, and engine oil
About Moroso
Moroso Performance Products develops racing and performance hardware in Connecticut, including oil-system, engine, electrical-cover, and vehicle-securement components supported by exact part-number documentation.
Related Parts
- Use only Moroso or vehicle components verified for this exact part number and configuration; no unverified internal link was added.
FAQ
What is the 24131?It is a oil pump pickup made for feeding a compatible LS oil pump from Moroso pan 20131 on a GM Gen III or IV LS block.
What does this part fit?Configuration-specific pickup requiring a GM Gen III or IV LS block, Moroso oil pan 20131, and a compatible Moroso or GM LS oil pump. Verify pickup-to-pan clearance before final assembly.
What is included?The package contains One oil pump pickup; One pickup O-ring.
What is it made from?Moroso does not state the pickup tube material on the exact product page, so no unsupported material is claimed.
Does it replace every surrounding component?No. Review the excluded items and inspect every mating component before installation.
Is professional installation recommended?Yes when the part affects engine sealing, lubrication, electrical protection, fastener preload, or vehicle securement.
What warranty applies?Use Moroso's current warranty terms and retain proof of purchase.
What should be checked before use?Confirm the exact application or interface, installation security, clearances, and safe operation before service.
Installation Instructions
- Confirm the GM LS block, oil pump, and Moroso oil pan are the exact supported configuration.
- Clean the pump inlet and pickup, lubricate the supplied O-ring with compatible engine oil, and seat it without damage.
- Install and secure the pickup using the current Moroso and oil-pump instructions.
- Measure pickup-to-pan-floor clearance before sealing the pan and correct only by an approved method.
- Prime the lubrication system and verify oil pressure and leak-free operation before engine load.
