Moroso GM LS Swap/Early F-Body (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 6in Steel Oil Pan - Black Ops Auto Works
Click to zoom in

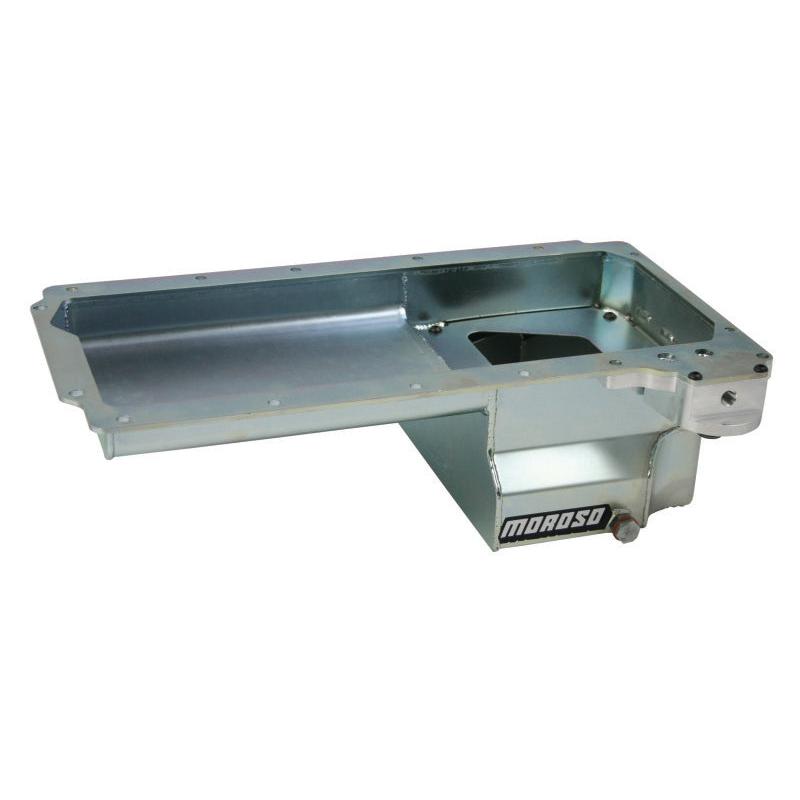

Moroso GM LS Swap/Early F-Body (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 6in Steel Oil Pan

Moroso
MOR20142
84663201424
Oil Pans
Out of stock
$ 622.99

SKU: 20142 | UPC: 84663201424

Moroso GM LS Swap 1967-1969 Early F-Body Wet Sump 6in Steel Oil Pan w/Rear Sump & Spin-On Oil Filter Adapter

The Moroso 20142 wet sump oil pan delivers reliable lubrication for GM LS engine swaps into 1967-1969 early F-Body vehicles including Chevrolet Camaro and Pontiac Firebird. Its 6-inch deep rear sump design clears chassis components while providing 6-quart capacity for consistent oil flow. Fabricated steel construction with internal baffling maintains pump prime during hard acceleration and cornering.

Key Features

  • Fabricated Steel Build: 11.5in wide x 20.25in long x 6in tall for strength heat dissipation and long-term reliability in performance builds
  • Rear Sump Configuration: Matches early F-Body floorpan for direct bolt-in fit with stock LS crankshaft clearance
  • Spin-On Filter Adapter: Factory-style boss allows standard LS spin-on filters for quick service without extra parts
  • Internal Baffle System: Controls slosh at high RPMs prevents aeration feeds pump steadily in racing conditions
  • Magnetic Drain Plug: 1/2in-20 thread captures metal wear particles protects bearings longer

Product Notes

  • Requires compatible rear sump oil pump and pickup sold separately
  • Includes oil pan gasket and mounting hardware
  • Black powder-coated finish resists corrosion

Installation Notes

  • Professional installation recommended.
  • Pair with Moroso or GM rear sump pickup for LS1 LS2 LS3 LS7 engines
  • Bolts to stock LS block locations no modifications needed

This Part Fits

Year Make Model Submodel
1967-1969 Chevrolet Camaro All LS Swaps
1968-1969 Pontiac Firebird All LS Swaps

Why Choose Moroso?

  • 60+ years engineering oil systems for drag strip circle track winners
  • Field-tested in LS swap builds for street strip reliability
  • Exact fitment tolerances from CAD-designed prototypes

Frequently Asked Questions

  • Q: Does this pan fit Gen IV LS engines in 1967 Camaro?
    A: Yes fits Gen III IV small block LS cathedral port rectangle port heads with rear sump setup
  • Q: What is the exact oil capacity?
    A: 6 quarts total with standard filter dry fill around 5.5 quarts
  • Q: Is a windage tray included?
    A: No pan accepts optional Moroso LS windage tray part 20150 for added control

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: 21 x 15 x 8 inch box
  • Weight: 18 lbs
