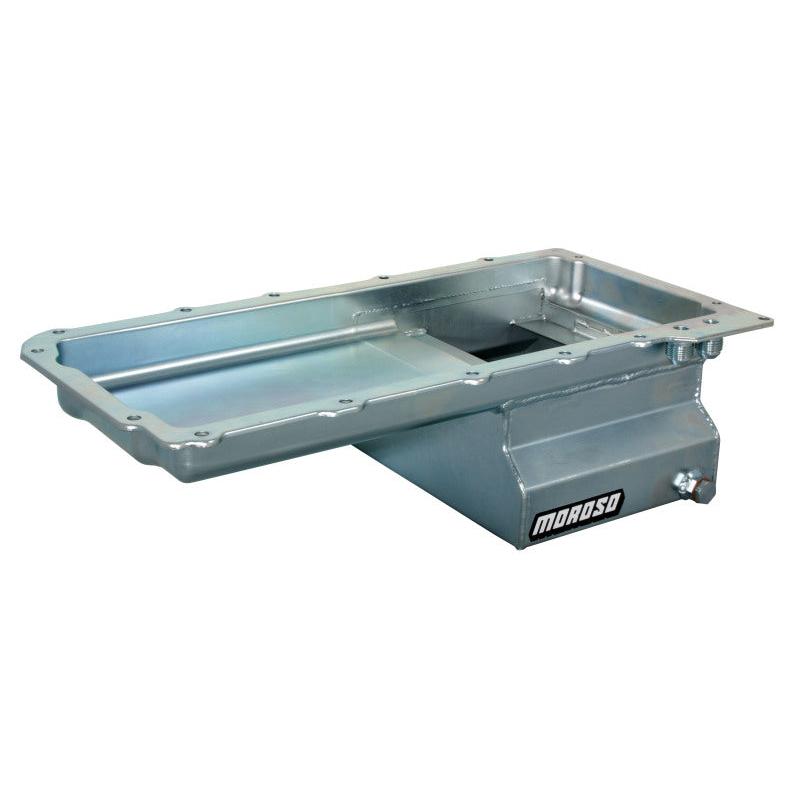

Moroso GM LS Swap (w/Rear Sump & Two -10An Fittings) Wet Sump 7qt 6in Baffled Steel Oil Pan for 1997+ GM LS Engines
This Moroso oil pan delivers reliable lubrication for GM LS engine swaps into classic vehicles requiring a rear sump design. It holds 7 quarts with 6-inch deep baffling to maintain oil pressure during acceleration, cornering, and high-rpm operation. Ideal for street, strip, and road race LS builds in chassis like trucks, muscle cars, and hot rods.
Key Features
- Fabricated Steel Construction: Heavy-duty 18-gauge steel resists warping and cracking under extreme heat and stress for long-term durability.
- 7-Quart Capacity with 6in Rear Sump: Provides extra oil volume and depth for better cooling and supply in performance LS swaps where front sump pans do not fit.
- Two Rear -10AN Fittings: Allows easy integration of remote oil filters, coolers, or dry sump systems without custom fabrication.
- Advanced Internal Baffling: Features trap doors, anti-foam baffles, and full perimeter screening to prevent oil starvation and aeration during hard launches and corners.
- Street/Strip Optimized Design: 6-inch sump depth clears common chassis crossmembers while supporting up to 800+ horsepower LS applications.
Product Notes
- Pickup screen and oil pump sold separately. pair with Moroso 24171 rear sump pickup for optimal fit.
- Inspect gasket surfaces before installation to ensure leak-free sealing.
- Box dimensions 16 x 14 x 8 inches for secure transit.
Installation Notes
- Professional installation recommended.
- Uses standard GM LS oil pan bolt pattern and hardware.
- Verify 6-inch sump clearance on K-member or crossmember before final mounting.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | GM | Small Block LS | LS1 / LS6 Gen III |
| 2005-2013 | GM | Small Block LS | LS2 / LS3 / L92 Gen IV |
| 2006-2015 | GM | Small Block LS | LS7 / L76 Gen IV |
| Swap Applications | Chevrolet | C10 / Camaro / Chevelle | 1964-1987 Rear Sump Chassis |
Why Choose Moroso?
- Over 65 years supplying parts to NHRA, NASCAR, and road racers.
- Engineered and tested for real-world high-horsepower demands.
- Made in USA with consistent quality control.
Frequently Asked Questions
-
Q: Does this pan fit LS engine swaps into 1967-1969 Camaro or 1964-1972 Chevelle?
A: Yes, rear sump design clears F-body and A-body K-members. confirm local chassis modifications. -
Q: What material and thickness is used?
A: 18-gauge fabricated steel throughout for strength without excessive weight. -
Q: Is a specific oil pickup required?
A: Yes, use Moroso 24171 7-quart rear sump pickup. volume matched for full capacity.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 16 x 14 x 8 inches
- Weight: 20 lbs
