Moroso Toyota 3SGT 2.0L Turbo/5SFE Non Turbo Road Race Baffled Wet Sump 6.25qt 7-9/16in Alum Oil Pan - Black Ops Auto Works
Click to zoom in

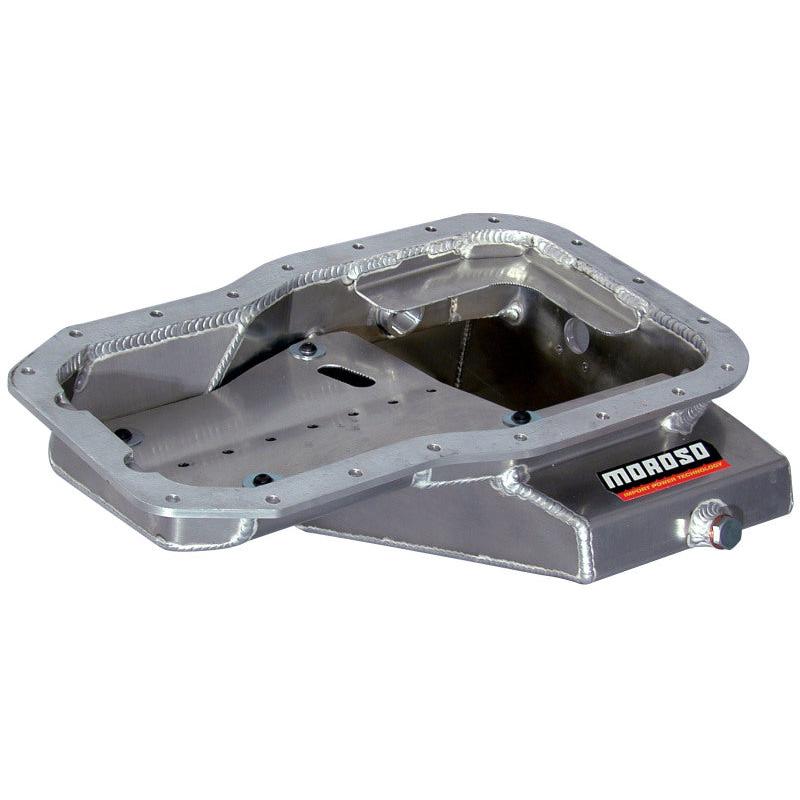

Moroso Toyota 3SGT 2.0L Turbo/5SFE Non Turbo Road Race Baffled Wet Sump 6.25qt 7-9/16in Alum Oil Pan

Moroso
MOR20935
84663209352
Oil Pans
10 Units In Stock - Ships Next Business Day
$ 663.99
$ 663.99

SKU: 20935 | UPC: 84663209352

Moroso Toyota 3S-GTE 2.0L Turbo 5S-FE Non-Turbo Road Race Baffled Wet Sump 6.25qt 7-9/16in Aluminum Oil Pan 1986-1995 Celica MR2

This Moroso oil pan delivers 6.25 quarts of oil capacity for Toyota 3S-GTE turbocharged 2.0L and 5S-FE non-turbo engines found in Celica and MR2 models. The baffled wet sump design traps oil during high-G cornering to ensure consistent lubrication in road race conditions. Aluminum construction keeps weight low while adding volume over stock pans for sustained engine performance.

Key Features

  • Increased Capacity: 6.25 quarts provides extra oil volume for improved cooling and lubrication during extended track sessions
  • Road Race Baffles: Internal trap doors and steep front ramp hold oil at pickup preventing starvation in left right or hard braking turns
  • Aluminum Build: 6061-T6 material resists corrosion weighs 7 lbs resists cracking under high stress
  • Precise Height: 7-9/16 inches from pan rail to bottom fits chassis clearance without modification
  • Engine Specific: Direct bolt-on for 3S-GTE turbo and 5S-FE non-turbo with magnetic drain plug and sensor ports

Product Notes

  • Verify engine code before purchase 3S-GTE or 5S-FE required
  • Prime oil system fully after install to remove air pockets
  • Ships in protective foam-lined box handles rough transit

Installation Notes

  • Professional installation recommended.
  • Drain stock oil remove pickup and gasket before swap
  • Uses stock mounting hardware no additional bolts needed

This Part Fits

Year Make Model Submodel
1986-1989 Toyota Celica GT-S 3S-GTE
1990-1993 Toyota Celica GT 5S-FE
1990-1993 Toyota Celica All Trac Turbo ST185 3S-GTE
1990-1995 Toyota MR2 Turbo SW20 3S-GTE

Why Choose Moroso?

  • Trusted by racers for over 60 years in drag road and oval track
  • Cast and machined in USA for exact tolerances
  • Proven designs win championships with real-world testing

Frequently Asked Questions

  • Q: Will this fit my 3S-GTE turbo MR2?
    A: Yes direct replacement for 1990-1995 SW20 MR2 Turbo models with no chassis interference
  • Q: What material is the pan made from?
    A: 6061-T6 aluminum alloy for strength lightweight at 7 lbs and heat dissipation
  • Q: Does it include hardware or need modifications?
    A: Bolts on with factory hardware includes new magnetic drain plug gasket recommended

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Foam protected box 18 x 12 x 8 inches
  • Weight: 8 lbs shipping
