Fill a Quad-Tip Rear Valance with a Purpose-Built SP System

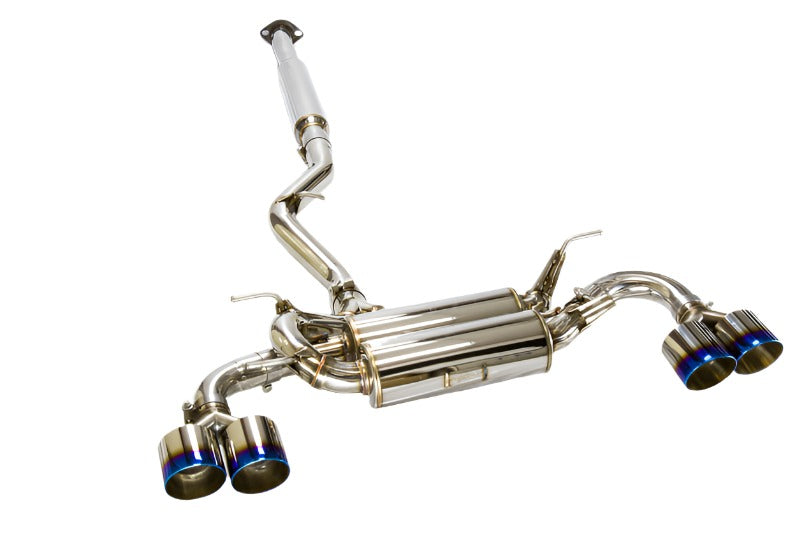

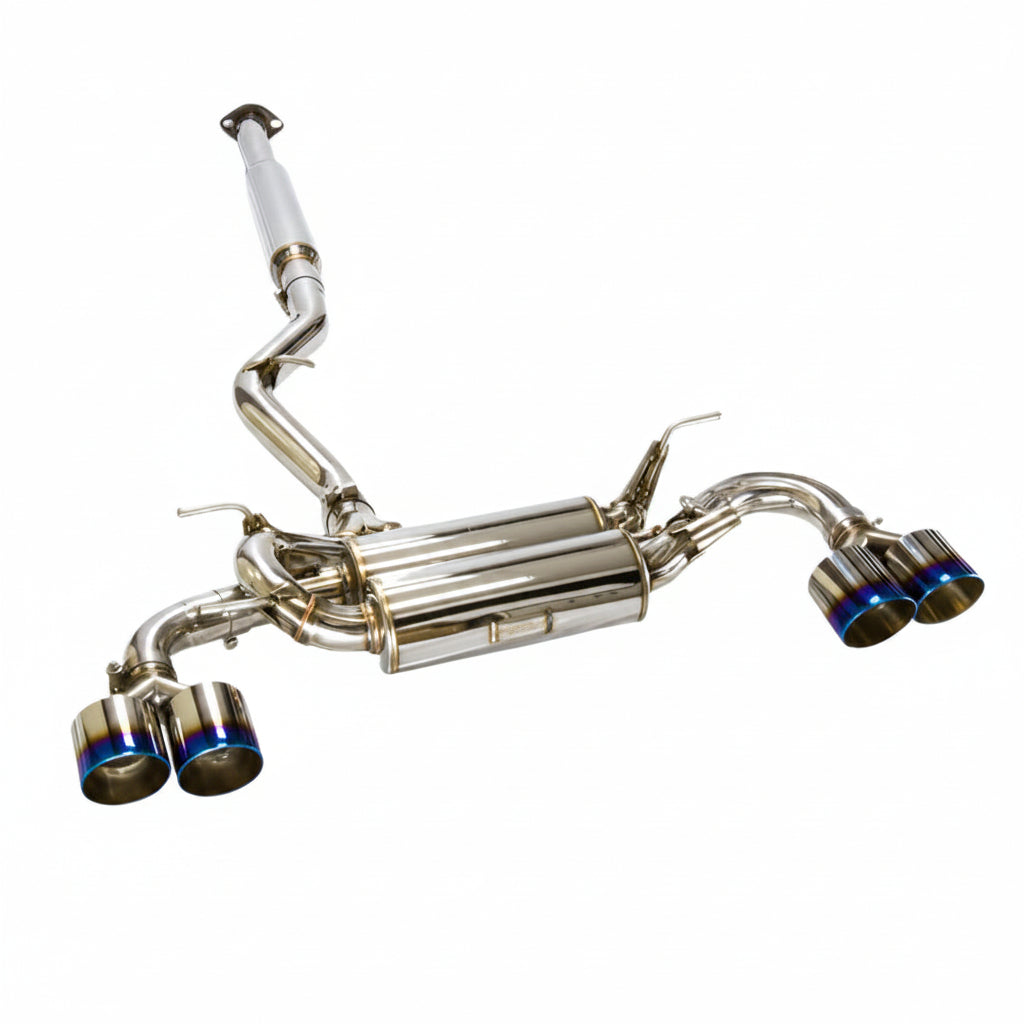

MXP MXSPFT86TRD is an SP-series cat-back exhaust for Toyota 86 TRD and Subaru BRZ applications equipped with compatible quad-tip rear openings. T304 stainless construction, a straight-exit layout, and four burnt 107.8 mm tips define this application-specific package.
Key Features
- T304 stainless steel piping supports durability and corrosion resistance
- Smooth mandrel bends reduce abrupt restrictions through the exhaust path

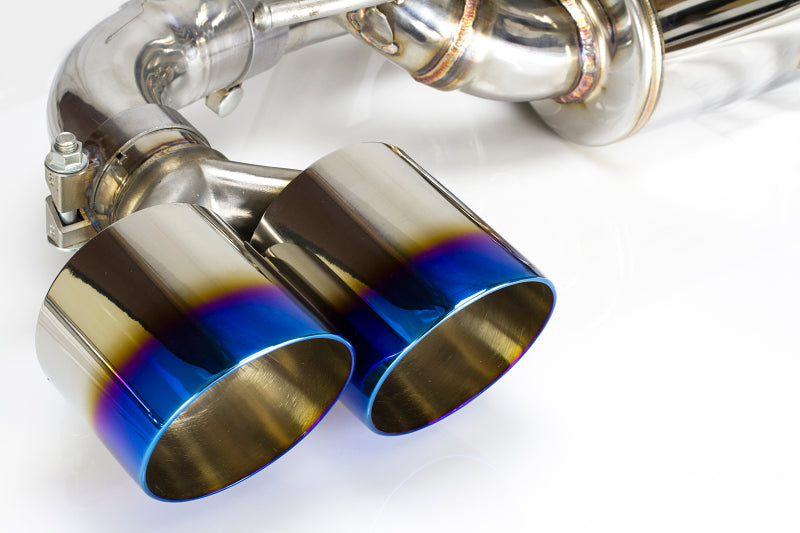

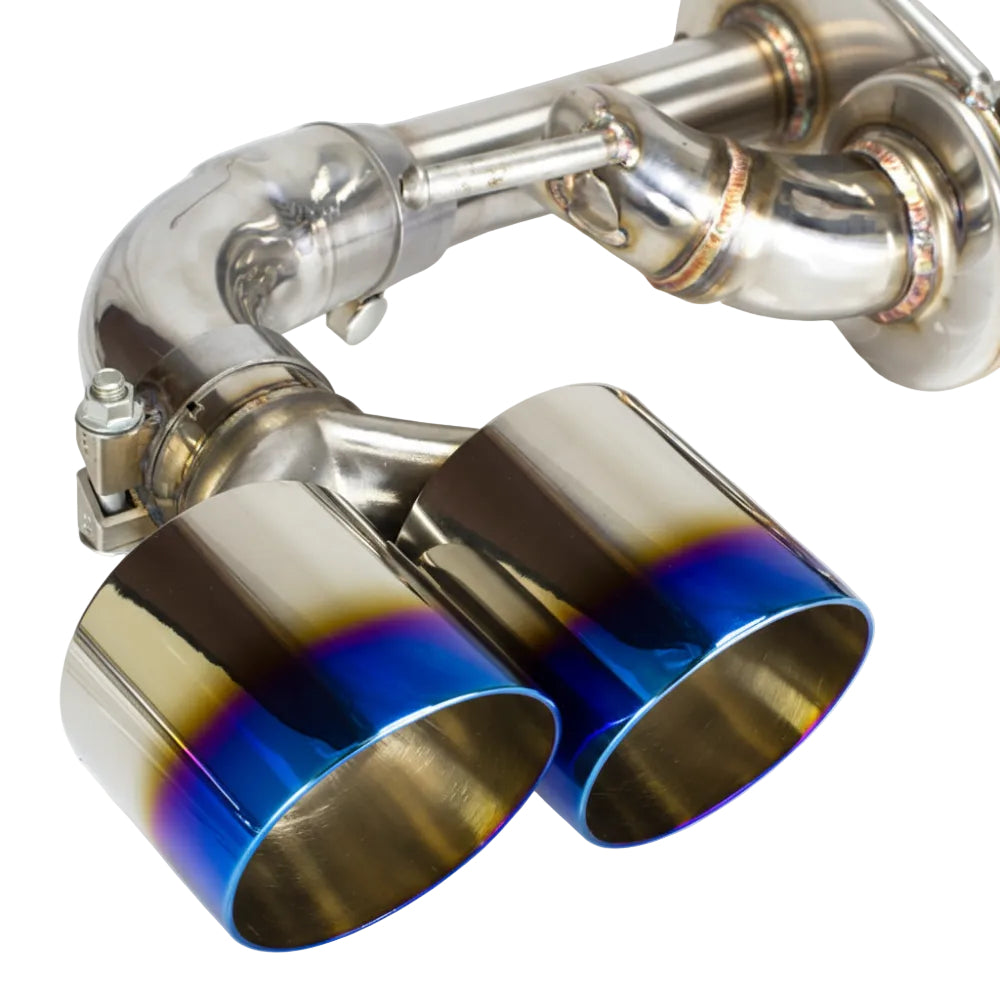

- Four round 107.8 mm stainless tips use a burnt finish for the quad-exit layout
- Straight-exit orientation aligns with compatible TRD or quad-tip rear openings
- 67 mm published piping inside diameter for the exact MXP MXSPFT86TRD configuration
- Factory-location welded exhaust hangers support installation without chassis modification
- New installation hardware and gaskets are included with the exact package
Fitment
| Years | Make | Model | Trim or Body Requirement | Restriction |
|---|---|---|---|---|
| 2017-2021 | Toyota | 86 | TRD quad-tip rear opening | Not for an unmodified standard single-opening rear valance |
| 2013-2021 | Subaru | BRZ | Compatible quad-tip rear opening | Verify rear bumper or exhaust finisher clearance |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | MXSPFT86TRD |
| Series | SP |
| Product type | Cat-back exhaust system |
| Piping material | T304 stainless steel |
| Piping inside diameter | 67 mm |
| Published product designation | 69.3 mm T304 Quad SP |
| Exhaust orientation | Straight exit |
| Tip material | Stainless steel |
| Tip finish | Burnt |
| Tip quantity | 4 |
| Tip shape | Round |
| Tip diameter | 107.8 mm |
| Installation hardware | Included |
| Piping coating | None |
| Spacer size | 20 mm |
What's Included
- One MXP SP cat-back exhaust system, part MXSPFT86TRD
- Four 107.8 mm burnt stainless exhaust tips
- Installation hardware and gaskets
About MXP
Established in 2007 by Mackin Industries, MXP develops vehicle-specific exhaust components through US test fitting and dyno evaluation. Application-selected pipe sizing and mandrel-bent routing support smooth exhaust flow while retaining practical fitment.
FAQ
What is the MXSPFT86TRD?It is a T304 stainless SP cat-back exhaust with four burnt tips for compatible Toyota 86 TRD and Subaru BRZ rear bumper layouts.
Why does rear bumper configuration matter?The four outlets require a TRD or compatible quad-tip rear opening. A standard rear valance may need the correct exhaust finisher before installation.
How many exhaust tips are included?The system includes four round stainless tips with a burnt finish.
What is the published tip diameter?Each tip is listed at 107.8 mm.
What is the pipe material?The piping is T304 stainless steel with no applied pipe coating.
Are installation parts included?Yes. The verified package includes installation hardware and gaskets.
Does it use factory hanger locations?Yes. The hangers are welded in the factory mounting locations for the listed applications.
What should be measured before ordering?Confirm the vehicle year and model, then inspect the rear valance for four compatible tip openings and adequate clearance.
How should the burnt tips be maintained?Clean the cooled tips with a nonabrasive product and avoid aggressive polishing that can alter the heat-colored finish.
Installation Instructions
- Confirm the vehicle application and verify that the rear bumper has compatible quad-tip openings.
- Allow the exhaust to cool, raise the vehicle at approved points, and support it securely.
- Support the factory exhaust before loosening the front cat-back connection and rubber hangers.
- Remove the factory cat-back assembly without damaging the reusable vehicle-side mounting points.
- Lay out MXSPFT86TRD, four tips, hardware, and gaskets in their installation order.
- Install the system from front to rear with the joints loose enough for final alignment.
- Seat every welded hanger fully and center all four tips within the rear openings.
- Verify clearance from the bumper, suspension, heat shields, driveshaft, and underbody.
- Tighten the hardware evenly to applicable service specifications and inspect all joints for leaks.
- After the first heat cycle, allow the system to cool and recheck tip alignment and connection tension.
