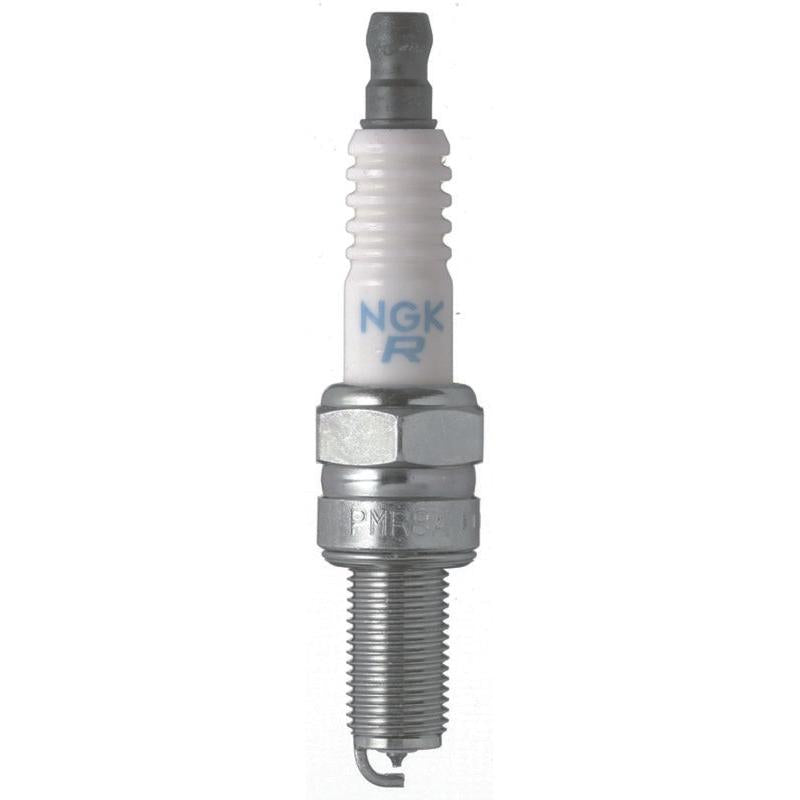

NGK PMR9B Laser Platinum Spark Plugs for Select Ferrari Models, Box of 4

NGK
NGK4717
87295147177
Spark Plugs
15 Units In Stock
$ 74.96
$ 74.96

Keep Ignition Consistent Under Heat and Cylinder Pressure

Correct plug dimensions and heat range are essential to reliable ignition and safe engine operation. NGK 4717 is built for 2004-2012 Ferrari applications shown in the Fitment table. Key details are box of four NGK PMR9B spark plugs and laser Platinum double-platinum construction.

Key Features

  • NGK 4717: Box of four NGK PMR9B spark plugs
  • Laser Platinum double-platinum construction

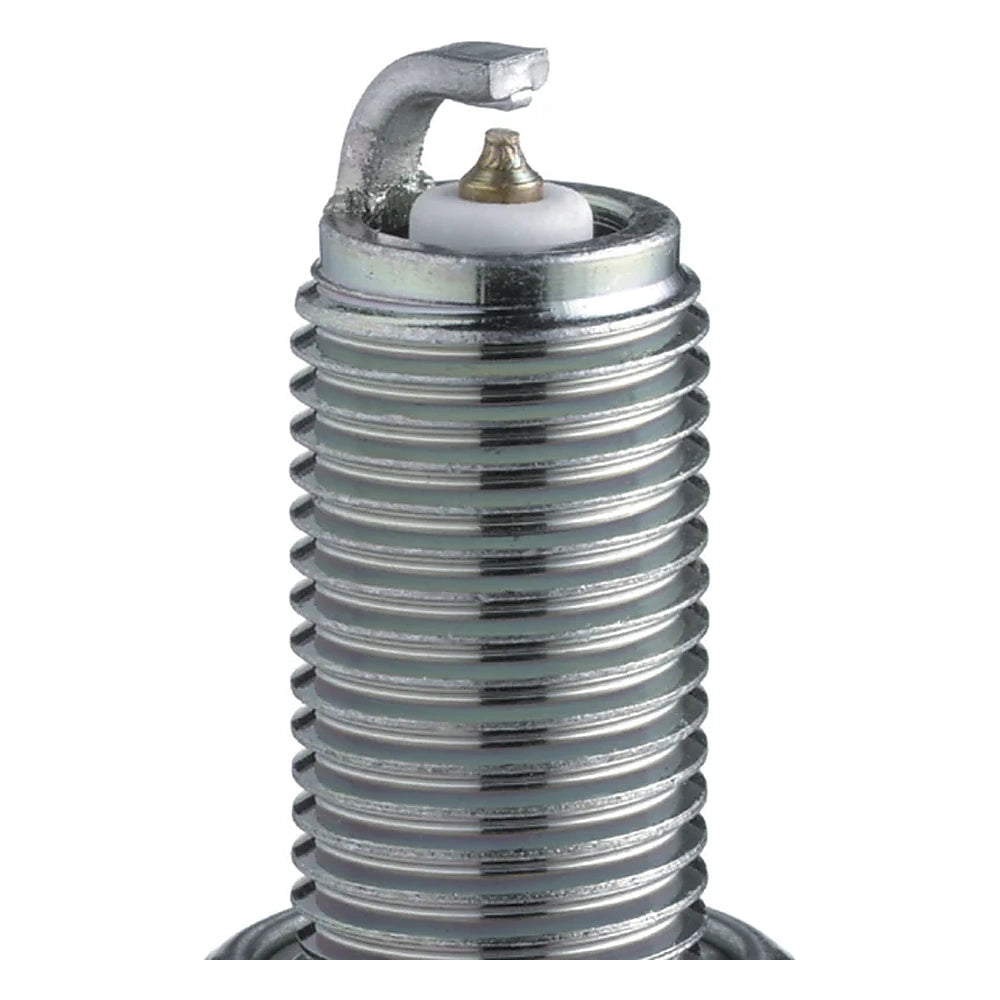

  • Projected platinum center electrode over copper core
  • Platinum ground-electrode pad for controlled wear
  • Resistor spark plug
  • M10 thread
  • 19.05 mm reach
  • 5/8-inch hex
  • Gasket seat
  • NGK heat range 9
  • UPC 087295147177

Fitment

Use NGK 4717 only for the applications below. Confirm every listed qualifier and exclusion.

Years Make Model Details
2004 Ferrari 360 Modena 3.6L F131B; December 2003 production onward; NGK catalog-listed alternate plug; Excludes: Earlier production without catalog confirmation
2004 Ferrari 360 Spider 3.6L F131B; December 2003 production onward; NGK catalog-listed alternate plug; Excludes: Earlier production without catalog confirmation
2004 Ferrari Challenge Stradale 3.6L F131B; NGK catalog-listed alternate plug
2007-2009 Ferrari F430 Coupe, Spider, or Challenge; 4.3L F136E; NGK catalog-listed alternate plug
2008-2009 Ferrari 430 Scuderia 4.3L F136ED; NGK catalog-listed alternate plug
2007-2012 Ferrari 599 GTB 6.0L F140C; NGK catalog-listed alternate plug

Specifications

Detail Value
Brand NGK
Manufacturer Part Number 4717
Product Type Spark Plugs
Service Number PMR9B
Construction Laser Platinum double-platinum
Thread M10
Reach 19.05 mm
Hex 5/8 inch
Seat Gasket
Heat Range 9
Center Electrode Projected platinum over copper core
Ground Electrodes 1 with platinum pad
UPC 087295147177
Quantity 4

What's Included

  • Four NGK PMR9B Laser Platinum spark plugs for NGK 4717
  • Not included: Applications not present in the verified automotive catalog
  • Not included: Primary-fitment claims where the catalog identifies PMR9B only as an alternate
  • Not included: Motorcycle, ATV, powersports, personal-watercraft, and marine applications

About NGK

NGK develops spark plugs and ignition components for OE and service applications, using defined heat ranges, electrode designs, and dimensions for exact engine fitment.

Related Parts

  • Inspect application-matched ignition coils, wires or boots, and service tools before replacing the spark plugs.

FAQ

What is the 4717?

It is a NGK spark plugs for 2004-2012 Ferrari applications shown in the Fitment table, built around Box of four NGK PMR9B spark plugs.

What is the main benefit of this part?

Box of four NGK PMR9B spark plugs; Laser Platinum double-platinum construction.

Which applications does it fit?

It is intended for 2004-2012 Ferrari applications shown in the Fitment table. Use the Fitment table and every listed qualifier before ordering.

What comes with this product?

Four NGK PMR9B Laser Platinum spark plugs.

What construction details should I know?

Laser Platinum double-platinum; Projected platinum over copper core; 1 with platinum pad.

What should be checked before installation?

Compare the old and new parts, confirm position and orientation, and verify all application notes, clearances, fasteners, and required companion parts.

How should this part be installed?

Confirm the exact Ferrari model, model year, engine code, production note, and alternate-plug catalog role before removal. Follow all torque, alignment, bleeding, calibration, or break-in procedures that apply.

What warranty applies?

Use the current NGK warranty terms supplied through an authorized retailer.

Installation Instructions

  1. Confirm the exact Ferrari model, model year, engine code, production note, and alternate-plug catalog role before removal.
  2. Confirm the required Ferrari gap and inspect each new plug before installation.
  3. Install into a cold engine by hand first to prevent cross-threading.
  4. Tighten to Ferrari and NGK specifications, reconnect ignition components, and verify normal operation.
