(B10EG)
SKU: B10EG
Click to zoom in

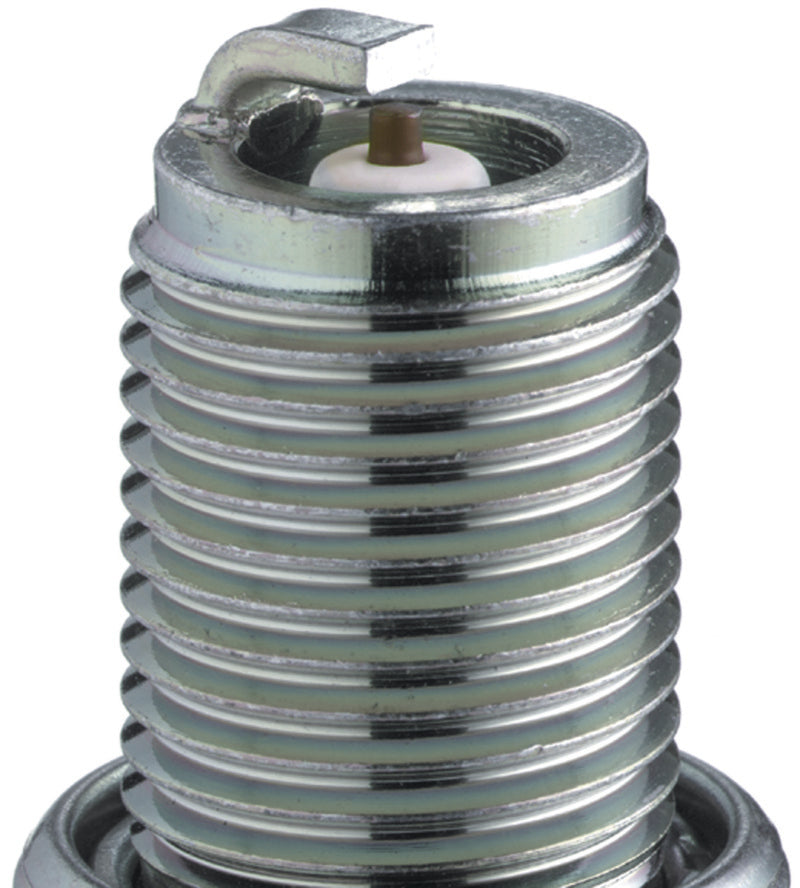

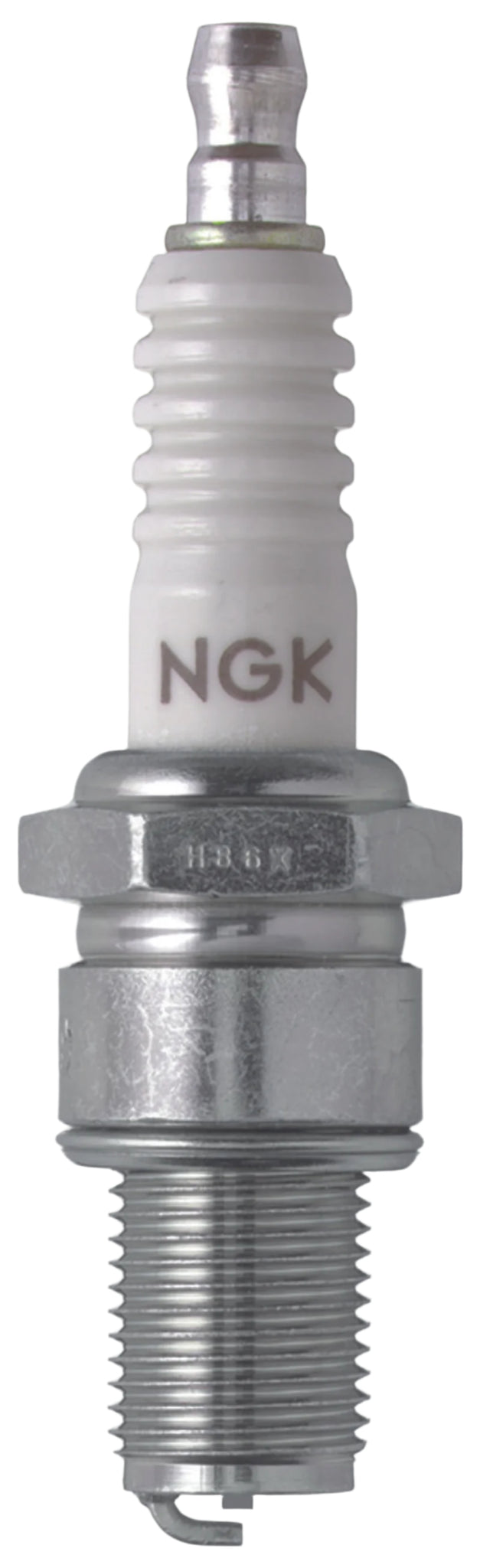

NGK Racing Spark Plug Box of 4 (B10EG)

NGK
NGK3630
87295136300
Spark Plugs
20 Units In Stock - Ships Next Business Day
Engine, Ignition, NGK, Spark Plugs
$ 51.56
$ 51.56

SKU: B10EG

  • Product Description: NGK Racing Spark Plug
  • Marketing Description: NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.
  • Features and Benefits: DESIGNED FOR RACING: Conventional nickel alloy center electrode provides consistent performance
  • Features and Benefits: RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
  • Features and Benefits: NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • Features and Benefits: SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • Features and Benefits: COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • Features and Benefits: TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

  • Center Electrode Core Material: Copper
  • Center Electrode Design: Fine Wire
  • Center Electrode Insulator Tip Projection: 1.0 mm
  • Center Electrode Insulator Tip Projection: 0.04 in
  • Center Electrode Projection: Non-Projected
  • Center Electrode Tip Material: Nickel
  • Electrical Terminal Type: Removable Nut
  • Grade Type: Performance
  • Ground Configuration: J-Gap
  • Ground Electrode Core Material: Nickel
  • Ground Electrode Quantity: 1
  • Ground Electrode Tip Design: Standard
  • Ground Electrode Tip Material: Nickel
  • HEX Size: 13/16"
  • Insulator Height: 2.12 in
  • Insulator Height: 53.8 mm
  • Insulator Material: Ceramic
  • Manufacturer Heat Range: 10
  • Pre-Gap Size: .024 in
  • Pre-Gap Size: 0.6 mm
  • Reach: 0.750 in
  • Reach: 19.0 mm
  • Resistance: 0.0 Ohms
  • Resistor Type: No
  • Seat Type: Flat
  • Skirt: No
  • Skirt Length: 0.0 in
  • Skirt Length: 0.0 mm
  • Thread Diameter: 14.0 mm
  • Thread Diameter: 0.551 in
  • Washer Included: Yes
  • Washer Type: Crush
