Restore, repair, or complete the listed Jeep application with this OMIX spider gear dana 35 93. It is identified by manufacturer part number 16507.31 and must be matched to the complete vehicle, mounting position, dimensions, and current manufacturer application notes before ordering.
Key Features

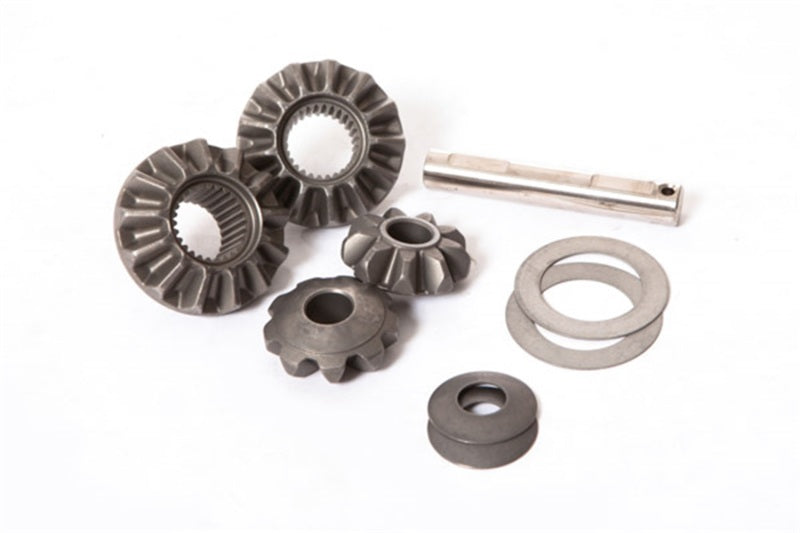

- Kit includes 4 gears, thrust washers, cross shaft and side washers.
- This replacement spider gear set fits 93-01 Cherokee XJ, 93-98 Grand Cherokee ZJ, 99-04 Grand Cherokee WJ, 93-95 Wrangler YJ, 97-06 Wrangler TJ and 02 Liberty KJ models equipped with Dana 35 rear differentials.
Fitment
| Years | Make | Model | Application Notes |
|---|---|---|---|
| 1993-2001 | Jeep | Cherokee | Spider Gear Dana 35 93. Confirm trim, drivetrain, engine, body style, position, and all manufacturer notes separately. |
| 1993-2004 | Jeep | Grand Cherokee | Spider Gear Dana 35 93. Confirm trim, drivetrain, engine, body style, position, and all manufacturer notes separately. |
| 2002 | Jeep | Liberty | Spider Gear Dana 35 93. Confirm trim, drivetrain, engine, body style, position, and all manufacturer notes separately. |
| 1993-1995 | Jeep | Wrangler | Spider Gear Dana 35 93. Confirm trim, drivetrain, engine, body style, position, and all manufacturer notes separately. |
| 1997-2006 | Jeep | Wrangler | Spider Gear Dana 35 93. Confirm trim, drivetrain, engine, body style, position, and all manufacturer notes separately. |
Specifications
| Brand | OMIX |
|---|---|
| Manufacturer | OMIX-ADA |
| Manufacturer Part Number | 16507.31 |
| Product Type | Hardware - Singles |
| Fitment Type | Vehicle Specific |
| Condition | New |
What's Included
One new OMIX hardware - singles package identified by manufacturer part number 16507.31. Gaskets, seals, fasteners, wiring, brackets, fluids, and companion parts are included only when expressly listed for this exact part number.
About OMIX
OMIX supplies replacement, restoration, and service components for Jeep and Willys vehicles. Every component remains specific to its manufacturer part number, vehicle generation, position, dimensions, and related factory configuration.
Related OMIX Products
- Shop all OMIX Jeep restoration parts
- Omix AX15 Thrust Washer 87-99 Jeep Wrangler
- Omix Bolt M10-1.5x90.0- 91-01 XJ/MJ/YJ/ZJ
- Omix Bolt Track Bar 1/2in-20 X 3in- 97-06 Wrangler TJ
Frequently Asked Questions
How do I confirm OMIX 16507.31 fits my vehicle?
Match the listed year, make, and model, then verify trim, drivetrain, engine, body style, component position, and every current manufacturer application note.
What dimensions must be checked before ordering?
Confirm every thread, hole spacing, connector, material, finish, position, quantity, and mating component identified for the exact part number.
Can the original hardware be reused?
Reuse only when the service procedure permits it and inspection confirms the fastener or component remains undamaged and within specification.
Installation Instructions
Follow the current OMIX instructions and vehicle service information for part number 16507.31. Verify the vehicle is safely supported or electrically isolated as required, test-fit every interface, use the specified sealant, fluid, torque, aiming, adjustment, or alignment procedure, then inspect operation and clearance before returning the vehicle to service.
