Oracle 22-25 Hummer EV 5in Roof Mount Curved Light Bar w/ Brackets

SKU: 6923-023

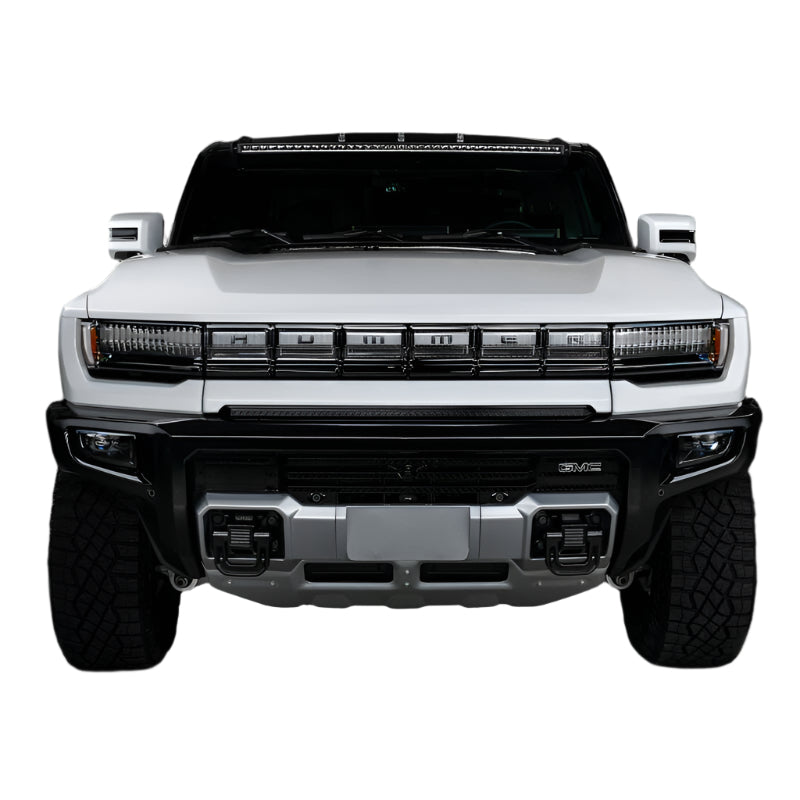

2022-2025 Hummer EV 5in Roof Mount Curved Light Bar w/ Brackets

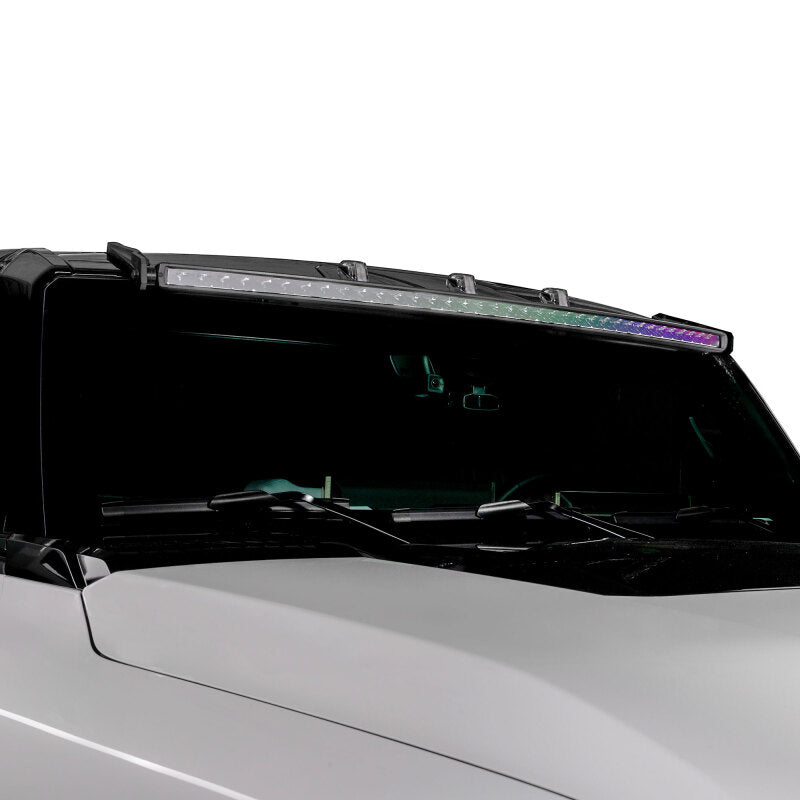

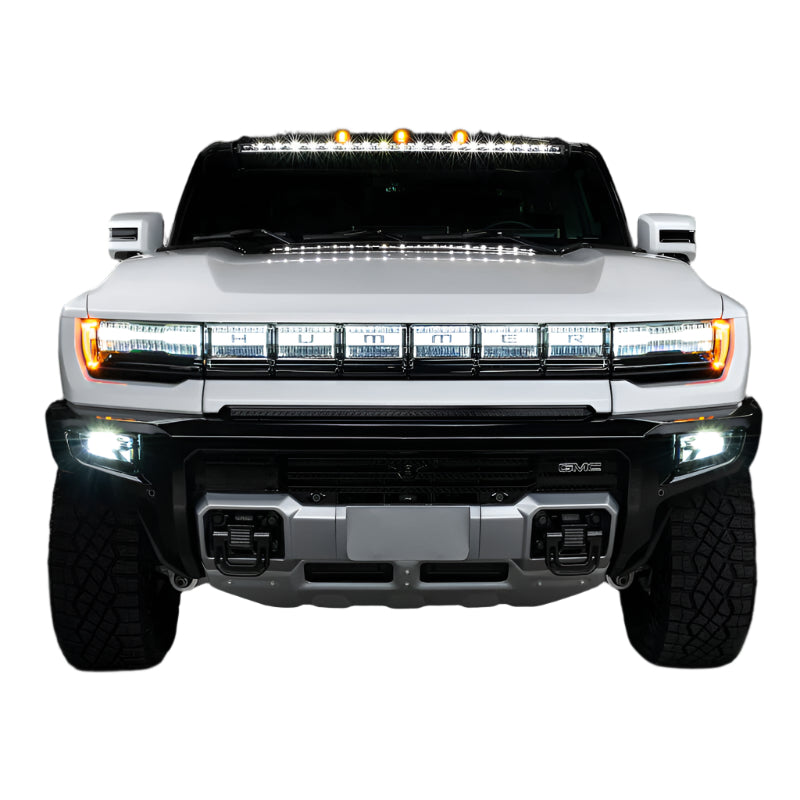

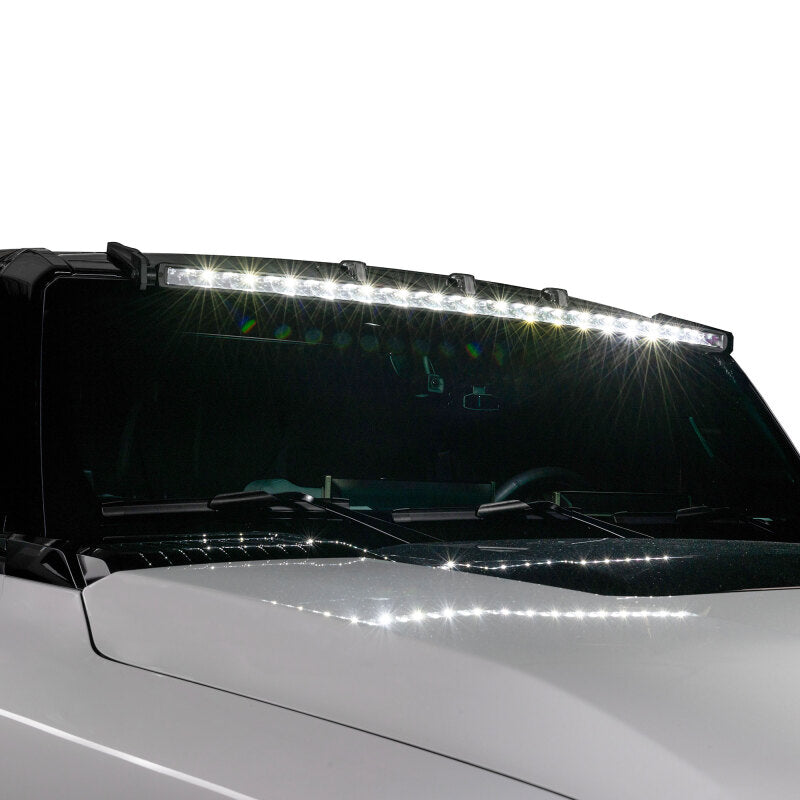

The ORACLE LED Light bar for the Hummer EV features a unique Low-Profile design which reduces wind noise and does not block the factory cab clearance lights. The brackets are CAD designed specifically for this application for easy installation. The LED Light bar features an amazing 22,200 Lumens brightness which projects over 2,000 ft distance! Designed to match the curvature of the Hummer windshield, this light bar stands out from some of the other generic light bar options on the market in both Quality and Performance.

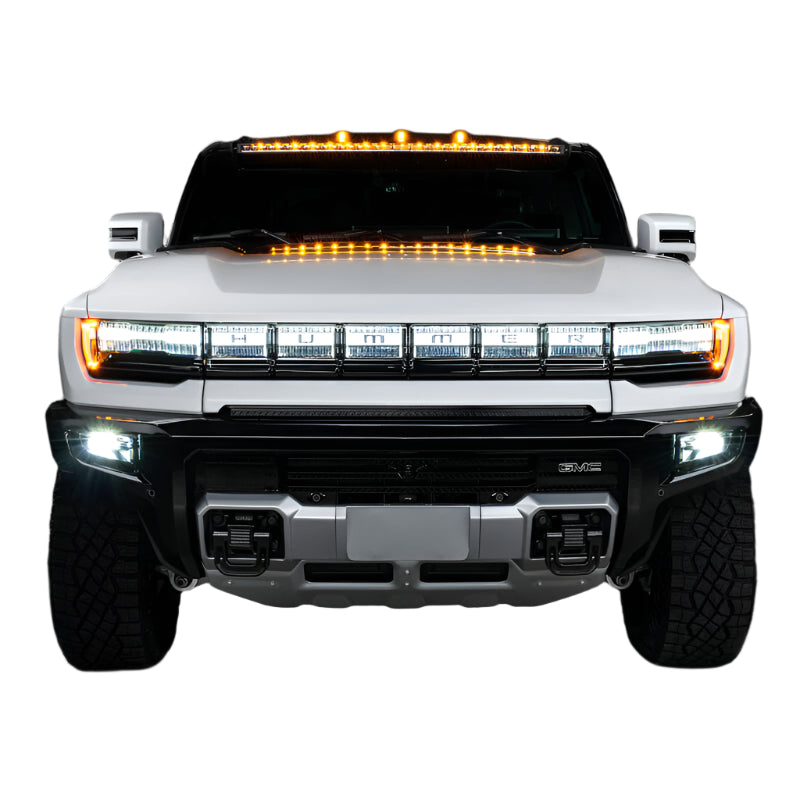

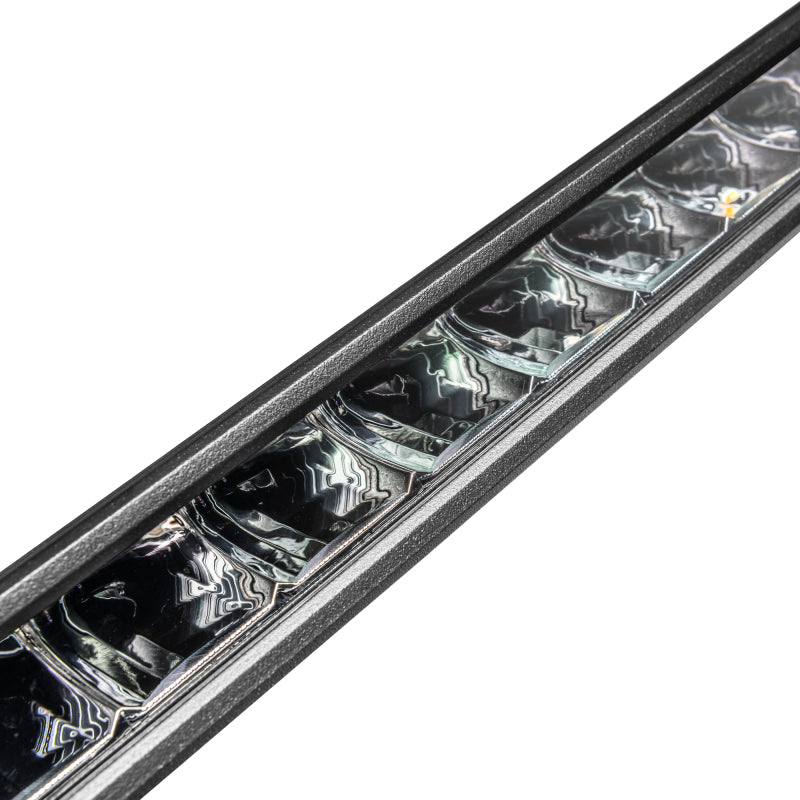

This LED Light Bar utilizes reflector facing LED technology, elevating it above basic and more common light bars. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens. The Multifunction design provides the user with selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or simply leave them disconnected if you prefer not to use the additional clearance light feature on your Hummer.

Along with blending in with the factory design, the unique low-profile design also provides a quieter and more aerodynamic installation compared to traditional LED light bar setups. The mounting design does not interfere with the hard top when you want to go topless!

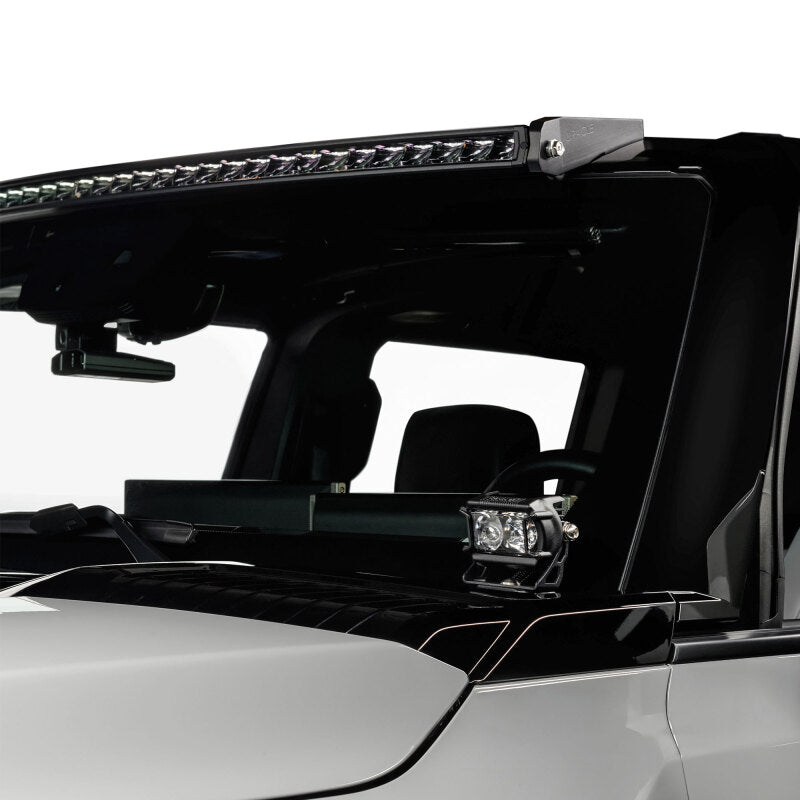

Mounting the light bar is easy using the factory hardware and only needing the tools included in your glovebox and a 13mm Socket. The ORACLE Light Bar System mounts to your Hummer using the factory accessory mounting points for an easy, DIY installation experience!

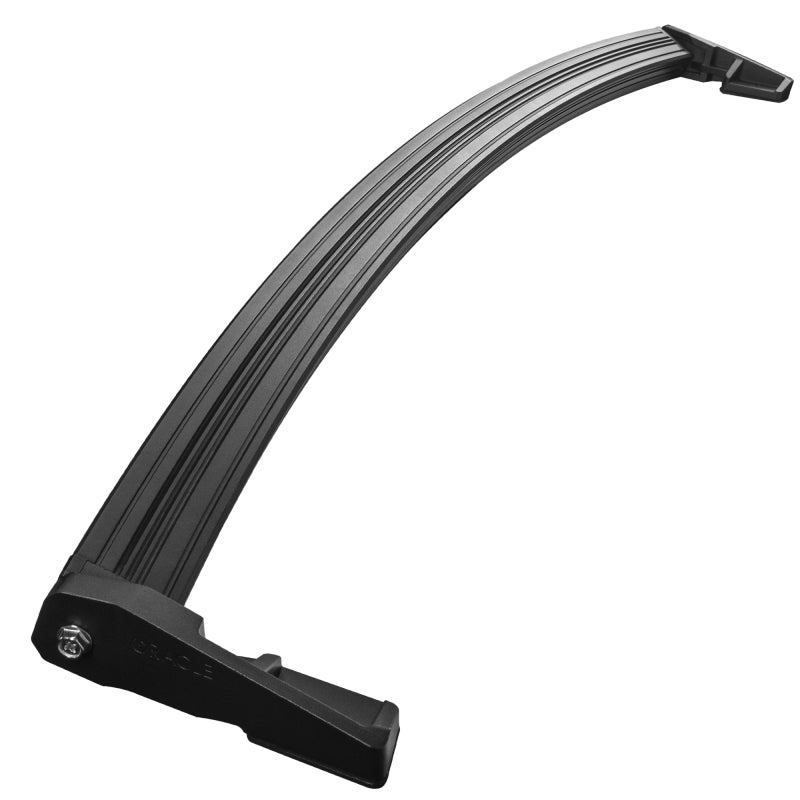

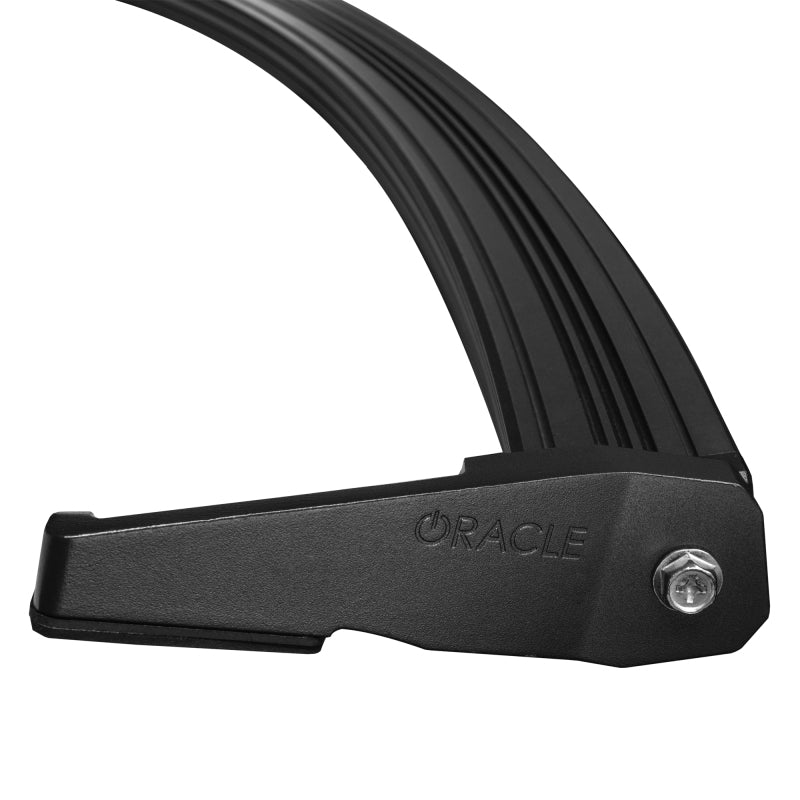

Bracket Specifications:

- Material: Cast Aluminum

- Finish: Black Powder Coat

- Fitment: Hummer EV (All)

- Rubberized Base Gaskets

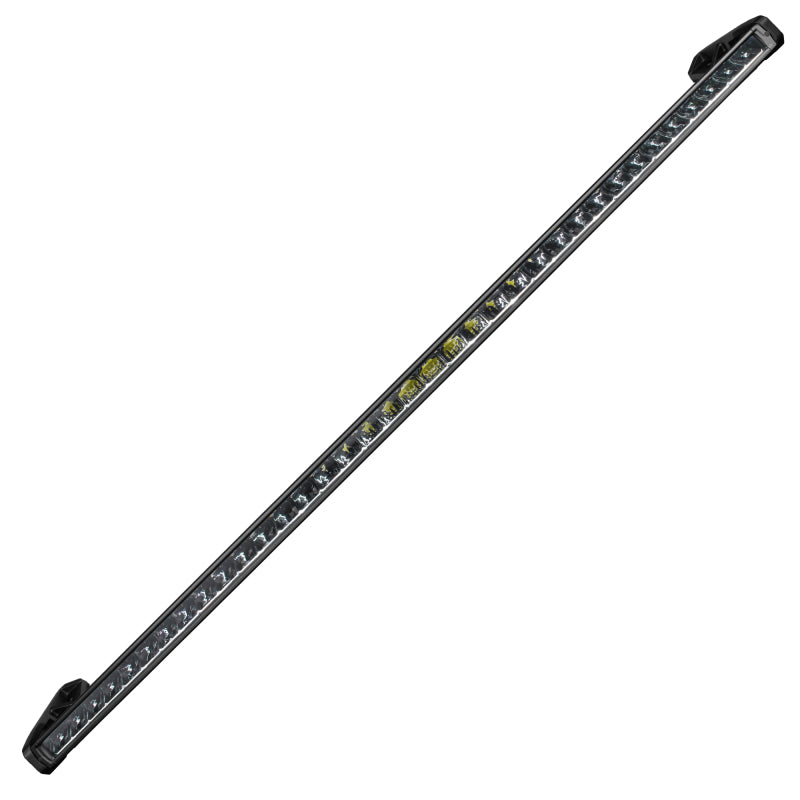

Light Bar Specifications:

- High-Powered Lighting 36x 7W LED Main Light

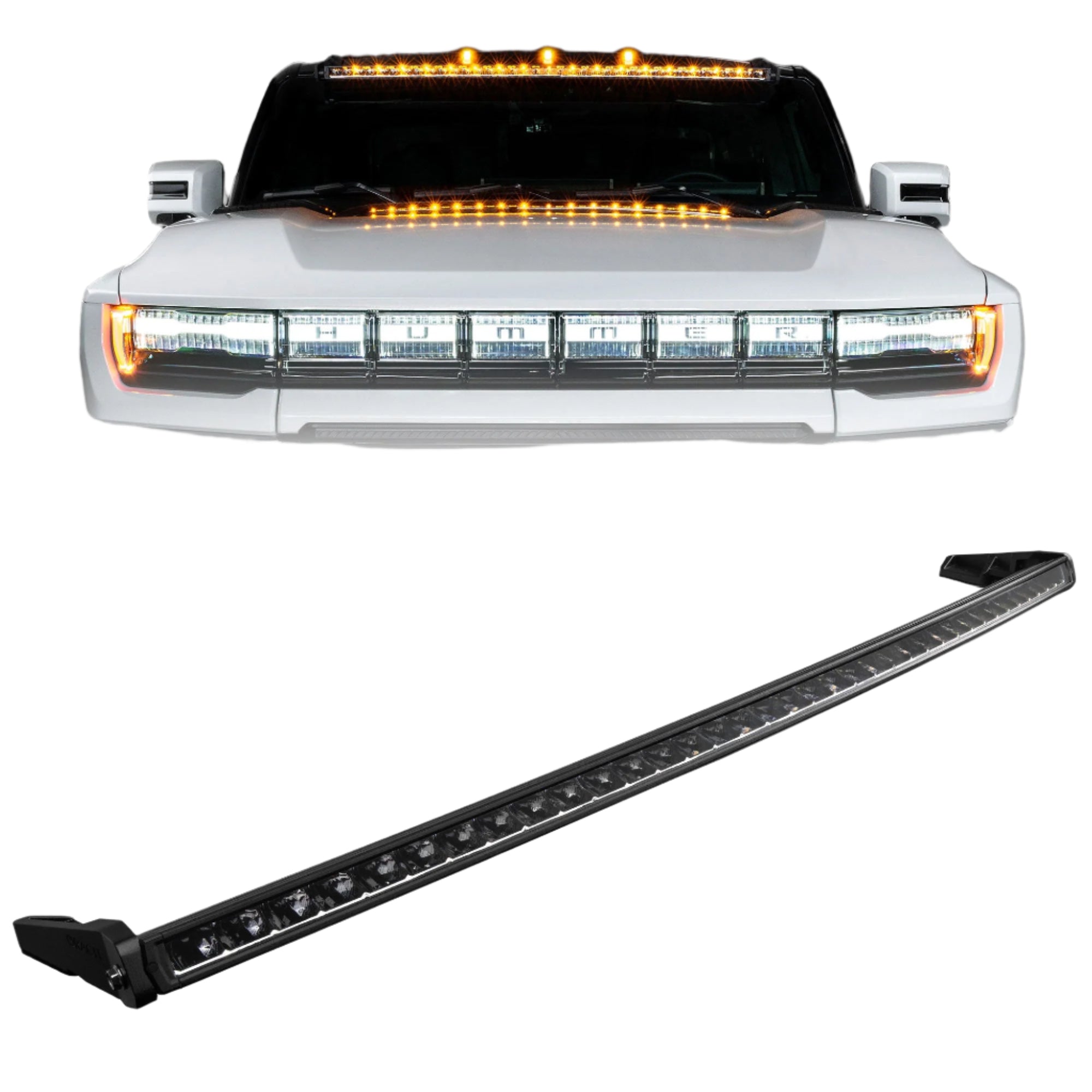

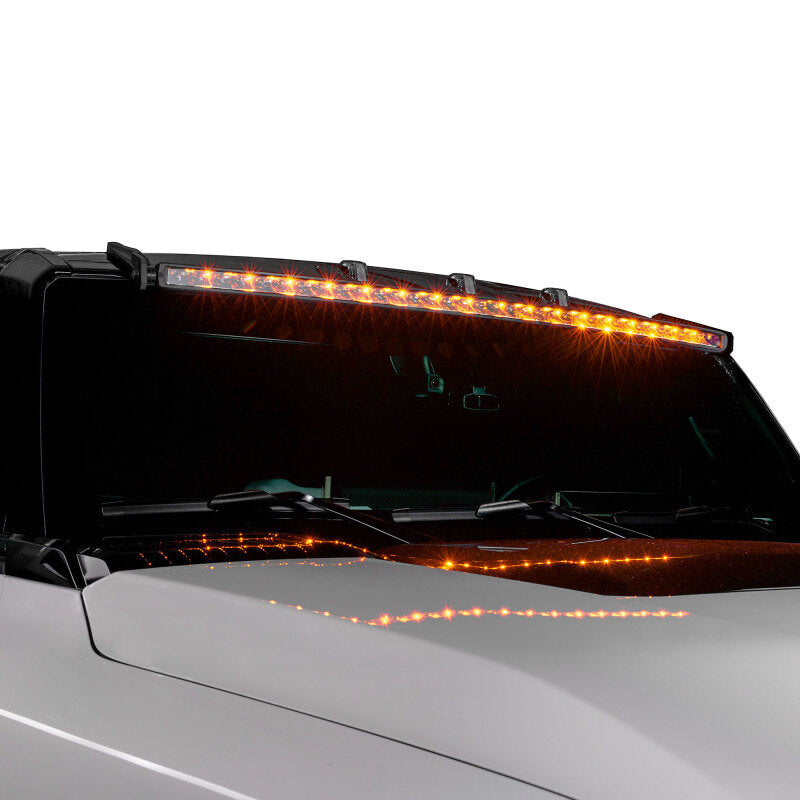

- Selectable Amber or White Clearance Lights

- Precision LED Reflector-Facing Technology

- Under/Over Voltage and Reverse Polarity Protection

- Electronic Thermal Management

- Innovative Patent-Pending Design

- Designed and Engineered in the USA

- LED Lifespan 50,000+ Hours

Light Bar Driving Beam Specifications:

- Raw Lumen Light Output: 22,200LM

- Effective Lumen Light Output: 18,800LM

- Total Wattage: 252 Watts

- Total Amp Draw: 16 Amps @12V DC

- Beam Angle: 50° Driving Beam

- Max Projection Distance: 1Lux@460M

- Color Temperature: 5500K-6000K

- Advanced Optic Design for Optimal Visibility

Light Bar Material Specifications:

- Outer Housing Material: Polycarbonate

- Lamp Housing Material: 6030 Aluminum

- Reflector Material: Plated Polycarbonate

- Lens: Material: Lexan Polycarbonate

- Lamp Finish: Polyester Powder Coat

- Stainless Steel Anti-Fog Breather Valves

- Molded IP68 Waterproof Connectors

- Waterproof Rating: IP69 Ingress Protection

In the Box:

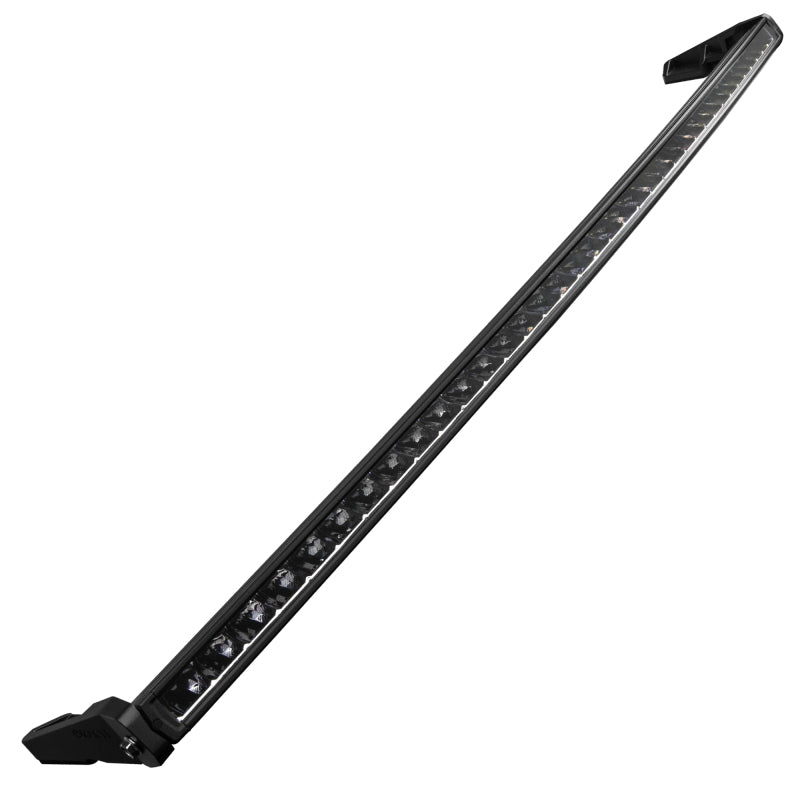

- (1) 2022-2025 Hummer EV 50" Roof Mount Curved Light Bar

- (2) Mounting Brackets

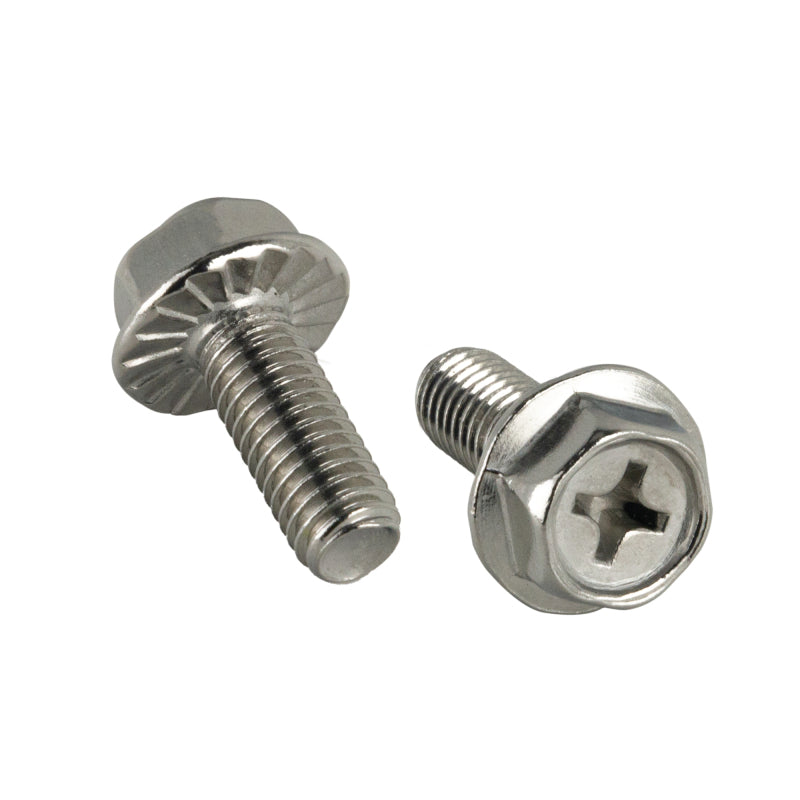

- Mounting Hardware & Weather Gasket
