Unlock Every Horsepower: OS Giken Super Lock LSD for the Nissan 350Z and 370Z

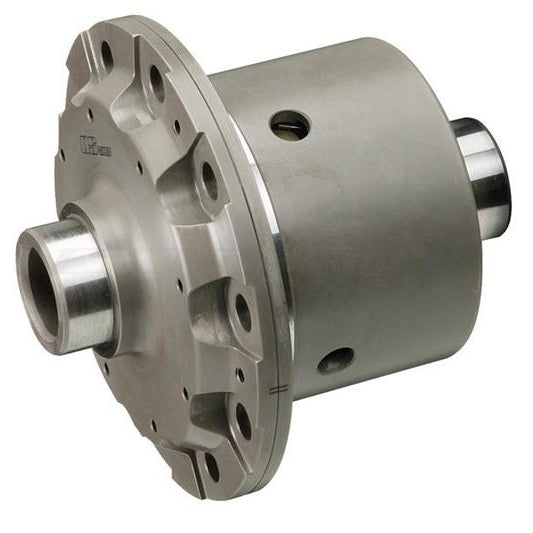

The OS Giken NS111-HA Super Lock LSD replaces the factory VLSD in the Nissan 350Z (Z33) and 370Z (Z34) with Japan's most technically refined clutch-type differential. Built around OS Giken's patented pressure ring and spline-through-side-gear design, the OSGNS111-HA accommodates up to twice the friction plate count of competing limited slip units. The result is a smooth, progressive 25/38 ramp configuration that starts at low preload street behavior and locks to 100% under hard driving. For manual transmission 350Z and 370Z builds from lightly modified VQ35DE street cars to high-power track builds, the OS Giken NS111-HA transforms how the rear axle puts power to the pavement. Note: Installation requires an additional left-hand output shaft from Nissan as detailed in the installation notes below.
Key Features

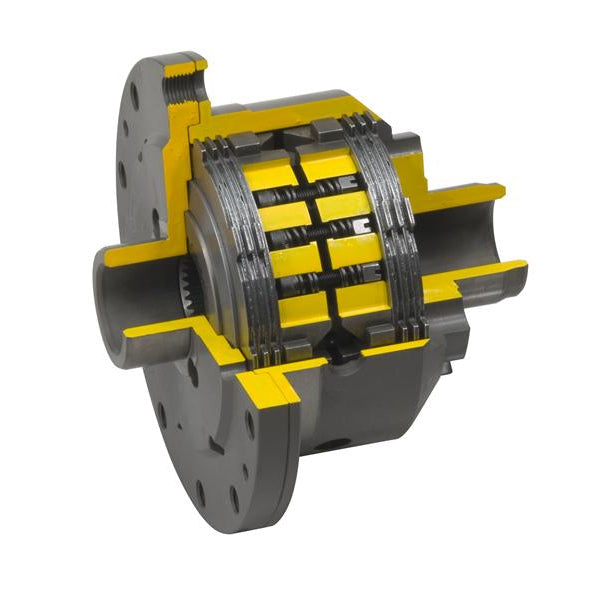

- Patented pressure ring design: spline-through-side-gear architecture allows up to 2x the friction plate count of competing LSDs
- 25/38 ramp configuration: 1.5-way setup biased toward deceleration stability for Z-car handling balance
- Progressive 100% lock capability: starts at low preload and locks completely under load for consistent and predictable rear axle behavior
- Chemical heat treatment on all components: maximum durability under sustained track-level thermal loading
- High-grade steel alloy construction: superior material specification versus cast iron alternatives
- Raw-forged gears: maximum fatigue resistance
- Precision-machined clutch discs: both sides machined simultaneously for minimal warpage and consistent engagement
- Single-billet machined LSD case: uniform geometry for consistent clutch plate engagement
- Quiet street operation: progressive lock allows smooth everyday drivability
- Tunable preload and ramp angles: cone springs, pressure ring springs, and ramp angles can all be adjusted in-house
- Manual transmission only: not compatible with automatic transmission 350Z or 370Z
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2003-2009 | Nissan | 350Z | Z33 (MT only, VQ35DE) |
| 2009-2021 | Nissan | 370Z | Z34 (MT only, VQ37HR) |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | NS111-HA |
| Brand | OS Giken |
| Type | Super Lock LSD (Clutch Type) |
| Ramps | 25/38 (1.5-way) |
| Lock Timing | 336 |
| Total Plates | 20 |
| Preload | 12S |
| Transmission | Manual Only |
| Country of Manufacture | Japan |
| UPC | N/A |
What's Included
- OS Giken NS111-HA Super Lock LSD unit
- All internal friction discs, pressure rings, and assembled hardware
- Note: Does NOT include Nissan output shaft PN 38220-AR011 (350Z) or 38220-1NC1B/JK01B (370Z) required for installation
About OS Giken
OS Giken is a Japanese precision manufacturer with decades of motorsport experience in LSD, engine, and drivetrain development. The OSGNS111-HA is purpose-built for the Nissan Z-car platform using the same pressure ring technology found in OS Giken's top-level motorsport applications. Every OS Giken LSD is built to exacting tolerances in Japan and designed to replace the OEM VLSD without modification to the differential housing.
Frequently Asked Questions
Does the OS Giken NS111-HA replace the factory VLSD in the 350Z?Yes. The OSGNS111-HA is a direct replacement for the factory viscous limited slip differential in the Nissan 350Z Z33. It installs into the same differential carrier and housing without modification. An additional Nissan LH output shaft (PN 38220-AR011) is required because the NS111-HA uses a symmetrical shaft design.
Does the NS111-HA fit the 370Z?Yes. The OSGNS111-HA also fits the Nissan 370Z Z34 equipped with the manual transmission. 370Z installation requires a Nissan LH output shaft PN 38220-1NC1B or JK01B in addition to the LSD unit. Verify your 370Z is a manual transmission vehicle before ordering.
Why does the OS Giken NS111-HA require an additional output shaft?The OS Giken NS111-HA uses a symmetrical spline-through-side-gear design that requires both output shafts to be left-hand (LH) specification. The factory 350Z uses one LH and one RH output shaft. To install the NS111-HA, the RH shaft must be replaced with a second LH shaft (Nissan PN 38220-AR011 for 350Z). This is a documented installation requirement and the additional shaft is readily available from Nissan dealers.
Will the OS Giken NS111-HA work with an automatic transmission 350Z?No. The OSGNS111-HA is designed for manual transmission Nissan 350Z and 370Z only. The differential geometry and preload specification are calibrated for the clutch pedal engagement behavior of a manual transmission drivetrain. Do not install in an automatic transmission vehicle.
What is the difference between a 1-way and 1.5-way ramp on the NS111-HA?The OSGNS111-HA uses 25/38 ramps making it a 1.5-way LSD. A 1-way unit only locks under acceleration. A 1.5-way unit locks under acceleration (25 degree ramp) and provides partial locking under deceleration (38 degree ramp). The 38-degree deceleration ramp reduces trail-braking oversteer compared to a 1-way unit while still allowing progressive corner exit rotation under power, which is ideal for Z-car track driving.
Can the OS Giken NS111-HA be tuned for more aggressive locking on track?Yes. OS Giken offers in-house tuning services for the NS111-HA. Initial torque can be raised with thicker cone springs, lock progression timing can be modified with stiffer or weaker pressure ring springs, and ramp angles can be changed by swapping the pressure ring and iron cross. TCD spec discs can also be installed for improved oil cooling under sustained track use.
Does the OS Giken NS111-HA fit both the VQ35DE and VQ35HR engines?Yes. The OSGNS111-HA is listed for the Nissan 350Z Z33 equipped with both the VQ35DE and VQ35HR versions of the 3.5L V6. Fitment is determined by the differential housing, not the engine variant, so both engine versions share the same OS Giken LSD application.
What gear oil is recommended for the OS Giken NS111-HA?OS Giken recommends consulting the OEM Nissan service manual for your specific chassis for differential fluid specification. Use gear oil rated for clutch-type limited slip differentials. Avoid adding conventional LSD friction modifiers that target standard clutch-pack chatter, as they may affect the OS Giken pressure ring's engagement characteristics.
Installation Notes
- 350Z: Obtain Nissan LH output shaft PN 38220-AR011 (1 additional required, 2 total needed for installation)
- 370Z: Obtain Nissan LH output shaft PN 38220-1NC1B or JK01B (1 additional required, 2 total needed for installation)
- Drain and remove the rear differential following Nissan OEM service manual procedure for your chassis
- Disassemble the differential and extract the factory VLSD unit
- Install the OS Giken NS111-HA, verifying correct shim selection and bearing preload per OS Giken specifications
- Install both LH output shafts as specified above
- Verify ring gear backlash to OEM specification
- Fill with appropriate gear oil for clutch-type limited slip differentials
- Reinstall the differential and torque all fasteners to Nissan specification
- Allow a short break-in period before sustained track use
