Power Stop 88-91 Chevrolet K1500 Rear Autospecialty Drum Kit

Complete Rear Drum and Shoe Replacement for 1988-1999 Chevrolet K1500, Blazer, and Tahoe

The PowerStop KOE15329DK Autospecialty rear drum and shoe kit provides a direct OE replacement brake service solution for 1988-1999 Chevrolet K1500 trucks, 1992-1994 Chevrolet Blazer, and 1995-1999 Chevrolet Tahoe equipped with rear drum brakes. Instead of sourcing drums, shoes, springs, and hardware separately, the KOE15329DK consolidates everything into a single kit that arrives ready to install. PowerStop Evolution Premium Coated brake drums feature a black corrosion resistant coating on the non friction surfaces to prevent rust between services and extend the life of the drum beyond that of bare cast iron OE replacements. The included brake shoe set is pre bent to the correct arc for these applications, and the spring and hold down hardware is matched to the factory specification so you are not reusing fatigued hardware that can affect shoe actuation and parking brake feel. The KOE15329DK is engineered to OE dimensions for a bolt on installation on compatible C/K platform applications.

Key Features

• PowerStop KOE15329DK complete rear drum and shoe kit for 1988-1999 Chevrolet K1500, 1992-1994 Chevrolet Blazer, and 1995-1999 Chevrolet Tahoe
• PowerStop Evolution Premium Coated drums with corrosion resistant finish on non friction surfaces
• Pre bent replacement brake shoes matched to the factory arc for proper contact and even wear
• Includes spring and hold down hardware kit for a complete, new hardware installation
• Brake shoe adjusters included to restore proper automatic adjustment function
• OE matched drum diameter and width for direct bolt on fitment
• Single kit consolidates everything needed for a complete rear drum brake service
• Compatible with 1988-1999 GM C/K platform applications as listed in fitment

Fitment

Specifications

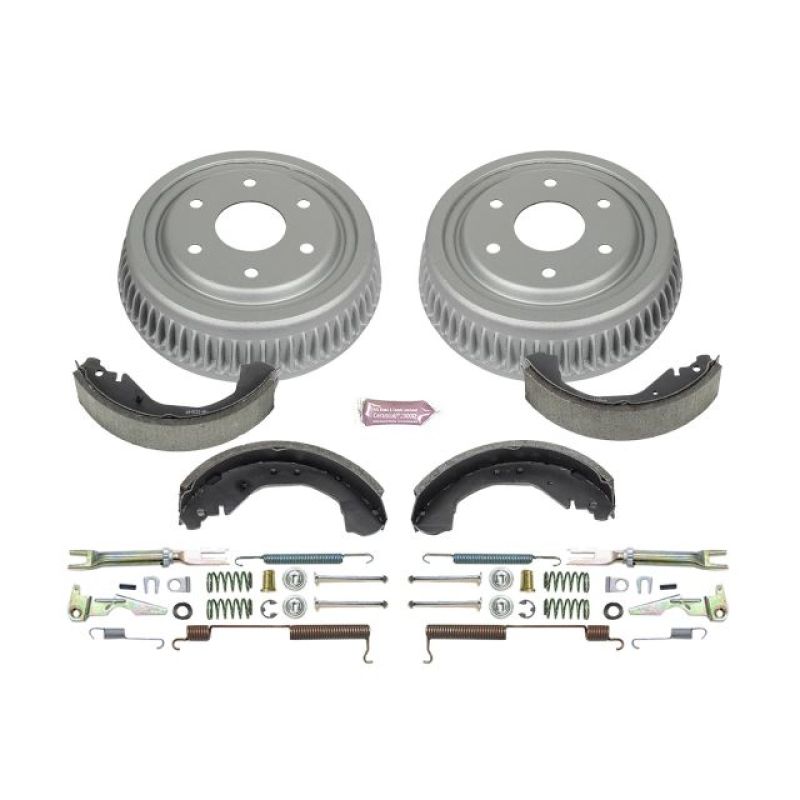

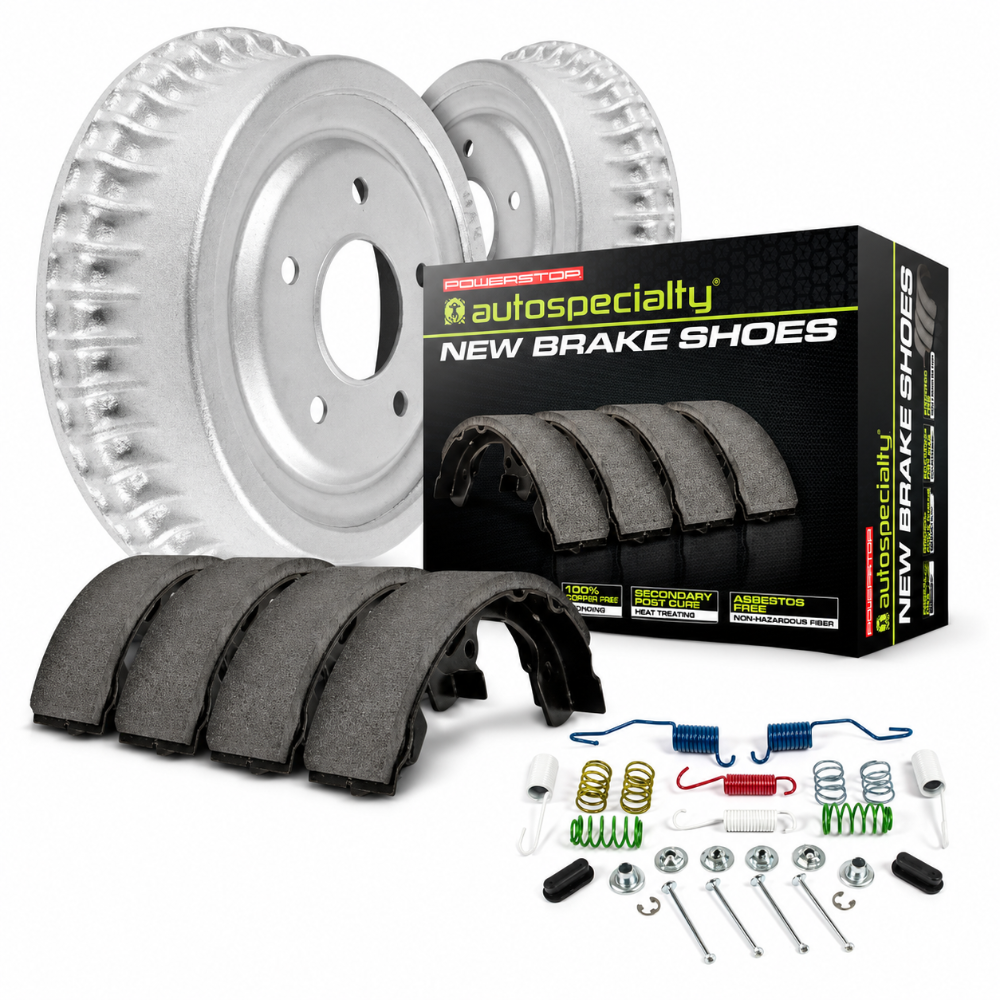

What's Included

• 2x PowerStop Evolution Premium Coated rear brake drums
• 1 set rear brake shoes
• Spring and hold down hardware kit
• Brake shoe adjusters

Frequently Asked Questions

The KOE15329DK includes two Evolution Premium Coated rear brake drums, a complete set of rear brake shoes, a spring and hold down hardware kit, and brake shoe adjusters. Everything needed for a complete rear drum brake service on compatible 1988-1999 GM C/K platform vehicles is included in a single kit.

Yes. The KOE15329DK fits the 1995-1999 Chevrolet Tahoe in LS and LT trim levels equipped with rear drum brakes. It also covers the 1988-1999 Chevrolet K1500 in Cheyenne, Silverado, Scottsdale, WT, and Sport trims, as well as the 1992-1994 Chevrolet Blazer in Cheyenne and Silverado trim levels.

PowerStop Evolution Premium Coated drums feature a corrosion resistant coating applied to the non friction surfaces of the drum. This coating prevents rust from forming on the drum hat, outer edge, and backing face between brake services, which extends the appearance and structural life of the drum beyond a bare cast iron OEM replacement.

The KOE15329DK includes both. The kit comes with a complete spring and hold down hardware set and brake shoe adjusters in addition to the drums and shoes. This allows a complete, new hardware installation without reusing the original springs and clips, which can lose tension and affect shoe retraction and parking brake engagement after extended service.

The KOE15329DK is validated specifically for the Chevrolet K1500, Blazer, and Tahoe applications listed in the fitment table. The 1988-1998 GMC K1500 uses a similar rear drum specification on the same C/K platform, however, confirm the drum dimensions and hardware specification for your specific GMC application before ordering, as minor differences exist between model years and trim levels.

Yes. The KOE15329DK covers Chevrolet K1500 four wheel drive applications in the listed year ranges and trim levels. The K series designation indicates 4WD on the GM C/K platform. Verify the drum diameter specification for your exact year if your vehicle has been modified or if the rear axle has been replaced.

After installation, manually adjust the star wheel adjuster on each side so the drum spins freely with just a slight drag from the shoes. Back off the adjuster until the drum spins without drag, then apply the parking brake several times to allow the automatic adjuster to set the proper shoe to drum clearance. Drive slowly and apply the brakes moderately to verify proper operation before returning to normal use.

The KOE15329DK is engineered for the factory GM C/K rear axle assembly as specified in the fitment table. Vehicles with aftermarket axle housings or rear end swaps may use a different brake flange and drum bolt pattern that would not be compatible. Confirm the drum mounting bolt pattern and pilot diameter match the factory specification before installing on a modified vehicle.

Installation Instructions

1. Safely raise the vehicle and support on jack stands. Remove the rear wheels.
2. Remove the brake drum. If the drum is stuck, back off the star wheel adjuster through the access slot in the backing plate to retract the shoes.
3. Photograph the existing spring and hardware arrangement before disassembly for reference during reassembly.
4. Remove the old brake shoes, springs, hold down clips, and adjusters. Inspect the wheel cylinder for signs of leaking and replace if needed.
5. Clean the backing plate with brake cleaner and inspect the shoe contact pads for grooves or corrosion. Apply high temp brake lubricant to the shoe contact pads and adjuster threads only. Never apply lubricant to the friction surface.
6. Install the new brake shoes using the new spring and hold down hardware from the kit. Route all springs per the factory arrangement.
7. Install the new adjuster and set it to its shortest position before installing the drum.
8. Clean the new KOE15329DK drum with brake cleaner to remove any protective coating from the friction surface before installation.
9. Install the drum and adjust the shoes via the star wheel adjuster until slight drag is felt, then back off slightly for free rotation.
10. Reinstall the wheels, torque lug nuts to specification, lower the vehicle, and apply the parking brake multiple times to allow the self adjusters to set proper shoe clearance.
