Power Stop 13-21 Nissan Sentra Rear Autospecialty Brake Shoes w/Hardware

Direct-Fit Rear Drum Brake Shoes for the 2013-2021 Nissan Sentra

The PowerStop SSH1046L Autospecialty brake shoes are engineered as a direct OE replacement for the rear drum brake system on 2013-2021 Nissan Sentra models equipped with rear drums. SSH1046L shoes are precision cam ground to match the 9-inch drum arc geometry, post cured for faster break-in and more immediate braking response, and chamfered on both ends to prevent the squeal and chatter that comes with worn or improperly fitted drum shoes. The complete hardware kit eliminates the need to source separate springs, pins, and adjusters. All materials are 100% asbestos-free and copper-free.

Key Features

• Semi-metallic friction compound post cured for stronger initial brake response and a shortened break-in period
• Precision cam ground arc geometry ensures full contact across the drum surface for consistent stopping power
• Chamfered leading and trailing edges eliminate the chatter and squeal caused by edge loading
• Bonded shoe construction eliminates exposed rivet heads that can score drum braking surfaces
• New steel backing plates with a rust-resistant coating for extended service life in wet climates
• 100% asbestos-free and copper-free friction material meets current federal and California standards
• Complete hardware kit included: return springs, hold-down springs, retainer pins, and adjuster components
• Direct fit for 2013-2021 Nissan Sentra rear drum applications, no modifications required

Vehicle Fitment

Specifications

What's Included

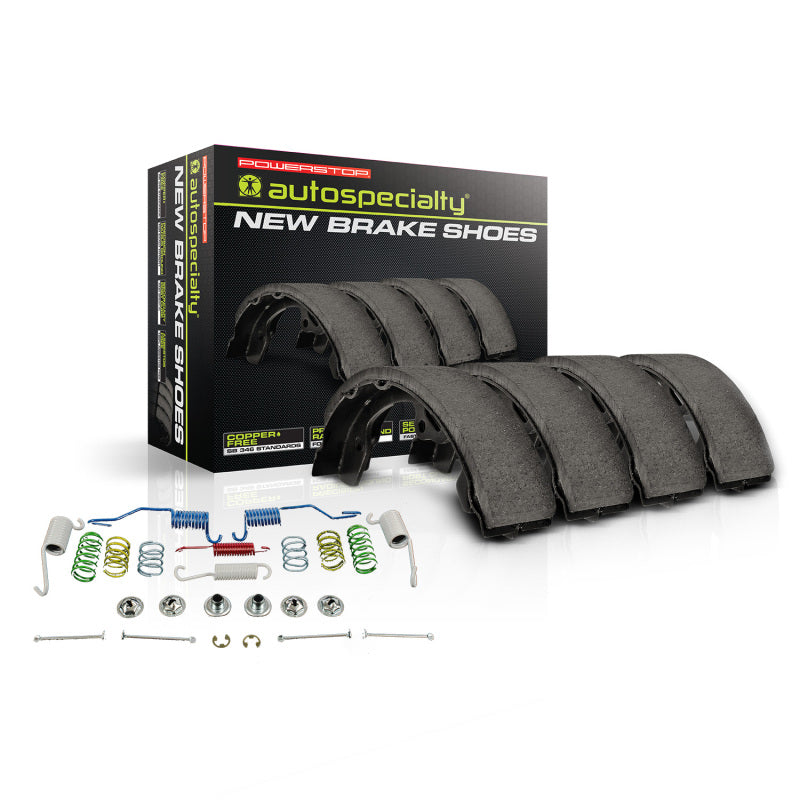

• 2 x PowerStop SSH1046L semi-metallic rear brake shoes (full rear axle set)
• Complete hardware kit: return springs, hold-down springs, retainer pins, and adjuster components

Frequently Asked Questions

The SSH1046L fits 2013-2021 Nissan Sentra models equipped with rear drum brakes. This covers trims including S, SV, SR, SL, FE+S, and others that came from the factory with rear drums. Some higher-trim or sport variants may have rear disc brakes and will not use drum shoes. Confirm your axle type before ordering.

The SSH1046L is designed for the 9-inch (228.6 mm) rear drum used on the 2013-2021 Nissan Sentra. The shoe width is 1.67 inches (42.4 mm). These dimensions match the OE Nissan specification for this generation Sentra drum brake system.

Yes. PowerStop includes a complete hardware kit with the SSH1046L covering return springs, hold-down springs, retainer pins, and adjuster components. You will not need to separately source hardware to complete a standard rear drum brake service on your Sentra.

Look through the wheel spokes at the rear axle. A round, drum-shaped component covering the hub indicates drum brakes. A rotor disc and visible caliper indicate disc brakes. You can also check the vehicle door jamb sticker, your owner's manual, or look up your VIN to confirm the brake configuration.

Bonded shoes like the SSH1046L use high-pressure adhesive bonding to attach the friction lining to the steel backing. Riveted shoes use metal rivets. Bonded construction eliminates the risk of rivet heads scoring the drum surface as the lining wears thin, and typically allows the lining to be used until a slightly thinner minimum thickness before replacement is necessary.

If the drum surface shows visible scoring, grooves deeper than 0.020 inches, or exceeds the discard diameter, resurface or replace the drum before installing new shoes. A smooth, properly sized drum surface allows the SSH1046L shoes to bed in evenly and prevents premature noise or uneven wear.

Service life varies based on driving habits and conditions, but rear drum brake shoes on a compact sedan with light city driving commonly last between 30,000 and 50,000 miles. The post-cured semi-metallic compound in the SSH1046L is formulated for consistent wear rates under typical daily driving loads.

Yes. The SSH1046L installation is within reach for a home mechanic with basic tools. You will need a floor jack, jack stands, brake spring pliers, brake cleaner, and high-temperature brake grease. The full hardware kit is included. Photograph the spring arrangement on one side before disassembly to use as a reference guide for the other side.

PowerStop covers the SSH1046L under a limited warranty against defects in materials and workmanship. Retain your purchase receipt and contact PowerStop customer support with your order information to initiate any warranty claim.

Installation Instructions

1. Safely lift and support the vehicle on jack stands. Remove the rear wheels.
2. Remove the brake drum. If seized, use a drum puller or gently strike the drum face with a rubber mallet. Inspect the drum braking surface for scoring and verify the diameter is within the service limit (9.055 inches discard spec for the Sentra). Resurface or replace if needed.
3. Before disassembly, photograph the complete spring and shoe arrangement for reference.
4. Using brake spring pliers, remove the upper return spring, lower return spring, hold-down springs, and retainer pins. Slide the brake shoes off the backing plate anchor and remove the adjuster assembly.
5. Clean the backing plate contact ledges with brake cleaner. Apply a thin coat of high-temperature brake grease to the ledge contact points only. Do not get grease on the friction material or drum surface.
6. Install the new adjuster assembly and SSH1046L shoes using the hardware from the included kit. Seat hold-down pins first, then attach return springs per your reference photograph.
7. Expand the adjuster until light drag is felt when rotating the drum by hand, then back off 1 to 2 clicks for proper running clearance.
8. Reinstall the drum and wheel. Torque lug nuts to 80 ft-lbs. Repeat on the opposite side before lowering the vehicle.
9. Pump the brake pedal firmly until solid before moving the vehicle.
10. Perform 8 to 10 light stops from 25 mph to bed the shoes against the drum surface.
