Secure four wheels with forged steel locks and serviceable two-piece nuts

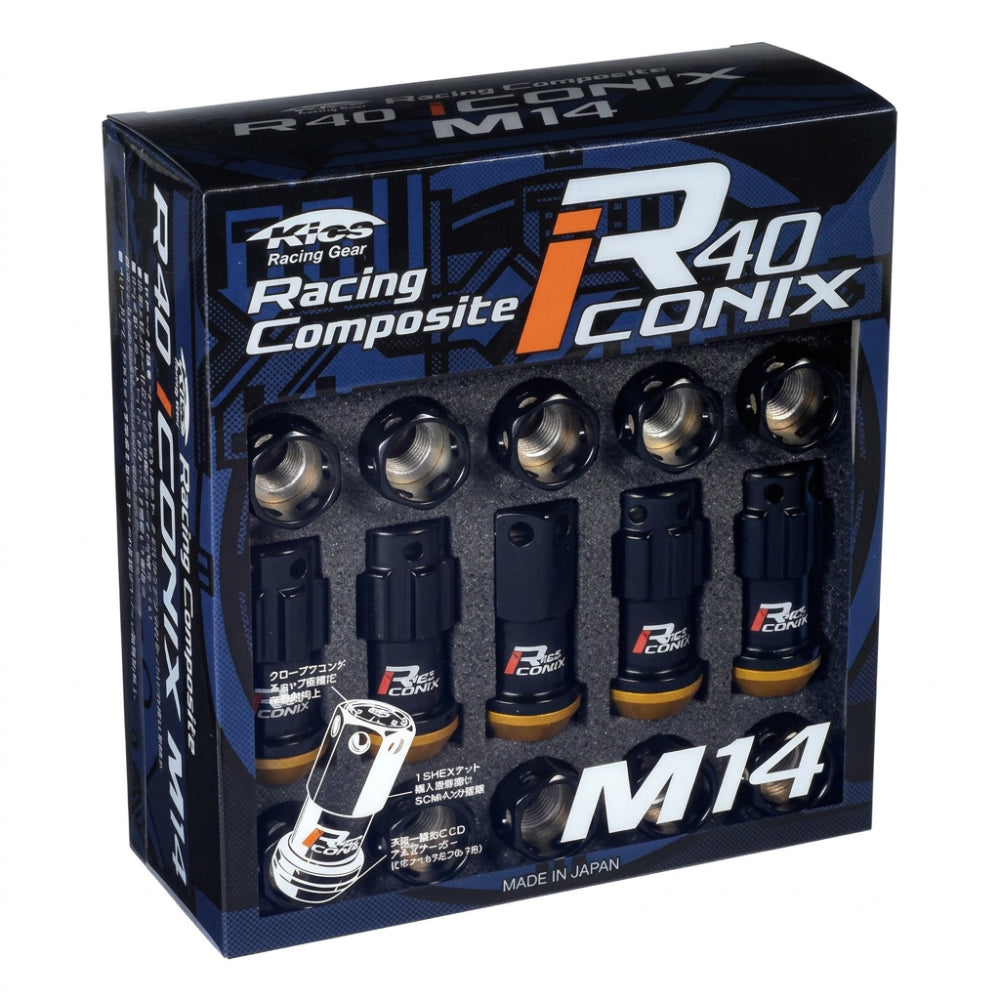

Project Kics RI-15KA combines sixteen R40 iCONIX lug nuts with four matching locks in a black capless configuration for wheels that use M14 x 1.25 studs and a 60-degree conical seat.
Key Features
- Twenty-piece set covers a four-wheel vehicle with sixteen standard nuts and four locking nuts
- Forged SCM435 chromoly-steel construction supports repeated wheel service
- Two-piece R40 design allows the tapered seat section to rotate independently during tightening
- Black capless configuration accommodates longer wheel studs without an installed end cap
- M14 x 1.25 internal thread with a 60-degree conical wheel seat
- Supplied lock key and 19/21 mm adapter support installation with the matching hardware
- Optional M14 aluminum end caps are sold separately for compatible stud lengths
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | No year-make-model fitment applies. Requires twenty M14 x 1.25 wheel studs, a 60-degree conical lug seat, clearance for a 24 mm outside diameter, and access for the supplied 19/21 mm adapters. Confirm wheel-seat style, thread pitch, stud engagement, wheel bore clearance, and installation torque before ordering. |
Specifications
| Detail | Value |
|---|---|
| Brand | Project Kics |
| Manufacturer Part Number | RI-15KA |
| Product Type | R40 iCONIX Locking Lug Nut Set |
| Series | R40 iCONIX M14 |
| Thread Size | M14 x 1.25 |
| Seat Type | 60-degree conical |
| Finish | Black |
| Configuration | Capless, open end |
| Material | Forged SCM435 chromoly steel |
| Quantity | 20 pieces: 16 lug nuts and 4 locks |
| Nut Hex | 19 mm |
| Adapter Hex | 21 mm |
| Outside Diameter | 24 mm |
| Barcode | 4965581147253 |
What's Included
- Sixteen black R40 iCONIX standard lug nuts
- Four matching locking lug nuts
- One lock key adapter
- One 19/21 mm installation adapter
- Not included: Aluminum end caps, wheels, wheel studs, sockets, torque wrench, and installation labor
About Project Kics
Project Kics is KYO-EI Industrial Corporation's performance wheel-hardware line. Its R40 iCONIX system uses forged steel, application-specific threads and seats, and replaceable service components for repeated wheel installation.
Related Parts
- Choose related wheel hardware only after matching the M14 x 1.25 thread, 60-degree conical seat, stud length, wheel-bore clearance, quantity, and black capless configuration.
FAQ
What is the RI-15KA?It is a black capless R40 iCONIX set containing sixteen standard lug nuts, four locks, and the matching adapters.
Is this set vehicle-specific?No. Selection is based on the wheel stud thread, seat geometry, clearances, and required quantity rather than a broad year-make-model claim.
Which thread size does it use?Every nut in the set uses an M14 x 1.25 internal thread.
Which wheel-seat style is required?The wheel must use a compatible 60-degree conical lug seat. Ball-seat, mag-seat, and washer-seat wheels are not supported.
How many locks are included?The package includes four locking nuts, allowing one lock to be installed at each wheel on a four-wheel vehicle.
Are decorative end caps included?No. This is the capless open-end configuration; compatible M14 aluminum caps are optional and sold separately.
What tools are needed for installation?Use the supplied adapters with a suitable socket and a calibrated torque wrench, following the vehicle and wheel manufacturer's torque specification.
Can these nuts be used with long wheel studs?The capless open end can accommodate longer studs, but thread engagement, stud protrusion, wheel clearance, and adapter access must all be checked before installation.
Installation Instructions
- Confirm all wheel studs are M14 x 1.25 and every wheel uses a 60-degree conical seat with enough bore clearance for the 24 mm nut body.
- Inspect the studs and wheel seats for damage, contamination, cross-threading, or incompatible hardware before removing the existing nuts.
- Install each lug nut by hand for several full turns, placing one locking nut on each wheel and keeping threads clean and dry unless the vehicle or wheel manufacturer specifies otherwise.
- Use the supplied key and adapter to snug the hardware in the wheel manufacturer's crossing sequence without using an impact tool for final tightening.
- Lower the vehicle as required and torque every nut to the verified vehicle and wheel specification with a calibrated torque wrench, then recheck torque after the recommended settling interval.
