-2%
Sold out
AirDog R4SBC139 diesel lift pump assembly
Click to zoom in

AirDog Raptor RP-4G-150 2015 - 2016 Chevy Duramax

AirDog
ADGR4SBC139
813094011391
Fuel Pumps
Out of stock
$ 549.00 $ 533.00

AirDog Raptor RP-4G-150 2015 - 2016 Chevy Duramax

AirDog R4SBC139 provides the application-specific diesel lift-pump arrangement listed below. The Raptor pump supplies fuel pressure and flow; it is not a filtered AirDog air-separation system or a high-pressure injection pump.

Key Features

  • 150-GPH manufacturer flow rating
  • Lift-pump fuel delivery; no integrated AirDog filter pair
  • Application-specific frame-jig/standoff mounting
  • Internally regulated operation; no separate pump return line required

Fitment

Years Make Model Engine Fitment conditions
2015-2016 Chevrolet Silverado 2500 HD 6.6L LML Duramax diesel Uses the original tank suction and engine-feed connections, with the selected frame-jig bracket and specified 11.8 mm tank connector. Internally regulated without a separate pump return; retain the original engine return circuit and required filtration.
2015-2016 Chevrolet Silverado 3500 HD 6.6L LML Duramax diesel Uses the original tank suction and engine-feed connections, with the selected frame-jig bracket and specified 11.8 mm tank connector. Internally regulated without a separate pump return; retain the original engine return circuit and required filtration.
2015-2016 GMC Sierra 2500 HD 6.6L LML Duramax diesel Uses the original tank suction and engine-feed connections, with the selected frame-jig bracket and specified 11.8 mm tank connector. Internally regulated without a separate pump return; retain the original engine return circuit and required filtration.
2015-2016 GMC Sierra 3500 HD 6.6L LML Duramax diesel Uses the original tank suction and engine-feed connections, with the selected frame-jig bracket and specified 11.8 mm tank connector. Internally regulated without a separate pump return; retain the original engine return circuit and required filtration.

6.6L LML Duramax diesel only, for the stated 2015-2016 application. Confirm the actual tank/pickup, fuel-line connectors, original return circuit and mounting clearance. Do not substitute the separate 2011-2014 kit based on the shared engine name. Model-level rows do not certify every trim, van, medium-duty chassis or modified fuel system. Uses the original tank suction and engine-feed connections, with the selected frame-jig bracket and specified 11.8 mm tank connector. Internally regulated without a separate pump return; retain the original engine return circuit and required filtration.

Specifications

Detail Value
Brand AirDog
Manufacturer part number R4SBC139
Product type Fuel Pumps
Condition New
Rated flow 150 GPH
Country of origin USA
Manufacturer engine applications GM 6.6L DURAMAX LML

What’s Included

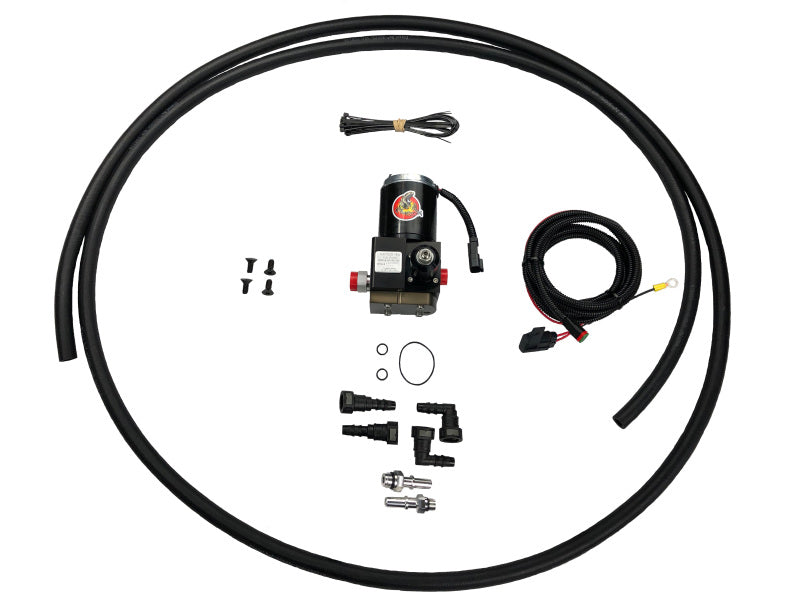

  • Application-specific Raptor pump assembly — R4SBC139
  • Wiring harness specified in the kit parts list
  • Fuel hose and connection fittings listed in the exact kit guide

About AirDog

PureFlow AirDog develops diesel lift pumps, fuel air-separation systems and installation/service components. Original AirDog, II-5G, Raptor and factory-replacement pump systems use different filtration, mounting and pressure-control arrangements.

Related Parts

FAQ

What is the R4SBC139?

It provides the application-specific diesel lift-pump arrangement listed below. The Raptor pump supplies fuel pressure and flow; it is not a filtered AirDog air-separation system or a high-pressure injection pump.

What application does this version fit?

2015-2016 Chevrolet/GMC 6.6L LML Duramax diesel. Use the stated model/year rows and this kit's pickup, return and mounting conditions.

What is included with this listing?

Application-specific Raptor pump assembly; Wiring harness specified in the kit parts list; Fuel hose and connection fittings listed in the exact kit guide.

Does this replace every similar-looking component?

No. Match the product’s function, connections and complete system configuration; appearance alone does not establish compatibility.

How should pressure or electrical setup be selected?

Use the actual engine and system requirements in the linked guide. A GPH rating is flow, not pressure; increasing pressure beyond specification can damage the system.

What should be checked before installation?

Check the installation location, connections, required tools and supplied components against the exact guide. Do not adapt a different vehicle kit solely because the pump looks similar.

Are additional parts supplied automatically?

No. A gauge, sender, additional fittings, separate regulator or complete fuel system is included only when expressly named in What’s Included.

What should be checked before driving?

Follow the priming and startup procedure, inspect every fuel and electrical connection, verify pressure with appropriate equipment, and check for leakage and hose abrasion.

Installation Instructions

  1. Read the R4SBC139 application and exact installation/service instructions before starting.
  2. Inventory the supplied components against the exact manufacturer kit list before disassembly.
  3. Mount the pump at the application-specific location without substituting another vehicle’s bracket arrangement.
  4. Route suction, engine-feed and any required air/vapor-return connections exactly as shown in the guide.
  5. Install the specified harness, protect the wiring and fuel lines, then complete priming and startup checks.
  6. Verify pressure for this engine and inspect every connection for leaks before driving.

Read the manufacturer installation guide.
