QA1 15-20 Ford F-150 4WD Lowering Kit w/ Spindles Double Adjustable 3.5in-5.5in

QA1
QAPLK12-FF02
806990174604
Spindles
2 Units In Stock - Ships Next Business Day
$ 3,436.45 $ 3,101.95
$ 3,101.95

SKU: LK12-FF02 | UPC: 806990174604

QA1 15-20 Ford F-150 4WD Lowering Kit w/ Spindles Double Adjustable 3.5in-5.5in

QA1 LK12-FF02 lowering kit transforms 2015-2020 Ford F-150 4WD suspension with front Pro Coil double adjustable coil-overs drop spindles and rear leaf spring shackle kit for a precise 3.5-5.5 inch front and 5 inch rear drop. This complete bolt-in system improves handling cornering and ride quality while maintaining daily drivability. Engineered for performance enthusiasts it delivers tunable damping and ride height for custom setups on F-150 XL XLT Lariat and other trims.

Key Features

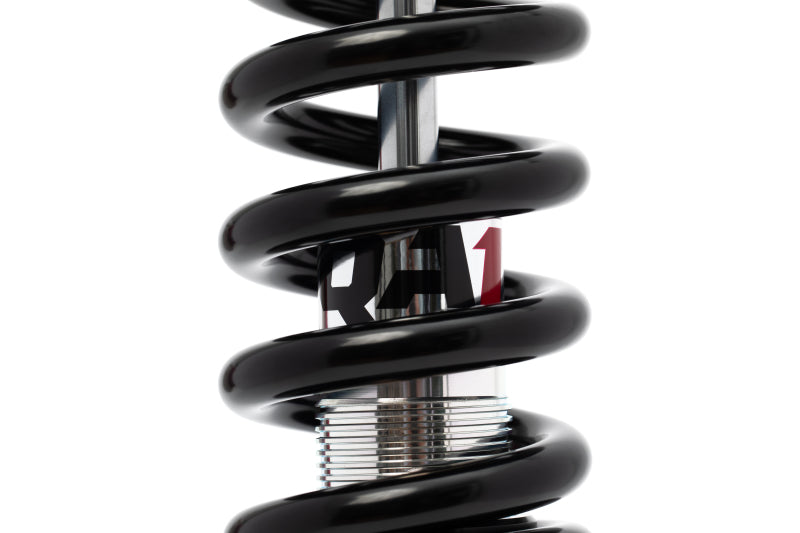

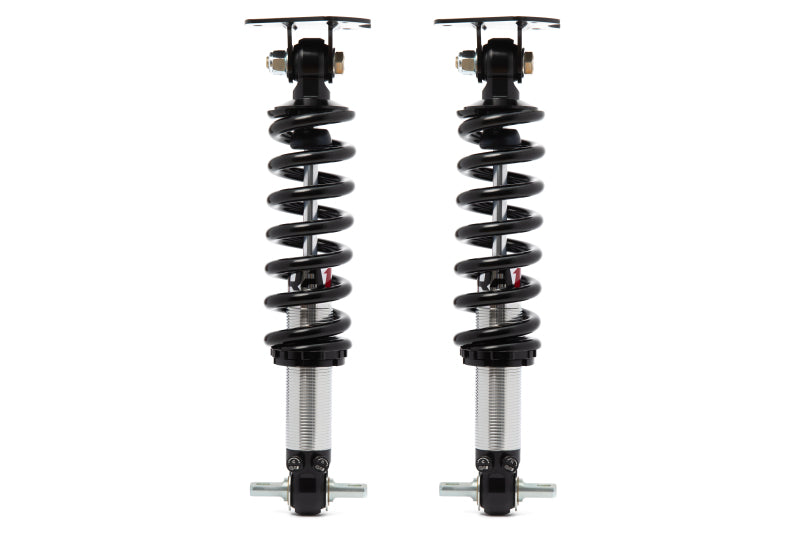

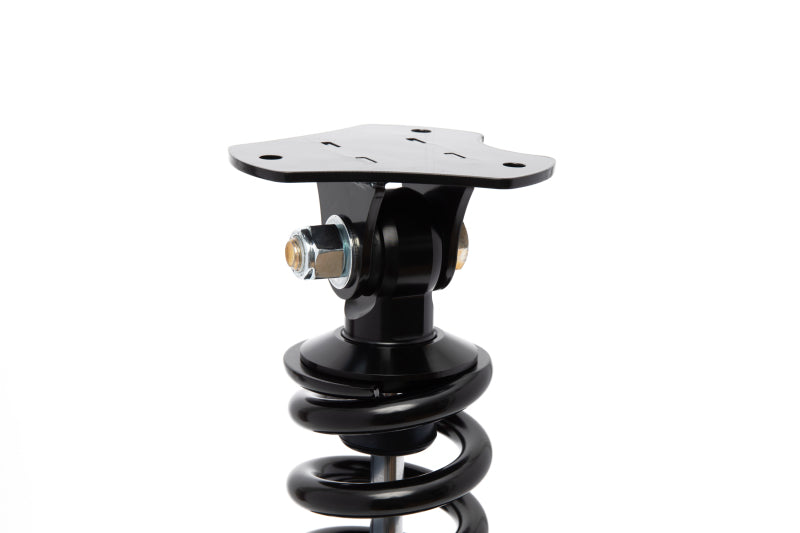

  • Ride Height Adjustability: Front coil-overs offer 3.5-5.5 inch drop range with 24-position adjustments for precise stance tuning without guesswork
  • Improved Ride Quality: Double adjustable shocks allow compression and rebound damping tweaks for balanced comfort on street or track
  • Heavy Duty Shock Design: Robust construction handles increased loads from lowered ride height and aggressive driving

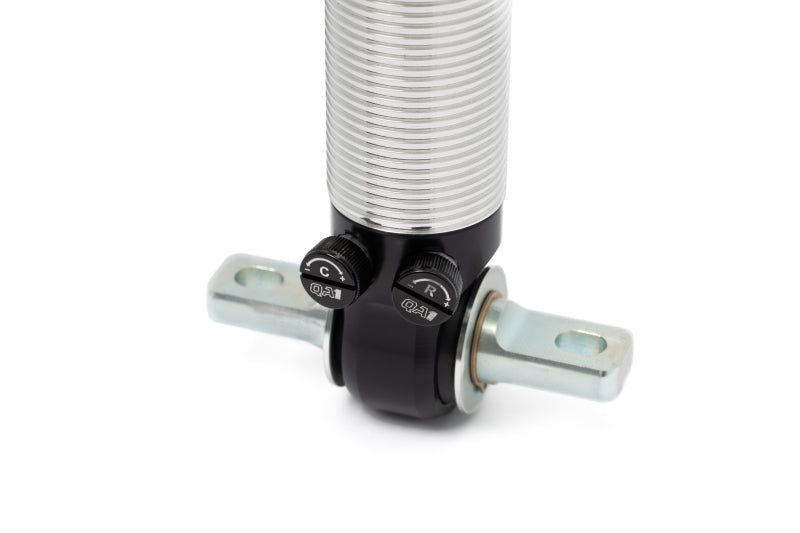

  • Adjustable Shock Valving: 24 clicks of adjustment per shock for personalized handling from soft daily to firm performance
  • Bolt-in Installation: Direct fit components with drop spindles and shackles require no cutting welding or fabrication

Product Notes

  • Fits 4WD models only excludes 2WD configurations

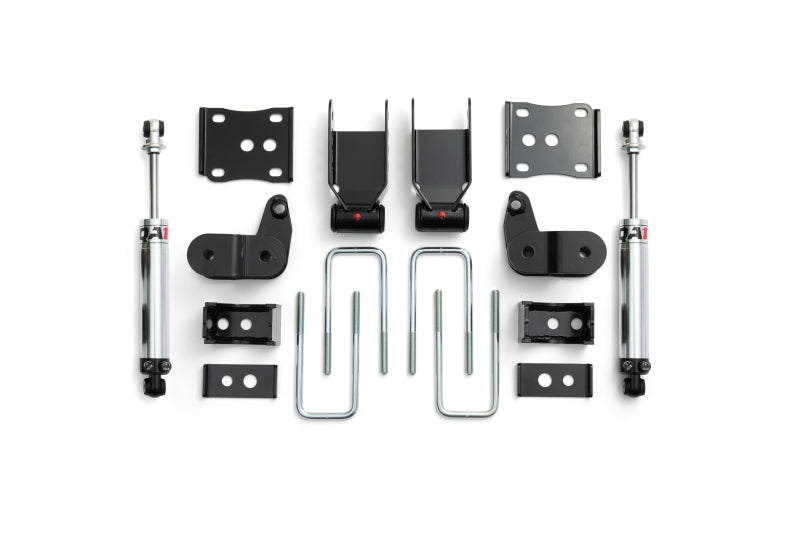

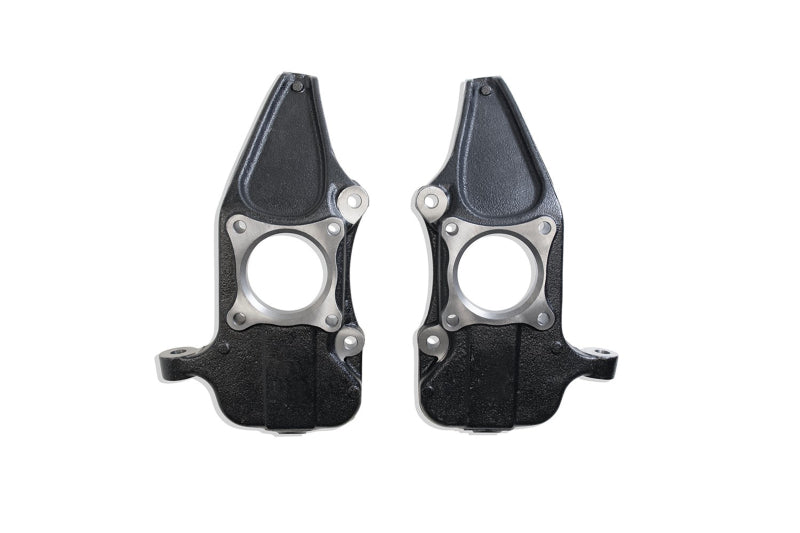

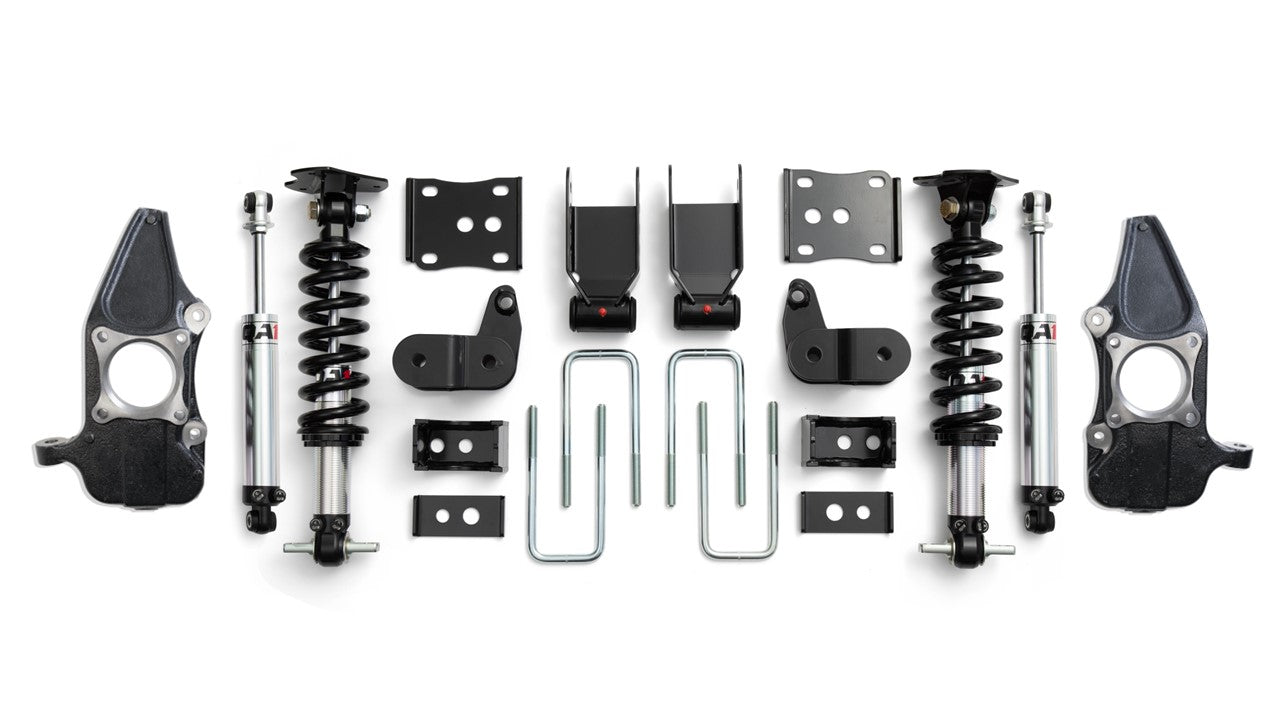

  • Includes front Pro Coil coil-overs drop spindles and rear shackles for complete 3/5 drop
  • Product weight 92 lbs requires sturdy mounting points

Installation Notes

  • Professional installation recommended.
  • Bolt-in design uses factory hardware locations no modifications needed
  • Requires alignment after install verify shock extension limits during assembly

This Part Fits

Year Make Model Submodel
2015-2020 Ford F-150 King Ranch
2015-2020 Ford F-150 Lariat
2016-2020 Ford F-150 Limited
2015-2020 Ford F-150 Platinum
2018-2020 Ford F-150 Police Responder
2017-2020 Ford F-150 Raptor
2016-2020 Ford F-150 SSV
2015-2020 Ford F-150 XL

Why Choose QA1?

  • Over 30 years leading suspension innovation since 1993 with motorsports heritage
  • All components manufactured in USA from 83,000 sq ft Lakeville MN facility
  • Lifetime warranty on shocks proves durability for racing street and rod applications

Frequently Asked Questions

  • Q: Will this kit fit my 2017-2020 F-150 Raptor 4WD?
    A: Yes LK12-FF02 fits 2017-2020 F-150 Raptor 4WD with 3.5-5.5in front drop and 5in rear for aggressive stance
  • Q: What materials are used in the shocks and spindles?
    A: Shocks feature aluminum bodies with steel internals spindles are cast steel for strength and corrosion resistance
  • Q: What warranty covers this kit?
    A: Lifetime warranty on shocks against defects covers all QA1 components under normal use

Shipping & Handling

  • Method: Ground freight
  • Availability: In stock - ships same or next business day
  • Packaging: Oversized box 48 x 20 x 20 inches
  • Weight: 92 lbs
