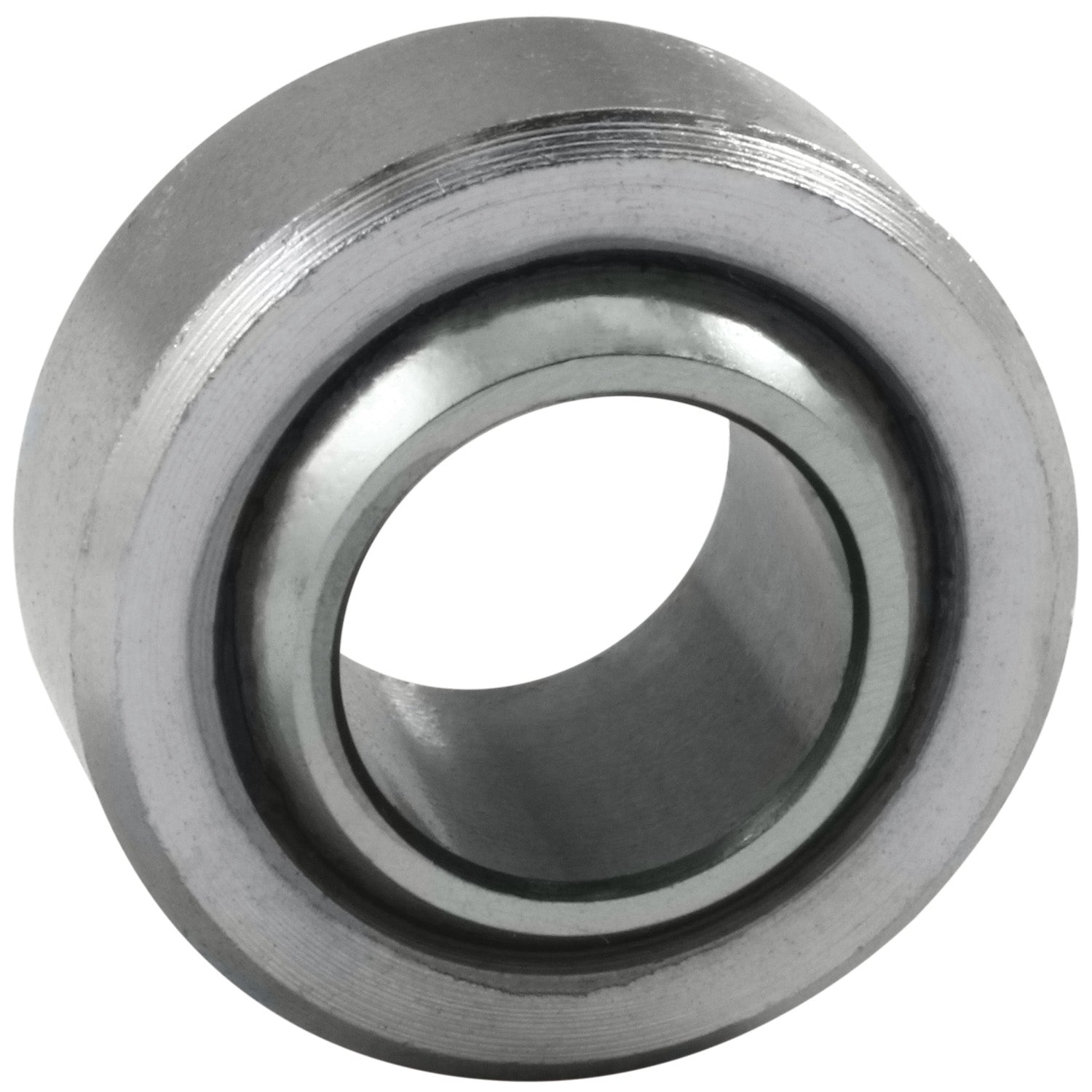

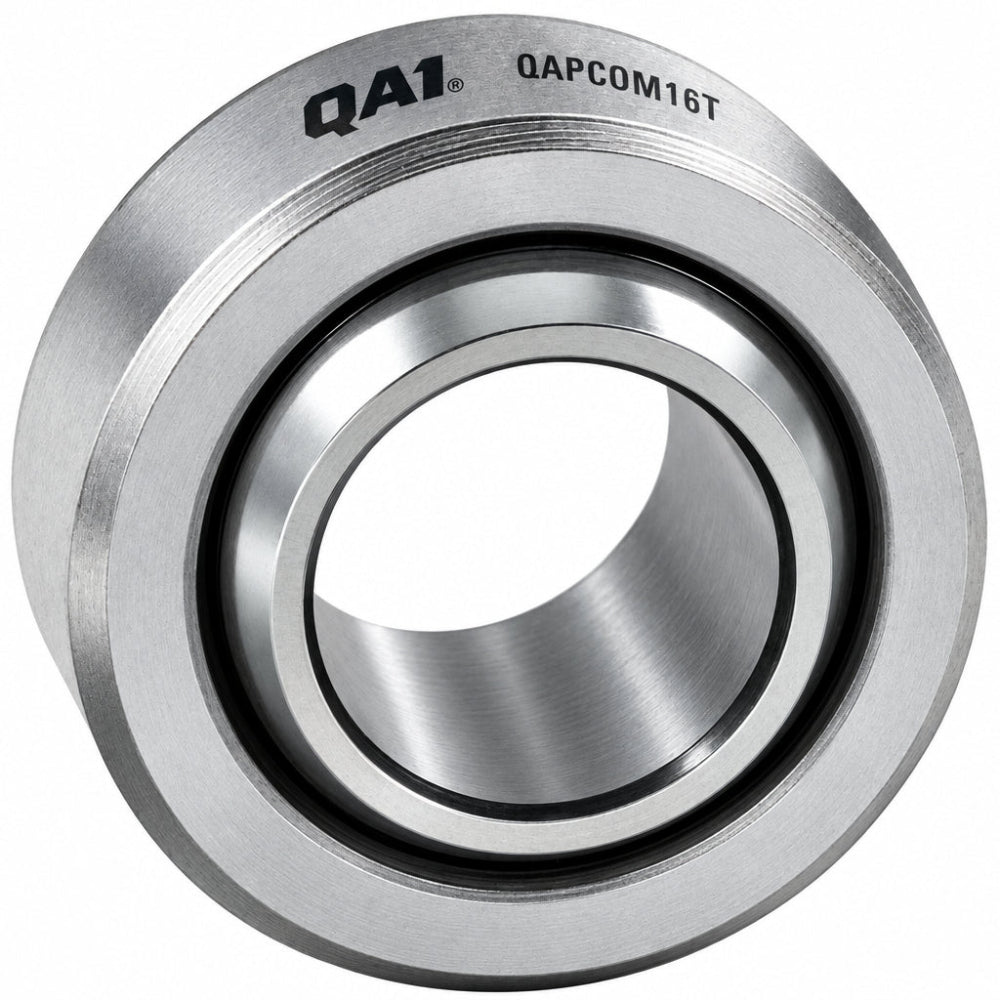

QA1 COM-T Series Bearing - 1in Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE

QA1
QAPCOM16T
806990008930
Bearings
20+ Units In Stock - Ships Next Business Day
Bearings, Engine, Engine Block, QA1
$ 25.51
$ 25.51

SKU: COM16T | UPC: 806990008930

QA1 COM-T Series Bearing - 1in Bore - Heat Treated Chrome Plated Chromoly Steel w/PTFE

QA1 COM16T delivers a commercial grade spherical bearing designed for performance suspension linkages steering components and custom builds in circle track drag racing street performance and street rodding applications. With a precise 1 inch bore and self-lubricating PTFE liner this bearing handles high misalignment and loads in demanding motorsports environments. Install it in rod ends heim joints or housings for reliable articulation and reduced maintenance.

Key Features

  • 1.000 Inch Bore: Precision sized for direct fit in standard 1 inch rod ends linkages and suspension mounts ensuring smooth operation
  • PTFE Self-Lubricating Liner: Eliminates grease requirements reduces friction wear and provides consistent performance over thousands of cycles
  • Chromoly Steel Race: Heat treated with protective coating for maximum strength corrosion resistance and durability in harsh racing conditions
  • 52100 Bearing Steel Ball: Heat treated hard chrome plated and precision ground for superior hardness and low friction contact
  • High Load Ratings: Supports 10300 lbs static and 20600 lbs dynamic loads with 12 degree misalignment angle for heavy duty applications

Product Notes

  • Outer diameter measures 1.562 inches inner ring width 0.625 inches outer ring width 0.750 inches
  • Ideal replacement for OEM bearings in performance rod ends and custom suspension setups
  • Lightweight at 0.18 lbs for easy handling and integration into tight spaces

Installation Notes

  • Professional installation recommended.
  • Press fit into housing with 1.562-1.563 inch bore using arbor press or bearing driver
  • Compatible with QA1 rod ends and standard 1 inch bore heim joint assemblies

This Part Fits

Year Make Model Submodel
Universal All Performance Vehicles Circle Track Drag Street Rodding
Universal All Racing Applications Suspension Linkages Steering

Why Choose QA1?

  • Leading provider of rod ends spherical bearings for motorsports since 1993
  • Manufactured in USA with 83000 sq ft facility in Lakeville MN
  • Engineered for racing with in-house carbon fiber tech and precision components

Frequently Asked Questions

  • Q: What vehicles or applications does the COM16T fit?
    A: Universal fit for performance racing drag cars street rods and custom suspension steering linkages with 1 inch bore mounts
  • Q: What materials are used in construction?
    A: 52100 heat treated chrome plated steel ball chromoly steel heat treated coated race and PTFE self-lubricating liner
  • Q: Does it need lubrication or maintenance?
    A: No PTFE liner provides permanent self-lubrication inspect periodically for wear in high impact uses

Shipping & Handling

  • Method: UPS Ground or USPS Priority
  • Availability: Special order ships within 3-5 business days
  • Packaging: Compact protective box 3 x 3 x 1 inches
  • Weight: 0.18 lbs
