Purpose-Built Control for Drag Racing Launches

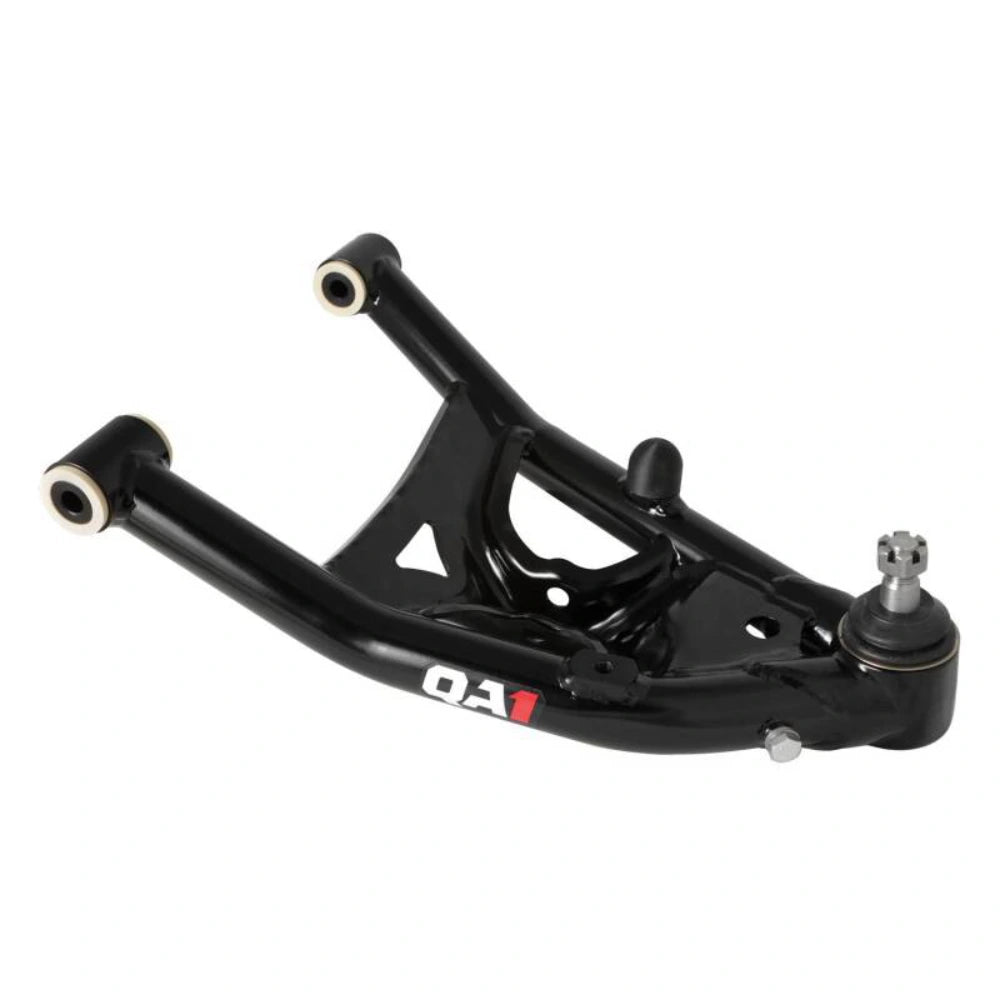

The QA1 52919 drag race front lower control arm kit is designed for 1967-1969 GM F-Body and 1968-1974 GM X-Body applications. Its low-friction components support bind-free suspension movement during launch, helping promote consistent front-end rise and weight transfer when used with a compatible coil-over suspension.
Key Features
- Designed for 52919 vehicle-specific front lower control arm applications
- Integrated QA1 Ultimate low-friction ball joints
- Composite pivot bushings for smooth suspension movement
- Adjustable steering-stop bolt on each control arm
- Billet aluminum cross shafts help reduce front-end weight
- High-strength tubing provides durability for street and drag-racing use
- Configured for QA1 Pro Coil Systems with double-shear lower mounting
- Robotically welded and powder coated
Fitment
The 52919 kit is vehicle-specific and is listed for the following applications. A compatible coil-over suspension is required.
| Years | Make | Model | Application | Restrictions |
|---|---|---|---|---|
| 1967-1969 | Chevrolet | Camaro | Front lower control arm kit | Requires coil-over suspension. Factory-style coil springs are not compatible. Install the included spherical bearing mounts. |
| 1967-1969 | Pontiac | Firebird | Front lower control arm kit | Requires coil-over suspension. Factory-style coil springs are not compatible. Install the included spherical bearing mounts. |
| 1968-1974 | GM | X-Body | Front lower control arm kit | Requires coil-over suspension. Factory-style coil springs are not compatible. Install the included spherical bearing mounts. |
Specifications
| Detail | Value |
|---|---|
| Product | QA1 52919 drag race front lower control arm kit |
| Control arm position | Front lower |
| Suspension use | Drag racing with compatible coil-over suspension |
| Ball joints | Integrated QA1 Ultimate low-friction ball joints |
| Pivot bushings | Composite |
| Cross shafts | Billet aluminum |
| Mounting configuration | QA1 Pro Coil Systems with double-shear lower mounting |
| Construction | High-strength tubing with robotic welding |
| Finish | Powder coated |
| Control-arm mounting torque | 80 lb-ft at ride height |
| Lower shock bolt torque | 50 lb-ft for the lower 1/2-inch shock bolt |
| Lower ball-joint torque | 65 lb-ft. Tighten only as needed to align the cotter-pin hole |
| Steering-stop bolt torque | 31 lb-ft |
| Ball-joint preload | 25-30 in-lb, then back off 90 degrees |
| Ball-joint lock-nut torque | 25 lb-ft |
| Ball-joint lubricant | NLGI #2 GC-LB lithium-based grease |
| Maintenance interval | Check and set ball-joint preload at least annually or every 3,000 miles, whichever comes first |
What's Included
- Spherical bearing mounts
- Spherical bearing kit
- Supplied bump stop for 1967-1969 Camaro and Firebird applications
- 3/8-inch washers for steering-stop adjustment
About QA1
QA1 develops suspension components for street performance, drag racing, autocross, and track use. The QA1 52919 kit combines lightweight materials, low-friction joints, adjustable control, and durable fabrication for compatible GM applications.
FAQ
What is the 52919?It is a vehicle-specific drag race front lower control arm kit for 1967-1969 GM F-Body and 1968-1974 GM X-Body applications.
What suspension is required?The kit requires a compatible coil-over suspension and will not work with a factory-style coil spring.
Does the kit include ball-joint components?Yes. It includes integrated low-friction ball joints along with spherical bearing mounts and a spherical bearing kit.
What type of mounting is supported?The control arms are configured for QA1 Pro Coil Systems with double-shear lower mounting.
Can the front-end rise be adjusted?Each control arm has an adjustable steering-stop bolt that can be set with the supplied 3/8-inch washers.
Where does the supplied bump stop go?On 1967-1969 Camaro and Firebird applications, install the supplied bump stop in the factory bump-stop location on either the front or rear of the control arm.
What alignment settings are recommended?When both QA1 upper and lower control arms are installed, the guidance for 1967-1974 F-Body and X-Body applications is 0.5 degrees plus or minus 0.5 degrees negative camber, 3-5 degrees positive caster, plus or minus 0.5 degrees cross-caster, and 0.1-0.3 degrees toe-in.
How often should ball-joint preload be checked?Check and set ball-joint preload at least annually or every 3,000 miles, whichever comes first.
Installation Instructions
- Confirm that the vehicle has a compatible coil-over suspension. Do not use the control arms with factory-style coil springs.
- Raise and support the vehicle securely with a floor jack and jack stands. Follow appropriate spring and suspension safety procedures.
- Remove the original front lower control arms and related hardware as required for the application.
- Install the included spherical bearing mounts as required by QA1 control arm installation.
- For 1967-1969 Camaro and Firebird applications, install the supplied bump stop in the factory bump-stop location on either the front or rear of the control arm.
- Install the control arms and loosely fit the control-arm mounting hardware.
- Install the lower shock hardware and torque the lower 1/2-inch shock bolt to 50 lb-ft.
- Torque the control-arm mounting bolts to 80 lb-ft after the vehicle is at ride height.
- Torque the lower ball joint to 65 lb-ft. Continue tightening only as needed to align the cotter-pin hole. Never loosen the nut to align the hole.
- Set the ball-joint torque-nut preload to 25-30 in-lb, then back it off 90 degrees.
- Torque the ball-joint lock nut to 25 lb-ft.
- Adjust the steering-stop bolt using the supplied 3/8-inch washers and torque the bolt to 31 lb-ft.
- Grease the ball joint with high-quality NLGI #2 GC-LB lithium-based grease.
- Verify that the ball stud has no axial lash and confirm that all fasteners are properly secured.
- Perform a professional alignment before driving. For drag racing, maximize positive caster while using toe-in as needed for straight-line stability.
- Check and set ball-joint preload at least annually or every 3,000 miles, whichever comes first.
