SKU: EXML10 | UPC: 806990008060

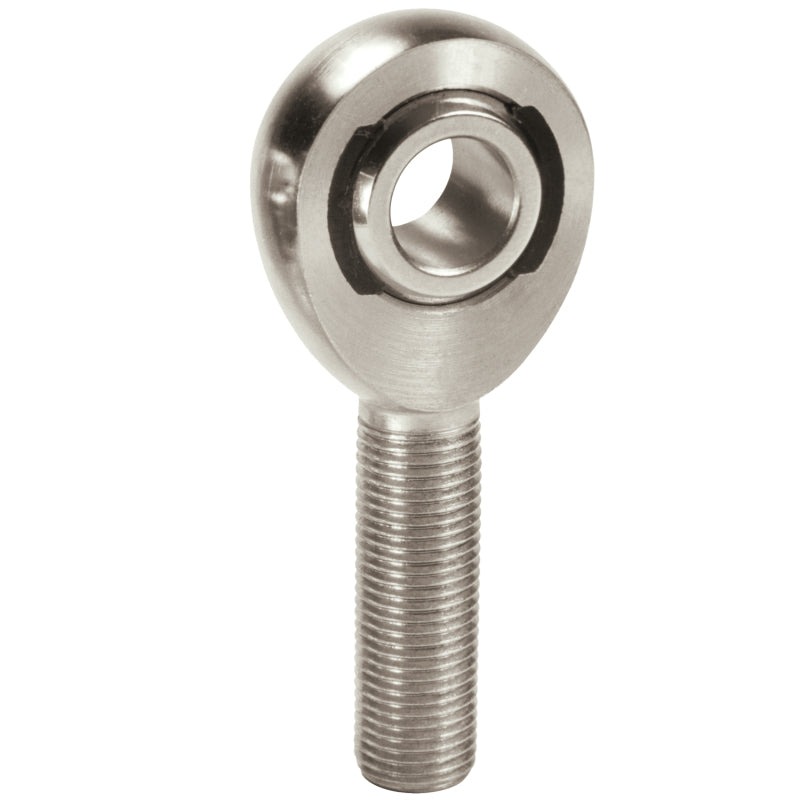

QA1 EX Series Carbon Steel Rod End - Male Left Hand Thread 5/8" Bore x 5/8-18 PTFE Lined Universal Performance Fit
The QA1 EXML10 delivers precision linkage for suspension systems in performance vehicles with its 5/8-inch bore and male left-hand 5/8-18 threading. This rod end suits control arms trailing arms Panhard bars on domestic muscle cars import tuners off-road trucks like Camaro Mustang Civic 240SX Wrangler Tacoma. Loader slot design transfers heavy shock loads through metal-to-metal contact while PTFE liner ensures smooth low-friction operation under demanding conditions.
Key Features
- Bore Size: 5/8 inch (0.625 inch) matches standard high-load heim joint applications for exact fit in custom linkages
- Thread Specs: Male left hand 5/8-18 with 1.625 inch length provides secure threading in reverse rotation setups like sway bars
- Ball & Race: 52100 bearing steel ball heat treated hard chrome plated in self-lubricating reinforced nylon 12 PTFE race resists wear dirt ingress
- Body Construction: Carbon steel with zinc oxide coating handles corrosion offers 11,226 lbs static load capacity for track abuse
- Misalignment: 16 degrees with 1.5 inch head diameter 0.75 inch width allows suspension flex without binding
Product Notes
- Includes (1) QA1 EXML10 EX Series rod end Part Number EXML10 no jam nuts or hardware
- Self-lubricating design eliminates grease fittings reduces maintenance in dirty environments
- Product weight 0.38 lbs shipping box 4.6 x 2.65 x 1.15 inches supports fast low-cost delivery
Installation Notes
- Professional installation recommended.
- Confirm 5/8-inch bore and left-hand thread match your linkage dimensions before install
- Compatible with standard rod end mounts in tie rod control arm applications no special tools needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967-2024 | Chevrolet | Camaro | All |
| 1964-2024 | Ford | Mustang | All |
| 1988-2025 | Honda | Civic | All |
| 1989-2025 | Nissan | 240SX | All |
| 2007-2025 | Jeep | Wrangler | JK/JL |
| 1995-2025 | Toyota | Tacoma | All |
Why Choose QA1?
- Proven in NHRA NASCAR off-road racing with millions of rod ends in competition use
- EX Series built for shock load handling in real-world suspension demands
- Precision tolerances tight manufacturing deliver consistent performance lap after lap
Frequently Asked Questions
-
Q: Will the EXML10 fit left-hand thread applications on my Camaro control arms?
A: Yes male left-hand 5/8-18 thread integrates directly into reverse rotation setups like drag car sway bars Panhard rods -
Q: What materials make this rod end durable for off-road use?
A: Carbon steel body zinc oxide plated 52100 chrome ball nylon PTFE race combine for corrosion resistance high load 11,226 lbs and dirt rejection -
Q: Does it need lubrication or special maintenance?
A: No self-lubricating PTFE liner requires zero grease lasts longer in contaminated environments inspect periodically for wear
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 4.6 inches L x 2.65 inches W x 1.15 inches H box protects during transit
- Weight: 0.38 lbs
