Transform Your GM B-Body Stance and Handling
The BW02-GMB6 is a complete Level 2 Big Wheel suspension system for 1991-1996 GM B-Body vehicles. It combines front and rear double-adjustable coil-overs, tubular control arms, adjustable trailing arms, and tubular sway bars to support large wheels while improving suspension control and stability.
Key Features
- Complete bolt-in Level 2 suspension system for GM B-Body vehicles
- The BW02-GMB6 provides front ride-height adjustment from stock height up to 2 inches higher or lower
- Rear ride height can be raised 0.5 inch above stock or lowered up to 2 inches below stock
- Front and rear double-adjustable coil-overs provide independent compression and rebound adjustment
- Adjustable upper and lower trailing arms help center the rear axle in the wheel well
- Trailing arms provide additional clearance for wheels up to 26 inches
- Tubular front control arms use corrected suspension angles for large wheels and tires
- Tubular control arms are lighter and stronger than stock control arms
- Tubular front and rear sway bars reduce body roll and improve stability
- Powder-coated components are ready to install
Fitment
The BW02-GMB6 is designed for the following GM B-Body applications and wheel clearance requirements.
| Year Range | Make | Model | Fitment Details |
|---|---|---|---|
| 1991-1996 | Chevrolet | Caprice | Vehicle-specific fitment. Works with factory rear-end housings. Fits up to 26-inch wheels. |
| 1994-1996 | Chevrolet | Impala SS | Vehicle-specific fitment. Works with factory rear-end housings. Fits up to 26-inch wheels. |
Specifications
The BW02-GMB6 combines adjustable ride height, shock tuning, and corrected suspension geometry in one full-vehicle kit.
| Detail | Value |
|---|---|
| Kit Type | Full vehicle Big Wheel suspension kit |
| Performance Level | Level 2 |
| Installation | Complete bolt-in system |
| Front Ride-Height Adjustment | Raise or lower up to 2 inches |
| Rear Ride-Height Adjustment | Raise 0.5 inch above stock or lower up to 2 inches below stock |
| Shock Type | Front and rear double-adjustable coil-overs |
| Shock Adjustments | Individually adjustable compression and rebound |
| Rear Axle Positioning | Adjustable upper and lower trailing arms center the rear axle in the wheel well |
| Wheel Clearance | Up to 26-inch wheels |
| Control Arms | Tubular front control arms with corrected suspension angles |
| Sway Bars | Tubular front and rear sway bars |
| Finish | Powder coated |
| Rear-End Compatibility | Works with factory rear-end housings |

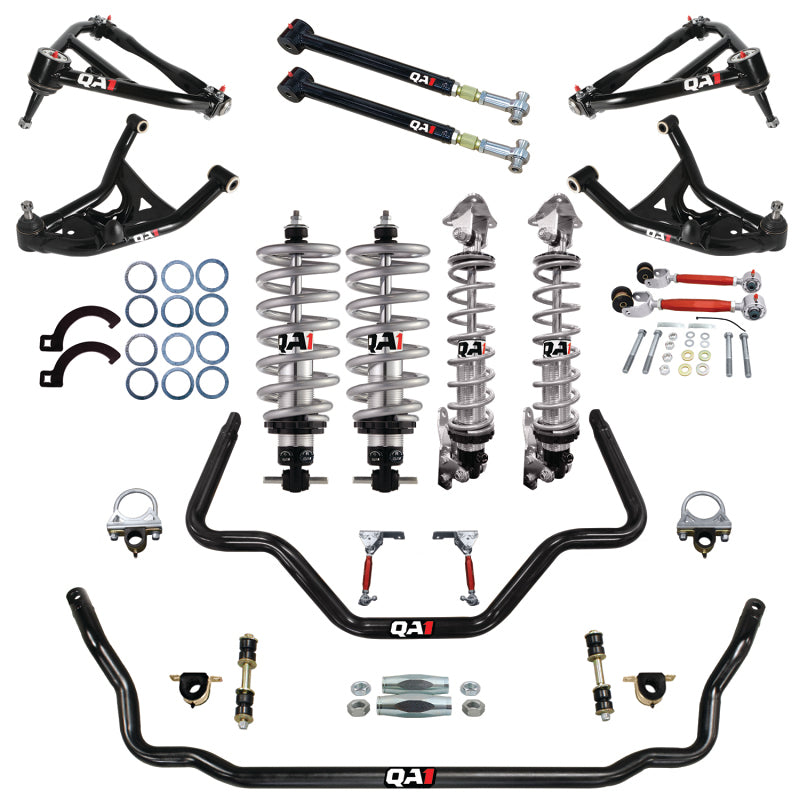

What's Included
The BW02-GMB6 includes the physical components and installation items needed for the complete suspension system.
- Front coil-over assemblies
- Rear coil-over assemblies
- Adjustable upper trailing arms
- Adjustable lower trailing arms
- Tubular front control arms
- Tubular front sway bar
- Tubular rear sway bar
- Necessary installation hardware
- Spanner wrench
About QA1
QA1 supplies performance suspension components designed to improve vehicle control and support demanding street and performance applications. The BW02-GMB6 uses powder-coated components that are ready to install in a garage or through a local shop.
FAQ
What is the BW02-GMB6?It is a Level 2 Big Wheel full-vehicle suspension kit for 1991-1996 GM B-Body vehicles.
Which vehicles does this suspension kit fit?Verified applications include the 1991-1996 Chevrolet Caprice and the 1994-1996 Chevrolet Impala SS.
What wheel size does the kit support?The suspension system provides clearance for wheels up to 26 inches.
Can the kit use the factory rear-end housing?Yes. The kit works with factory rear-end housings.
How much front ride-height adjustment is available?The front can be raised or lowered up to 2 inches.
How much rear ride-height adjustment is available?The rear can be raised 0.5 inch above stock ride height or lowered up to 2 inches below stock.
What adjustments are available on the coil-overs?The front and rear double-adjustable coil-overs provide individual compression and rebound adjustment.
What do the adjustable trailing arms do?The adjustable upper and lower trailing arms help center the rear axle in the wheel well and provide additional wheel clearance.
Installation Instructions
- Confirm that the vehicle is a compatible 1991-1996 GM B-Body application and that the factory rear-end housing will be retained.
- Secure the vehicle using appropriate service equipment and prepare the suspension for removal.
- Remove the existing front and rear suspension components that are being replaced by the kit.
- Install the front coil-over assemblies using the supplied installation hardware.
- Install the rear coil-over assemblies using the supplied installation hardware.
- Install the tubular front control arms and connect the tubular front sway bar.
- Install the adjustable upper and lower trailing arms and connect the tubular rear sway bar.
- Set the front and rear ride height within the available adjustment ranges.
- Adjust the upper and lower trailing arms to center the rear axle in the wheel well.
- Set the coil-over compression and rebound adjustments for the vehicle and intended driving conditions.
- Verify suspension and wheel clearance through the available travel, then complete the vehicle setup before driving.
