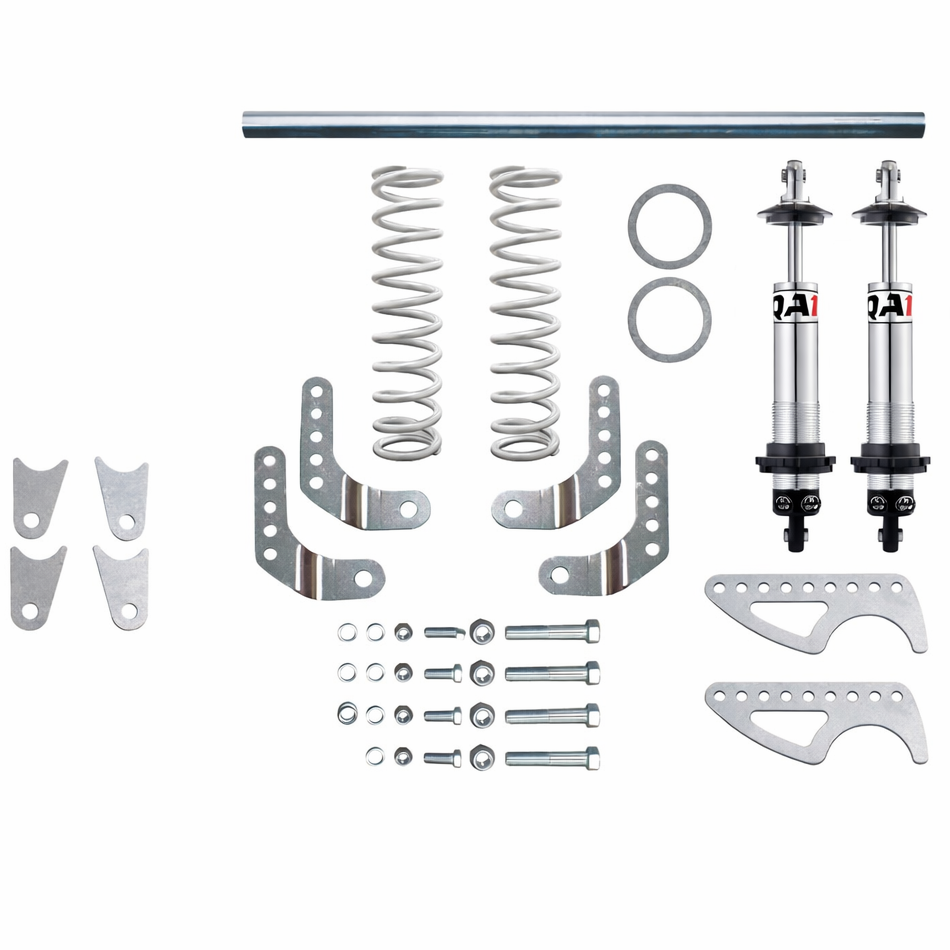

QA1 Pro rear weld-in coil-over system full view
Click to zoom in

QA1 Pro Rear Weld-In Coil-Over System - Double Adj. - 12in x 150lbs/in - 3in Tube - Aluminum

QA1
QAPDD501-12150
806990063144
Coilovers
1 Units In Stock - Ships Next Business Day
$ 1,132.15 $ 1,021.95
$ 1,021.95

SKU: DD501-12150   |   UPC: 806990063144

QA1 Pro Rear Weld-In Coil-Over System - Double Adjustable - 12" x 150 lb/in - 3" Tube - Aluminum

The QA1 DD501-12150 Pro Rear Weld-In Coil-Over System is the ultimate custom suspension upgrade for drag racing, street performance, and street rod builds using 3" rear axle tubes. This complete double-adjustable system features lightweight aluminum shocks with independent 18-position compression and 18-position rebound tuning (324 possible combinations), paired with 12" high-travel 150 lb/in springs for excellent weight transfer and consistent performance. The weld-in design allows precise installation and ride height adjustment for the perfect stance and handling balance.

Key Features

  • Double Adjustable Shocks: Independent compression and rebound tuning with 18 clicks each (324 combinations)
  • 150 lb/in Springs: Lightweight high-travel rate ideal for drag, street, and performance applications
  • 12" Spring Length: Optimized for maximum travel and lowered setups
  • 3" Tube Specific: Designed for weld-in on vehicles with 3" rear axle tubes
  • Lightweight Aluminum Construction: Reduces unsprung weight for better performance
  • Fully Rebuildable/Revalveable: Serviceable by QA1 or authorized centers

Specifications

Specification Detail
Part Number DD501-12150
Position Rear Weld-In
Shock Type Double Adjustable Aluminum
Spring Rate 150 lb/in
Spring Length 12"
Axle Tube Diameter 3 inches
Application Custom Drag, Street Performance & Street Rod Builds
Installation Weld-In Coil-Over Conversion
Country of Origin United States
Warranty Limited Lifetime (QA1)
Shipping Weight Approx. 25-35 lbs

What's Included

  • Pair of QA1 Double Adjustable Rear Coil-Over Shocks
  • Pair of 12" x 150 lb/in High-Travel Springs
  • All Mounting Hardware & Brackets for 3" Axle Tubes
  • Detailed Installation Instructions

Product Notes

  • Designed for weld-in installation on vehicles with 3" rear axle tubes
  • 150 lb/in spring rate is a lighter rate suitable for drag racing and street performance builds
  • Professional welding and alignment recommended
  • May require driveline angle adjustments depending on application

Installation Notes

  • Estimated time: 6-10 hours (welding required), advanced difficulty
  • Weld-in system requires professional fabrication skills
  • Full rear alignment and driveline angle check required after installation

This Part Fits

Application Notes
Custom Builds with 3" Rear Axle Tubes Drag Racing, Street Performance, Street Rods – Weld-In

Why Choose QA1 Pro Rear Weld-In Coil-Over System?

  • Full double-adjustable control for perfect weight transfer and handling
  • Lightweight aluminum shocks with high-travel springs for maximum performance
  • Premium QA1 quality made in the USA with lifetime warranty confidence

Frequently Asked Questions

  • Q: Is this a bolt-on or weld-in kit?
    A: This is a weld-in system designed for 3" rear axle tubes.
  • Q: What spring rate is included?
    A: 150 lb/in lighter rate ideal for drag and street performance applications.
  • Q: What is the warranty?
    A: Covered by QA1’s limited lifetime warranty.

Shipping & Handling

  • Method: UPS / FedEx Ground
  • Availability: In stock ships same or next business day
  • Packaging: Secure protective packaging
  • Weight: Approx. 25-35 lbs
