QA1 Proma Star Series Coil-Over Shock Absorber - Double Adj. - Bushing Mount - 15in/23.625in - Alum

QA1
QAPDD902
806990059949
Shocks and Struts
10 Units In Stock - Ships Next Business Day
$ 371.08 $ 334.95
$ 334.95

SKU: DD902 | UPC: 806990059949

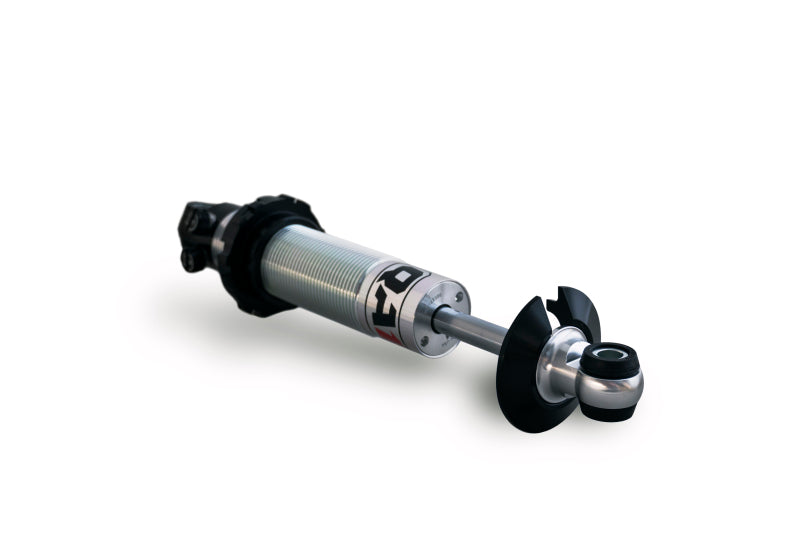

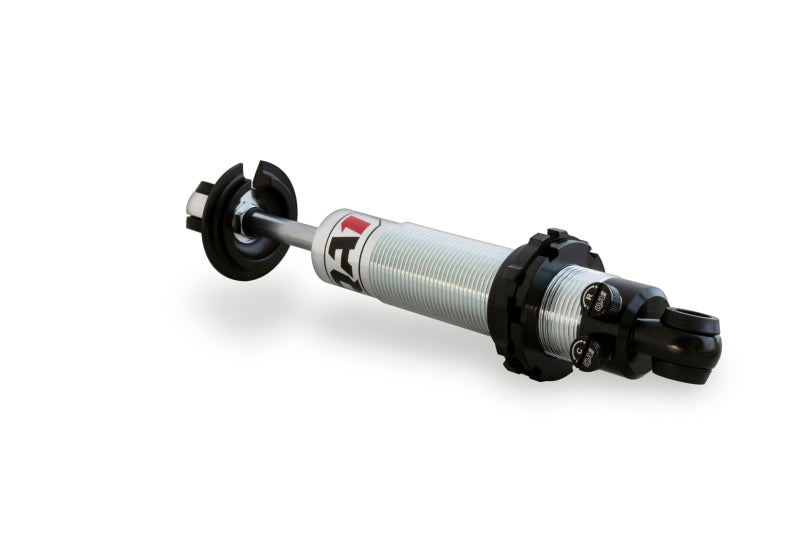

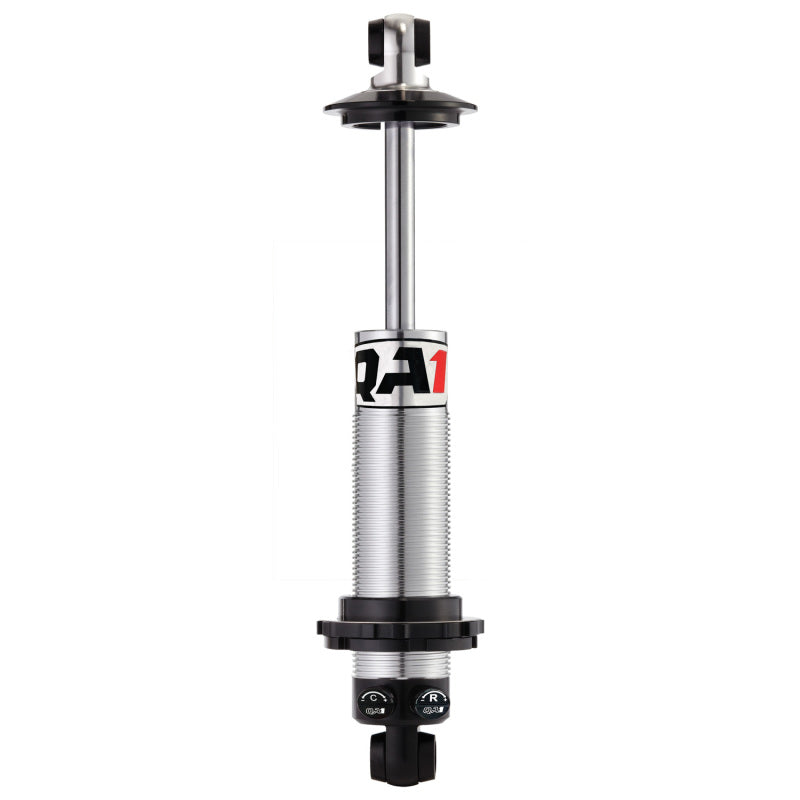

QA1 Proma Star Series Coil-Over Shock Absorber Double Adj Bushing Mount 15in/23.625in Aluminum

QA1 Proma Star Series coil-over shocks deliver coil-over benefits to custom chassis and suspension builds where direct-fit parts do not exist. This double adjustable model with aluminum body and bushing mounts offers 15-inch compressed length 23.625-inch extended length and 8.625-inch stroke for versatile applications. Dial in ride quality and handling with independent compression rebound valving plus easy ride height setup using included hardware and your choice of 2.5-inch springs.

Key Features

  • Double Adjustable Valving: Independent compression and rebound knobs allow precise tuning for street drag strip or road course driving
  • Aluminum Body Construction: 2-inch diameter anodized body reduces weight while providing durable corrosion resistance
  • Bushing Mount Design: Poly bushings with 0.50-inch upper and 0.625-inch lower eyelet sleeves minimize noise vibration and harshness
  • Ride Height Adjustability: Threaded spring perch and hardware kit enable quick changes for perfect stance without disassembly
  • Performance Assured: Dyno tested in USA with deflective disc valving for consistent damping across 3-9 inch stroke options

Product Notes

  • Verify shock travel matches suspension geometry to prevent overextension or bottoming out
  • Spanner wrenches and thrust bearings sold separately simplify preload and height adjustments
  • Check stock spring pocket clearance for desired height and full shock travel

Installation Notes

  • Professional installation recommended.

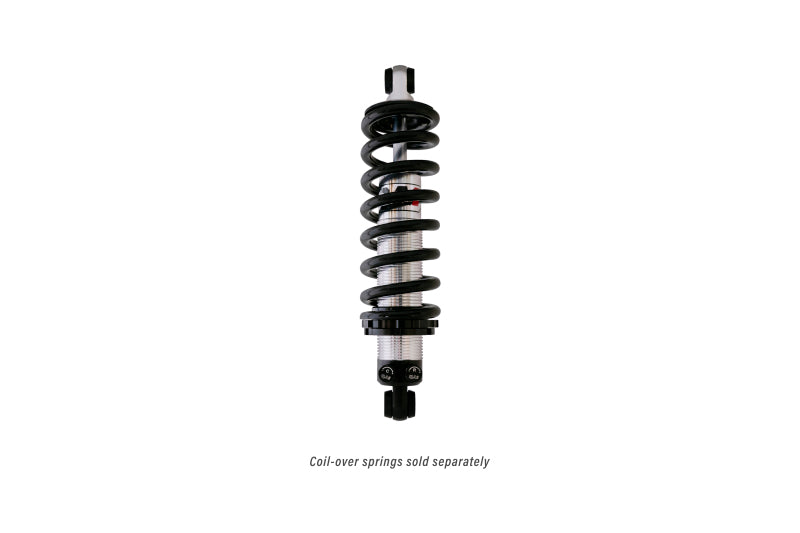

  • Add 2.5-inch inside diameter coil spring sold separately for complete assembly
  • Compatible with 0.50-inch upper and 0.625-inch lower eyelet mounts other styles available separately

This Part Fits

Year Make Model Submodel
Universal N/A Custom Chassis Suspension All

Why Choose QA1?

  • Proven leader in motorsports suspension technology
  • Every shock dyno tested for reliable damping performance
  • Limited Lifetime Warranty available upon registration at QA1.net/warranty

Frequently Asked Questions

  • Q: What type of springs work with this shock?
    A: Requires 2.5-inch inside diameter springs select length and rate based on ride height and load needs
  • Q: What are the mount dimensions?
    A: Upper eyelet 0.50-inch ID lower eyelet 0.625-inch ID includes poly bushing sleeves
  • Q: How do I activate the warranty?
    A: Register online at QA1.net/warranty prior to installation for coverage

Shipping & Handling

  • Method: Ground shipping via UPS or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Protective tube approx 24.5in x 4in x 4in
  • Weight: 7.8 lbs
