SKU: XML8 | UPC: 806990007582

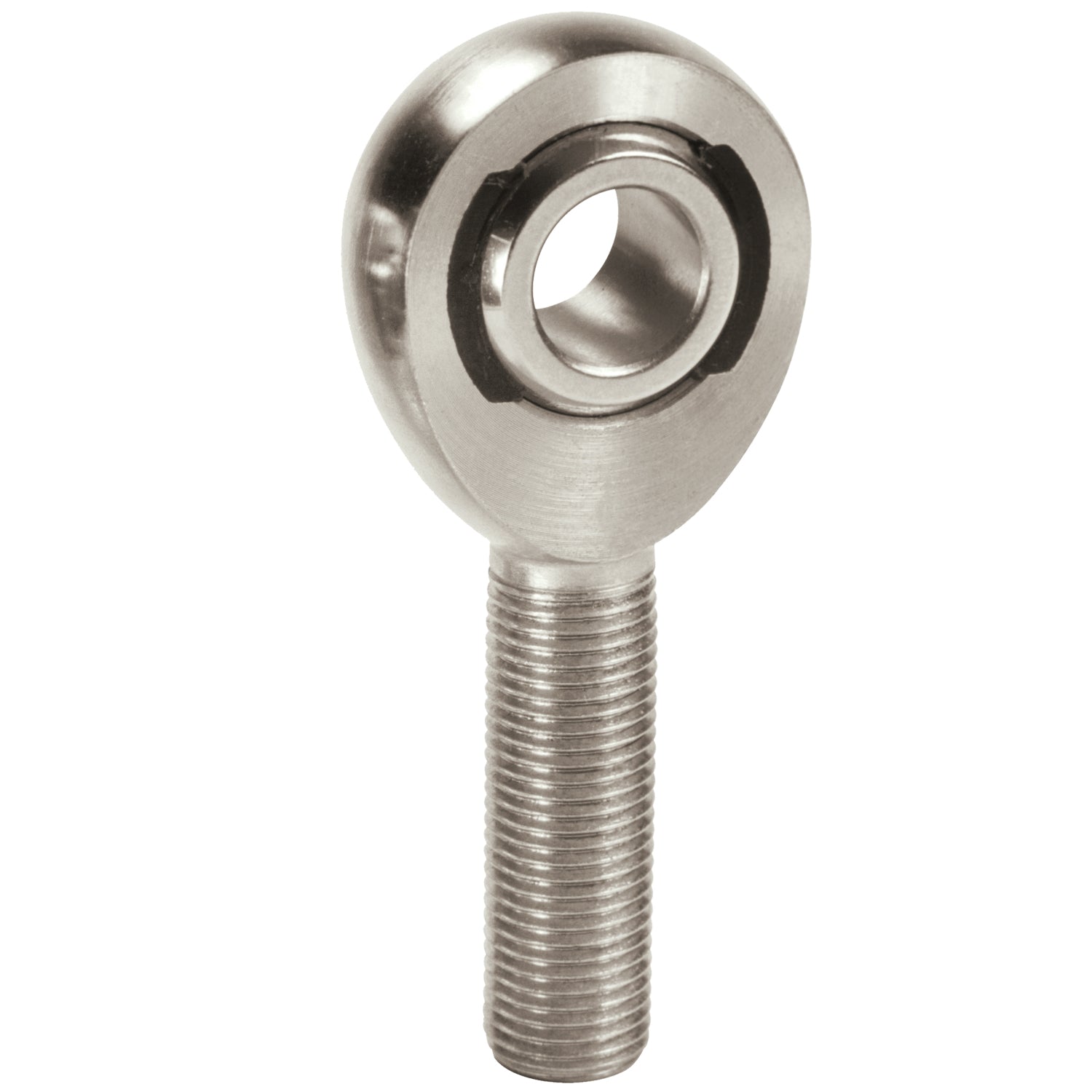

QA1 X Series Endura Rod End - Male/Left Hand - .5in Bore x 1/2-20 - Alloy Steel
QA1 XML8 rod end features male left hand threading with 0.500 inch bore and 1/2-20 threads in a chromoly steel body. Designed for performance suspension in drag racing circle track and street applications including 4-link and ladder bar setups. Delivers metal-to-metal support for shock loads with self-lubricating PTFE race to block contaminants and reduce maintenance.
Key Features
- Chromoly Steel Body: Heat treated with protective coating for corrosion resistance and high tensile strength in heavy duty use
- Self-Lubricating Race: Nylon/PTFE injection molded design seals out dirt provides continuous lubrication and low friction operation
- 52100 Steel Ball: Heat treated hard chrome plated and precision ground for smooth articulation and long wear life
- Precise Dimensions: 0.500in bore 0.750in width 2.275in overall length 1.250in thread length for exact fit in rod end applications
- Loader Slot Design: X Series construction allows easy installation on suspension linkages with increased cross-section for durability
Product Notes
- Compatible with heim joint linkages in racing suspension systems
- Requires no external grease fittings due to self-lubricating properties
- Packaged for protection during transit weighs 0.19 lbs
Installation Notes
- Professional installation recommended.
- Torque to manufacturer specifications and check alignment after install
- Mounts with 1/2in hardware left hand thread requires matching female rod end or linkage
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Drag Racing | 4-Link Suspension | Ladder Bar |
| Universal | Circle Track | Tie Rod Ends | Performance |
| Universal | Street Rod | Suspension Linkage | Racing |
Why Choose QA1?
- Leading provider of rod ends spherical bearings for motorsports since 1993
- American-made in 83,000 sq ft Lakeville MN facility with precise tolerances
- Engineered for racing demands in shocks driveshafts and suspension components
Frequently Asked Questions
-
Q: What vehicles does the XML8 rod end fit?
A: Universal application for drag circle track street rod and performance suspension including 4-link ladder bars and tie rods -
Q: What materials are used in construction?
A: Heat treated chromoly steel body 52100 bearing steel ball Nylon/PTFE self-lubricating race and protective coating -
Q: Does it require lubrication or maintenance?
A: Self-sealing self-lubricating design eliminates need for grease fittings inspect periodically for wear
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box 3in x 2in x 1in
- Weight: 0.19 lbs
