SKU: XML12 | UPC: 806990007629

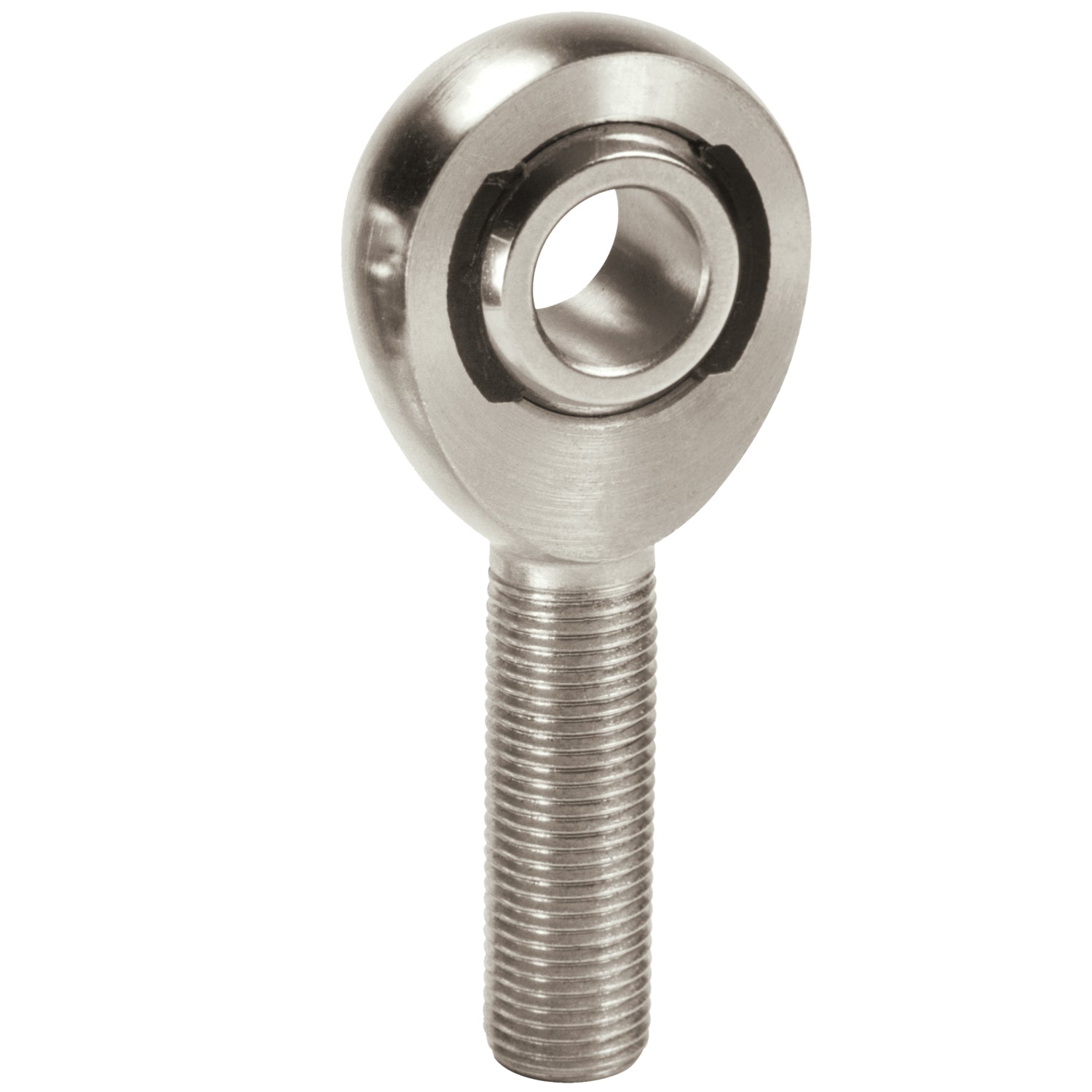

QA1 X Series Endura Rod End - Male/Left Hand - .75in Bore x 3/4-16 - Alloy Steel
QA1 XML12 X Series rod end features male left hand threading with 3/4 inch bore and 3/4-16 threads for precise suspension adjustments. Built for 4-link rear ends ladder bars and tie rod applications in drag racing circle track and street performance vehicles. Delivers reliable strength in high load conditions with self-lubricating PTFE race that blocks contaminants.
Key Features
- Chromoly Steel Body: Heat treated with protective coating for corrosion resistance and heavy duty performance in motorsports
- Nylon/PTFE Race: Injection molded self-sealing self-lubricating design keeps dirt out and reduces maintenance needs
- 52100 Bearing Steel Ball: Heat treated hard chrome plated and precision ground for smooth articulation under load
- Metal to Metal Support: Handles heavy shock loads with increased cross-sectional thickness for higher tensile strength
- Precise Tolerances: Loader slot design ensures accurate fit and adjustability in suspension linkages
Product Notes
- Static load rating up to 18200 lbs for demanding racing setups
- No grease fittings required due to permanent lubrication
- Ships ready to install weight 0.7 lbs
Installation Notes
- Professional installation recommended.
- Verify left hand 3/4-16 thread compatibility with existing linkage
- Torque to manufacturer specs use thread locker on male threads
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Performance | Drag Racing Vehicles | 4-Link Ladder Bar |
| Universal | Performance | Circle Track Cars | Tie Rod Suspension |
| Universal | Performance | Street Rods | Custom Linkages |
Why Choose QA1?
- Leader in rod ends spherical bearings since 1993 for motorsports
- American-made in 83000 sq ft Lakeville MN facility
- Focus on high performance suspension components carbon fiber driveshafts
Frequently Asked Questions
-
Q: Is this rod end compatible with right hand threads?
A: No XML12 features left hand 3/4-16 threads pair with right hand XML12R for balanced setups -
Q: What material is the body constructed from?
A: Heat treated chromoly steel with protective coating ball is 52100 bearing steel race is Nylon/PTFE -
Q: What warranty coverage applies?
A: QA1 provides 1-year warranty against defects when installed and used per instructions
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 4 x 4 x 1 inches
- Weight: 0.7 lbs
