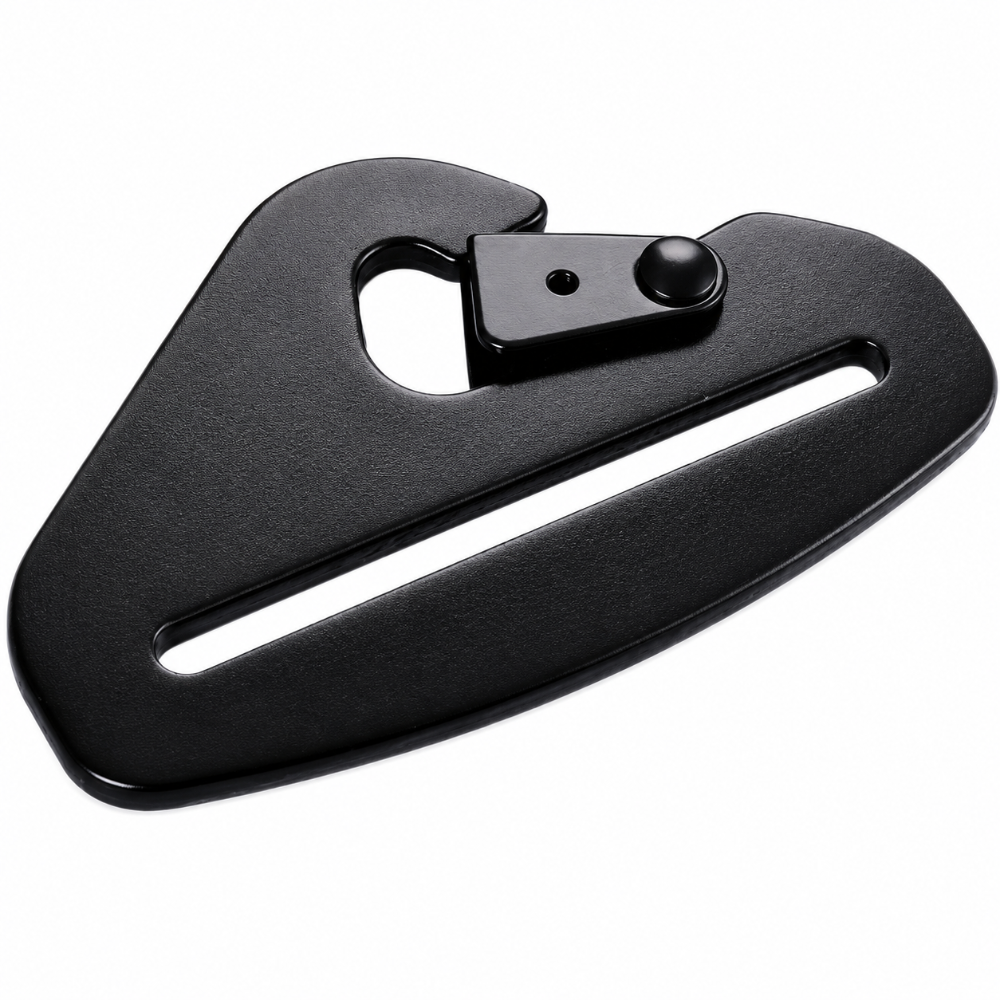

Quick-Release Snap Hook Belt End for 3-Inch Racing Harness Mounting
The RaceQuip 700940 is a replacement snap hook end for 3-inch racing harness belts. The spring-loaded snap hook slides onto the belt along with a 3-bar slide and snaps onto a chassis eyebolt for a secure, quick-release mounting point. This is the same forged steel hardware used across the RaceQuip harness line. Sold individually. Compatible with RaceQuip eyebolts 700050 and 700060.
Key Features
- Forged steel construction, black finish
- Spring-loaded snap hook for positive engagement on eyebolt
- Fits 3-inch racing harness belts
- Quick-release mounting snaps on and off chassis eyebolt
- Compatible with RaceQuip 700050 and 700060 eyebolts
- Sold individually
Product Specifications
| Specification | Detail |
|---|---|
| MPN | 700940 |
| Brand | RaceQuip |
| Type | Snap hook end |
| Belt Width | 3 inches |
| Material | Forged steel |
| Finish | Black |
| Sold As | Each (single) |
| Compatible Eyebolts | RaceQuip 700050, 700060 |
| UPC | Verify with supplier |
What Is Included
- 1x RaceQuip 700940 snap hook belt end (black forged steel)
Note: 3-bar slide (700975) and chassis eyebolts (700050 or 700060) are sold separately.
Frequently Asked Questions
Q: What is a snap hook belt end used for?
A: A snap hook belt end attaches to a racing harness belt strap and snaps onto a chassis-mounted eyebolt. This provides a quick-release connection point that can be installed or removed rapidly, useful for lap belt and anti-submarine strap mounting when quick belt removal is needed.
Q: Is a 3-bar slide required to use the 700940?
A: Yes. The 700940 snap hook slides onto the harness belt webbing together with a 3-bar slide. The 3-bar slide (RaceQuip 700975) is sold separately.
Q: What eyebolts are compatible with the 700940?
A: The 700940 is compatible with RaceQuip eyebolts 700050 and 700060. These are also sold separately and must be securely mounted to the vehicle chassis.
Q: Can this be used on a 2-inch belt?
A: No. The 700940 is designed for 3-inch belt width. For 2-inch belts, a different snap hook end is required.
Q: Does this replace a worn or damaged belt end?
A: Yes. The 700940 can replace a worn or damaged snap hook end on an existing 3-inch racing harness. Inspect all hardware regularly and replace any piece that shows cracking, deformation, or corrosion.
Q: What is the warranty?
A: RaceQuip covers the 700940 under their standard limited manufacturer warranty against defects in materials and workmanship.
Q: How is this different from a bolt-in end?
A: A bolt-in end uses a solid loop that is bolted directly to the chassis with a bolt and eyebolt. A snap hook slides onto an eyebolt for a quick-connect and quick-release connection without tools.
Q: Is this SFI rated?
A: The 700940 is a replacement hardware component. When used as part of a complete SFI-rated harness system, it maintains the system rating. Individual hardware pieces do not carry standalone SFI ratings.
Installation Overview
- Thread the 3-bar slide (sold separately) and the 700940 snap hook onto the belt webbing.
- Adjust the belt to the correct length for your mounting position.
- Snap the hook onto the chassis-mounted eyebolt (700050 or 700060, sold separately).
- Verify the snap hook is fully engaged and the spring lock is seated before use.
- Inspect the hook engagement and spring function before each race.
