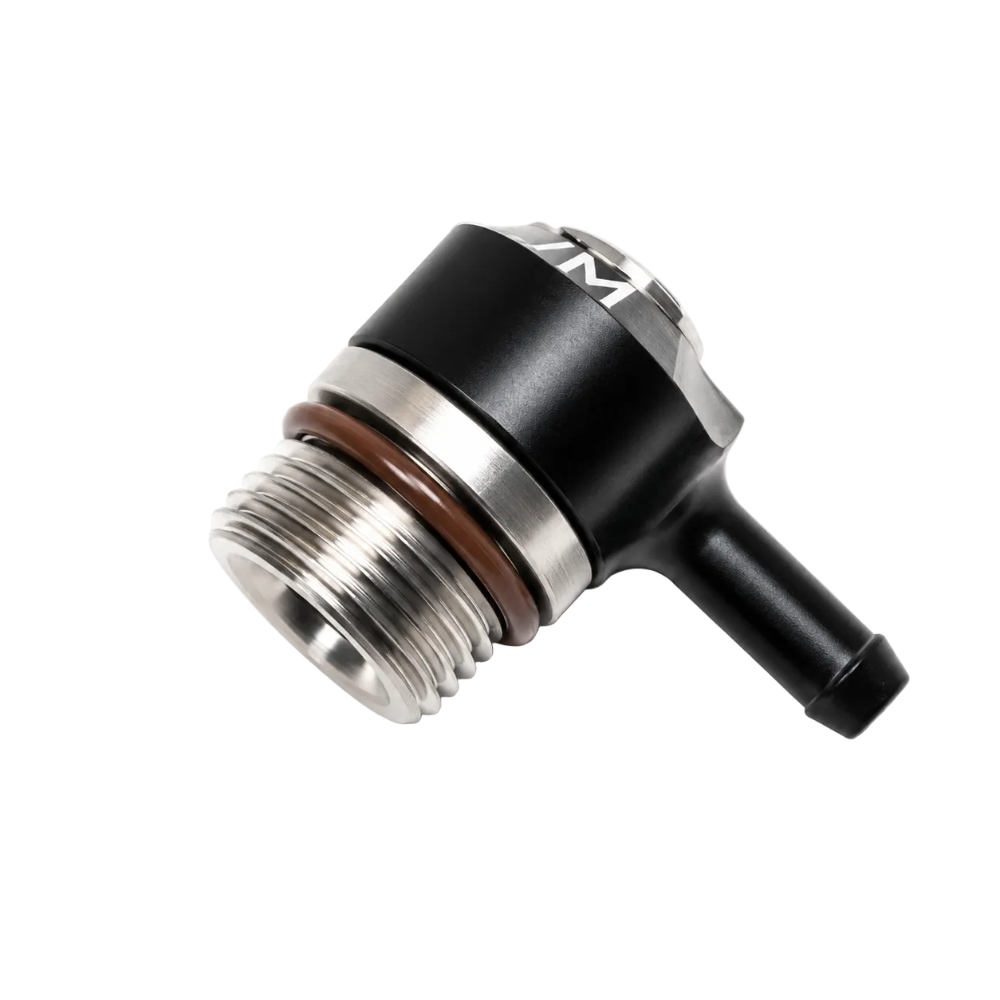

The Radium Engineering 20-1000-0865 Low Profile Swivel Banjo Fitting – 8AN ORB to 6.5mm Barb is selected by exact thread standard, AN or ORB size, sealing method, material, angle, and mating component. Similar-looking fuel fittings are not automatically interchangeable.
Key Features
- At just 0.797 inches (20.2mm) installed height, part number 20-1000-0865 is the solution for tight 90-degree connections where a standard elbow or hard-line fitting will not clear.
- The low profile design 0.797 inches installed height keeps the fitting as close to the mounting surface as possible.
- The 6.5mm barb accepts 6.5mm (approximately 1/4 in.) inner diameter hose.
- Common applications include Radium fuel rails, surge tank inlet/outlet ports, fuel pressure regulator reference ports, and any location on a fuel or oil system where a standard 8AN ORB port needs to connect to 6.5mm OEM-style fuel hose.
- Radium Engineering 20-1000-0865 is an 8AN ORB low profile swivel banjo fitting with a 6.5mm hose barb outlet.
- It threads into any 8AN ORB (3/4"-16 UNF) O-ring boss port and provides a 360-degree swiveling connection to a 6.5mm barb even after the fitting is fully installed and torqued.
Fitment
This is a universal or configuration-specific fuel-system component. Confirm dimensions, port and thread standards, hose size, fuel compatibility, pressure range, and mating components before ordering.
Specifications
| Brand | Radium Engineering |
|---|---|
| Manufacturer Part Number | 20-1000-0865 |
| Product Type | Fittings |
| Condition | New |
What's Included
- The Radium Engineering component identified by manufacturer part number 20-1000-0865
- Only fittings, seals, brackets, wiring, or hardware specifically listed for this exact configuration
Brand Information
Radium Engineering develops fuel delivery, crankcase ventilation, fluid-control, and motorsport plumbing components. Port standards, pressure range, fuel compatibility, mounting, and vehicle fitment remain manufacturer-part-number specific.
Related Parts
Frequently Asked Questions
How do I identify the correct fitting size?
Confirm both connection standards, nominal sizes, thread pitch, sealing method, angle, and hose or tube outside diameter. Do not identify a fitting by appearance alone.
Can this component be used with E85 or other ethanol blends?
Fuel compatibility depends on the exact seals, element, hose, and component materials. Confirm the manufacturer specifications for every part in the system before using ethanol fuel.
Should this fuel-system part be installed professionally?
Professional installation is recommended whenever the work involves tank removal, custom plumbing, wiring, pressure adjustment, fabrication, or motorsport safety requirements.
What should be checked before the first startup?
Verify every connection, seal, fastener, hose route, electrical circuit, and pressure setting. Prime and pressure-test the complete system, then correct any leak before starting the engine.
Installation Instructions
Depressurize the fuel or fluid system, disconnect power when required, work in a ventilated area away from ignition sources, and protect open lines from contamination. Assemble every connection with the correct seal and torque method, secure plumbing and wiring away from heat and abrasion, then prime and pressure-test the complete system before operation.
