The Brake Line Upgrade That Completes the HD Challenge Front System on the 2021-2023 Ram 1500 TRX

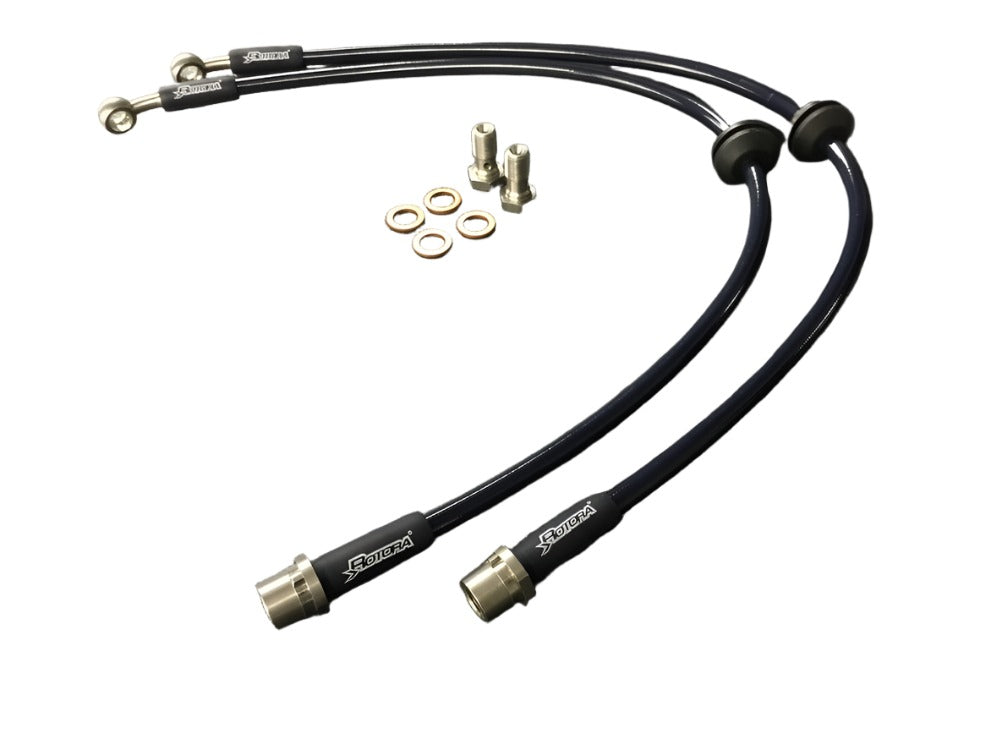

The Rotora L.67149 is a direct-fit front stainless steel braided brake line kit for the 2021-2023 Ram 1500 TRX, designed to replace the factory rubber front brake hoses and deliver a firmer, more consistent pedal under the high-heat and high-load conditions generated by an upgraded brake system. The L.67149 uses a PTFE inner core wrapped in stainless steel braid and protected by a blue abrasion-resistant PVC jacket, exceeding DOT and FMVSS 106 standards. By eliminating the hose expansion that occurs in OEM rubber lines under hard braking, the L.67149 improves pressure transmission from the master cylinder to the caliper, resulting in more immediate pedal response and better modulation at the threshold. Every line is 100% pressure tested to 3,500 PSI before leaving the factory. Note: No returns are accepted on brake lines for any reason. If threads are stripped prior to installation, chase them with the appropriate die before proceeding.
Key Features
- Rotora L.67149 direct-fit front stainless braided brake line kit for 2021-2023 Ram 1500 TRX
- PTFE inner core with stainless steel braid eliminates hose expansion under hard braking pressure
- Blue abrasion-resistant PVC outer jacket with strain relief at all fittings
- Exceeds DOT and FMVSS 106 standards for brake hose performance and safety
- 100% pressure tested to 3,500 PSI per line before shipment
- Firmer, more immediate pedal feel compared to factory rubber hoses
- Recommended companion upgrade for the Rotora HDTRX-365x36 HD Challenge front brake system
- Complete kit includes all fittings, hardware, and installation instructions
- Made in USA
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2021-2023 | Ram | 1500 | TRX |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | L.67149 |
| Brand | Rotora |
| Type | Front Stainless Steel Braided Brake Lines |
| Fitment | 2021-2023 Ram 1500 TRX |
| Inner Core | PTFE (Teflon) |
| Braid | Stainless steel |
| Outer Jacket | Blue abrasion-resistant PVC |
| Pressure Rating | 3,500 PSI (100% tested) |
| Compliance | Exceeds DOT and FMVSS 106 |
| Country of Origin | USA |
| Returns | No returns accepted on brake lines |
| Prop 65 | Yes |
| UPC | N/A |
What's Included
- Complete front stainless steel braided brake line kit for both front corners
- All fittings, Banjo bolts (where applicable), crush washers, and retaining hardware
- Installation instructions
About Rotora
Rotora designs and manufactures performance and heavy-duty brake systems and supporting components for street, track, and extreme-duty applications. All Rotora brake line products are manufactured to exceed DOT and FMVSS 106 standards, 100% pressure tested, and engineered to complement Rotora's HD Challenge and Street Challenge brake system upgrades on specific vehicle applications.
Related Parts on Our Site
- Rotora HDTRX-365x36 HD Challenge Front Brake System 2021-2023 Ram 1500 TRX
- Rotora HDTRX-380x32 HD Challenge Rear Brake System 2021-2023 Ram 1500 TRX
- Rotora L.67421 Rear Stainless Steel Braided Brake Lines 2021-2023 Ram 1500 TRX
Frequently Asked Questions
What is the Rotora L.67149?The Rotora L.67149 is a direct-fit front stainless steel braided brake line kit for the 2021-2023 Ram 1500 TRX. It replaces both factory front rubber brake hoses with PTFE-lined stainless braided lines that exceed DOT and FMVSS 106 standards, are 100% pressure tested to 3,500 PSI, and eliminate front hose expansion under hard braking to deliver a firmer, more immediate pedal response.
Do I need the L.67149 if I am installing the Rotora HDTRX-365x36 front HD Challenge kit?The HDTRX-365x36 front HD Challenge system does not include stainless steel brake lines. The OEM rubber hoses can be retained, but the L.67149 is strongly recommended to complete the upgrade. The stainless braided lines eliminate the pedal softness caused by rubber hose expansion that becomes more noticeable when the increased caliper piston area and pad compound of the HD Challenge system demand precise pressure delivery from the master cylinder.
Does the L.67149 fit the 2022 and 2023 Ram 1500 TRX?Yes. The Rotora L.67149 is a direct fit for all 2021, 2022, and 2023 Ram 1500 TRX models. It is engineered specifically for the TRX front brake hose routing and fitting specifications.
What standard does the L.67149 meet?The Rotora L.67149 is manufactured to exceed both DOT (Department of Transportation) and FMVSS 106 (Federal Motor Vehicle Safety Standard 106) requirements for hydraulic brake hose performance, pressure resistance, and fitting integrity. Every line is individually pressure tested to 3,500 PSI before shipment.
Will the L.67149 improve brake pedal feel on a stock TRX?Yes. Even on a stock-braked TRX, the L.67149 eliminates the rubber hose expansion that occurs under heavy pedal pressure, resulting in a firmer, less spongy pedal. The improvement is most pronounced under repeated hard stops where the factory rubber lines would otherwise soften progressively as heat builds in the system.
Can I install the L.67149 myself?Installation requires basic mechanical experience, a flare nut wrench set, and the ability to properly bleed the brake system afterward. Proper bleeding is critical. If stripped threads are encountered at the factory hose fittings, chase them with the appropriate die before installation. Rotora does not accept returns on brake lines under any circumstances once they have left the warehouse.
Should I replace front and rear lines at the same time?Yes. For a complete upgrade on the 2021-2023 Ram 1500 TRX, replacing both front and rear brake lines simultaneously is recommended. The Rotora L.67421 rear stainless braided brake line kit is the companion product for the rear axle and is sold separately.
What is the return policy on the L.67149?No returns are accepted on brake lines for any reason. All sales are final once the order is placed. Verify fitment and compatibility before purchasing. If you have any questions about fitment for your specific TRX configuration, contact us before ordering.
Installation Instructions
- Safely lift and support the front of the Ram 1500 TRX on jack stands or a vehicle lift.
- Remove the front wheels to access the brake hose connections at each front corner.
- Place a catch container under each brake hose connection to capture residual brake fluid.
- Using a flare nut wrench, loosen and disconnect the hard brake line from the factory rubber hose at the chassis bracket fitting. Cap the hard line immediately to limit fluid loss.
- Remove the factory rubber brake hose retaining clip from the chassis bracket and disconnect the lower end of the hose from the caliper Banjo fitting. Discard the factory copper crush washers.
- If threads at any fitting are stripped, chase them with the appropriate die before proceeding.
- Install the Rotora L.67149 stainless line with new copper crush washers on both sides of the caliper Banjo fitting. Thread the Banjo bolt in by hand first, then torque to 14 ft-lbs (19 Nm).
- Route the stainless line up to the chassis bracket along the original hose path. Connect to the hard line fitting and install the retaining clip.
- Tighten the hard line fitting using a flare nut wrench to 14 ft-lbs (19 Nm). Do not overtighten.
- Repeat on the opposite front corner.
- Bleed the front brake circuit thoroughly, starting from the caliper furthest from the master cylinder. Confirm no leaks at all fittings before moving on.
- Reinstall wheels, torque to factory spec, and test pedal feel before driving.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
