Click to zoom in
SKU: RS77067

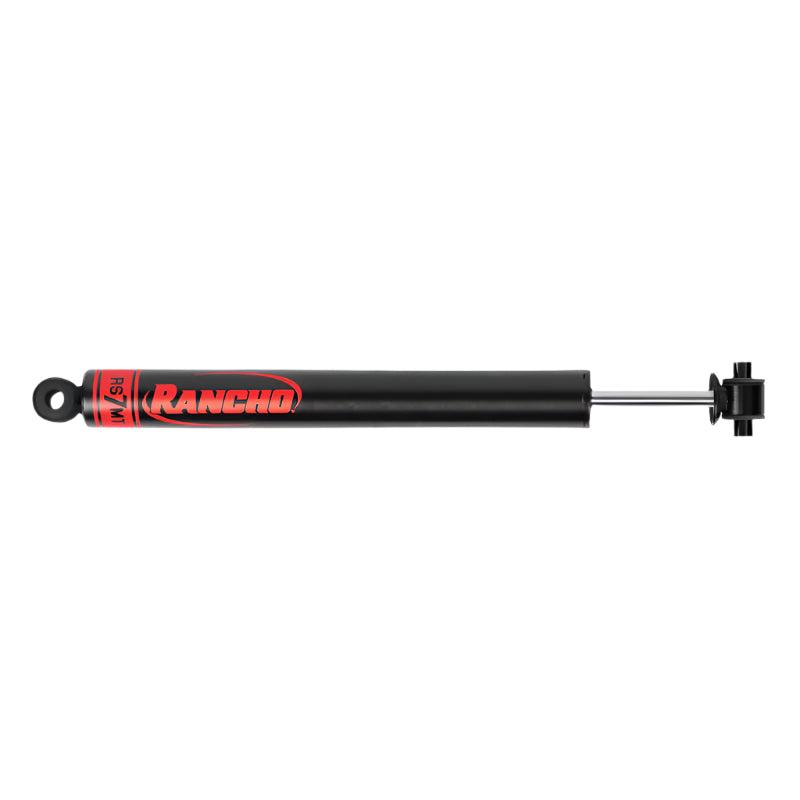

2018-2025 Jeep JL Wrangler / Gladiator RS7MT Shock
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
Features and Benefits

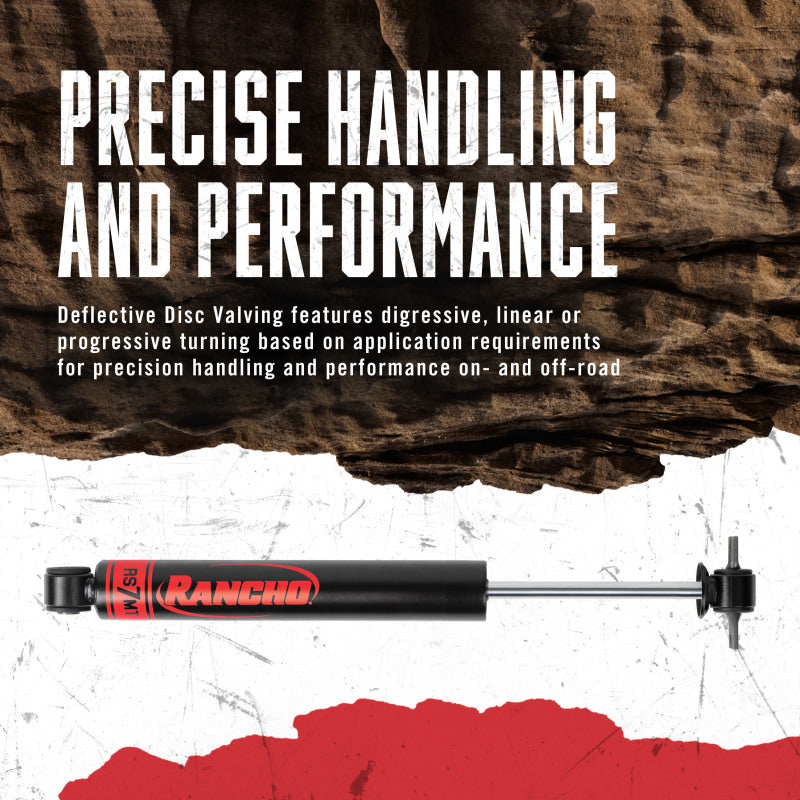

- PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road

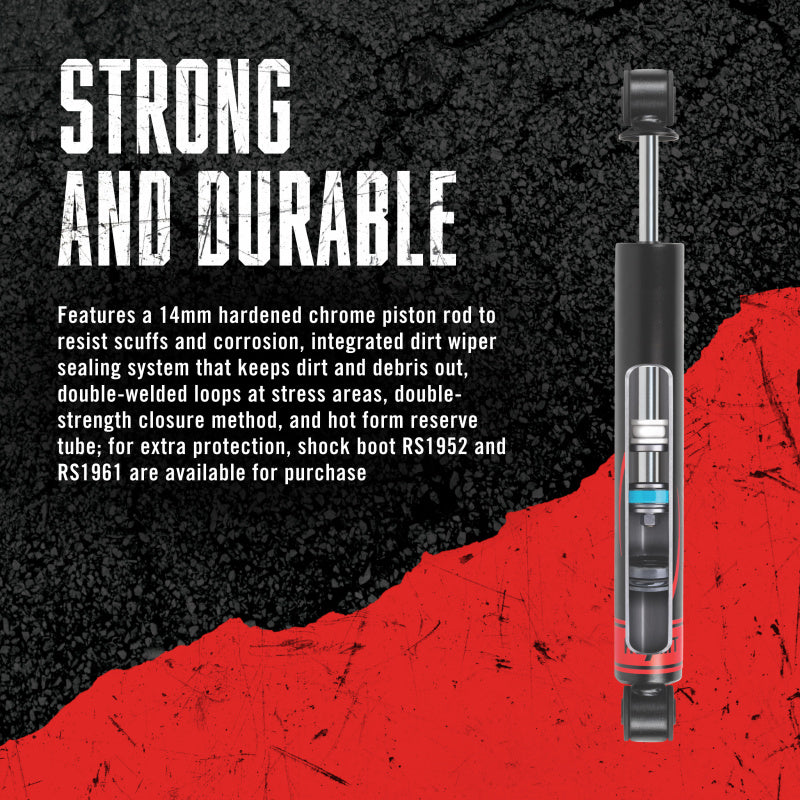

- STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube

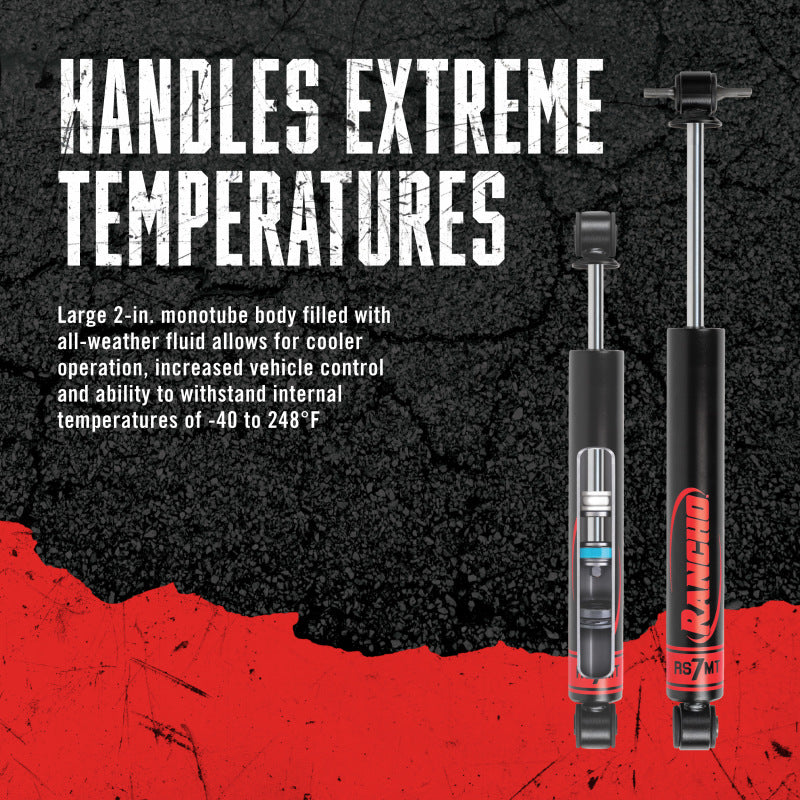

- HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade

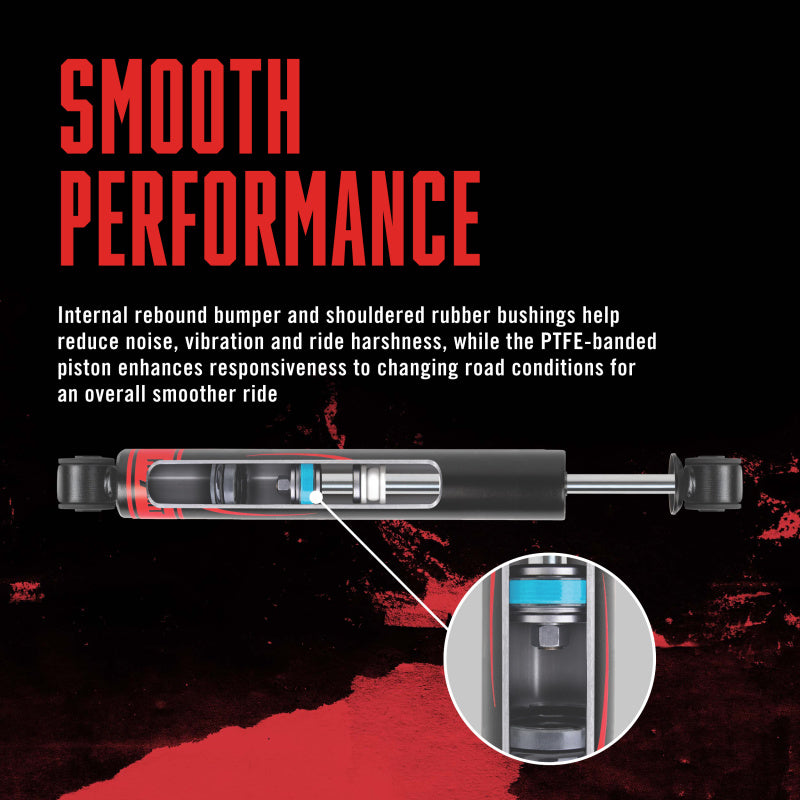

- SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
- KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
- BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961
- BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Specifications:
Part Number: RHORS77067
Description: Rancho 18-21 Jeep JL Wrangler / Gladiator RS7MT Shock
Body Diameter: 1.97
Lower Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Upper Mount Type: Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.3/4" Sleeve OAL
Boot Included: No
Gas Charged: Yes
Parts Pack(s): None
Internal Construction Type: Single Tube
Color: Black
Hydraulic Lockout: No
Shock Absorber Rod End Measuring Point: Eyelet
Shock Absorber Body End Measuring Point: Eyelet
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Type: Telescopic
Finish: Painted
Grade Type: Performance
Shock Absorber Bore Size: 46
Body Color: Black
Rod Diameter: 14
Compressed Length: 467.1
Extended Length: 28.59
Travel Length: 10.2
Shock Stroke: 259.1
Mounting Hardware Included: No
Cylinder Outside Diameter: 50
Body Material: Steel
Cylinder Material: Steel
Cylinder Color: Black
Cylinder Finish: Painted
Dust Shield Included: No
Rod Diameter: 0.5511811023622047
Shaft Material: Chromed
Shock Absorber Bore Size: 1.8110236220472442
Internal Rebound Spring: No
Adjustable Damping: No
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Valving Type: Progressive
Self-Leveling: No
Adjustable Ride Height: No
Maximum Ride Height Lowering Distance: 0
Maximum Ride Height Raising Distance: 0
Lower Mount Code: LS38
Upper Mount Code: LS97
