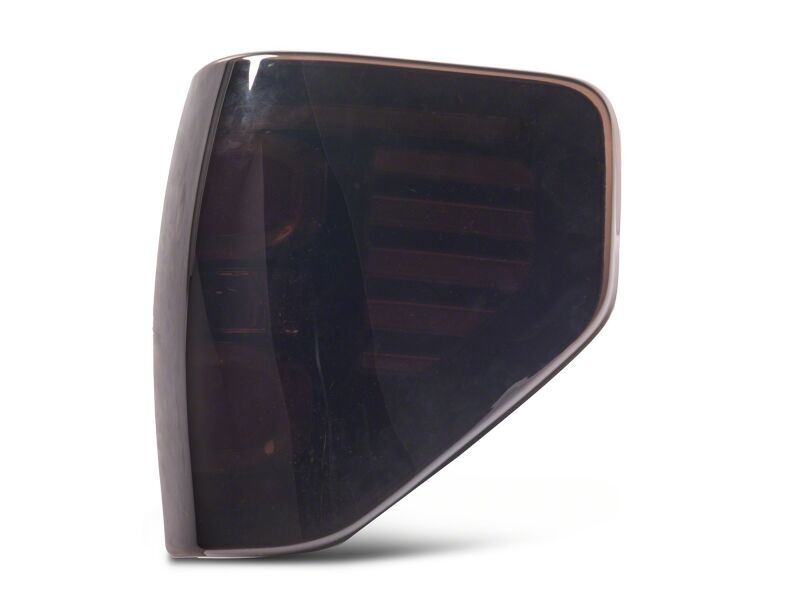

Axial Series LED Tail Lights for 2009-2014 Ford F-150 Styleside with Black Housing and Smoked Lens

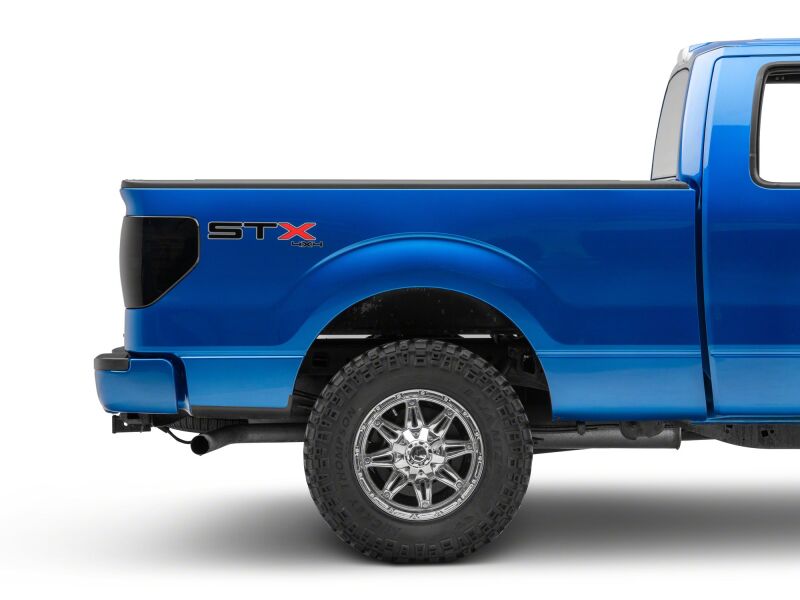

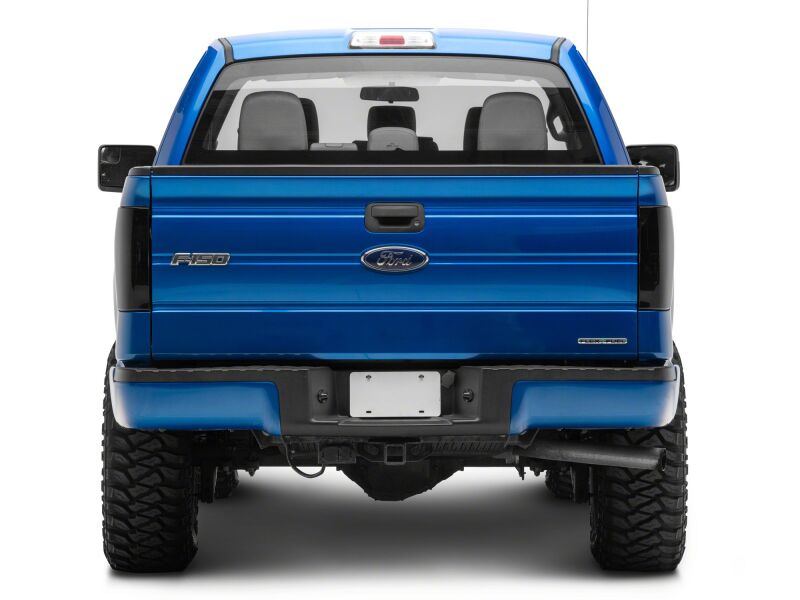

The Raxiom RAXT582534 Axial Series LED tail lights give the 2009-2014 Ford F-150 Styleside a blacked-out, aggressive rear appearance by replacing the factory tail light assemblies with a full LED unit featuring black housing and a dark smoked lens. The Axial Series design retains the factory mounting points and wiring harness connectors for a direct plug-and-play swap with no cutting or splicing required. LED construction delivers faster brake light activation, improved rear visibility, and significantly longer service life compared to the factory halogen tail light bulb configuration. Designed specifically for the 2009-2014 F-150 Styleside body style.
Key Features
- Axial Series full LED tail light assemblies for 2009-2014 Ford F-150 Styleside
- Black housing with smoked lens for a blacked-out, aggressive rear look
- Plug-and-play direct replacement for factory tail lights
- LED technology for faster activation, improved brightness, and longer lifespan
- Styleside-specific fitment
- Sold as a pair (driver and passenger)
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2009-2014 | Ford | F-150 | XL, XLT, STX, FX2, FX4, Lariat, King Ranch, Platinum, Raptor (Styleside body) |
Specifications
| Detail | Value |
|---|---|
| MPN | RAXT582534 |
| Brand | Raxiom |
| Series | Axial Series |
| Product Type | LED Tail Light Assembly (Pair) |
| Housing Color | Black |
| Lens Color | Smoked |
| Light Source | LED |
| Installation | Plug-and-Play |
| Body Style | Styleside |
| Fitment | 2009-2014 Ford F-150 Styleside |
| UPC | N/A |
What's Included

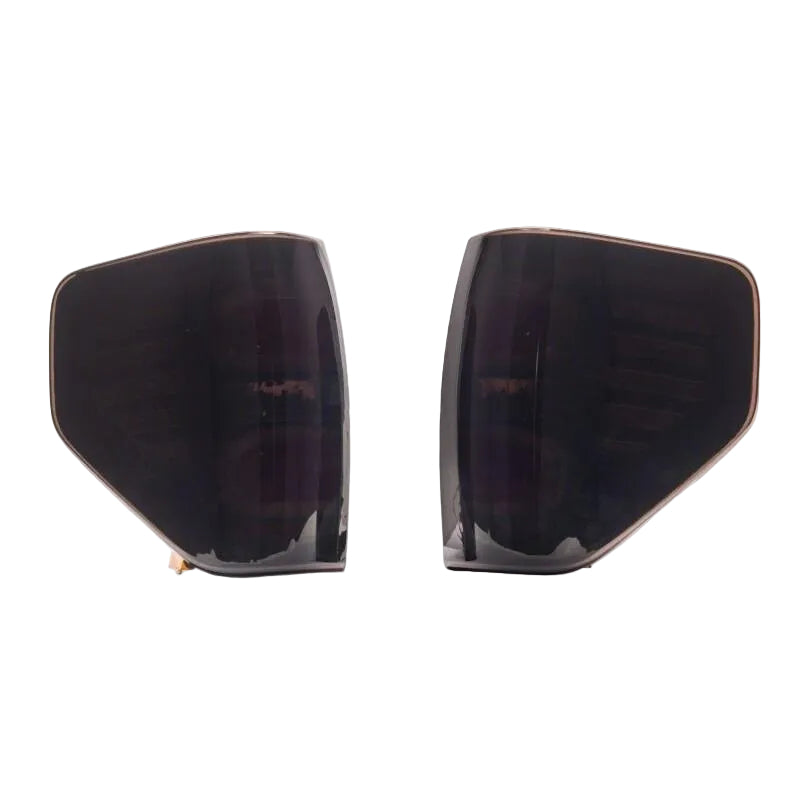

- 2x Raxiom Axial Series LED Tail Light Assemblies (driver and passenger)
- Plug-and-play wiring connectors
- Hardware kit
Frequently Asked Questions
What F-150 years and body styles does the RAXT582534 fit?The RAXT582534 fits the 2009-2014 Ford F-150 in the Styleside body configuration. This covers XL, XLT, STX, FX2, FX4, Lariat, King Ranch, Platinum, and Raptor trims with the Styleside bed. Flareside/short-wide configurations are not compatible.
Is the installation plug-and-play on the 2009-2014 F-150?Yes. The RAXT582534 uses the factory wiring harness connectors on the 2009-2014 F-150. No wire cutting or modification is required. The swap involves removing the factory tail light assemblies and plugging in the Raxiom units.

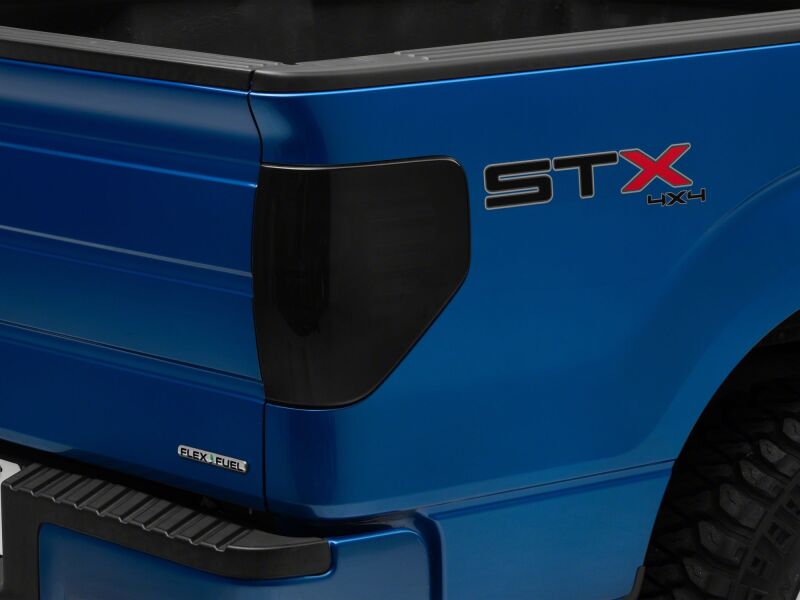

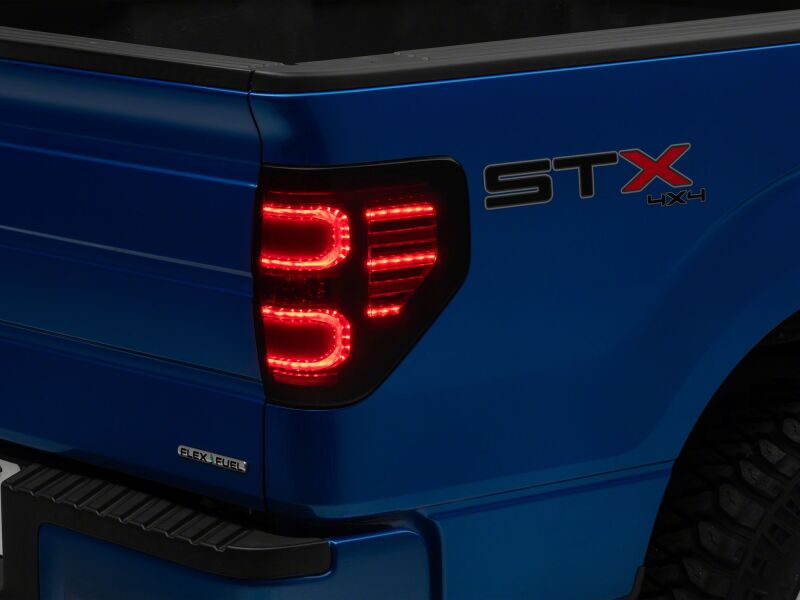

How dark is the smoked lens on the RAXT582534?The smoked lens provides a dark tinted appearance that gives the rear of the F-150 a blacked-out look. The LED elements behind the smoked lens remain visible and compliant during brake and turn signal activation.
Are the RAXT582534 tail lights DOT compliant for street use?Raxiom designs their lighting products to meet applicable standards for street use. Confirm DOT compliance details with Raxiom directly if certification documentation is required for your application.
Will the RAXT582534 trigger any error codes or hyper-flash?Most 2009-2014 F-150 trucks accept these tail lights without error codes. Some vehicles may exhibit turn signal hyper-flash due to the lower electrical resistance of LED elements compared to halogen. A load resistor can resolve this if it occurs.

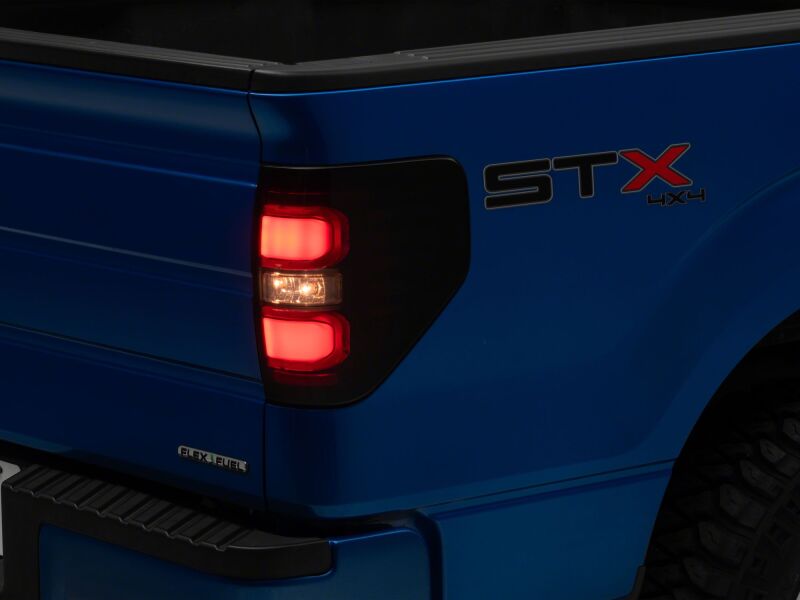

Do the Raxiom RAXT582534 tail lights replace the reverse light as well?Yes. The RAXT582534 is a complete tail light assembly that includes all functions: running, brake, turn signal, and reverse light. All functions use LED elements integrated within the assembly.
What is the difference between Axial Series and standard Raxiom tail lights?The Axial Series designation refers to Raxiom's styling line that uses a specific LED element layout and internal light guide design. Axial Series units are typically characterized by a distinctive LED strip or pod arrangement that provides a modern, layered light signature distinguishable from basic LED replacement assemblies.
Do the RAXT582534 tail lights come with a warranty?Raxiom provides a manufacturer warranty on their lighting products. Refer to Raxiom's current warranty policy at time of purchase for the specific terms applicable to the RAXT582534.
Installation Notes
- Open the tailgate and locate the tail light retaining screws or bolts on each side of the truck bed.
- Remove the fasteners and pull the factory tail light assembly outward from the truck body.
- Disconnect the factory wiring harness connector from the back of each tail light.
- Connect the Raxiom RAXT582534 wiring connector to the factory harness plug on both sides.
- Seat the new assembly into the tail light pocket and reinstall all retaining hardware.
- Close the tailgate and test all functions: running lights, brake lights, turn signals, and reverse lights before driving.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
