-13%
Click to zoom in

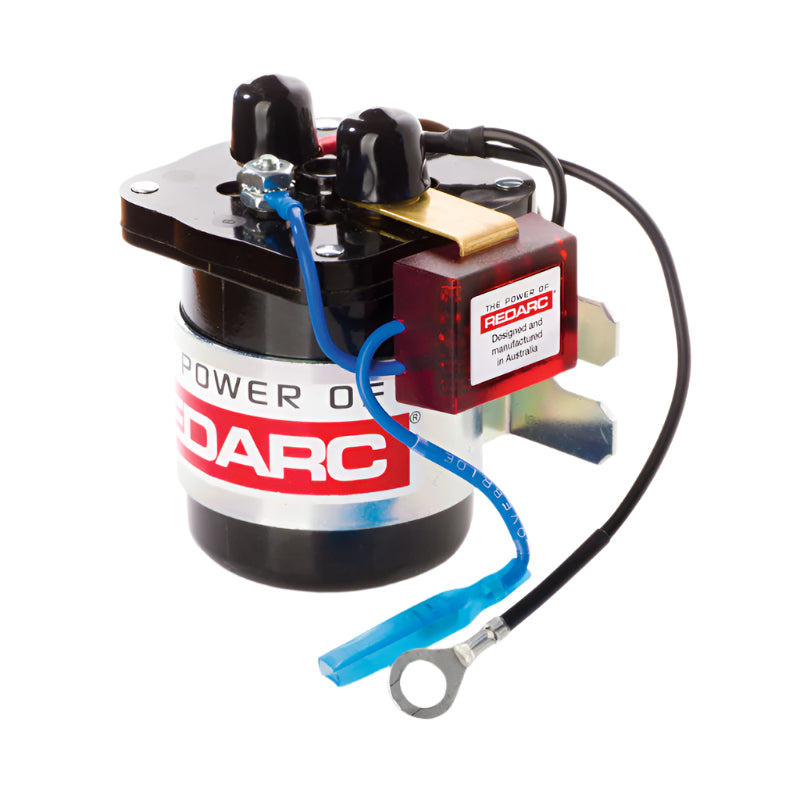

Isolate accessory loads from the starter battery in a compatible heavy-duty dual-battery system. The SBI212 uses voltage-controlled switching to link the batteries during charging and separate them as voltage falls, with a 200A continuous-current rating.
Key Features
- LED operation and fault indication.
- Surge-protected solenoid control.
Fitment
For compatible 12V dual-battery installations. Confirm charging-system and battery suitability. This isolator is not a dedicated lithium battery charger.
Specifications
| Part Number | SBI212 |
|---|---|
| Continuous Rating | 200A |
| Maximum Inrush | 600A |
| Connect / Disconnect | 13.2V / 12.7V |
| On / Off Delay | 5 seconds / 10 seconds |
| Standby Draw | Less than 5mA |
| Dimensions | 90 x 95 x 100mm |
| GTIN | 9338628000043 |
What's Included
One SBI212 battery isolator. Additional installation parts may be required.
Brand Information
REDARC develops vehicle battery-management equipment.
Related Parts
Frequently Asked Questions
Can it carry 600A continuously?
No. The continuous rating is 200A. The 600A figure is the maximum inrush rating.
Can I use it as a lithium charger?
No. It does not provide the dedicated charging cycle required for lithium batteries.
Installation Instructions
Follow the SBI212 manual for wiring and protection. REDARC recommends a qualified installer.
