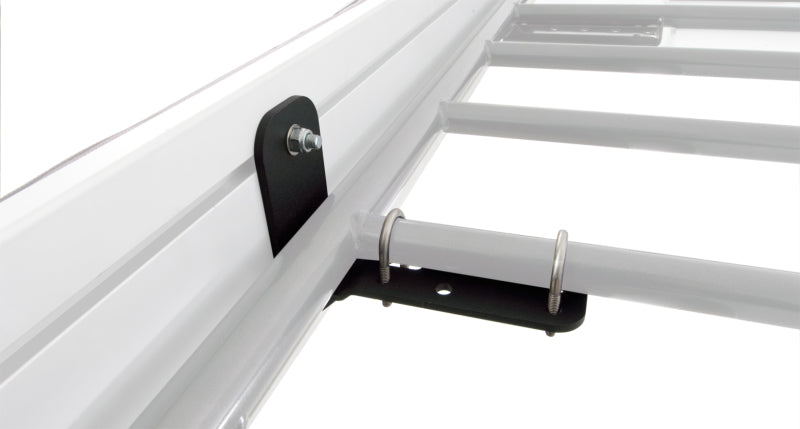

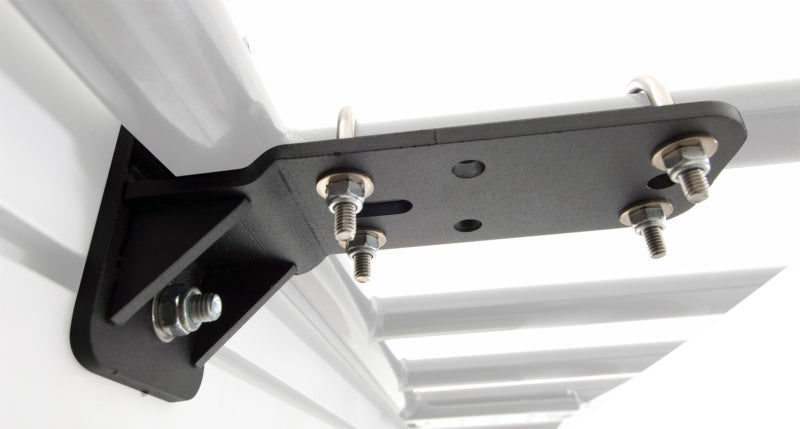

The Batwing Tubular Rack Bracket Kit is a Rhino-Rack mounting bracket for the compatible rack or mounting interface. A manufacturer-listed feature is designed to fit the Rhino-Rack Batwing Awning to an ARB tray or a TJM tray. A manufacturer-listed feature is made sturdy and corrosion resistant with powder coated steel.
Key Features
- The Foxwing HD Bracket Kit has been designed so that the Foxwing Awning can fit the Rhino-Rack Heavy Duty Bar.
Fitment
Universal or interface-specific. Confirm the exact Rhino-Rack platform, crossbar, channel, mounting points, dimensions, load requirements, and vehicle roof configuration before ordering.
Specifications
| Manufacturer | Rhino-Rack |
|---|---|
| Part number | 31103 |
| Product type | Brackets |
| Condition | New |
| Package length | 9.06 inch |
| Package width | 5.91 inch |
| Package height | 3.15 inch |
| Dimensions | 7 inch |
| Fits Awning Type | Batwing (33100 Left) Batwing (33200 Right) Batwing Compact (33300 Left) Batwing Compact (33400 Right) |
| Product Weight | 4.2 lb |
| Country of Origin | Australia |

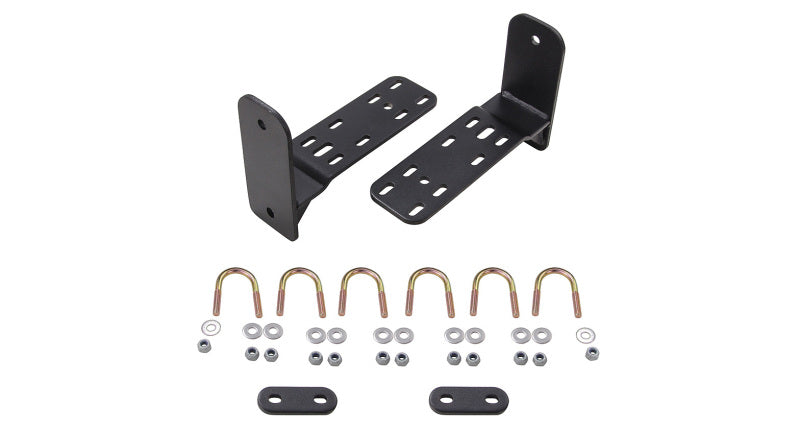

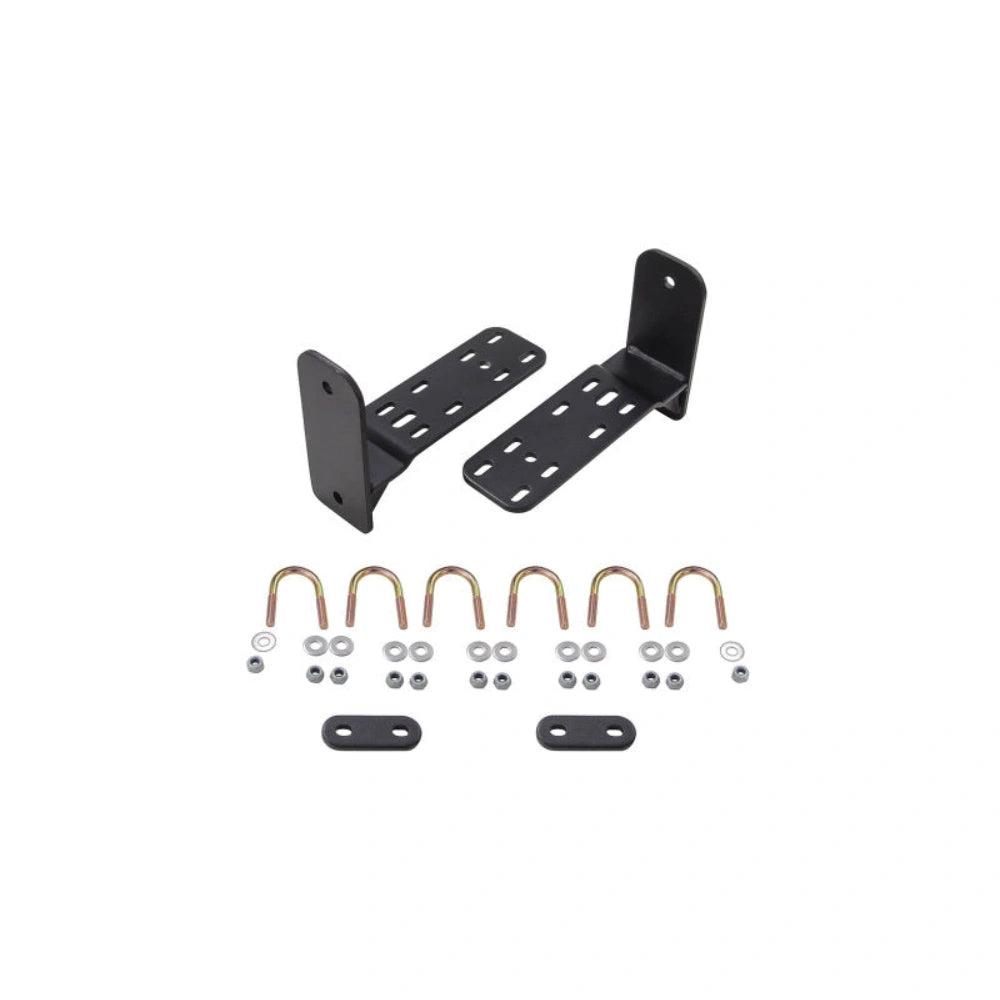

What's Included
One Rhino-Rack brackets matching part number 31103, with the manufacturer-supplied components and hardware specified for this listing. Crossbars, platforms, accessories, tools, and vehicle-specific mounting parts are included only when explicitly stated.
Brand Information
Rhino-Rack develops vehicle cargo, roof-rack, awning, bike, snow-sport, and water-sport carrying systems with application-specific mounting solutions and accessories.
Related Parts
- Rhino Rack Cargo Case 48L
- Rhino Rack Grab Handle With Zwifloc
- Rhino Rack Pioneer Pick Up Kit - Cam Buckle
- Shop all Rhino-Rack products
Frequently Asked Questions

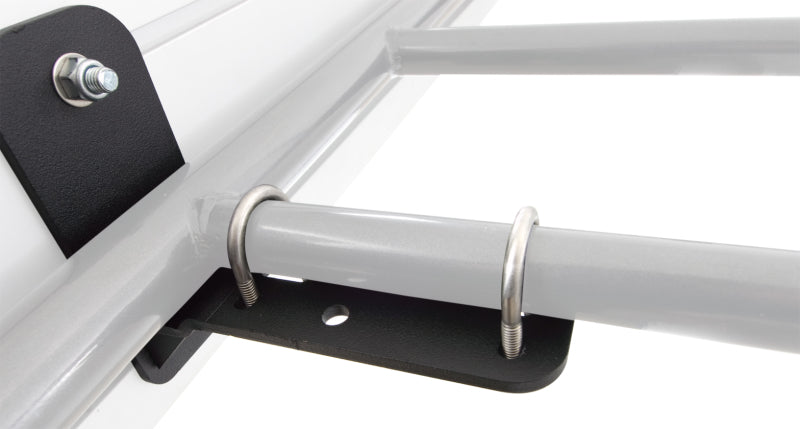

What diameter Steel or Alloy Tube will this bracket fit?
The U bolt clamping system is designed up to 28mm diameter steel or Alloy tube
Installation Instructions
Review the current Rhino-Rack fitting instructions for this exact part number. Confirm the vehicle and rack load limits, assemble the supplied hardware in the specified order, tighten fasteners to the stated values, check clearance, and recheck the installation after initial use.
